Product Overview

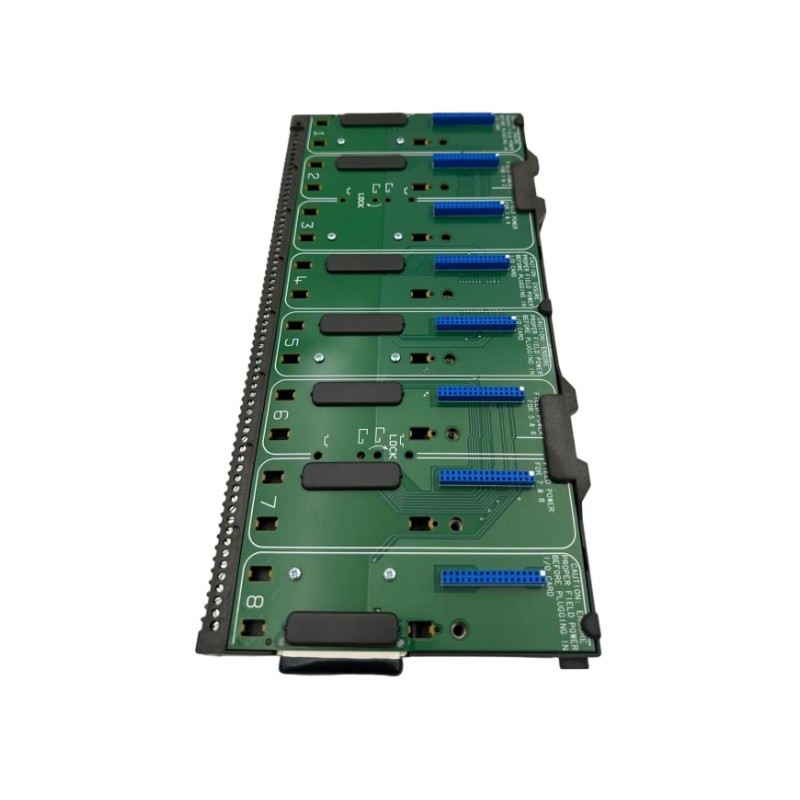

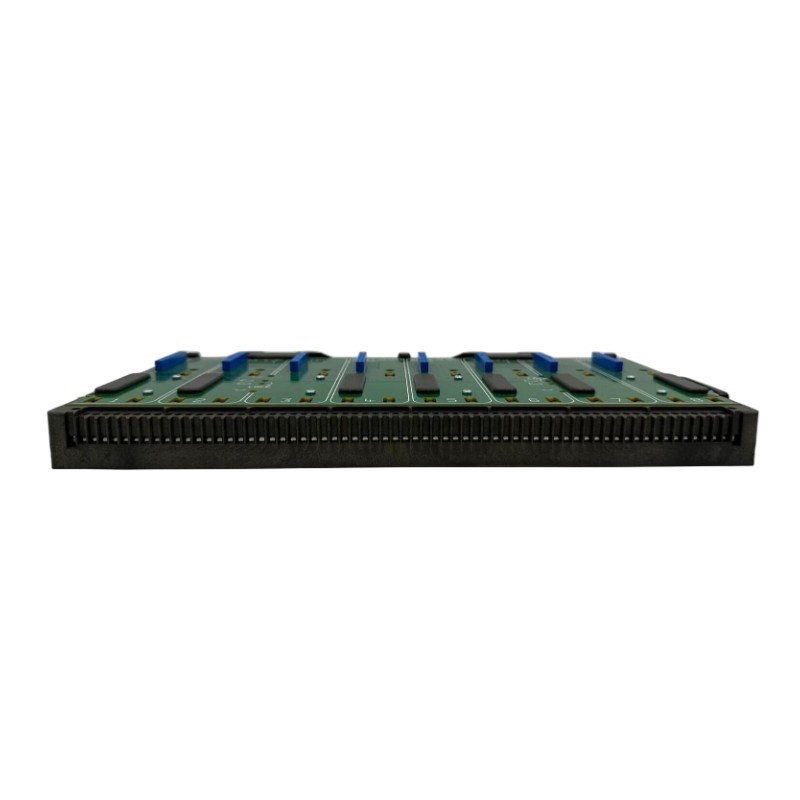

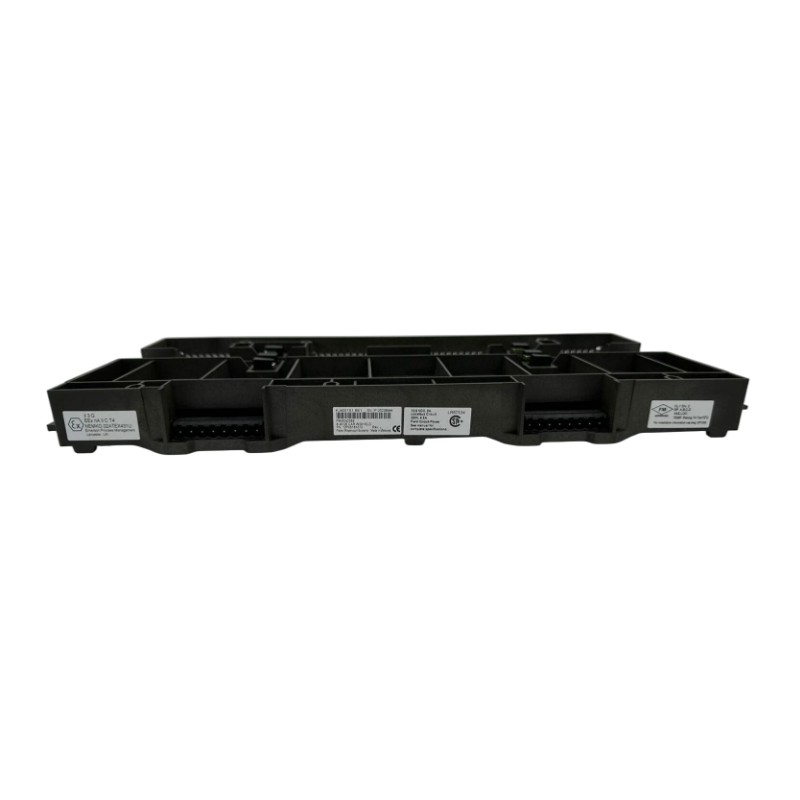

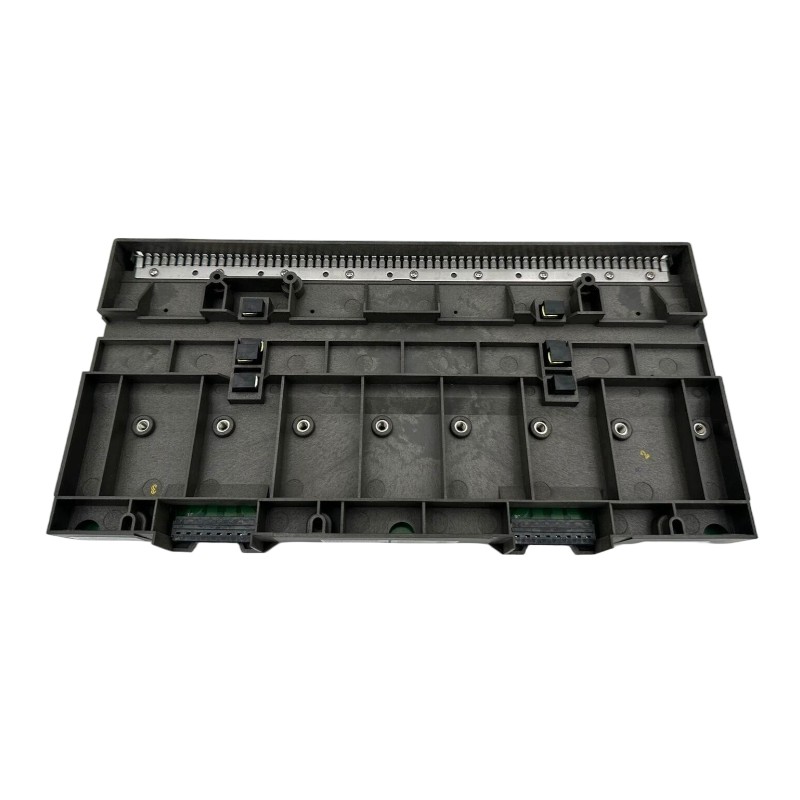

The Emerson SE4050E2C0 DeltaV S-series 8-Wide I/O Interface Carrier is a mounting and interconnection component used within DeltaV S-series I/O architectures. It provides the physical platform for installing compatible S-series I/O interfaces and organizing the I/O hardware within a control system cabinet.
Unlike an I/O signal-processing card, the SE4050E2C0 does not perform the primary measurement or control function itself. Its role is centered on providing the carrier structure and internal interconnection required for the associated I/O interfaces.
The 8-wide arrangement is useful in DeltaV systems where several I/O interfaces need to be grouped in a structured cabinet layout. It can simplify panel organization and provide a consistent connection point between the DeltaV I/O infrastructure and the associated termination assemblies.
In system maintenance, the carrier is particularly relevant when expanding an existing I/O installation, replacing damaged mounting hardware, or reorganizing S-series I/O assemblies. The installed interfaces and associated termination components must be checked for compatibility before replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | SE4050E2C0 |
| Product Family | DeltaV S-series |
| Product Series | S-series |
| Product Type | 8-Wide I/O Interface Carrier |
| Primary Function | I/O interface mounting and interconnection |
| System Role | S-series I/O infrastructure |
| Typical Application | DeltaV distributed I/O systems |
| Dimensions | 348 × 229 mm |
| Weight | 0.5 kg |
Product Features
- DeltaV S-series I/O infrastructure component
- 8-wide carrier configuration
- Supports installation of compatible S-series I/O interfaces
- Provides an organized mounting arrangement for I/O hardware
- Supports structured cabinet-level I/O installation
- Suitable for DeltaV control system expansion and maintenance
- Separates physical I/O infrastructure from individual signal-processing functions
- Can be integrated with compatible S-series termination arrangements
Working Principle
The SE4050E2C0 serves as the physical carrier between the DeltaV I/O infrastructure and the individual S-series I/O interfaces installed on the carrier.
DeltaV Controller → S-series I/O Infrastructure → SE4050E2C0 Carrier → I/O Interfaces → Termination → Field Devices
The carrier establishes the required physical arrangement and interconnection for the installed I/O interfaces. Individual I/O cards or interfaces perform the signal-specific functions, while the carrier maintains the organized connection structure within the I/O assembly.
During operation, field signals reach the appropriate termination and I/O interface. The processed information is then exchanged with the DeltaV controller through the S-series I/O architecture. Output information follows the reverse path from the controller toward the relevant field equipment.
Because the SE4050E2C0 is a carrier rather than a standalone signal-processing module, a failure involving this component should be distinguished from faults in the installed I/O interfaces, termination assemblies, or controller communication path.
Role in a DeltaV S-series Control Architecture
The SE4050E2C0 forms part of the physical I/O infrastructure in a DeltaV S-series installation. It provides the mounting and interconnection structure needed to organize multiple compatible I/O interfaces in the control cabinet.
DeltaV Controller → S-series I/O Infrastructure → SE4050E2C0 → I/O Interfaces → Termination Assemblies → Field Equipment
| System Element | Function |
|---|---|
| DeltaV Controller | Executes control strategy and communicates with distributed I/O |
| S-series I/O Infrastructure | Provides the system-level I/O platform |
| SE4050E2C0 | Provides 8-wide mounting and interconnection for compatible I/O interfaces |
| I/O Interfaces | Process and exchange specific field signals |
| Termination Assemblies | Connect field wiring to the I/O system |
| Field Devices | Supply measurement signals or receive control outputs |
The carrier itself should not be treated as an analog input, digital output, or other signal-processing card. Its function is to support the physical and electrical organization of the S-series I/O assembly.
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Control Systems | Organizing distributed DeltaV I/O assemblies |
| Chemical Plants | Cabinet-level I/O interface installation |
| Oil & Gas Facilities | Structured field I/O integration |
| Power Generation | DeltaV control-system I/O infrastructure |
| Refining Systems | Grouping compatible S-series interfaces |
| Manufacturing Plants | Local distributed I/O installations |
| Water Treatment | Control cabinet I/O organization |
| System Expansion | Adding compatible S-series I/O capacity |
Installation and Maintenance
- Verify that the replacement carrier is the correct SE4050E2C0 model before installation.
- Confirm that the cabinet location provides adequate space for the carrier and associated I/O hardware.
- Check the mounting arrangement and mechanical fixing points before installation.
- Isolate the relevant system or cabinet according to the site’s maintenance procedure.
- Identify the installed I/O interfaces and termination assemblies before removing the existing carrier.
- Label associated wiring and connections to reduce the risk of incorrect reconnection.
- Inspect mounting hardware and connection points for mechanical damage or contamination.
- Install compatible S-series I/O interfaces according to the applicable system configuration.
- Verify all associated interconnections before restoring system power.
- Confirm that the DeltaV controller recognizes the installed I/O configuration after replacement.
- Check field signal operation and communication status during commissioning.
- Record the replacement and verify normal control-system operation before returning the equipment to service.
Related Components
| Component | Function |
|---|---|
| DeltaV Controller | Executes control logic and communicates with distributed I/O |
| S-series I/O Interface | Performs the associated field signal interface function |
| I/O Termination Assembly | Provides field wiring termination |
| DeltaV I/O Infrastructure | Connects distributed I/O components with the control system |
| Field Transmitters | Supplies process measurement signals |
| Digital Field Devices | Provides discrete status or command signals |
| Analog Field Devices | Exchanges continuous process values |
| Control Valves and Actuators | Performs commands from the control system |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson DeltaV S-series I/O | Distributed I/O Platform | Process control and field signal integration |
| Emerson SE4005 Series | S-series Analog Output Card | Analog output applications |
| Emerson SE4006P2 | S-series Serial Interface Card | Serial device communication |
| Emerson SE4035 Series | S-series Redundant Analog Output Card | Redundant analog output applications |
| Emerson SE4050E0C0 | S-series 8-Wide I/O Interface Carrier | S-series I/O mounting and interconnection |
| Emerson KJ4005X1-BE1 | S-series I/O Carrier Assembly | DeltaV S-series I/O infrastructure |
Key Advantages
- Provides an organized 8-wide mounting platform for S-series I/O interfaces
- Supports structured DeltaV cabinet installations
- Simplifies grouping of compatible I/O interfaces
- Separates carrier infrastructure from signal-processing functions
- Suitable for DeltaV system expansion and maintenance
- Supports organized connections between I/O interfaces and termination assemblies
- Useful when replacing or restructuring existing S-series I/O installations
Technical FAQs
What is the main function of the SE4050E2C0?
The SE4050E2C0 is an 8-wide I/O interface carrier used to mount and interconnect compatible DeltaV S-series I/O interfaces. It is an infrastructure component rather than an independent signal-processing card.
Can the SE4050E2C0 process analog or digital field signals by itself?
No. The carrier does not serve as the primary analog or digital signal-processing device. The installed S-series I/O interfaces perform the applicable signal interface functions.
What should be checked when replacing an SE4050E2C0?
Verify the carrier model, installed I/O interfaces, termination arrangement, mechanical mounting, interconnections, and DeltaV configuration. Compatibility between the carrier and the associated S-series hardware should be confirmed before replacement.
How can a carrier problem be distinguished from an I/O interface fault?
Check the physical mounting and interconnection first, then inspect the individual I/O interfaces and termination assemblies. If the carrier and connections are intact but a specific channel or I/O function remains abnormal, the fault may be associated with the corresponding I/O interface, termination, field wiring, or controller configuration.
