Product Overview

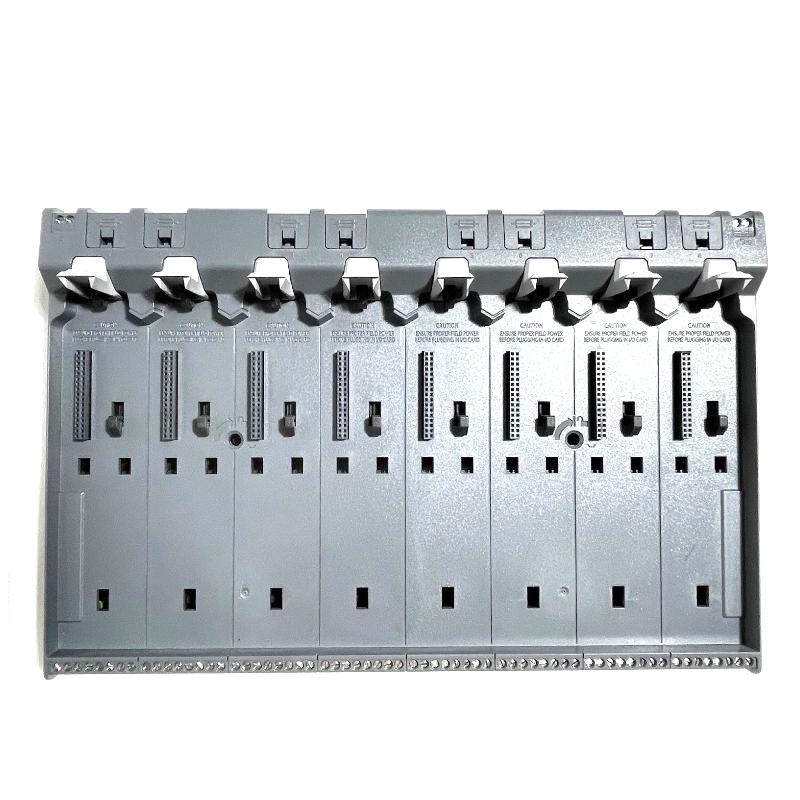

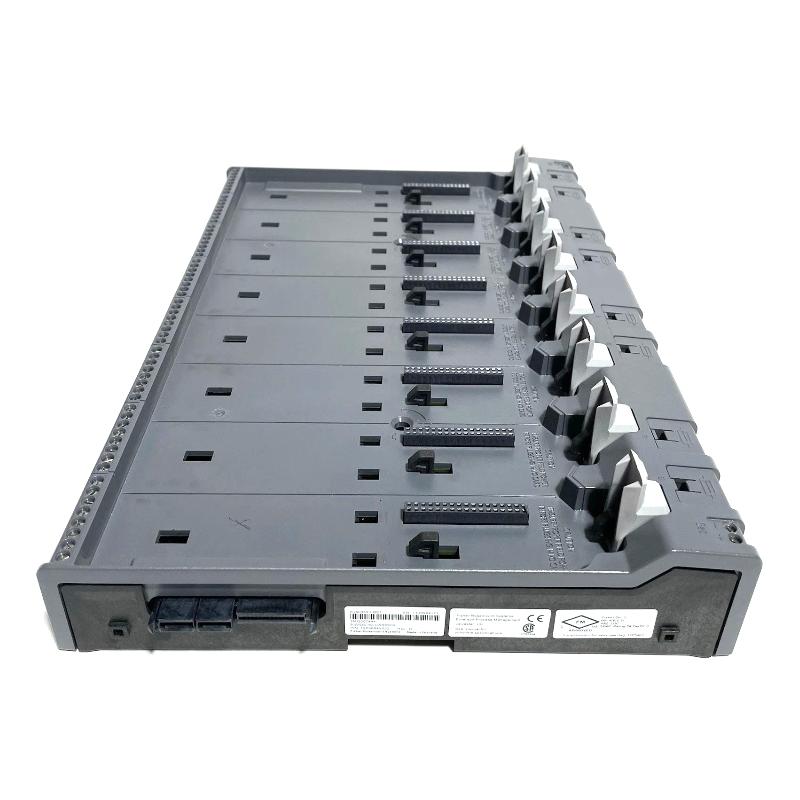

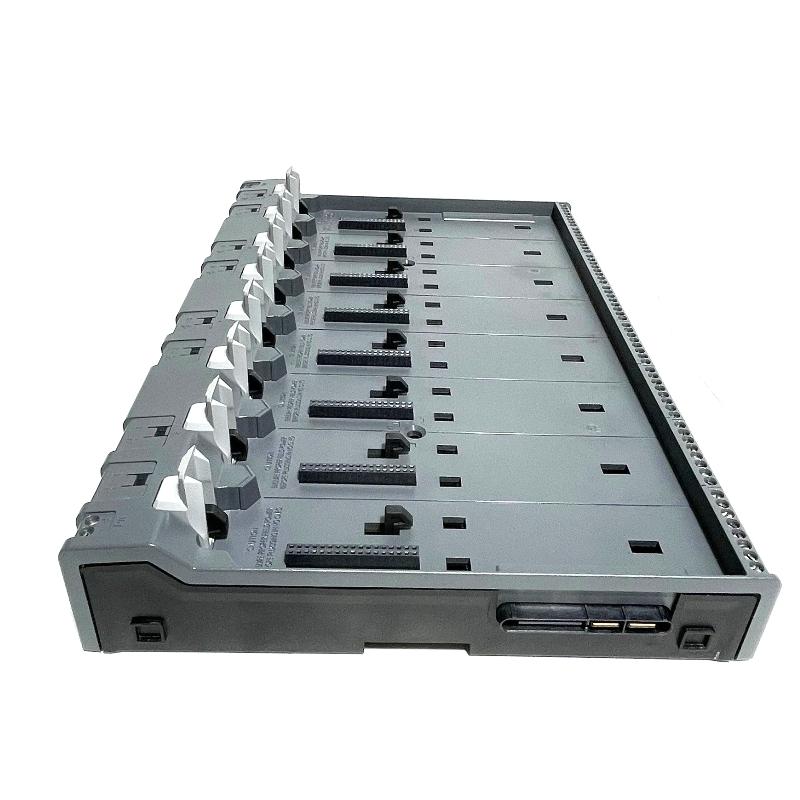

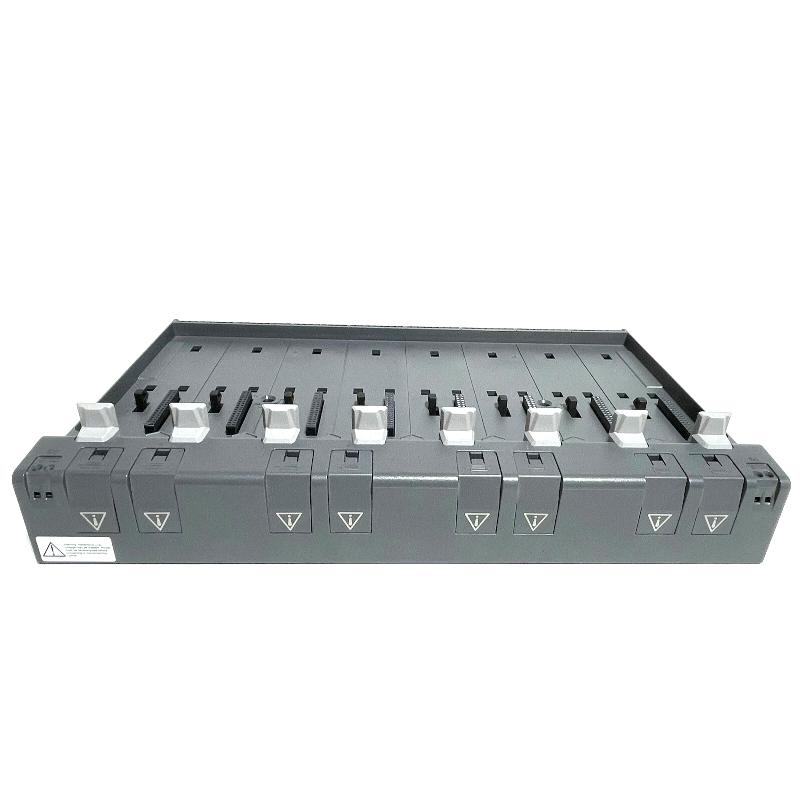

The Emerson SE4050E0C0 KJ4005X1-BE1 DeltaV S-series 8-Wide I/O Interface Carrier is a carrier and interconnection component used to organize compatible DeltaV S-series I/O hardware within a control-system installation. The carrier establishes the physical platform for an eight-wide I/O arrangement and forms part of the infrastructure connecting the installed I/O hardware with the DeltaV system.
Unlike an analog or discrete I/O card, the carrier does not perform the primary field-signal acquisition or output function itself. Its role is concentrated on supporting the associated I/O interfaces and maintaining the required system interconnections within the DeltaV S-series architecture.
The carrier is useful in control cabinets where multiple S-series I/O functions need to be grouped into an organized hardware section. Depending on the system configuration, different I/O functions can be integrated around the carrier to support analog measurement, analog control, discrete signals, or other compatible DeltaV I/O applications.
For maintenance personnel, the carrier provides a defined installation point for the associated I/O hardware. Inspecting the carrier, module connections, and termination interfaces separately can help identify whether an I/O problem originates from the carrier infrastructure or from an individual I/O card or field circuit.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | SE4050E0C0 KJ4005X1-BE1 |
| Product Family | DeltaV S-series |
| Product Series | S-series |
| Product Type | 8-Wide I/O Interface Carrier |
| Primary Function | Mounting and interconnection of S-series I/O interfaces |
| System Role | I/O carrier / system interface |
| Typical Application | DeltaV distributed process-control systems |
| Installation | DeltaV S-series I/O system |
| Dimensions | 348 × 229 mm |
| Weight | 0.5 kg |
Product Features
- DeltaV S-series 8-wide I/O interface carrier
- Associated with part number KJ4005X1-BE1
- Provides a structured mounting platform for compatible I/O hardware
- Supports interconnection within the S-series I/O architecture
- Helps organize multiple I/O functions within control cabinets
- Suitable for distributed process-control installations
- Simplifies physical arrangement of I/O hardware and associated connections
- Supports maintenance access to the S-series I/O subsystem
Working Principle
The SE4050E0C0 KJ4005X1-BE1 functions as the infrastructure layer between the DeltaV S-series I/O hardware and its associated system connections. It holds the configured I/O interfaces in the required carrier arrangement and supports the internal connections used by the I/O architecture.
DeltaV Controller → S-series I/O Infrastructure → SE4050E0C0 / KJ4005X1-BE1 → I/O Interfaces → Termination → Field Devices
The actual field signals are processed by the appropriate I/O interfaces installed within the system. Input cards acquire process measurements or equipment states, while output cards transmit control commands to field devices.
For example, an analog input card installed within the S-series architecture can receive a process measurement from a transmitter through the termination system. An analog output card can similarly transfer a controller-generated command toward a valve positioner or actuator.
The carrier provides the common physical and interconnection framework for these I/O functions. It does not independently execute the DeltaV control strategy or replace the signal-processing functions of the installed I/O cards.
Role in a DeltaV S-series Control Architecture
The SE4050E0C0 KJ4005X1-BE1 occupies the carrier and interconnection layer of the DeltaV S-series I/O architecture. It supports the physical organization of multiple compatible I/O interfaces within the control system.
DeltaV Controller → S-series I/O Infrastructure → SE4050E0C0 KJ4005X1-BE1 → I/O Cards / Interfaces → Termination → Field Equipment
| System Element | Function |
|---|---|
| DeltaV Controller | Executes process-control strategies |
| S-series I/O Infrastructure | Provides the distributed I/O platform |
| SE4050E0C0 KJ4005X1-BE1 | Provides the 8-wide carrier and interconnection structure |
| S-series I/O Cards | Performs configured input, output, or interface functions |
| Termination Assembly | Connects I/O hardware with field wiring |
| Field Wiring | Carries process and control signals |
| Field Instruments | Measures process conditions or provides equipment status |
| Control Devices | Receives commands from the control system |
The carrier forms part of the physical infrastructure that allows these elements to operate together as an organized DeltaV I/O subsystem.
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | Organizing distributed DeltaV S-series I/O hardware |
| Oil and Gas | Supporting structured I/O cabinet installations |
| Chemical Processing | Grouping I/O interfaces for process-control systems |
| Refining | Integrating multiple I/O functions within control cabinets |
| Power Generation | Supporting plant control and instrumentation infrastructure |
| Water and Wastewater | Organizing distributed field I/O hardware |
| Pharmaceutical Manufacturing | Maintaining structured process-control I/O installations |
| Manufacturing Plants | Supporting centralized or distributed DeltaV I/O arrangements |
Installation and Maintenance
- Install the SE4050E0C0 KJ4005X1-BE1 in the designated DeltaV S-series control-cabinet location.
- Verify the carrier orientation and mounting arrangement before securing it.
- Confirm that the planned I/O interfaces are compatible with the carrier configuration.
- Check mechanical mounting points and fasteners for secure installation.
- Verify internal interconnections before installing or energizing the associated I/O hardware.
- Confirm that each I/O interface is installed in its intended position.
- Route field and communication wiring according to the approved cabinet layout.
- Avoid excessive mechanical stress on the carrier, connectors, and associated I/O hardware.
- Inspect carrier connections when multiple I/O functions show communication or availability problems.
- Check termination interfaces when individual field signals do not reach the expected I/O channel.
- Follow the applicable DeltaV electrical isolation and maintenance procedure before removing the carrier or associated hardware.
- After installation or replacement, verify carrier connections, I/O diagnostics, controller communication, field signals, and representative control loops.
Related Components
| Component | Function |
|---|---|
| Emerson DeltaV Controller | Executes process-control strategies |
| DeltaV S-series I/O Cards | Performs field signal acquisition and output functions |
| S-series Termination Assemblies | Provides the interface to field wiring |
| Analog Input Cards | Acquires continuous process measurements |
| Analog Output Cards | Sends continuous control commands |
| Discrete I/O Cards | Handles on/off field signals |
| Serial Interface Cards | Connects compatible serial devices |
| Field Instruments | Measures or controls process conditions |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson DeltaV S-series | Modular I/O Platform | Distributed process-control I/O |
| Emerson SE4050E0C0 | S-series 8-Wide I/O Interface Carrier | S-series I/O hardware installation |
| Emerson SE4035S2B1 | S-series Redundant Analog Output Card | Redundant analog process control |
| Emerson SE4005S2B3 | S-series Analog Output Card | Analog process output applications |
| Emerson SE4005S2B4 | S-series Analog Output Plus Card | Enhanced analog output applications |
| Emerson SE4006P2 | S-series Serial Interface Card | Serial device integration |
Key Advantages
- Provides an organized eight-wide carrier platform for DeltaV S-series I/O hardware
- Supports physical integration of multiple compatible I/O interfaces
- Helps maintain structured control-cabinet layouts
- Provides the carrier and interconnection layer for the S-series I/O architecture
- Simplifies inspection and maintenance of grouped I/O hardware
- Suitable for distributed process-control installations
Technical FAQs
What is the relationship between SE4050E0C0 and KJ4005X1-BE1?
SE4050E0C0 identifies the Emerson I/O carrier model, while KJ4005X1-BE1 is an associated DeltaV assembly or ordering identifier. When replacing the component, both identifiers should be checked against the installed system documentation and hardware configuration.
Does the SE4050E0C0 KJ4005X1-BE1 process field signals?
The carrier itself is not the primary field-signal processing device. Signal acquisition and output functions are performed by the appropriate S-series I/O interfaces installed within the DeltaV architecture, while the carrier provides their physical and interconnection infrastructure.
What symptoms can indicate a carrier or common I/O infrastructure problem?
If several I/O interfaces associated with the same carrier become unavailable at the same time, inspect common carrier connections, system power, communication paths, and termination infrastructure before replacing individual I/O cards. A single-channel problem is more likely to require investigation of that channel’s I/O card or field circuit.
What should be checked after replacing the carrier?
Verify the carrier mounting, installed I/O positions, internal connections, termination interfaces, and DeltaV I/O configuration. After reassembly, check I/O diagnostics and test representative input and output loops to confirm that the complete signal path is operating correctly.
