Product Overview

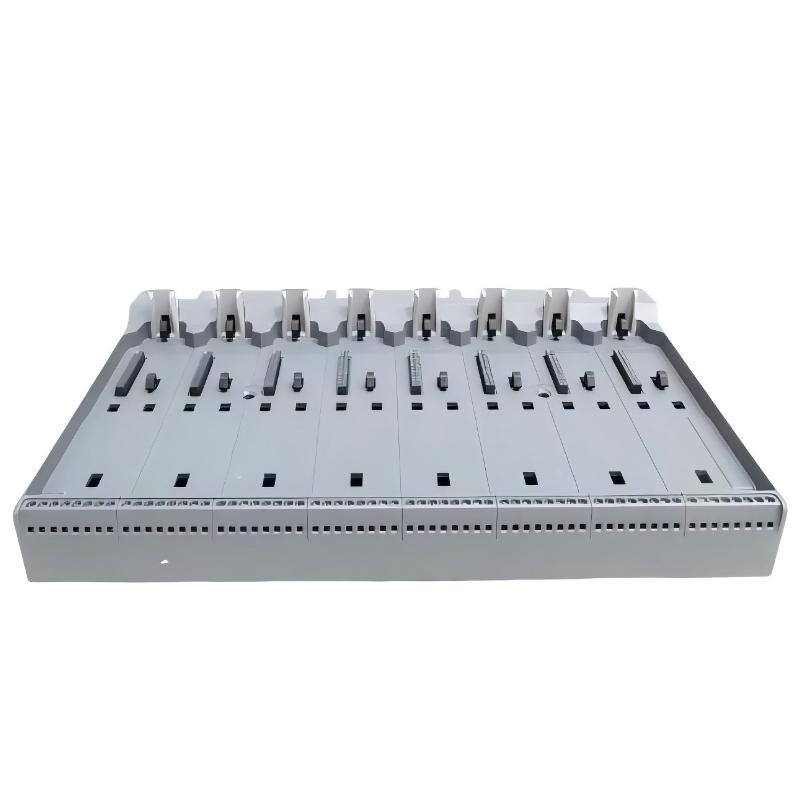

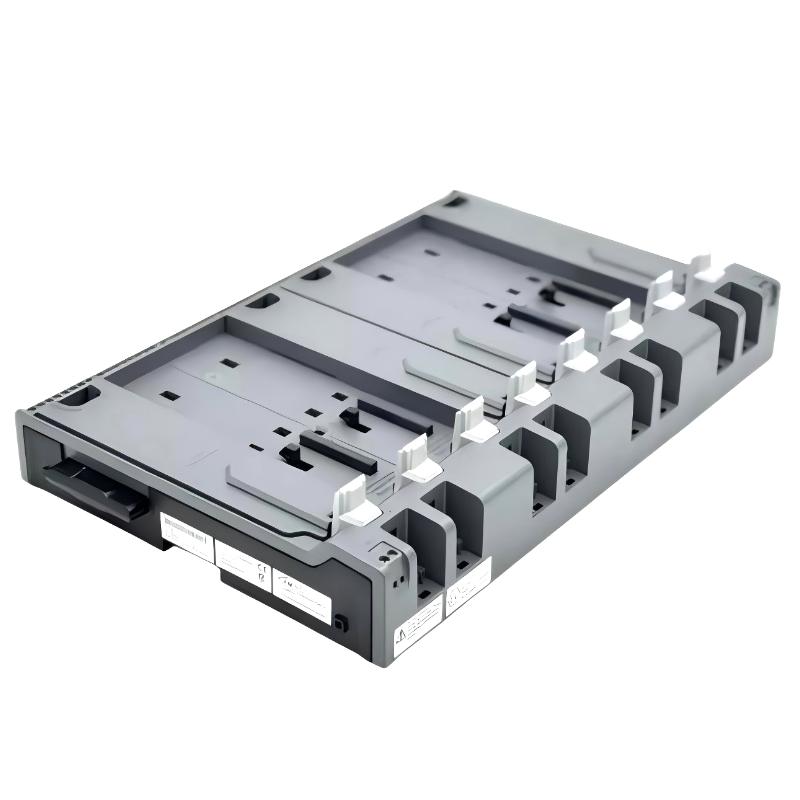

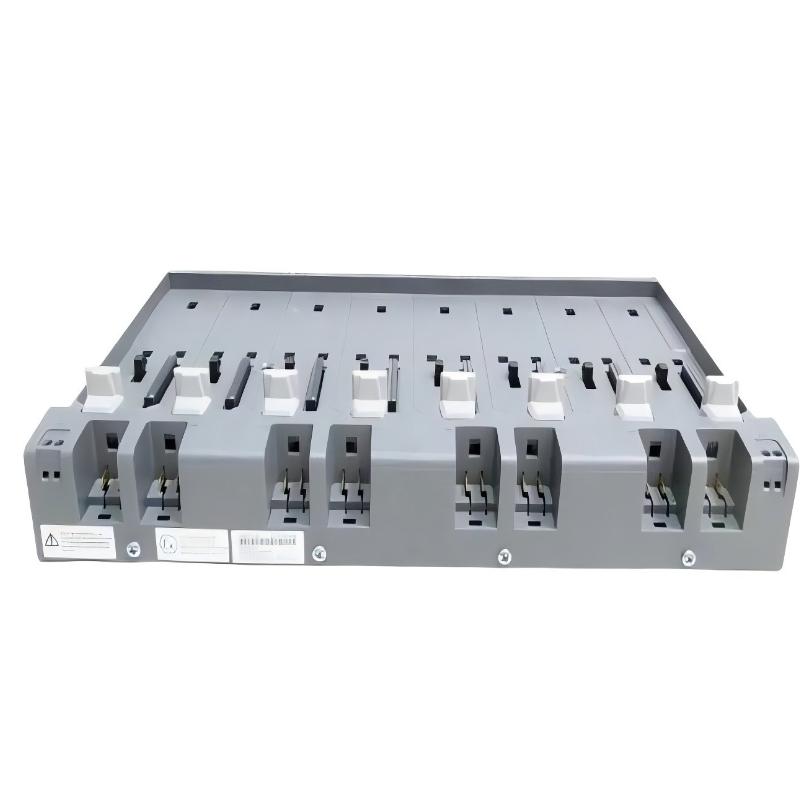

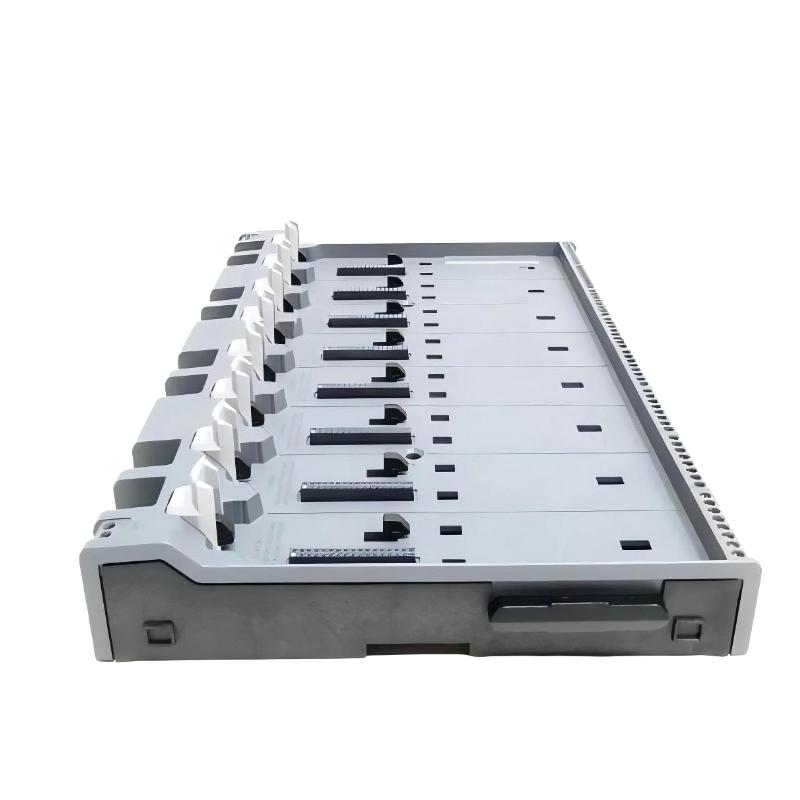

The Emerson SE4050E0C0 DeltaV S-series 8-Wide I/O Interface Carrier is a mounting and interconnection component for DeltaV S-series I/O systems. It provides the physical platform for integrating multiple S-series I/O interfaces into a distributed control system while maintaining the internal connections required by the I/O architecture.
The carrier is used within the DeltaV I/O subsystem rather than as an independent signal-processing module. It accommodates the associated I/O hardware and establishes the structural and electrical interface between the installed I/O components and the wider DeltaV system.
An 8-wide carrier is particularly useful in control cabinets where several I/O functions need to be grouped in one organized section. Analog, discrete, serial, and other compatible S-series I/O functions can be arranged within the DeltaV I/O architecture according to the application configuration.
For installation and maintenance, the carrier provides a defined physical location for the associated I/O hardware. This makes it easier to organize field termination connections, I/O modules, and system wiring while allowing technicians to inspect the carrier and connected components separately when troubleshooting.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | SE4050E0C0 |
| Product Family | DeltaV S-series |
| Product Series | S-series |
| Product Type | 8-Wide I/O Interface Carrier |
| Primary Function | Mounting and interconnection of S-series I/O interfaces |
| System Role | I/O carrier / system interface |
| Typical Application | DeltaV distributed process-control systems |
| Installation | DeltaV S-series I/O system |
| Dimensions | 348 × 229 mm |
| Weight | 0.5 kg |
Product Features
- DeltaV S-series I/O interface carrier
- 8-wide configuration for grouping compatible I/O hardware
- Provides mechanical support for associated I/O interfaces
- Forms part of the DeltaV S-series I/O infrastructure
- Helps organize I/O hardware within control cabinets
- Supports structured integration of field I/O functions
- Suitable for distributed process-control installations
- Simplifies physical organization and maintenance of S-series I/O equipment
Working Principle
The SE4050E0C0 functions as the carrier layer within a DeltaV S-series I/O installation. It does not independently execute control strategies or process field signals. Instead, it provides the mounting and interconnection structure through which the associated I/O hardware is integrated into the DeltaV system.
DeltaV Controller → S-series I/O Infrastructure → SE4050E0C0 Carrier → I/O Interfaces → Field Termination → Field Devices
The carrier holds the associated I/O interfaces in their configured positions and maintains the required internal connections between the I/O hardware and the DeltaV system. Field signals are handled by the appropriate I/O modules or interfaces installed within the architecture.
For example, an analog output card may use the carrier and associated termination infrastructure to form a complete path from a DeltaV control strategy to a control valve. Similarly, an analog input or discrete I/O interface can use the same system infrastructure to connect field measurements or equipment status signals back to the controller.
The carrier therefore serves as an infrastructure component rather than a signal-processing device. Correct installation of the carrier and its associated connections is important for maintaining the intended I/O communication path.
Role in a DeltaV S-series Control Architecture
The SE4050E0C0 occupies the physical carrier layer of a DeltaV S-series I/O architecture. It organizes and interconnects the compatible I/O interfaces that communicate with the DeltaV control system.
DeltaV Controller → S-series I/O Infrastructure → SE4050E0C0 → I/O Cards / Interfaces → Termination → Field Equipment
| System Element | Function |
|---|---|
| DeltaV Controller | Executes process-control strategies |
| S-series I/O Infrastructure | Provides the distributed I/O platform |
| SE4050E0C0 | Provides the 8-wide carrier and interconnection structure |
| S-series I/O Interfaces | Handles the configured field signal functions |
| Termination Assembly | Provides the connection between I/O and field wiring |
| Field Wiring | Carries process and control signals |
| Field Devices | Measures process conditions or performs control actions |
| Operator Interface | Provides process monitoring and operator interaction |
The carrier itself does not replace the I/O cards or termination equipment. Its function is to provide the infrastructure required to assemble these elements into a coherent DeltaV I/O subsystem.
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | Organizing distributed DeltaV I/O installations |
| Oil and Gas | Supporting structured I/O cabinet layouts |
| Chemical Processing | Grouping field I/O interfaces within process-control cabinets |
| Power Generation | Supporting DeltaV-based plant control infrastructure |
| Refining | Organizing multiple I/O functions in centralized or distributed cabinets |
| Water and Wastewater | Integrating field I/O hardware into process-control systems |
| Pharmaceutical Manufacturing | Supporting organized I/O installation and maintenance |
| Manufacturing Plants | Providing an expandable physical platform for S-series I/O |
Installation and Maintenance
- Install the SE4050E0C0 in the designated DeltaV S-series I/O cabinet location.
- Verify the carrier orientation and mounting arrangement before securing it.
- Confirm that the selected I/O interfaces are compatible with the carrier configuration.
- Check mechanical mounting points and fasteners for secure installation.
- Verify all internal I/O interconnections before installing associated modules.
- Route field and communication wiring according to the approved cabinet layout.
- Ensure that wiring does not place excessive mechanical stress on the carrier or connected interfaces.
- Check termination connections when an installed I/O channel does not communicate correctly.
- Inspect the carrier and adjacent I/O hardware for physical damage during maintenance.
- Keep the carrier and surrounding cabinet area clean and free from conductive contamination.
- Follow the applicable DeltaV maintenance and electrical isolation procedure before removing connected I/O hardware.
- After replacement or reinstallation, verify carrier connections, I/O status, controller communication, field signals, and complete loop operation.
Related Components
| Component | Function |
|---|---|
| Emerson DeltaV Controller | Executes process-control strategies |
| DeltaV S-series I/O Cards | Performs field signal acquisition and output functions |
| S-series Termination Assemblies | Interfaces I/O hardware with field wiring |
| Analog Input Cards | Acquires continuous process measurements |
| Analog Output Cards | Sends continuous control commands |
| Discrete I/O Cards | Handles on/off field signals |
| Serial Interface Cards | Connects compatible serial field devices |
| Field Instruments | Measures or controls process conditions |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson DeltaV S-series | Modular I/O Platform | Distributed process-control I/O |
| Emerson SE4050E0C0 | S-series 8-Wide I/O Interface Carrier | S-series I/O hardware installation |
| Emerson SE4035S2B1 | S-series Redundant Analog Output Card | Redundant analog process control |
| Emerson SE4005S2B3 | S-series Analog Output Card | Analog process output applications |
| Emerson SE4005S2B4 | S-series Analog Output Plus Card | Enhanced analog output applications |
| Emerson SE4006P2 | S-series Serial Interface Card | Serial device integration |
Key Advantages
- Provides an organized carrier platform for DeltaV S-series I/O hardware
- Supports an 8-wide I/O arrangement
- Simplifies physical integration of multiple I/O interfaces
- Helps maintain structured control-cabinet layouts
- Supports organized field termination and I/O connections
- Facilitates maintenance and inspection of distributed I/O installations
Technical FAQs
What is the primary function of SE4050E0C0?
The SE4050E0C0 serves as an 8-wide carrier and interconnection component within the DeltaV S-series I/O architecture. It provides the physical infrastructure for associated I/O interfaces rather than independently processing field signals.
Can the carrier process analog or discrete signals by itself?
No. Signal acquisition and output functions are performed by the appropriate I/O cards or interfaces installed in the DeltaV architecture. The carrier provides the mechanical and interconnection infrastructure needed by those components.
What should be checked if several I/O interfaces associated with the carrier become unavailable?
When multiple I/O functions are affected simultaneously, inspect the common carrier connections, power and communication paths, associated termination infrastructure, and DeltaV I/O diagnostics before replacing individual I/O cards. A common infrastructure fault can affect multiple channels at once.
What should be verified after replacing SE4050E0C0?
Check the carrier mounting, internal interconnections, installed I/O interfaces, termination connections, and DeltaV configuration. After reassembly, verify I/O communication and test representative field signals or control loops before returning the system to normal operation.
