Product Overview

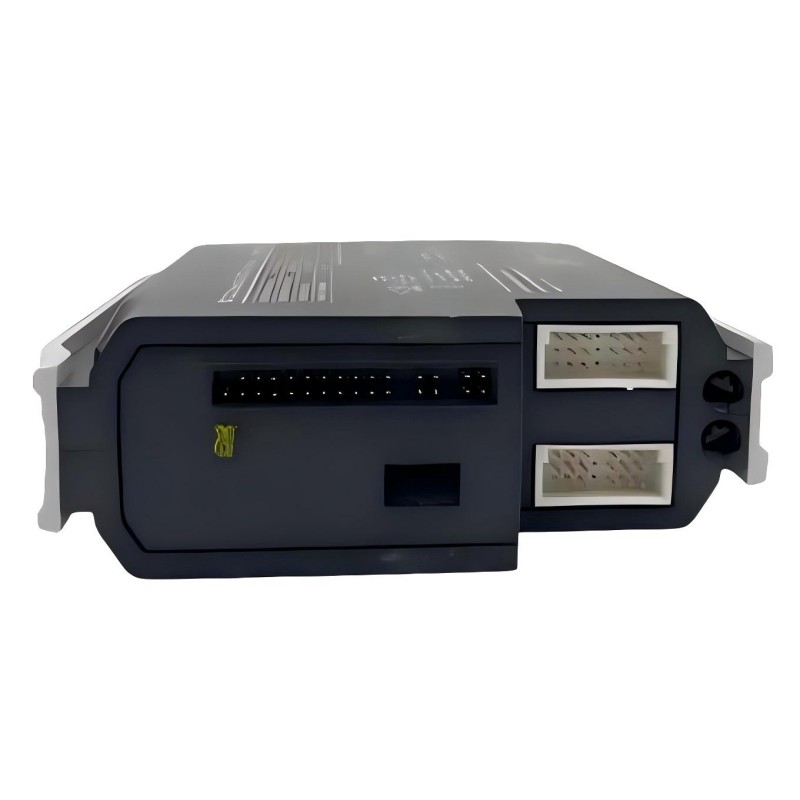

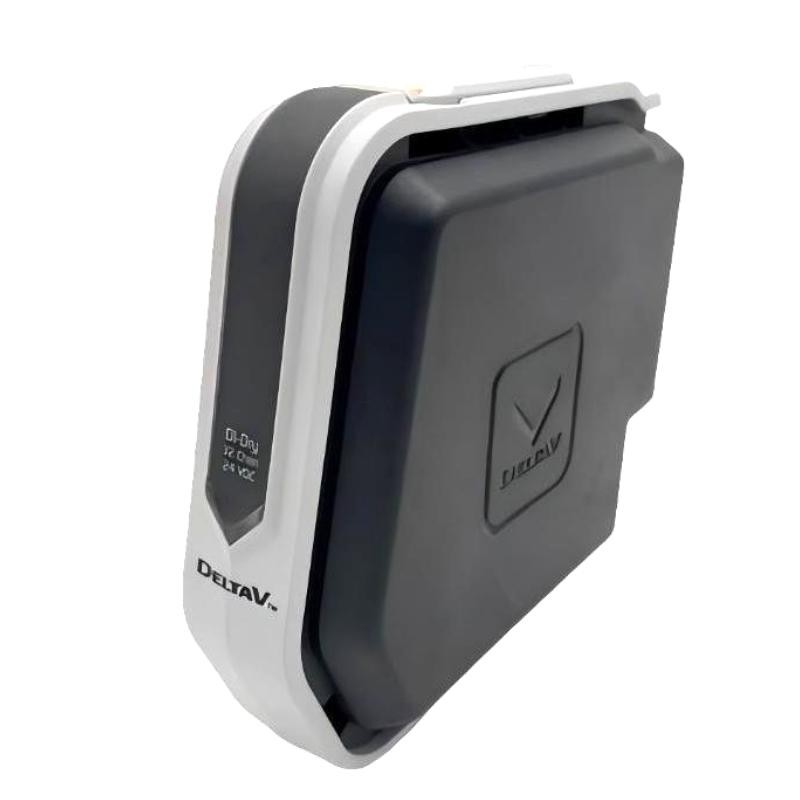

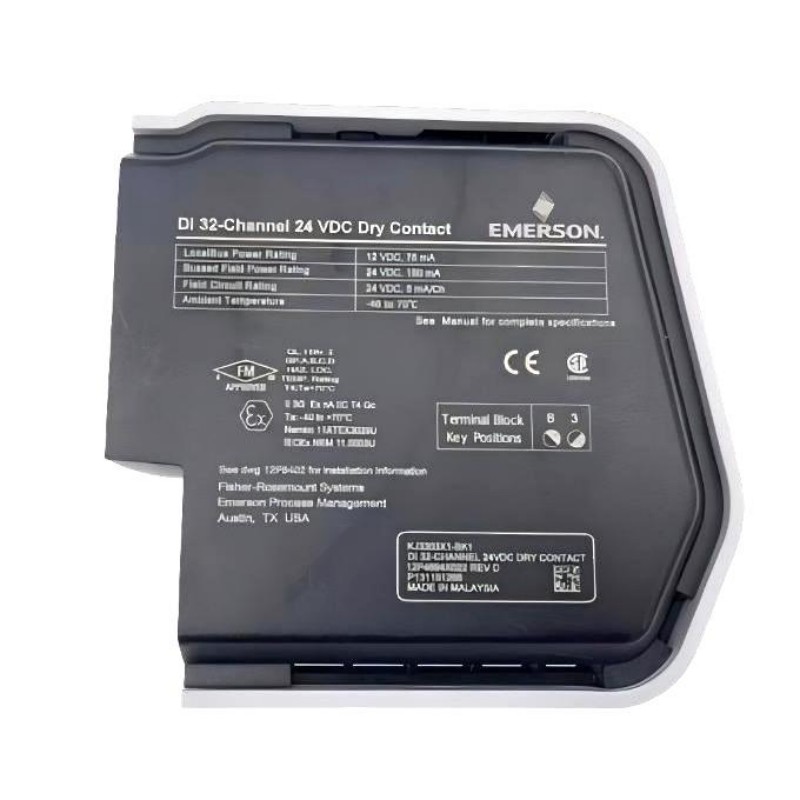

The Emerson SE4001S2T2B4 DeltaV S-series Discrete Input Card is a discrete input module used within the Emerson DeltaV S-series control platform. Its primary task is to bring binary field information into the DeltaV controller, allowing the control system to recognize equipment states, switching conditions, alarms, and other discrete events.

Unlike an analog input card, which handles continuously varying values such as pressure or temperature, the SE4001S2T2B4 deals with discrete conditions. Typical field information can represent states such as ON/OFF, OPEN/CLOSED, RUN/STOP, READY/FAULT, depending on the connected instrumentation and application configuration.

The module forms part of the interface between field devices and the DeltaV control system. Field wiring, termination hardware, controller I/O architecture, and application configuration therefore all affect how the input information is ultimately used.

For maintenance work, engineers should verify the complete model number and existing channel configuration before replacement. A discrete input fault can originate from the field device, wiring, termination, I/O card, or controller configuration, so the complete signal path should be checked.

Technical Specifications

Product Features

The SE4001S2T2B4 is intended for acquiring discrete field conditions within a DeltaV S-series architecture.

Key characteristics include:

• Emerson DeltaV S-series Discrete Input Card
• Model SE4001S2T2B4
• Designed for discrete field-state acquisition
• Interfaces field switching signals with the DeltaV system
• Suitable for monitoring equipment operating states
• Useful for alarm and interlock-related input conditions
• Integrates with the DeltaV I/O architecture
• Suitable for process and industrial automation systems
• Useful for maintenance and replacement applications
• Supports centralized monitoring of discrete field conditions

The module should be selected according to the actual DeltaV I/O architecture and field-signal requirements rather than solely by the similarity of its physical appearance to another S-series card.

Working Principle

The SE4001S2T2B4 converts the status of connected discrete field devices into input information that can be processed by the DeltaV control system.

A simplified signal path is:

Field Contact / Switching Device → SE4001S2T2B4 → DeltaV Controller → Application Logic

The process generally follows these stages:

1. Field-State Change

   A connected switch, contact, sensor, relay, or other discrete device changes state.

2. Input Signal Transmission

   The resulting electrical signal travels through the field wiring and termination arrangement toward the input card.

3. Discrete Input Detection

   The SE4001S2T2B4 detects the applicable input condition and makes the state available to the DeltaV system.

4. Controller Processing

   The DeltaV control application evaluates the input according to its configured logic.

5. System Response

   Depending on the application, the input may trigger an indication, alarm, interlock, sequence transition, equipment-status change, or other programmed response.

The complete relationship can be summarized as:

Field Condition → Discrete Input → Controller Logic → Process Response

This makes the card an important link between physical equipment states and software-based control decisions.

Role in a DeltaV S-series Control Architecture

The SE4001S2T2B4 occupies the field-input layer of a DeltaV S-series system.

A simplified architecture is:

Field Devices → SE4001S2T2B4 → DeltaV I/O Architecture → Controller → HMI / Supervisory Layer

Typical system components include:

The card therefore acts as an input boundary between field instrumentation and the DeltaV application.

Industrial Applications

The actual application depends on the connected field devices and DeltaV control strategy.

Installation and Maintenance

Correct signal identification is particularly important when working with a discrete input card because an incorrect field connection can result in misleading equipment-status information.

Recommended practices include:

• Confirm the complete SE4001S2T2B4 model.
• Verify the card’s intended I/O position.
• Record existing field wiring and termination.
• Identify the channels associated with each field device.
• Document normal and abnormal input states.
• Inspect terminal connections.
• Check field wiring for loose or damaged conductors.
• Verify the field device independently where possible.
• Inspect the card and its connectors.
• Confirm the DeltaV configuration before replacement.
• Install the replacement card according to the approved procedure.
• Verify input status after installation.
• Test representative field signals.
• Check controller diagnostics.
• Confirm alarms and interlocks respond correctly.
• Record the completed maintenance configuration.

When an input remains permanently ON or OFF, the troubleshooting sequence should include the field device, wiring, termination, input channel, and DeltaV configuration rather than immediately replacing the card.

Related Components

Recommended Related Models

Key Advantages

• Emerson DeltaV S-series Discrete Input Card.
• Model SE4001S2T2B4.
• Acquires binary field-status information.
• Interfaces discrete field devices with DeltaV control logic.
• Suitable for equipment-status monitoring.
• Useful for alarms, interlocks, and sequence conditions.
• Integrates with DeltaV S-series I/O architecture.
• Suitable for process and manufacturing automation.
• Useful for maintenance and I/O replacement projects.
• Supports clear separation between field signals and controller logic.

Technical FAQs

What types of field conditions are commonly monitored through a discrete input card?

Discrete inputs are used for two-state or state-based information, such as equipment running/stopped, valve open/closed, switch operated/not operated, or fault/normal conditions. The exact meaning of each channel is determined by the connected field device and DeltaV application.

Why should a field input be checked at the terminal before replacing the SE4001S2T2B4?

If the correct electrical condition is not reaching the input channel, replacing the card will not necessarily correct the problem. Measuring and tracing the signal from the field device through the wiring and termination can quickly distinguish a field-side problem from an I/O-card problem.

How can a stuck discrete input affect a process application?

A permanently active or inactive input can cause the DeltaV application to interpret equipment as being in the wrong state. Depending on the programmed logic, this may affect alarms, permissives, interlocks, sequencing, or equipment availability.

What should be verified after installing a replacement discrete input card?

The engineer should verify the card’s diagnostic status and then test representative field conditions at the relevant input channels. The resulting states should be confirmed at the DeltaV application level, including any associated alarms, interlocks, or equipment-status indications.
