Product Overview

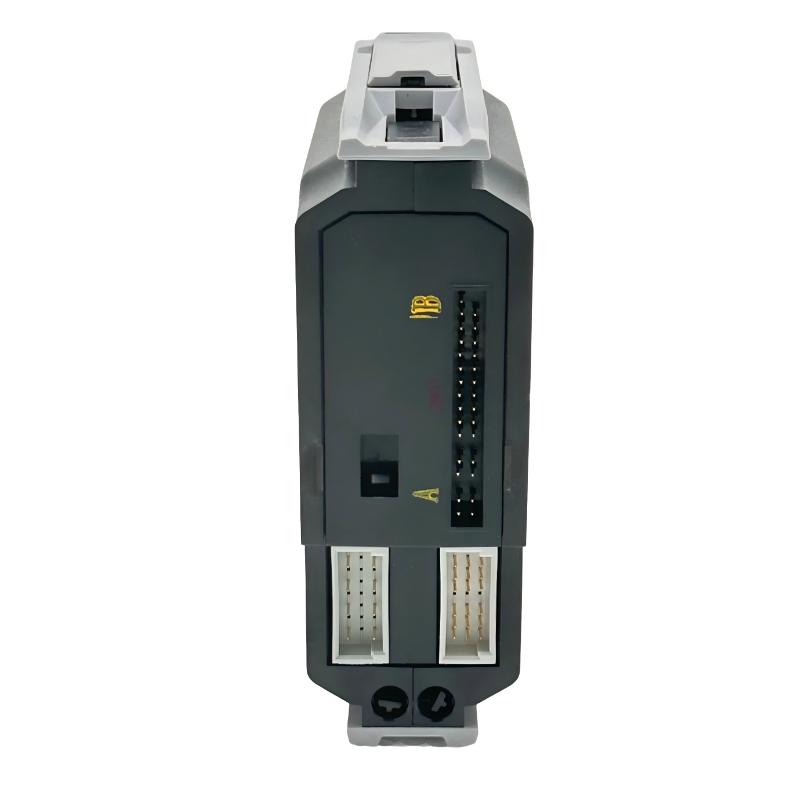

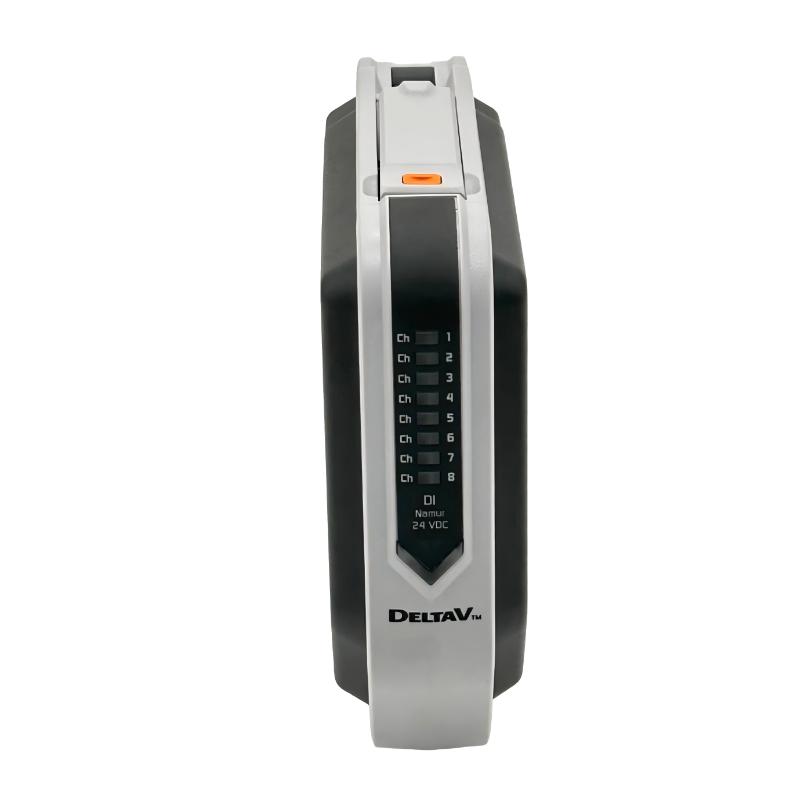

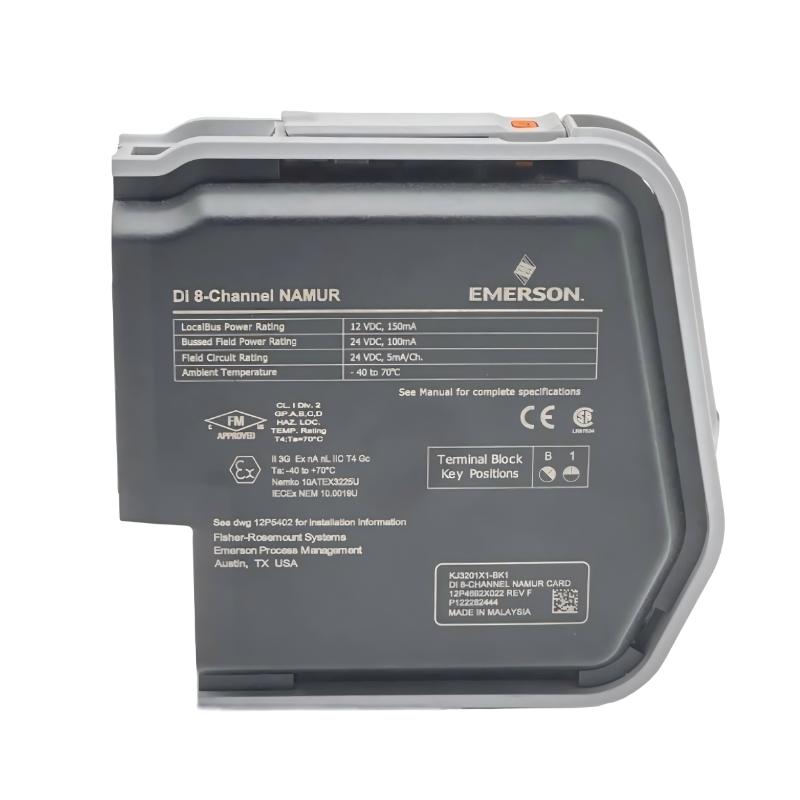

The Emerson SE4001S2T2B2 S-Series Traditional I/O Discrete Input Card is an industrial I/O module used to acquire discrete field signals and transfer their status to the associated Emerson control system.
The module provides the interface between field-level devices and the control system, making it suitable for monitoring equipment states and binary process conditions. Typical signals may include running/stopped status, open/closed position, fault indications, switch states, and relay-contact feedback.
As part of the S-Series Traditional I/O architecture, the SE4001S2T2B2 works together with the corresponding I/O interface, controller, field wiring, and system configuration.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Emerson |
| Model | SE4001S2T2B2 |
| Product Type | S-Series Traditional I/O Discrete Input Card |
| I/O Type | Discrete Input (DI) |
| System Role | Field Signal Acquisition |
| Application | Industrial Process Control |
| Dimensions | 131 × 41.8 × 130.8 mm |
| Weight | 0.4 kg |
Product Features
- Emerson S-Series Traditional I/O module
- Discrete input (DI) functionality
- Suitable for binary field-signal acquisition
- Interfaces field devices with the control system
- Suitable for equipment-status monitoring
- Supports interlock and sequence-related signals
- Suitable for industrial process-control applications
- Compact installation format
- Dimensions: 131 × 41.8 × 130.8 mm
- Weight: 0.4 kg
Working Principle
The SE4001S2T2B2 receives discrete signals from connected field devices and transfers the corresponding input states to the Emerson control system.
A typical signal path is:
Field Device → SE4001S2T2B2 → Controller → Control Logic
When a field switch, relay contact, or compatible discrete-output device changes state, the associated input channel detects the change. The control system can then use the input information for equipment monitoring, alarm handling, interlocking, sequencing, and other application-specific logic.
The module performs the field input interface function, while the controller handles the processing and control decisions based on the configured application.
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | Discrete process-condition monitoring |
| Manufacturing | Machine status and interlock signals |
| Pump Systems | Run, stop, and fault feedback |
| Motor Control | Equipment and contactor status |
| Chemical Processing | Field-state acquisition |
| Power and Utility Systems | Equipment status monitoring |
| Plant Automation | Field-device input acquisition |
| Industrial Machinery | Switch and status monitoring |
Compatible System Components
| Component | Function |
|---|---|
| Emerson SE4001S2T2B2 | Acquires discrete field inputs |
| Field Switches | Provide ON/OFF status signals |
| Relay Contacts | Provide equipment status |
| Discrete Sensors | Provide compatible binary signals |
| I/O Carrier / Interface Hardware | Provides module mounting and system connection |
| Controller | Processes acquired input information |
| Control Network | Transfers system data |
| Engineering / Configuration System | Defines I/O behavior and control logic |
Exact compatibility should be confirmed against the installed Emerson S-Series system architecture.
Installation and Maintenance
The SE4001S2T2B2 should be installed in the appropriate I/O position with the correct carrier/interface hardware and field wiring.
Recommended checks include:
- Confirm the complete SE4001S2T2B2 model number.
- Verify carrier and system compatibility.
- Check field wiring before energizing the system.
- Verify discrete input connections.
- Inspect terminals and connectors for looseness.
- Check contacts for contamination or physical damage.
- Confirm the configured I/O channel assignment.
- Verify that the control system recognizes the module.
- Test representative field input states after installation.
- Check associated control logic if an input status is incorrect.
If an input remains permanently ON or OFF, inspect the field device and wiring first, then check terminal connections, I/O configuration, and associated system hardware.
Recommended Related Models
| Model / Component | Type | Primary Function | Application |
|---|---|---|---|
| Emerson SE4001S2T2B2 | S-Series Traditional I/O DI Card | Discrete field signal acquisition | Process automation |
| Emerson SE4001S2T2B1 | S-Series Traditional I/O DI Card | Discrete field signal acquisition | Process automation |
| Emerson SE4001S2T1B3 | S-Series Traditional I/O DI Card | Discrete field signal acquisition | Process automation |
| Emerson SE4001S2T1B2 | S-Series Traditional I/O DI Card | Discrete field signal acquisition | Process automation |
| Emerson SE4001S2T1B1 | S-Series Traditional I/O DI Card | Discrete field signal acquisition | Process automation |
| Emerson SE3009 | Controller | Control and processing | Industrial process control |
For replacement applications, the complete model number and system configuration should be verified rather than selecting a module solely by its dimensions.
Key Advantages
- S-Series Traditional I/O architecture
- Discrete input functionality
- Suitable for binary field-signal acquisition
- Supports equipment-status monitoring
- Useful for interlocks and sequence control
- Suitable for industrial process-control systems
- Compact module format
- Dimensions of 131 × 41.8 × 130.8 mm
- Stated weight of 0.4 kg
Technical FAQs
What is the Emerson SE4001S2T2B2 used for?
The SE4001S2T2B2 is used to acquire discrete field signals and transfer their status to an Emerson control system for monitoring and configured control functions.
What equipment can provide signals to a discrete input card?
Typical sources include switches, relay contacts, equipment-status contacts, and compatible discrete-output devices. The exact field-device requirements depend on the system configuration.
Does the SE4001S2T2B2 execute the main control logic?
No. The module provides discrete signal acquisition. The associated controller and configured control system perform the application-specific processing and control logic.
What should be checked before replacing this DI card?
Verify the complete SE4001S2T2B2 model number, S-Series compatibility, carrier/interface arrangement, field wiring, I/O configuration, and controller configuration. Physical dimensions alone are not sufficient to establish compatibility.
