Product Overview

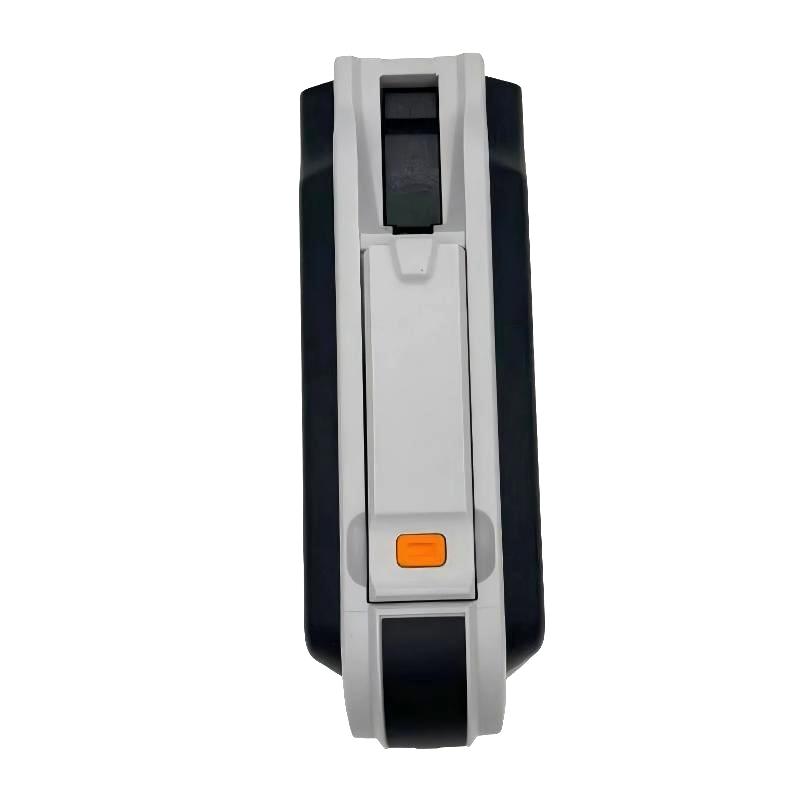

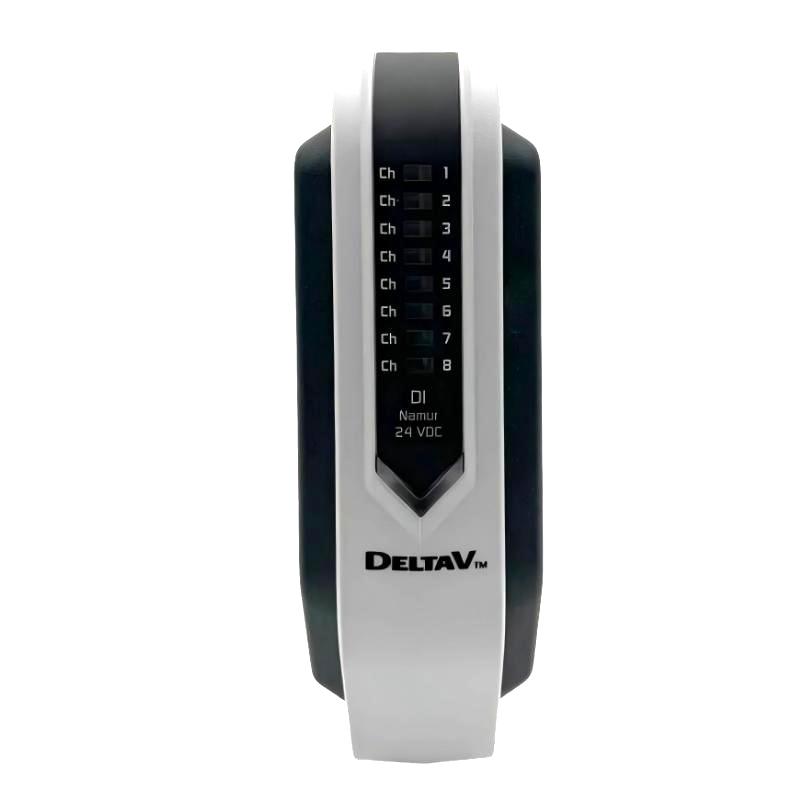

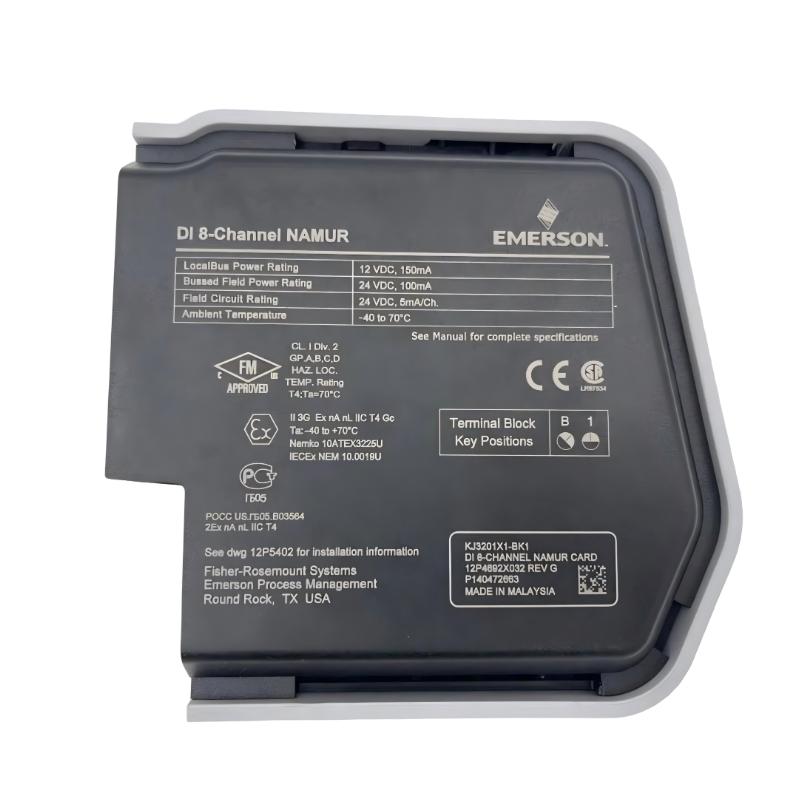

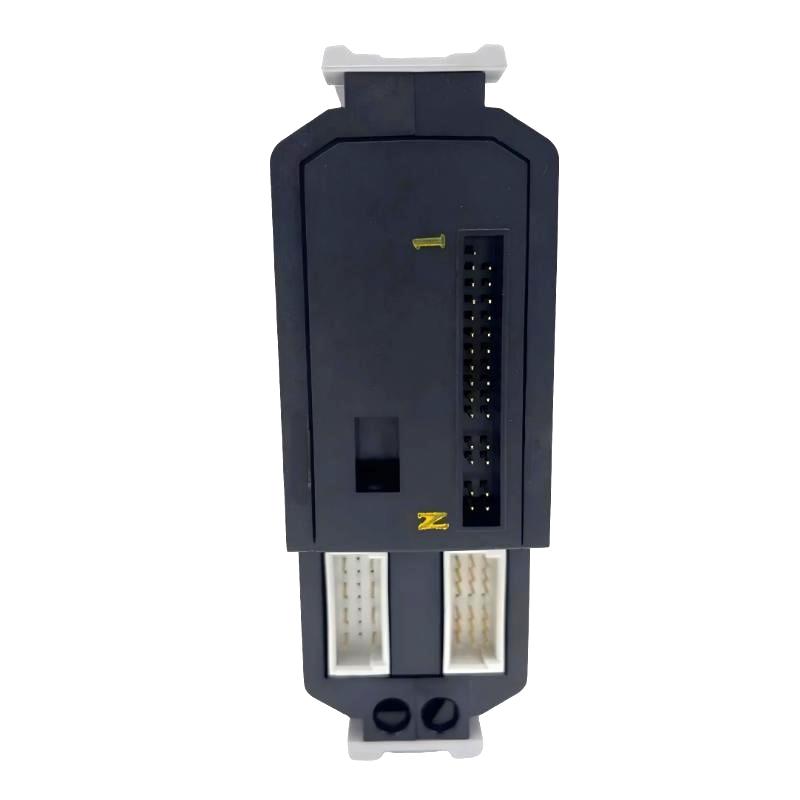

The Emerson SE4001S2T1B3 S-Series Traditional I/O Discrete Input Card is an industrial discrete input module used to collect binary field signals and transfer their status to an Emerson control system.
It is installed between field devices and the control architecture, making it suitable for monitoring equipment states such as running/stopped, open/closed, normal/fault, and other ON/OFF conditions. The card can therefore be used for process monitoring, equipment interlocks, sequencing, alarms, and status feedback.
As an S-Series Traditional I/O component, the SE4001S2T1B3 is intended to work as part of a larger Emerson automation system rather than as an independent controller.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Emerson |
| Model | SE4001S2T1B3 |
| Product Type | S-Series Traditional I/O Discrete Input Card |
| I/O Type | Discrete Input (DI) |
| System Role | Field Signal Acquisition |
| Application | Industrial Process Control |
| Dimensions | 131 × 41.8 × 130.8 mm |
| Weight | 0.4 kg |
Product Features
- Emerson S-Series Traditional I/O module
- Discrete input functionality
- Designed for binary field-signal acquisition
- Interfaces field devices with the control system
- Suitable for equipment-status monitoring
- Useful for interlocks, alarms, and sequence logic
- Suitable for industrial process-control applications
- Compact module format for control-system installations
- Dimensions: 131 × 41.8 × 130.8 mm
- Weight: 0.4 kg
Working Principle
The SE4001S2T1B3 receives discrete electrical signals from connected field devices and transfers the corresponding input states to the control system.
A typical signal path is:
Field Device → SE4001S2T1B3 DI Card → Controller → Control Logic
When a connected switch, relay contact, or compatible discrete-output device changes state, the corresponding input channel detects the change. The input status can then be used by the controller for monitoring, alarm handling, equipment interlocking, or sequence control.
For maintenance purposes, the DI card should be considered together with its carrier/interface hardware, field wiring, controller, and configured I/O channels.
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | Monitoring discrete process conditions |
| Manufacturing | Machine status and interlock signals |
| Pump Systems | Run, stop, and fault feedback |
| Motor Control | Equipment and contactor status monitoring |
| Chemical Processing | Discrete field-state acquisition |
| Power and Utility Systems | Equipment status monitoring |
| Plant Automation | Field-device input acquisition |
| Industrial Machinery | Switch and status monitoring |
Compatible System Components
| Component | Function |
|---|---|
| Emerson SE4001S2T1B3 | Acquires discrete field inputs |
| Field Switches | Provide ON/OFF status |
| Relay Contacts | Provide equipment status |
| Discrete Sensors | Provide compatible binary signals |
| I/O Carrier / Interface Hardware | Provides module mounting and system connection |
| Controller | Processes acquired input information |
| Control Network | Transfers system data |
| Engineering / Configuration System | Defines I/O behavior and control logic |
Exact compatibility should be confirmed against the installed Emerson S-Series system architecture.
Installation and Maintenance
The SE4001S2T1B3 should be installed in the appropriate I/O system position with the corresponding field wiring and interface hardware.
Recommended checks include:
- Confirm the complete SE4001S2T1B3 model number.
- Verify carrier and system compatibility.
- Check field wiring before energizing the system.
- Verify discrete input connections.
- Inspect terminals and connectors for looseness.
- Check contacts for contamination or physical damage.
- Confirm the configured I/O channel assignment.
- Verify that the control system recognizes the module.
- Test representative field input states after installation.
- Check associated control logic if an input status is incorrect.
If an input remains permanently ON or OFF, inspect the field device, wiring, terminals, I/O configuration, and associated hardware before replacing the card.
Recommended Related Models
| Model / Component | Type | Primary Function | Application |
|---|---|---|---|
| Emerson SE4001S2T1B3 | S-Series Traditional I/O DI Card | Discrete field signal acquisition | Process automation |
| Emerson SE4001S2T1B2 | S-Series Traditional I/O DI Card | Discrete field signal acquisition | Process automation |
| Emerson SE4001S2T1B1 | S-Series Traditional I/O DI Card | Discrete field signal acquisition | Process automation |
| Emerson SE3009 | Controller | Control and processing | Industrial process control |
| Emerson SE3051C0 | 2-Wide Power/Controller Carrier | Controller and power hardware carrier | Control-system infrastructure |
| Emerson KJ3223X1-BA1 | DeltaV Analog Input Card | Analog signal acquisition | Process control |
Replacement selection should be based on the complete model number and the existing Emerson system configuration rather than physical dimensions alone.
Key Advantages
- S-Series Traditional I/O architecture
- Discrete input functionality
- Suitable for binary field-signal acquisition
- Supports equipment-status monitoring
- Useful for interlocks, alarms, and sequence control
- Suitable for industrial process-control systems
- Compact installation format
- Dimensions of 131 × 41.8 × 130.8 mm
- Stated weight of 0.4 kg
Technical FAQs
What is the Emerson SE4001S2T1B3 used for?
The SE4001S2T1B3 is used to acquire discrete signals from field devices and transfer their status to an Emerson control system for monitoring and control functions.
What is a discrete input signal?
A discrete input represents a defined state, commonly an ON/OFF or open/closed condition. Typical sources include switches, relay contacts, equipment-status contacts, and compatible discrete sensors.
Is the SE4001S2T1B3 a standalone controller?
No. It is a discrete input card. It operates as part of an Emerson control architecture together with the appropriate I/O interface, controller, field wiring, and configuration.
What should be checked before replacing the SE4001S2T1B3?
Verify the complete model number, S-Series system compatibility, carrier/interface arrangement, field wiring, I/O channel configuration, and controller configuration. Physical dimensions alone are not enough to establish compatibility.
