Product Overview

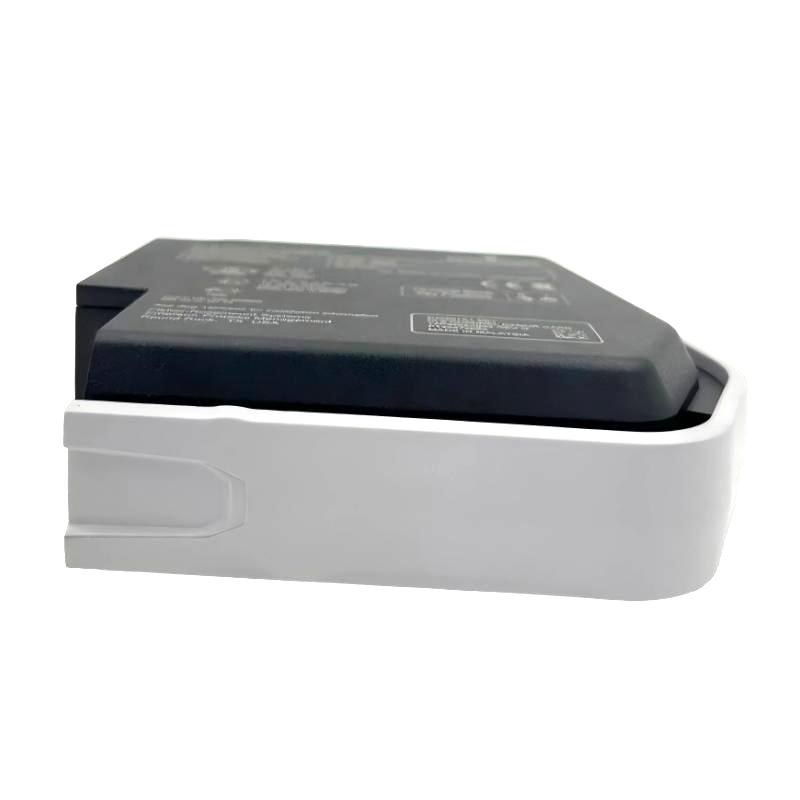

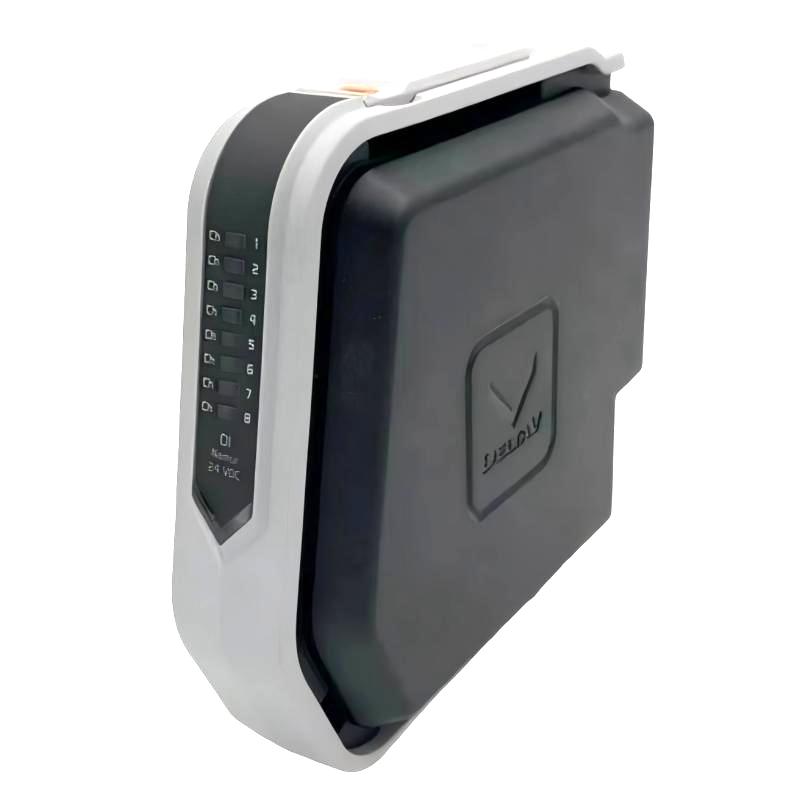

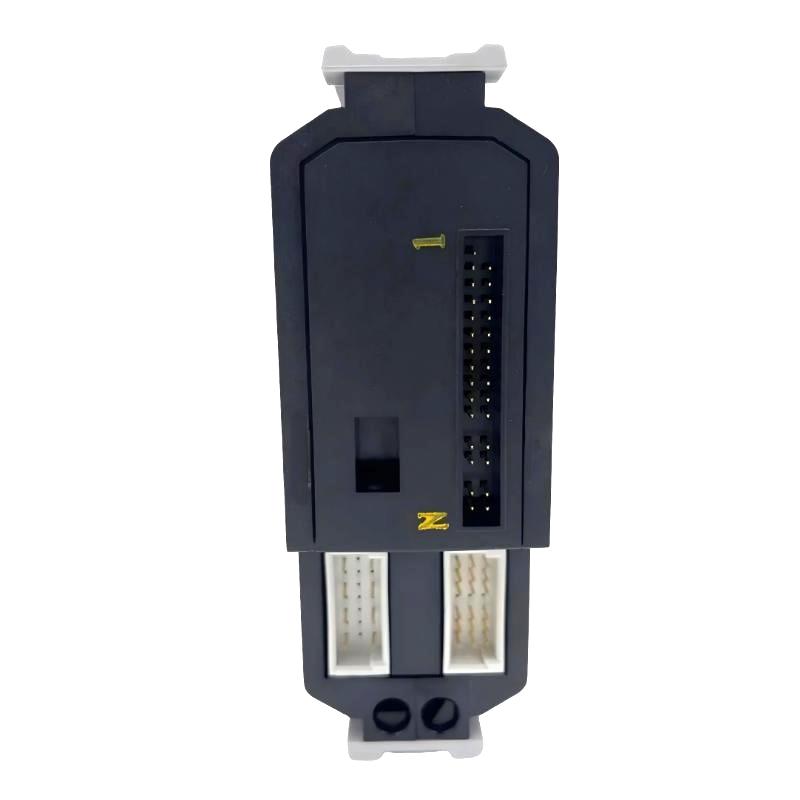

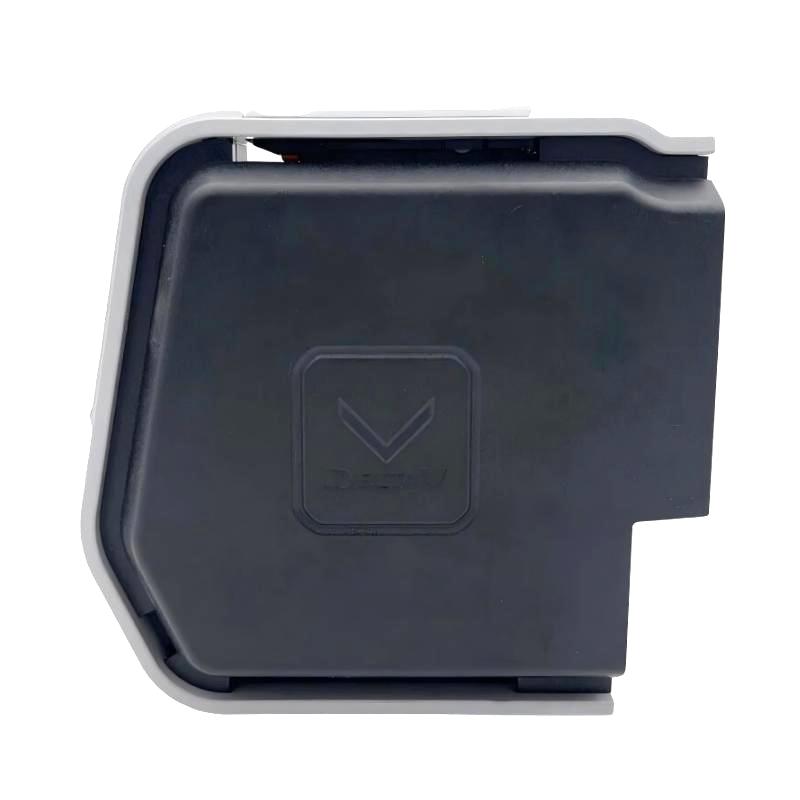

The Emerson SE4001S2T1B2 S-Series Traditional I/O Discrete Input (DI) Card is an industrial I/O module used to acquire discrete field signals and transfer their status to an Emerson control system.
The module sits between field devices and the control-system architecture, making it suitable for applications where equipment status, switch states, relay contacts, and other discrete conditions need to be monitored by the controller. In a typical installation, the DI card receives the field-side ON/OFF signal and passes the corresponding input state into the configured control logic.
It is intended for use as part of an Emerson S-Series Traditional I/O installation rather than as a standalone controller.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Emerson |
| Model | SE4001S2T1B2 |
| Product Type | S-Series Traditional I/O Discrete Input (DI) Card |
| I/O Type | Discrete Input |
| System Role | Field Signal Acquisition |
| Application | Industrial Process Control |
| Dimensions | 131 × 41.8 × 130.8 mm |
| Weight | 0.4 kg |
Product Features
- Emerson S-Series Traditional I/O module
- Discrete input (DI) functionality
- Designed for field discrete-signal acquisition
- Interfaces field devices with the control system
- Suitable for monitoring equipment status
- Can be used for interlocks and sequence-related signals
- Suitable for industrial process-control installations
- Compact control-system form factor
- Dimensions: 131 × 41.8 × 130.8 mm
- Weight: 0.4 kg
Working Principle
The SE4001S2T1B2 receives discrete electrical signals from connected field devices and makes the corresponding states available to the control system.
A typical signal path is:
Field Device → SE4001S2T1B2 DI Card → Controller → Control Logic
When a field switch, relay contact, or compatible discrete-output device changes state, the corresponding input channel detects the change. The module then communicates the input status to the control system, where the signal can be used for equipment monitoring, alarms, interlocks, sequencing, or other configured functions.
For maintenance purposes, the DI card should be considered together with its associated carrier/interface hardware, field wiring, controller, and I/O configuration.
Industrial Applications
| Application | Typical Use |
|---|---|
| Process Automation | Monitoring discrete process conditions |
| Manufacturing | Machine status and interlock signals |
| Pump Systems | Run, stop, and fault feedback |
| Motor Control | Contactor and equipment status monitoring |
| Chemical Processing | Discrete field-state acquisition |
| Power and Utility Systems | Equipment status monitoring |
| Plant Automation | Field-device input acquisition |
| Industrial Machinery | Switch and sensor status monitoring |
Compatible System Components
| Component | Function |
|---|---|
| Emerson SE4001S2T1B2 | Acquires discrete field inputs |
| Field Switches | Provide ON/OFF status signals |
| Relay Contacts | Provide equipment status |
| Discrete Sensors | Provide compatible discrete signals |
| I/O Carrier / Interface Hardware | Provides module mounting and system connection |
| Controller | Processes the acquired input information |
| Control Network | Transfers system data |
| Engineering / Configuration System | Defines I/O behavior and control logic |
Exact compatibility should be confirmed against the installed Emerson S-Series system architecture.
Installation and Maintenance
The SE4001S2T1B2 should be installed in the appropriate I/O system position and connected according to the corresponding field-wiring arrangement.
Before replacement or commissioning, technicians should verify the complete model number and associated system configuration.
Recommended checks include:
- Confirm the complete SE4001S2T1B2 model number.
- Verify the module and carrier/interface compatibility.
- Check field wiring before energizing the system.
- Verify discrete input connections.
- Inspect terminals and connectors for looseness.
- Check contacts for contamination or physical damage.
- Confirm the configured I/O channel assignment.
- Verify that the control system recognizes the module.
- Test representative field input states after installation.
- Check associated control logic if an input status is incorrect.
If an input remains permanently ON or OFF, check the field device, wiring, terminal connections, I/O configuration, and associated system hardware before replacing the card.
Recommended Related Models
| Model / Component | Type | Primary Function | Application |
|---|---|---|---|
| Emerson SE4001S2T1B2 | S-Series Traditional I/O DI Card | Discrete field signal acquisition | Process automation |
| Emerson SE4001S2T1B1 | S-Series Traditional I/O DI Card | Discrete field signal acquisition | Process automation |
| Emerson SE3009 | Controller | Control and processing | Industrial process control |
| Emerson SE3051C0 | 2-Wide Power/Controller Carrier | Controller and power hardware carrier | Control-system infrastructure |
| Emerson KJ3223X1-BA1 | DeltaV Analog Input Card | Analog signal acquisition | Process control |
| Emerson KL3031X1-BA1 | RTD / Resistance CHARM | Temperature and resistance input | Process instrumentation |
Related models should be selected according to the existing Emerson system architecture and I/O requirements, not simply by matching dimensions.
Key Advantages
- S-Series Traditional I/O architecture
- Discrete input functionality
- Suitable for field ON/OFF signal acquisition
- Supports equipment status monitoring
- Useful for interlocking and sequence control
- Suitable for industrial process-control systems
- Compact installation format
- Dimensions of 131 × 41.8 × 130.8 mm
- Stated weight of 0.4 kg
Technical FAQs
What is the Emerson SE4001S2T1B2 used for?
The SE4001S2T1B2 is used to acquire discrete signals from field devices and transfer their status to an Emerson control system for monitoring and control functions.
What types of signals can a discrete input card handle?
Discrete input cards are used for binary field states such as ON/OFF, open/closed, running/stopped, or normal/fault conditions, depending on the connected field device and system configuration.
Is the SE4001S2T1B2 a standalone controller?
No. It is an I/O card that performs field signal acquisition. It works together with the appropriate Emerson control-system hardware, carrier/interface components, and configured controller.
What should be checked before replacing an SE4001S2T1B2?
Verify the complete model number, S-Series system compatibility, carrier arrangement, field wiring, I/O channel configuration, and controller configuration. Physical dimensions alone are not sufficient for determining compatibility.
