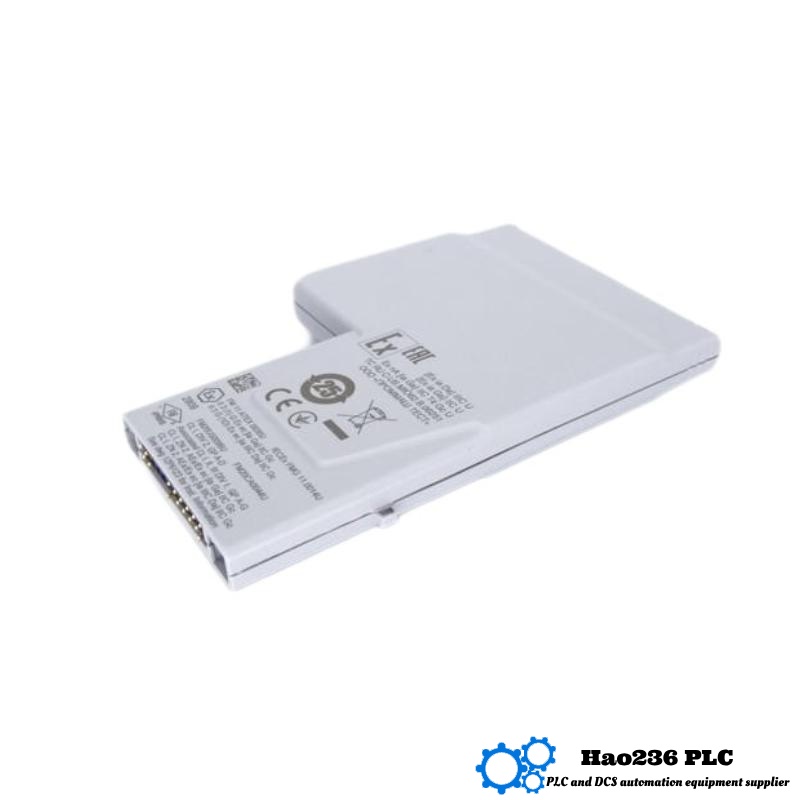

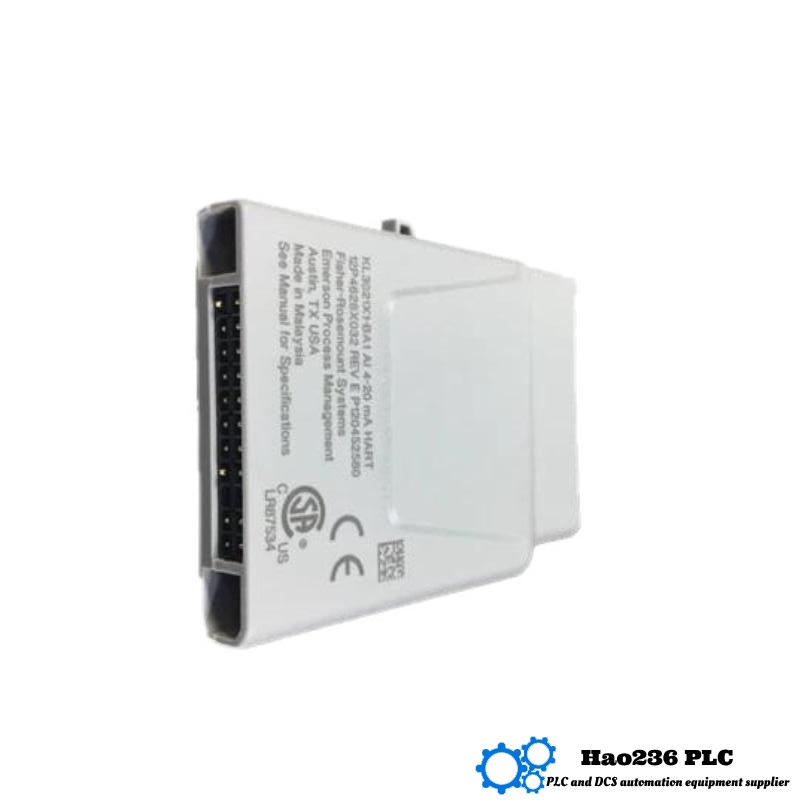

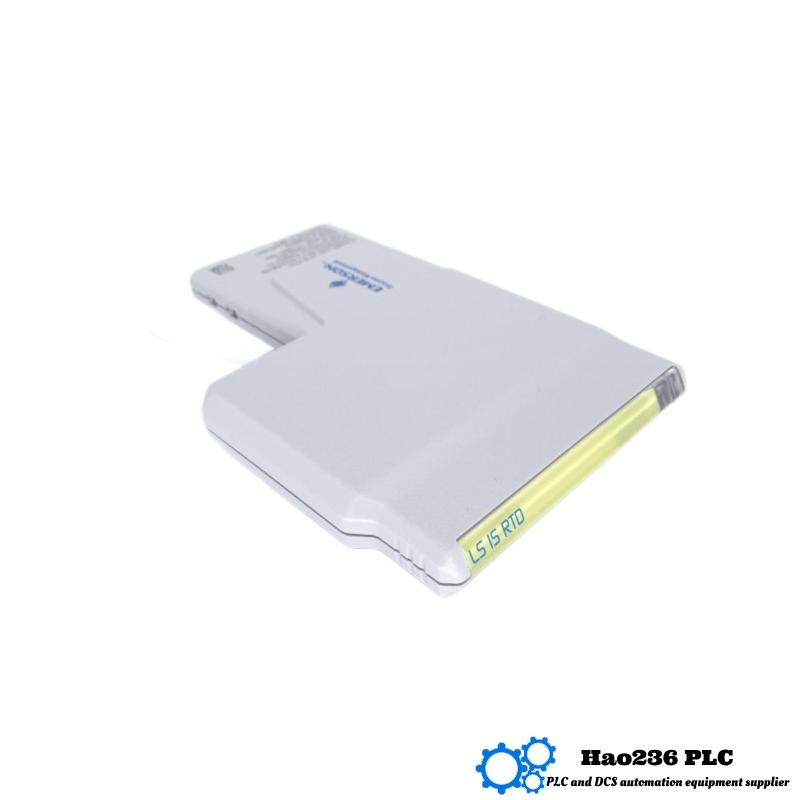

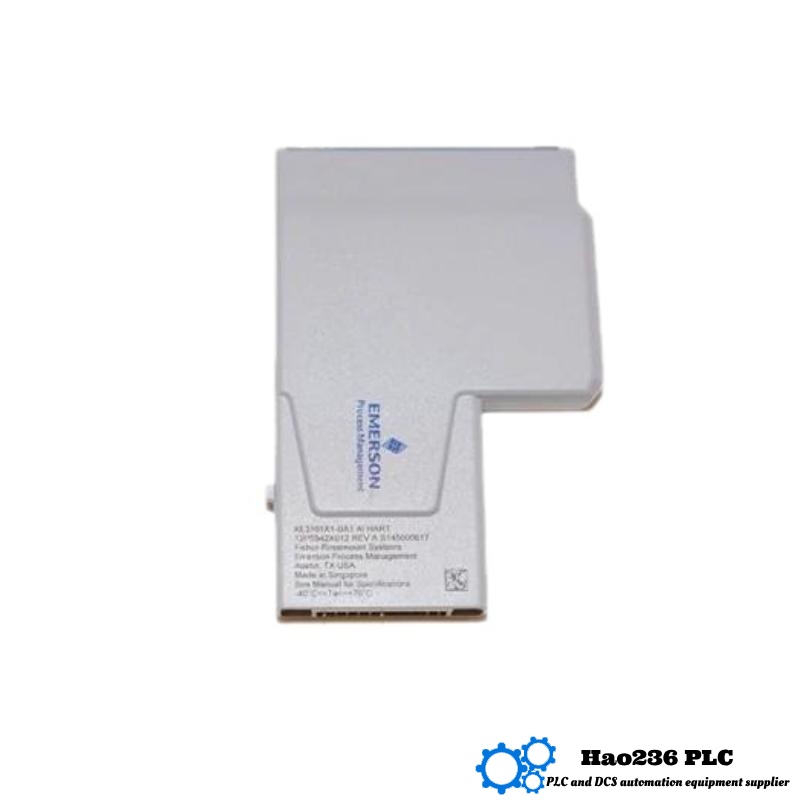

Emerson KL3106X1-BA1 RTD PLC Module
Product Overview
The Emerson KL3106X1-BA1 is an RTD PLC module designed for use in DeltaV control systems. This high-performance module interfaces with RTD (Resistance Temperature Detectors), providing accurate and reliable temperature measurement in industrial applications. It is part of the DeltaV series, offering seamless integration with the DeltaV automation platform for easy configuration, maintenance, and control.
The KL3106X1-BA1 is ideal for industries where precise temperature measurement is critical, such as chemical processing, power generation, and food & beverage manufacturing. The module offers enhanced diagnostic capabilities, intrinsic safety, and robust design features that ensure reliable operation even in harsh industrial environments.
Product Parameters
| Parameter | Value |
|---|---|
| Model | KL3106X1-BA1 |
| Module Type | RTD PLC |
| Input Type | RTD (Resistance Temperature Detectors) |
| Dimensions (mm) | 120 × 150 × 45 |
| Weight | 0.5 kg |
| Accuracy | ±0.1% of reading |
| Input Range | -200°C to +850°C |
| Power Supply | 24 V DC |
| Communication Protocol | HART, DeltaV CHARM |
| Operating Temperature | -40°C to +70°C |
| Protection Rating | IP20 |
| Mounting | CHARM slot |
| Isolation | Galvanic isolation |
Product Introduction
The Emerson KL3106X1-BA1 RTD PLC module is designed to provide high-precision temperature measurement in industrial applications. As part of the DeltaV series, this module integrates seamlessly with DeltaV control systems, allowing for centralized monitoring and control of RTD-based temperature sensors. The KL3106X1-BA1 provides a wide input range from -200°C to +850°C, making it suitable for a variety of industrial environments where accurate and reliable temperature monitoring is essential.
With intrinsic safety features and a robust design, the KL3106X1-BA1 can be installed in hazardous areas and harsh operating conditions. The module’s HART communication protocol and DeltaV CHARM compatibility enable fast and easy installation, calibration, and configuration.
Key features of the KL3106X1-BA1 include:
-
High accuracy of ±0.1% of reading for reliable temperature measurements.
-
Wide input range of -200°C to +850°C to support various industrial processes.
-
IP20 protection and galvanic isolation to protect the module from environmental conditions and electrical interference.
Product Applications
-
Temperature Monitoring: Essential for continuous temperature monitoring in critical processes such as chemical production, power generation, and food and beverage manufacturing.
-
Safety-Critical Applications: With intrinsic safety features, the module is well-suited for hazardous environments in industries like oil and gas, pharmaceuticals, and petrochemicals.
-
Process Control: The KL3106X1-BA1 enables precise RTD sensor integration within DeltaV control systems, ensuring stable and optimized operations in complex industrial environments.
-
Energy Management: Used for efficient temperature measurement in energy-intensive industries, helping optimize energy usage and maintain operational efficiency.
-
Quality Control: Provides precise temperature data for quality assurance in manufacturing processes where strict temperature control is necessary.
Product Advantages
-
High Accuracy: The KL3106X1-BA1 provides ±0.1% accuracy, ensuring reliable temperature readings even in demanding applications.
-
Wide Input Range: With an input range of -200°C to +850°C, it supports a wide variety of RTD sensors, offering flexibility across many different applications.
-
Intrinsic Safety Features: Designed with intrinsic safety in mind, it can be used in hazardous environments, ensuring safe and reliable operation.
-
Easy Integration with DeltaV Systems: Fully compatible with DeltaV CHARM, simplifying installation, configuration, and communication with other control components in the DeltaV system.
-
Compact Design: The 120 × 150 × 45 mm form factor allows for easy installation in CHARM slots, saving space in control panels.
-
Protection Against Electrical Interference: With galvanic isolation and an IP20 protection rating, the module is robust against noise and environmental challenges, ensuring stable operation.
-
Durability: Built for long-term reliability in industrial environments, ensuring low maintenance and high performance over time.
Brand: Emerson
Emerson is a global leader in process automation, providing innovative solutions for a wide range of industries. The DeltaV series of control systems is part of Emerson’s comprehensive approach to automation, offering flexible, reliable, and high-performance systems designed for demanding industrial environments. The KL3106X1-BA1 RTD PLC module is an integral part of Emerson’s offering, bringing high accuracy, ease of integration, and enhanced safety to critical process applications.
DeltaV Series
The DeltaV series by Emerson is a high-performance automation platform used for process control in industries such as oil and gas, chemical processing, pharmaceuticals, and power generation. The system integrates I/O modules, sensors, and controllers, offering scalability, flexibility, and superior performance. The DeltaV CHARM modules, including the KL3106X1-BA1, are specifically designed for easy integration into DeltaV systems, providing accurate and reliable control for industrial processes.
Related Models
| Model | Input Type | Input Range | Power Supply | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| KL3107X1-BA1 | RTD | -200°C to +850°C | 24 V DC | 120 × 150 × 45 | 0.5 |
| KL3108X1-BA1 | RTD | -200°C to +850°C | 24 V DC | 120 × 150 × 45 | 0.5 |
| KL3109X1-BA1 | RTD | -200°C to +850°C | 24 V DC | 120 × 150 × 45 | 0.5 |
| KL3110X1-BA1 | RTD | -200°C to +850°C | 24 V DC | 120 × 150 × 45 | 0.5 |
| KL3102X1-BA1 | RTD | -200°C to +850°C | 24 V DC | 120 × 150 × 45 | 0.5 |
Popular Emerson Models
| Model | Input Type | Input Range | Power Supply | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| KL3106X1-BA1 | RTD | -200°C to +850°C | 24 V DC | 120 × 150 × 45 | 0.5 |
| KL3104X1-BA1 | RTD | -200°C to +850°C | 24 V DC | 120 × 150 × 45 | 0.5 |
| KL3103X1-BA1 | RTD | -200°C to +850°C | 24 V DC | 120 × 150 × 45 | 0.5 |
| KL3101X1-BA1 | RTD | -200°C to +850°C | 24 V DC | 120 × 150 × 45 | 0.5 |
| KL3111X1-BA1 | RTD | -200°C to +850°C | 24 V DC | 120 × 150 × 45 | 0.5 |
FAQ
-
Q: What type of sensors does the KL3106X1-BA1 support?
A: The module supports RTD (Resistance Temperature Detectors). -
Q: What is the accuracy of the KL3106X1-BA1?
A: The accuracy is ±0.1% of the reading. -
Q: What is the input range of the KL3106X1-BA1?
A: The input range is -200°C to +850°C. -
Q: What power supply does the KL3106X1-BA1 require?
A: The module requires 24 V DC. -
Q: What communication protocols are supported by the KL3106X1-BA1?
A: The module supports HART and DeltaV CHARM protocols. -
Q: What is the operating temperature range of the KL3106X1-BA1?
A: The operating temperature range is -40°C to +70°C. -
Q: How is the KL3106X1-BA1 mounted?
A: The module is mounted on a CHARM slot within the DeltaV system. -
Q: What is the weight of the KL3106X1-BA1?
A: The weight is 0.5 kg. -
Q: Is the KL3106X1-BA1 suitable for hazardous environments?
A: Yes, it is designed with intrinsic safety features for use in hazardous environments. -
Q: What is the protection rating of the KL3106X1-BA1?
A: The protection rating is IP20.
