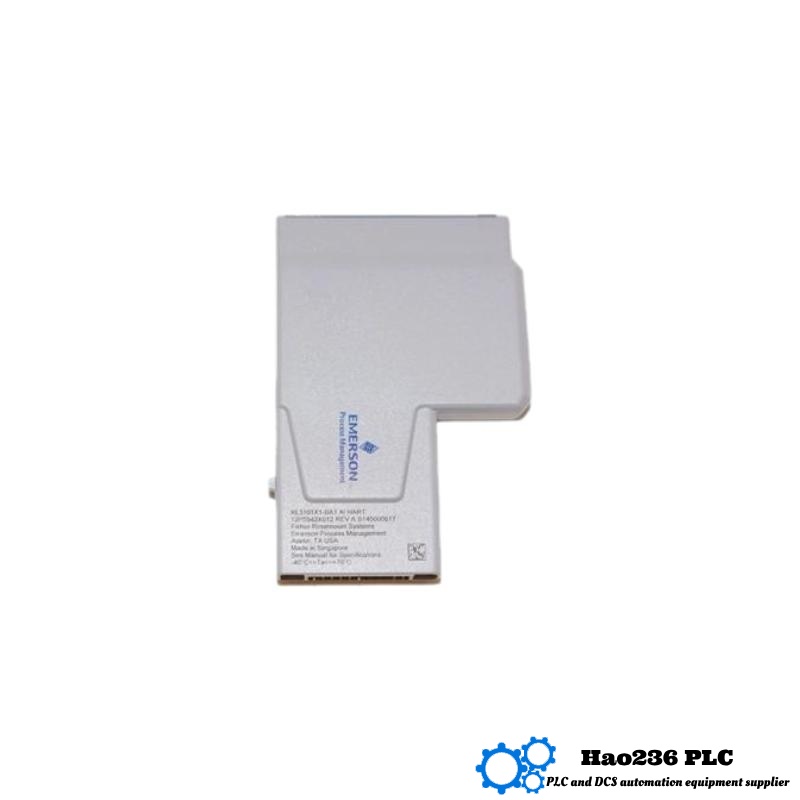

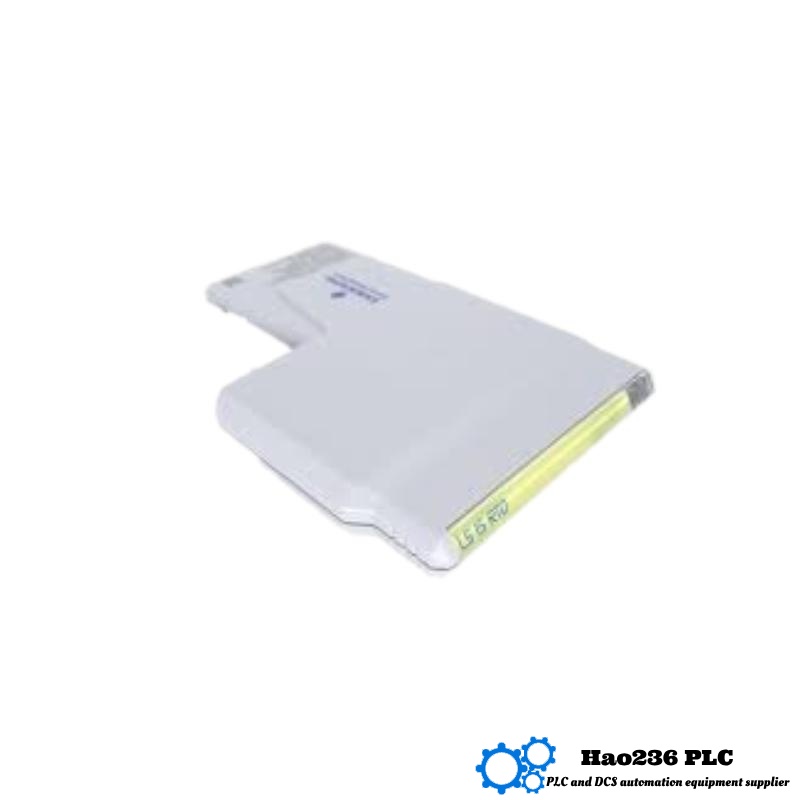

Emerson KL3101X1-LS1 Digital Input Characteristic Module
Product Introduction
The Emerson KL3101X1-LS1 is a Digital Input Characteristic Module designed for use in the DeltaV distributed control system (DCS). This module provides a robust solution for acquiring and processing digital signals from a wide range of field devices. The KL3101X1-LS1 supports discrete signals such as on/off, open/close, or fault status inputs, making it a critical component in applications that require monitoring and control of digital devices in various industrial sectors.
This module is designed to be highly compatible with other components within the DeltaV DCS, allowing for seamless integration into control systems and ensuring high performance in harsh industrial environments. The KL3101X1-LS1 is known for its flexibility, ease of installation, and reliability, making it ideal for industries such as manufacturing, chemical processing, and energy management.
Key Features
-
Discrete Signal Processing: Capable of handling on/off, open/close, and fault status signals.
-
Compact and Lightweight Design: The small form factor (100 x 120 x 50 mm) and light weight (0.3 kg) make it easy to install and integrate into existing systems.
-
Reliability in Harsh Environments: Designed to withstand challenging operating conditions, ensuring continuous operation even in demanding environments.
-
Fast Response Time: Offers quick signal acquisition, providing near-instantaneous updates to the control system.
-
High Compatibility: Fully integrates with the DeltaV DCS, ensuring seamless communication with other modules and field devices.
Applications
The KL3101X1-LS1 module is used in a wide range of applications across industries that require reliable digital input processing. Some of its typical uses include:
-
Manufacturing Automation: Monitoring machinery status, safety equipment, and system fault conditions.
-
Chemical and Petrochemical Processing: Ensuring the safety and status of critical valves, pumps, and alarms.
-
Power Generation: Monitoring the status of circuit breakers, relays, and other critical power system components.
-
Oil & Gas: Used for status monitoring of wellhead equipment, flow control systems, and safety devices.
-
Water Treatment Plants: Collecting digital inputs from sensors for tank levels, pump statuses, and alarm systems.
Product Advantages
-
High Reliability: The KL3101X1-LS1 is built to operate flawlessly even in harsh industrial conditions, ensuring minimal downtime and maximum efficiency.
-
Easy Integration: It is designed to integrate effortlessly into the DeltaV system, making installation quick and hassle-free.
-
Compact Design: Its small size and low weight (0.3 kg) make it suitable for use in systems with space limitations.
-
Versatile: Capable of handling multiple types of digital inputs, such as on/off, open/close, and fault conditions, making it adaptable to various applications.
-
Fast and Accurate: Delivers fast response times, ensuring real-time signal acquisition and timely system responses.
Brand and Series
-
Brand: Emerson
-
Series: DeltaV System (CHARM Module)
Product Specifications
| Parameter | Value |
|---|---|
| Product Model | KL3101X1-LS1 |
| Input Type | Digital Input (Discrete) |
| Channels | 8 Channels |
| Signal Type | On/Off, Open/Close, Fault Status |
| Power Consumption | 1.2 W (typical) |
| Dimensions (L x W x H) | 100 x 120 x 50 mm |
| Weight | 0.3 kg |
| Operating Temperature | -20 to +60°C |
| Storage Temperature | -40 to +85°C |
| Humidity Range | 5 to 95% RH, non-condensing |
| Communication Protocol | DeltaV Compatible |
| Mounting | DIN Rail |
| Status Indicators | LED Indicators for Power, Faults, and I/O |
Recommended Models from the Same DeltaV Series
| Model | Input Type | Channels | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|
| KL3201X1-LS1 | Digital Input | 8 | 100 x 120 x 50 mm | 0.3 kg |
| KL3102X1-LS1 | Digital Input | 8 | 100 x 120 x 50 mm | 0.3 kg |
| KL3103X1-LS1 | Digital Input | 16 | 100 x 120 x 50 mm | 0.3 kg |
| KL3301X1-LS1 | Digital Input | 4 | 100 x 120 x 50 mm | 0.3 kg |
| KL3001X1-LS1 | Digital Input | 8 | 100 x 120 x 50 mm | 0.3 kg |
Top 5 Popular Emerson Products
| Model | Type | Channels | Dimensions (L x W x H) | Weight |
|---|---|---|---|---|
| KL3020X1-BA1 | Digital Input | 8 | 120 x 150 x 45 mm | 0.5 kg |
| MX3021X1-BA1 | Analog Input | 8 | 120 x 150 x 45 mm | 0.5 kg |
| EK2000-BA2 | Analog Output | 4 | 120 x 150 x 45 mm | 0.5 kg |
| KL3101X1-LS1 | Digital Input | 8 | 100 x 120 x 50 mm | 0.3 kg |
| KL3070X1-BA1 | Digital Output | 8 | 120 x 150 x 45 mm | 0.5 kg |
Frequently Asked Questions (FAQs)
-
Q: What type of signals does the KL3101X1-LS1 module support?
A: The KL3101X1-LS1 module supports digital input signals, such as on/off, open/close, and fault status. -
Q: How many channels does the KL3101X1-LS1 have?
A: The module features 8 input channels for digital signal processing. -
Q: What is the size of the KL3101X1-LS1 module?
A: The dimensions of the module are 100 x 120 x 50 mm. -
Q: How much does the KL3101X1-LS1 module weigh?
A: The module weighs only 0.3 kg, making it easy to integrate into control systems. -
Q: Is the KL3101X1-LS1 suitable for harsh industrial environments?
A: Yes, the module is designed to operate in environments with temperatures ranging from -20 to +60°C and can withstand various industrial conditions. -
Q: What communication protocol does the KL3101X1-LS1 use?
A: The module is fully compatible with the DeltaV system and utilizes DeltaV-specific communication protocols. -
Q: Can the KL3101X1-LS1 be mounted easily?
A: Yes, the module is designed for DIN rail mounting, making installation quick and efficient. -
Q: Does the KL3101X1-LS1 provide diagnostic capabilities?
A: Yes, the module includes LED indicators for power, faults, and I/O status for easy diagnostics. -
Q: What is the power consumption of the KL3101X1-LS1 module?
A: The typical power consumption is 1.2 W. -
Q: How does the KL3101X1-LS1 benefit process automation systems?
A: By providing reliable digital input processing and quick response times, the module improves the overall efficiency and responsiveness of process control systems.
