Product Overview

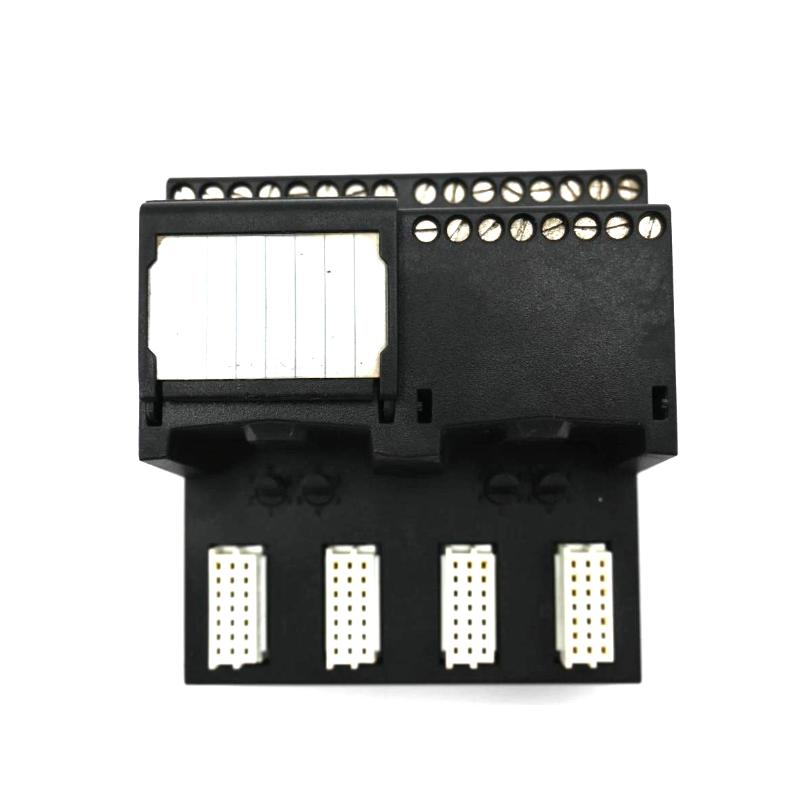

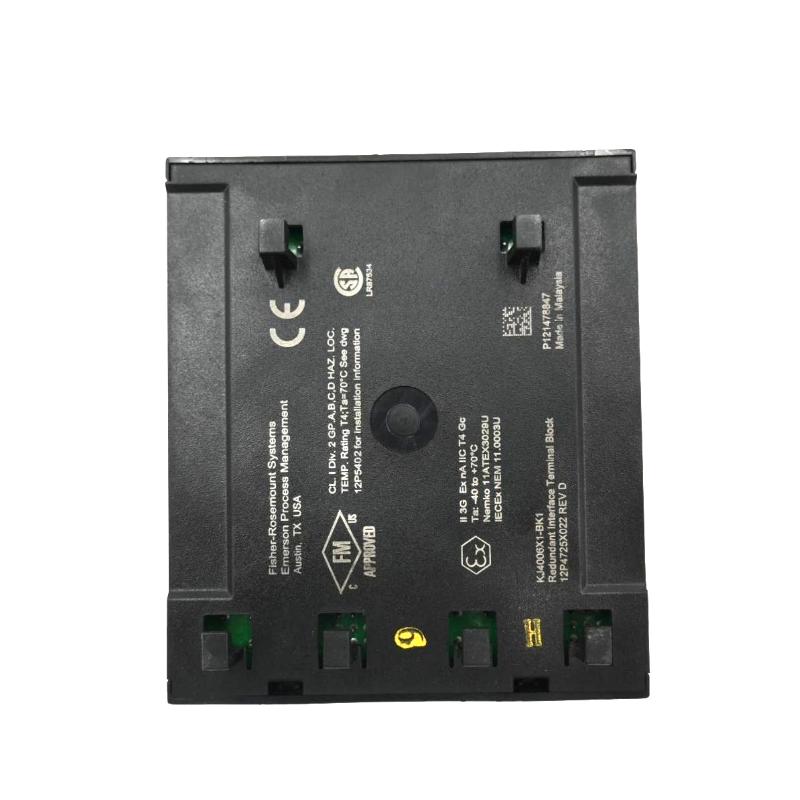

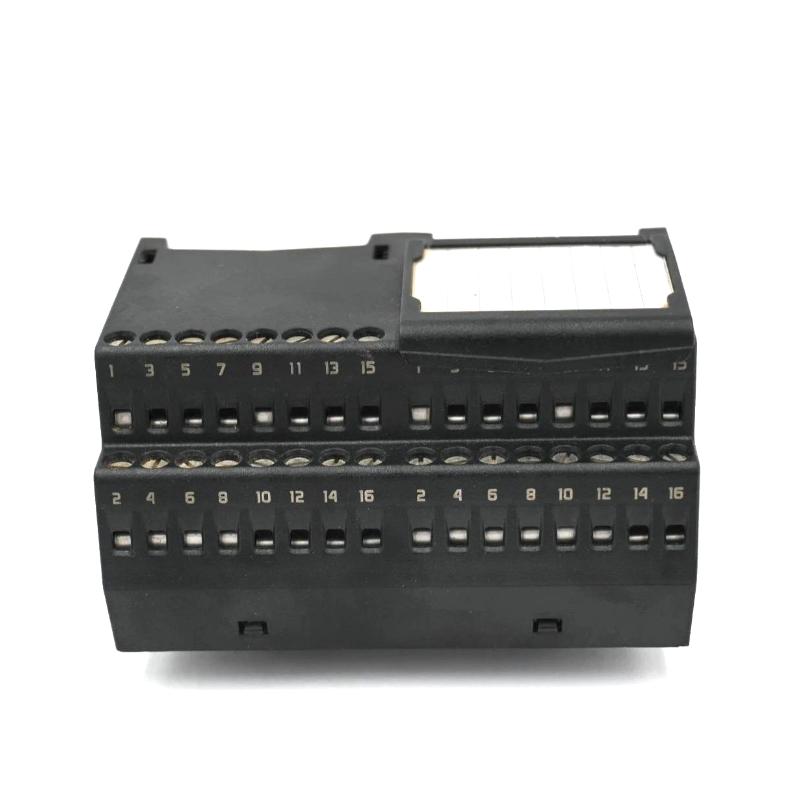

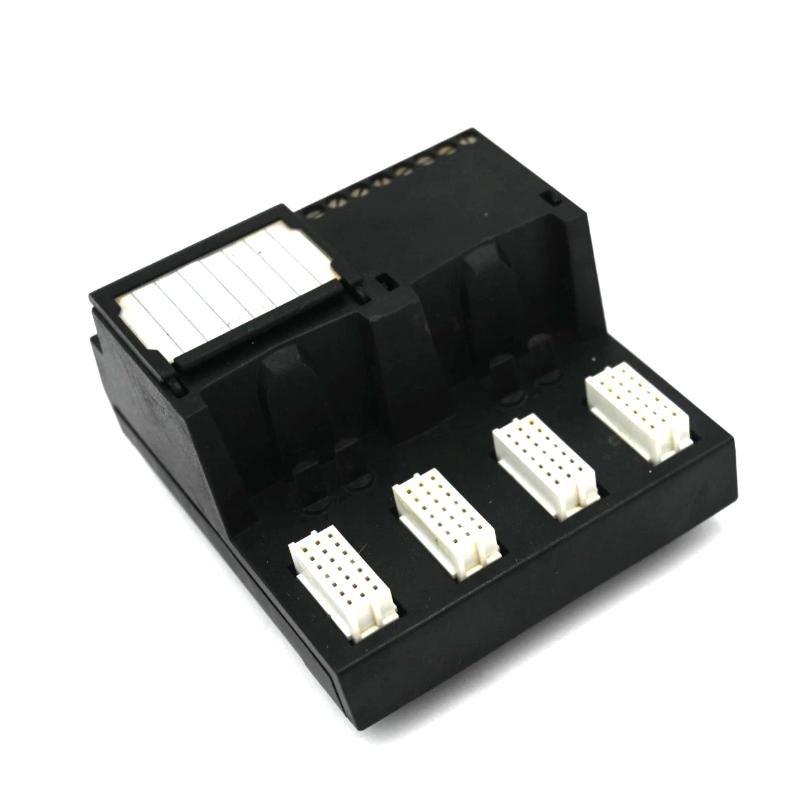

The Emerson KJ4006X1-BK1 (12P4725X022) DeltaV Redundant Interface Terminal Block is a signal connection component used within Emerson DeltaV control system installations. It provides a structured wiring interface for redundant system configurations, helping connect field wiring, control modules, and associated DeltaV hardware.
Unlike DeltaV controllers or I/O modules that execute control strategies and process field signals, the KJ4006X1-BK1 functions as a terminal interface component. Its primary purpose is to simplify wiring organization, support redundant connection arrangements, and improve cabinet installation reliability.
In distributed control system applications, terminal blocks are important for maintaining clear signal routing and reducing wiring complexity. The KJ4006X1-BK1 is commonly used in DeltaV cabinets where redundant architecture, maintenance accessibility, and organized field connections are required.
For replacement projects, engineers should verify the terminal block model, wiring configuration, connected modules, and redundant system arrangement before installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | KJ4006X1-BK1 |
| Part Number | 12P4725X022 |
| Product Family | DeltaV |
| Product Type | Redundant Interface Terminal Block |
| Primary Function | Signal Interface and Wiring Connection |
| System Role | Field Wiring / Hardware Interface Layer |
| Application | Industrial Automation / Distributed Control Systems |
| Installation | DeltaV Control Cabinet |
| Dimensions | 150 × 100 × 40 mm |
| Weight | 0.05 kg |
Product Features
The Emerson KJ4006X1-BK1 provides organized signal connection support for DeltaV redundant system installations.
Key characteristics include:
- Emerson DeltaV Redundant Interface Terminal Block
- Model KJ4006X1-BK1
- Part number 12P4725X022
- Designed for redundant system wiring applications
- Provides structured terminal connection points
- Supports organized cabinet wiring layouts
- Helps simplify field connection management
- Suitable for DeltaV distributed control systems
- Supports maintenance and replacement applications
- Used with compatible DeltaV hardware configurations
The terminal block should be installed according to the DeltaV system wiring design and connected equipment requirements.
Working Principle
The KJ4006X1-BK1 operates as an intermediate connection point between DeltaV system hardware and external wiring.
A simplified connection path can be represented as:
Field Wiring → KJ4006X1-BK1 Terminal Block → DeltaV Hardware → Control System
The terminal block does not execute control logic or process signals. Instead, it provides an organized electrical connection interface that allows signals to be routed between system components.
In redundant architectures, proper terminal arrangement helps maintain clear separation and reliable connection paths between primary and backup system components.
Role in DeltaV Control Architecture
The KJ4006X1-BK1 belongs to the interface and wiring layer of a DeltaV control system.
A typical architecture can be represented as:
Controller Layer → I/O Layer → Terminal Interface Layer → Field Device Layer
| System Layer | Typical Function |
|---|---|
| DeltaV Controller | Executes control strategies |
| DeltaV I/O Modules | Process field signals |
| Redundant Interface Terminal Block | Organizes signal connections |
| Field Wiring | Connects sensors and actuators |
| Engineering Workstation | Supports configuration and maintenance |
The terminal block supports the physical connection structure required for reliable signal transmission.
Industrial Applications
The Emerson KJ4006X1-BK1 is suitable for industrial automation systems using DeltaV redundant configurations.
| Application | Typical Use |
|---|---|
| Process Control Plants | Organizing redundant system wiring |
| Oil and Gas Facilities | Supporting reliable control connections |
| Chemical Processing | Maintaining structured cabinet wiring |
| Power Generation | Supporting distributed control systems |
| Pharmaceutical Production | Signal connection management |
| Manufacturing Facilities | Control cabinet integration |
| Plant Expansion Projects | Adding or modifying system wiring |
| Automation Maintenance | Terminal block replacement |
The actual application depends on the DeltaV system design and wiring requirements.
Installation and Maintenance
Proper wiring identification is important before installing or replacing the terminal block.
Recommended maintenance checks include:
- Confirm the correct KJ4006X1-BK1 (12P4725X022) model.
- Verify redundant system configuration.
- Record existing wiring connections.
- Check terminal identification markings.
- Inspect wiring condition.
- Confirm cable termination quality.
- Check for loose connections.
- Verify cabinet installation position.
- Inspect surrounding DeltaV hardware.
- Test signal availability after replacement.
When troubleshooting signal-related issues, the terminal block, field wiring, connected modules, and system configuration should be checked together.
Related Components
The KJ4006X1-BK1 works together with other DeltaV control system components.
| Component | Function |
|---|---|
| Emerson DeltaV Controllers | Execute control applications |
| DeltaV I/O Modules | Process field input and output signals |
| Redundant Interface Components | Support backup system architectures |
| Terminal Blocks | Provide wiring connection points |
| Field Cables | Transfer process signals |
| Power Supply Components | Provide system power |
| Control Cabinets | Provide installation environment |
| Engineering Workstations | Configure and maintain systems |
These components form a complete DeltaV control system connection structure.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson KJ4006X1-BK1 (12P4725X022) | Redundant Interface Terminal Block | DeltaV redundant wiring connection |
| Emerson KJ4002X1-BC2 | Vertical Power/Controller Carrier | DeltaV carrier installation |
| Emerson KJ4003X1-BG1 | VerticalPLUS Power Carrier | DeltaV module support |
| Emerson KJ4003X1-BE1 | VerticalPLUS I/O Carrier Extender (Right) | Carrier expansion |
| Emerson KJ4003X1-BF1 | VerticalPLUS I/O Carrier Extender (Left) | Carrier expansion |
| Emerson KJ4003X1-BC1 | SIS Vertical Power/Controller Carrier | Safety system hardware installation |
Selection should be based on DeltaV system architecture, wiring requirements, and redundant configuration.
Key Advantages
- Emerson DeltaV redundant interface component
- Supports organized cabinet wiring
- Suitable for redundant control architectures
- Simplifies signal connection management
- Integrates with DeltaV hardware systems
- Supports maintenance and replacement projects
- Helps improve wiring clarity
- Suitable for distributed control applications
- Supports structured system installation
- Helps maintain reliable field connections
Technical FAQs
What is the main function of the Emerson KJ4006X1-BK1?
The KJ4006X1-BK1 is a redundant interface terminal block used to organize and connect wiring within DeltaV control system installations.
Is the KJ4006X1-BK1 responsible for signal processing?
No. The terminal block only provides electrical connection and wiring organization. Signal processing is performed by the corresponding DeltaV I/O and control modules.
Why are terminal blocks important in redundant control systems?
Terminal blocks help maintain clear wiring paths between redundant components, making system installation, troubleshooting, and maintenance more efficient.
What information should be checked before replacing this terminal block?
Engineers should confirm the part number, wiring arrangement, connected modules, redundant architecture, and terminal assignments before replacement.
