Product Overview

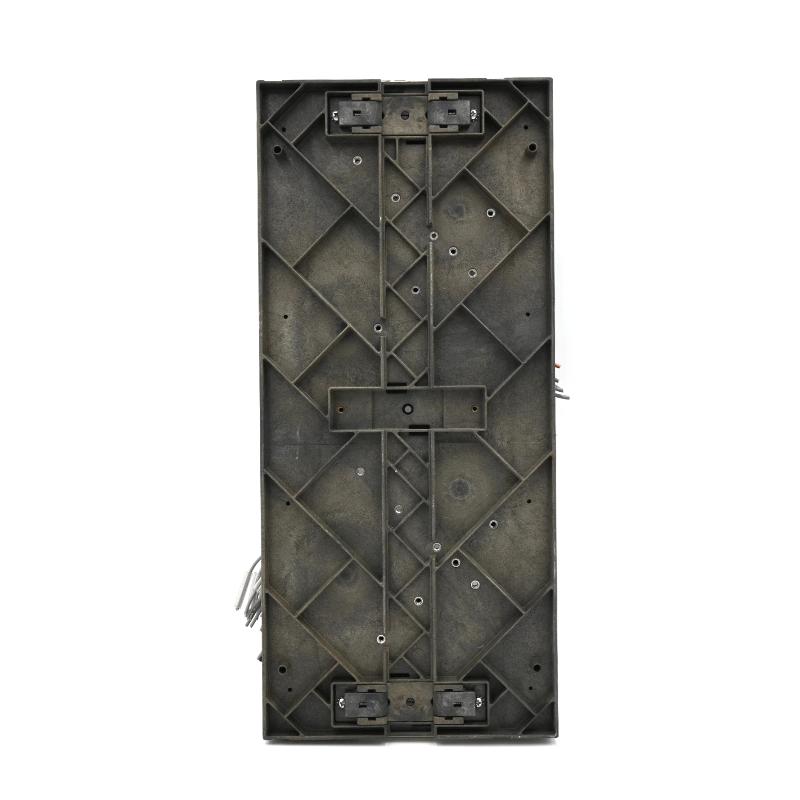

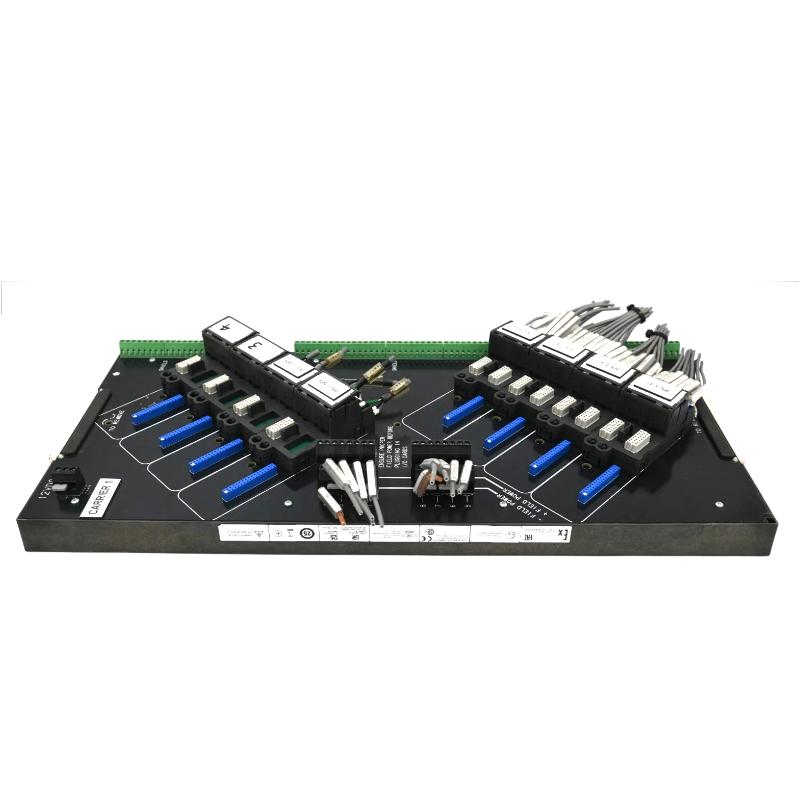

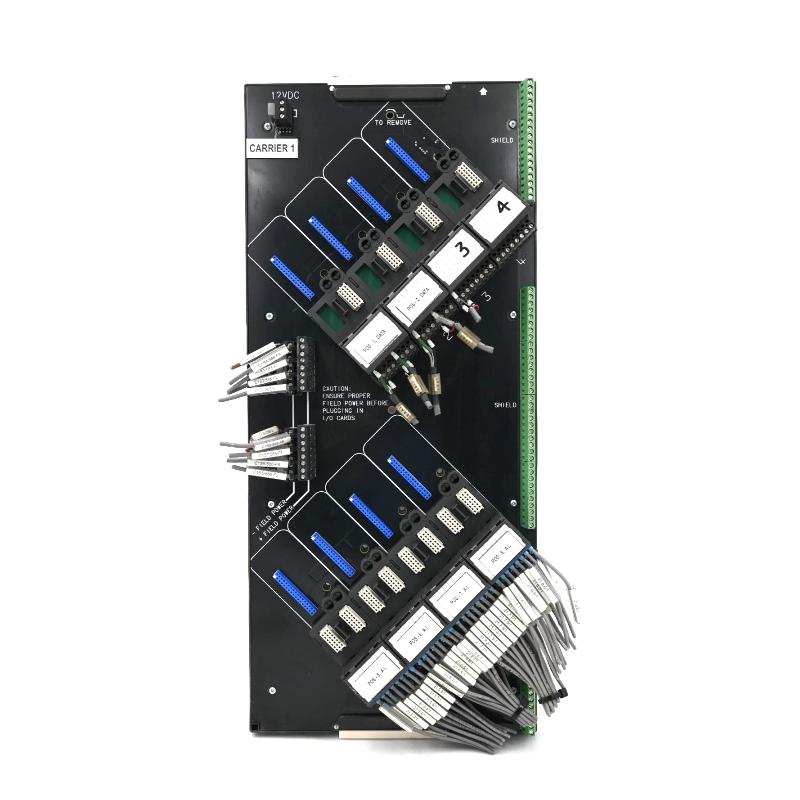

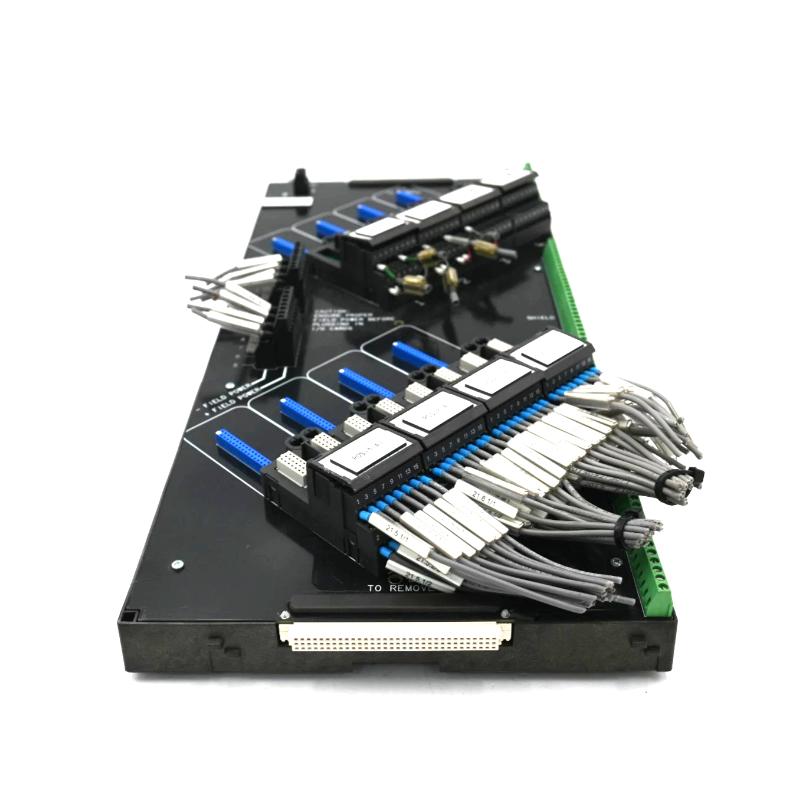

The Emerson KJ4003X1-BA1 DeltaV SIS Vertical Left-Side 8-Wide Carrier is a carrier component used in Emerson DeltaV Safety Instrumented System (SIS) installations. It provides the mounting and interconnection structure required for compatible SIS modules within a vertical control cabinet arrangement.
The KJ4003X1-BA1 is different from a conventional DeltaV I/O module because it does not independently acquire field signals or execute safety logic. Instead, it forms part of the hardware infrastructure that organizes compatible SIS modules and establishes their physical and electrical relationship with the surrounding system.
The vertical left-side 8-wide configuration is particularly relevant when a DeltaV SIS architecture requires a defined carrier position and module arrangement. During system expansion or replacement work, the carrier should be evaluated together with the installed SIS modules, adjacent carriers, power connections, and system interconnection hardware.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | KJ4003X1-BA1 |
| Product Family | DeltaV SIS |
| Product Type | Vertical Left-Side 8-Wide Carrier |
| Primary Function | SIS Module Mounting and Interconnection |
| System Role | Safety Instrumented System Infrastructure |
| Installation Orientation | Vertical |
| Carrier Position | Left-Side |
| Carrier Configuration | 8-Wide |
| Dimensions | 455 × 28 × 202 mm |
| Weight | 1.63 kg |
Product Features
The KJ4003X1-BA1 is intended for DeltaV SIS installations that use a modular vertical carrier structure.
Key characteristics include:
- Emerson DeltaV SIS carrier hardware
- Model KJ4003X1-BA1
- Vertical installation configuration
- Left-side carrier position
- 8-wide module arrangement
- Supports compatible DeltaV SIS modules
- Provides structured module mounting
- Supports system-level module interconnection
- Suitable for safety-system cabinet construction
- Useful for SIS system expansion and maintenance
The carrier position should correspond to the intended DeltaV SIS architecture and cabinet layout.
Working Principle
The KJ4003X1-BA1 functions as the hardware platform for compatible DeltaV SIS modules.
A simplified architecture is:
SIS Controller / System Hardware → SIS Carrier → Safety I/O Modules → Field Devices
The carrier provides the mechanical mounting arrangement and electrical interconnection needed by the installed SIS modules. Once the appropriate modules are mounted, the carrier becomes part of the overall path connecting the safety-system hardware with the associated field interface.
The carrier itself does not replace the safety controller or individual SIS I/O modules. Instead, it provides the infrastructure that allows those components to operate as an organized modular system.
For a safety-related installation, correct carrier position, module compatibility, wiring, and system configuration are especially important because the carrier forms part of the physical architecture of the SIS cabinet.
Role in a DeltaV SIS Architecture
The KJ4003X1-BA1 belongs to the infrastructure layer of the DeltaV Safety Instrumented System.
SIS Controller → SIS Carrier → Safety I/O → Field Interface → Process Equipment
| System Layer | Typical Component | Function |
|---|---|---|
| Safety Control Layer | DeltaV SIS Controller | Executes safety logic |
| Carrier Layer | KJ4003X1-BA1 | Mounts and interconnects SIS modules |
| Safety I/O Layer | SIS I/O Modules | Interfaces with safety-related signals |
| Interface Layer | Terminal / Wiring Hardware | Connects field circuits |
| Field Layer | Sensors / Final Elements | Detects conditions and performs safety actions |
This separation allows the carrier to provide the required hardware infrastructure while the controller and SIS modules perform the actual safety functions.
Industrial Applications
The KJ4003X1-BA1 is suitable for industrial facilities where DeltaV SIS hardware is used for safety-related process monitoring and protection.
| Application | Typical Use |
|---|---|
| Oil & Gas | Safety instrumented system installation |
| Chemical Processing | Process safety protection |
| Refining | Safety I/O cabinet construction |
| Petrochemical | Emergency and protective control systems |
| Power Generation | Safety-related process monitoring |
| Pharmaceutical Manufacturing | Process safety applications |
| LNG Facilities | Safety instrumented control infrastructure |
| Industrial Process Plants | Modular SIS cabinet integration |
The actual application depends on the DeltaV SIS architecture, installed safety modules, and process safety requirements.
Installation and Maintenance
Because the KJ4003X1-BA1 belongs to a safety-system architecture, installation should follow the established DeltaV SIS hardware configuration and applicable site procedures.
Recommended checks include:
- Confirm the complete KJ4003X1-BA1 part number.
- Verify the vertical left-side carrier position.
- Confirm the 8-wide configuration.
- Check compatibility with the intended SIS modules.
- Verify the carrier mounting arrangement.
- Inspect connectors and interconnection points.
- Confirm correct module positioning.
- Check associated power and system wiring.
- Inspect adjacent carrier hardware.
- Maintain correct cable routing.
- Verify that safety-related wiring remains correctly identified.
- Follow the applicable shutdown and isolation procedure before replacement.
- Perform system verification after installation.
- Record the final SIS hardware configuration.
For SIS maintenance, hardware replacement should be followed by the required functional checks and site-specific safety verification procedures.
Related Components
The KJ4003X1-BA1 forms part of a broader DeltaV SIS hardware architecture.
| Component | Function |
|---|---|
| DeltaV SIS Controller | Executes safety logic |
| DeltaV SIS I/O Modules | Processes safety-related field signals |
| KJ4003X1-BA1 | Provides SIS carrier mounting and interconnection |
| SIS Power Components | Supplies required system power |
| SIS Terminal Hardware | Provides field circuit termination |
| Safety Sensors | Detects process or equipment conditions |
| Final Elements | Performs safety actions |
| System Interconnection Hardware | Connects SIS system sections |
| Field Wiring | Transfers safety-related signals |
The carrier and installed SIS modules should be treated as a complete hardware arrangement when planning replacement or system expansion.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson KJ4003X1-BA1 | DeltaV SIS Vertical Left-Side 8-Wide Carrier | SIS module installation |
| Emerson KJ4003X1-BB1 | DeltaV SIS Vertical Right-Side 8-Wide Carrier | Complementary SIS carrier arrangement |
| Emerson KJ4003X1-BC1 | DeltaV SIS Vertical Power/Controller Carrier | SIS controller and power infrastructure |
| Emerson KJ4003X1-BD1 | DeltaV SIS Vertical Power/Controller Carrier | SIS vertical system architecture |
| Emerson DeltaV SIS I/O Modules | Safety I/O Hardware | Safety-related field signal processing |
Carrier selection should be based on the required side, orientation, module capacity, and position within the DeltaV SIS cabinet architecture.
Key Advantages
- Emerson DeltaV SIS carrier hardware
- Vertical left-side configuration
- 8-wide module arrangement
- Supports compatible SIS I/O modules
- Provides structured safety-system module mounting
- Supports system-level SIS interconnection
- Suitable for safety instrumented system cabinets
- Supports modular DeltaV SIS architecture
- Useful for SIS expansion projects
- Suitable for maintenance and replacement applications
Technical FAQs
What is the KJ4003X1-BA1 used for in a DeltaV SIS installation?
The KJ4003X1-BA1 provides the carrier infrastructure for compatible DeltaV SIS modules. It supports their physical mounting and system-level interconnection but does not itself execute the safety logic.
What does the left-side designation mean for this SIS carrier?
The left-side designation identifies the carrier’s intended position within the vertical SIS hardware arrangement. It should be installed according to the cabinet layout and the corresponding carrier configuration.
How does an SIS carrier differ from a standard DeltaV I/O carrier?
An SIS carrier belongs to the safety-system hardware architecture and is intended for compatible safety-related modules. A standard DeltaV I/O carrier serves the conventional process-control I/O architecture. The two should not be selected solely on the basis of physical similarity.
What should be verified after replacing a KJ4003X1-BA1?
Technicians should verify carrier position, module installation, interconnections, wiring, power conditions, and the overall SIS hardware configuration. Required safety-system functional checks should then be completed according to the applicable commissioning or maintenance procedure.
