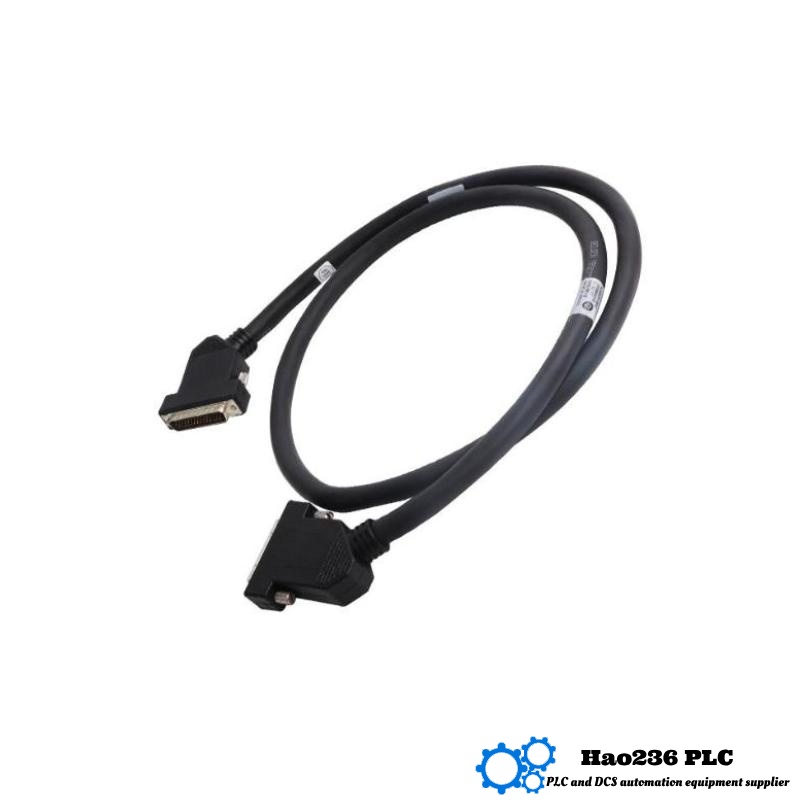

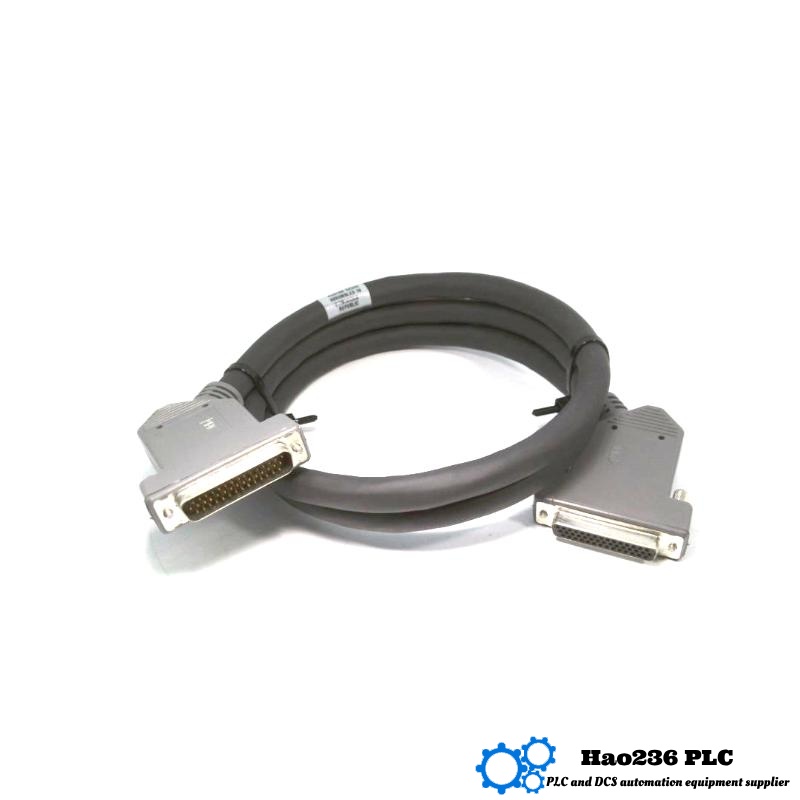

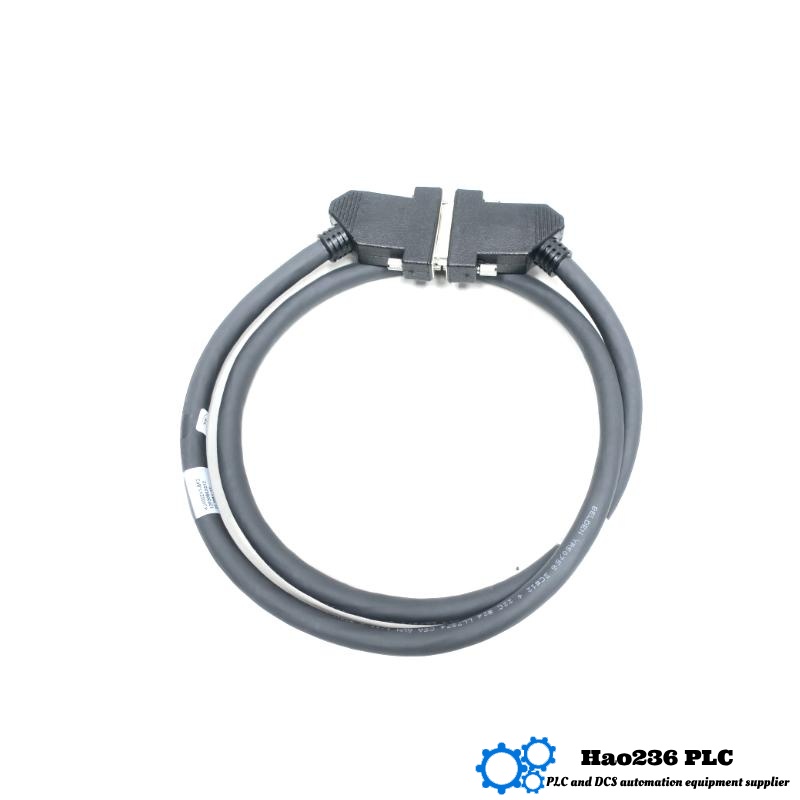

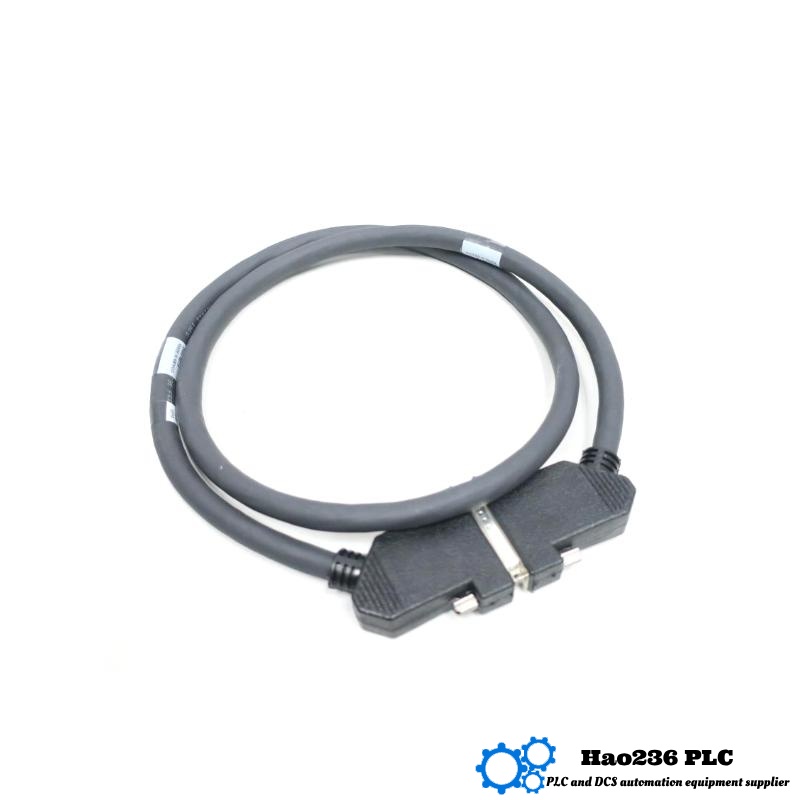

Emerson KJ4002X1-BF2 Bottom Extender Cable Assembly
Product Introduction
The KJ4002X1-BF2 is a bottom extender cable assembly for Emerson’s DeltaV™ distributed control system. It attaches beneath a DeltaV I/O module to reroute and extend field wiring connections away from crowded rack spaces. The robust 4 ft cable and ruggedized connectors preserve signal integrity while enabling flexible cabinet layouts and simplified maintenance access.
Key Applications
-
Extending I/O card wiring to remote termination panels in high-density DeltaV cabinets.
-
Providing clearance for fan trays, power supplies, or redundant bus assemblies below I/O modules.
-
Facilitating retrofit of DeltaV skids where baseplates obstruct side-connector access.
-
Enabling hot-swap of I/O modules by relocating connectors to an easily reached service plane.
-
Supporting specialized termination blocks and signal conditioners mounted beneath the rack.
Brand and Series
Brand: Emerson Automation Solutions
Series: DeltaV™ Distributed Control System
Emerson’s DeltaV platform delivers integrated process control and safety automation, with modular hardware and advanced diagnostics to optimize uptime in industries like oil & gas, chemicals, pharmaceuticals, and power generation.
Product Advantages
-
Flexible Cable Routing: 4 ft length allows routing around obstacles and into wiring troughs without splicing.
-
Rugged Construction: Industrial-grade PVC jacket and strain reliefs resist abrasion, oil, and chemical exposure.
-
Maintained Signal Integrity: Shielded conductors and precision molded connectors preserve bus and I/O signals.
-
Tool-Free Installation: Quick-release latches and keyed connectors eliminate wiring errors and speed service.
-
Space Optimization: Relocates I/O connections below the module, freeing front and side access for other components.
Detailed Technical Parameters
| Specification | Details |
|---|---|
| Model Number | KJ4002X1-BF2 |
| Function | Bottom extender cable for DeltaV I/O modules |
| Cable Length | 4 ft (1.22 m) |
| Connector Type | 60-pin DeltaV bus connector, keyed molded shell |
| Jacket Material | PVC, oil-resistant |
| Shielding | Aluminum foil + braided tinned copper |
| Weight | 0.44 kg |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 5 % to 95 % RH (non-condensing) |
| Mounting | Snap-in latches for DeltaV rack base slot |
Related DeltaV™ Series / Function Models
| Model | Description |
|---|---|
| KJ4002X1-BF1 | Bottom extender, 2 ft cable |
| KJ4002X1-BF3 | Bottom extender, 6 ft cable |
| KJ4001X1-NB1 | Dual left side extender |
| KJ4001X1-NA1 | Single left side extender |
| KJ4002X1-BF4 | Bottom extender with integrated surge suppression |
Popular Emerson Automation™ Models
| Model | Description |
|---|---|
| KJ4001X1-NB2 | FOUNDATION™ Fieldbus I/O card |
| KJ4001X1-NC2 | Smart HART® I/O card |
| KJ4001X1-NA2 | Discrete I/O card, 16 channels |
| KJ4003Y1-PE1 | DeltaV Controller card, PID function |
| KJ4001X1-PD1 | DeltaV Controller card, single-loop valve positioner |
Frequently Asked Questions (FAQ)
Q: What is the purpose of the KJ4002X1-BF2?
A: It relocates the DeltaV I/O module’s base-slot connections downward via a 4 ft cable to clear rack obstructions.
Q: Can it be installed while the rack is powered?
A: Yes—snap-in latches and keyed connectors support hot-swap installation with minimal risk.
Q: Does the cable support both bus and field I/O signals?
A: Yes—the 60-pin connector carries both bus communications and I/O conductors through shielded pairs.
Q: How robust is the cable jacket?
A: The PVC jacket is rated for oil, chemical, and UV exposure, suitable for industrial cabinet environments.
Q: What temperature range can it handle?
A: It operates from –20 °C to +60 °C and stores safely from –40 °C to +85 °C.
Q: Is the cable shield grounded?
A: Yes—the foil and braid are tied to the connector shell for continuous ground continuity.
Q: How much space does the extender require?
A: It occupies one base-slot footprint but shifts the mating face 4 ft below the module.
Q: Can I use multiple extenders in one rack?
A: Yes—you can deploy several to clear multiple module rows or mixed I/O types.
Q: Does it support redundant DeltaV bus configurations?
A: The extender passes both primary and secondary bus lines for fully redundant I/O connectivity.
Q: What is the assembly’s weight?
A: The complete cable assembly weighs 0.44 kg.
