Product Overview

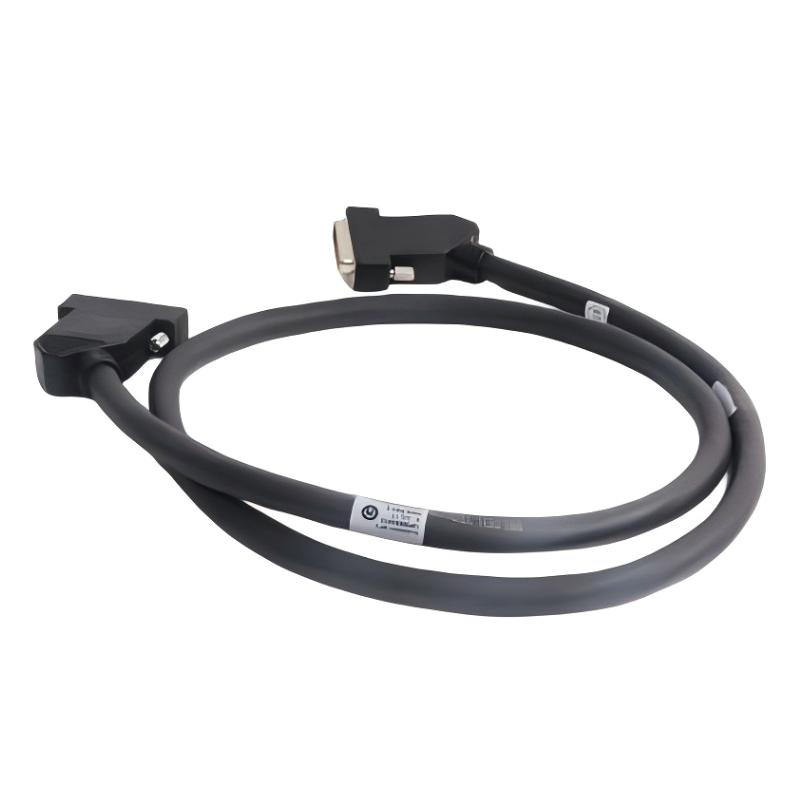

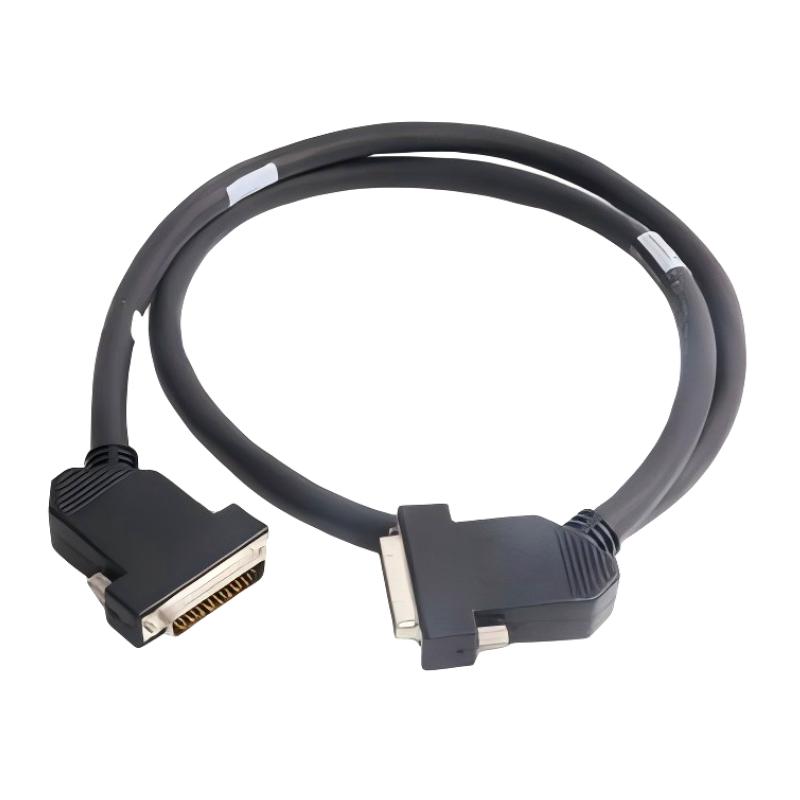

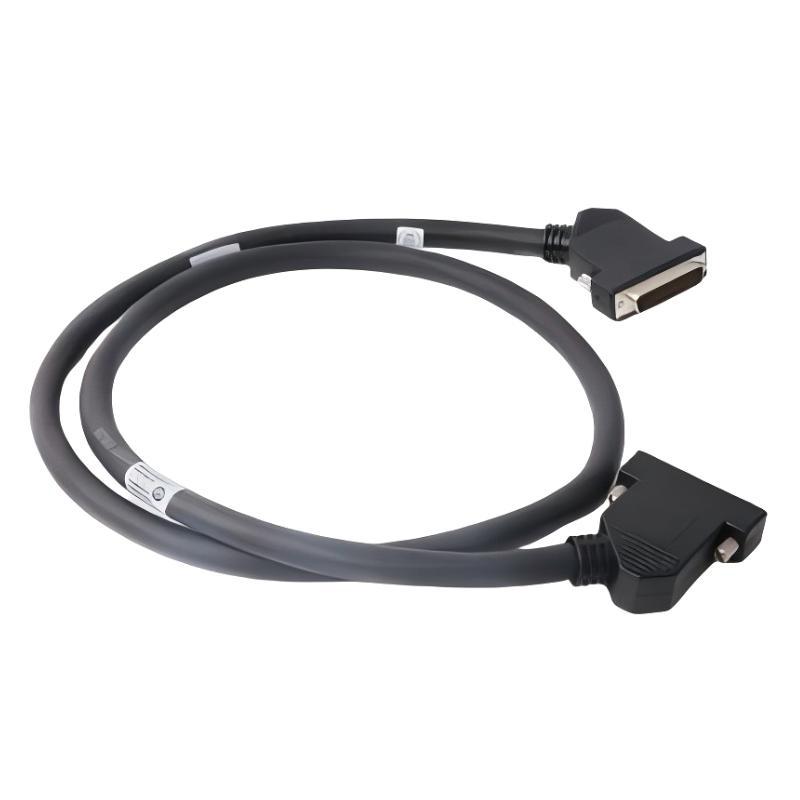

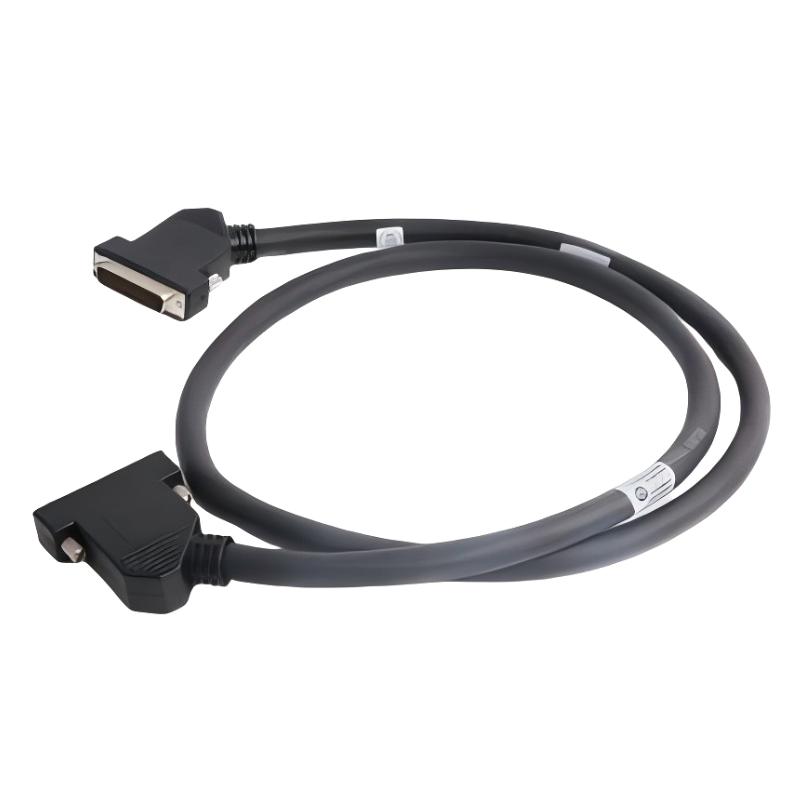

The Emerson KJ4002X1-BF1 DeltaV Bottom Extender Cable Assembly is an interconnection component used within Emerson DeltaV M-Series system hardware. It belongs to the carrier and LocalBus interconnection layer and is intended for installations where the physical arrangement of DeltaV hardware requires an extended connection between compatible system sections.

Unlike field cables that connect sensors or actuators to individual I/O channels, the KJ4002X1-BF1 serves a system-level interconnection function. Its application is associated with the carrier structure and the arrangement of DeltaV control-system hardware inside the cabinet.

The bottom extender configuration distinguishes this assembly from other extender cable variants. For replacement or system expansion, the carrier position, connection arrangement, cable routing, and required cable length should all be considered before installation.

Technical Specifications

Product Features

The KJ4002X1-BF1 is intended for DeltaV installations requiring a bottom-position extender connection within the system hardware arrangement.

Key characteristics include:

• Emerson DeltaV M-Series extender cable assembly
• Model KJ4002X1-BF1
• Bottom extender configuration
• Supports DeltaV carrier interconnection
• Suitable for extended system hardware arrangements
• Designed for system-level interconnection
• Supports modular DeltaV cabinet construction
• Suitable for system expansion projects
• Useful for maintenance and replacement work
• Cable length available according to installation requirements

Working Principle

The KJ4002X1-BF1 extends the interconnection between compatible sections of the DeltaV carrier architecture.

A simplified arrangement is:

DeltaV Carrier Section → KJ4002X1-BF1 → Extended Carrier / System Section

The cable assembly maintains the required electrical connection between the associated hardware sections when they are not directly adjacent within the cabinet arrangement.

Its role is different from an ordinary instrumentation cable. The KJ4002X1-BF1 is associated with the system’s carrier-level interconnection rather than being assigned to an individual temperature transmitter, pressure transmitter, valve, or other field device.

Because this model is identified as a bottom extender cable assembly, its position and connection points should correspond to the applicable DeltaV hardware arrangement.

Role in a DeltaV Control Architecture

The KJ4002X1-BF1 occupies the system interconnection layer of a DeltaV M-Series installation.

Controller / Carrier → Bottom Extender → Extended Carrier Section → I/O Hardware

The extender assembly helps maintain the required system architecture when the carrier arrangement requires an extended connection.

Industrial Applications

The KJ4002X1-BF1 can be used in DeltaV-based industrial control installations where extended carrier interconnections are required.

The specific application depends on the carrier configuration and physical arrangement of the DeltaV system.

Installation and Maintenance

The extender cable assembly should be installed with careful attention to its position and connection points.

Recommended checks include:

• Confirm the complete KJ4002X1-BF1 part number.
• Verify that a bottom extender configuration is required.
• Confirm the required cable length.
• Check connector compatibility.
• Verify the connected carrier arrangement.
• Inspect connectors before installation.
• Check the cable for cuts, crushing, or other physical damage.
• Maintain suitable cable routing.
• Avoid excessive bending near connectors.
• Ensure both connection points are fully seated.
• Check adjacent carrier hardware.
• Verify the system connection after installation.
• Inspect the cable assembly during scheduled maintenance.

When replacing an existing extender assembly, recording the original cable routing and connection locations can help restore the system correctly.

Related Components

The KJ4002X1-BF1 works together with other DeltaV control-system hardware.

The extender assembly should be selected together with the carrier architecture and connected DeltaV hardware.

Recommended Related Models

Selection should be based on the carrier position, connection arrangement, required cable length, and existing DeltaV system architecture.

Key Advantages

• Emerson DeltaV M-Series extender cable assembly
• Model KJ4002X1-BF1
• Bottom extender configuration
• Supports DeltaV carrier-level interconnection
• Suitable for extended system hardware arrangements
• Supports modular DeltaV cabinet construction
• Useful for DeltaV system expansion
• Suitable for maintenance and replacement applications
• Supports organized system-level hardware integration
• Suitable for industrial process-control environments

Technical FAQs

What distinguishes the KJ4002X1-BF1 from a conventional DeltaV field cable?

The KJ4002X1-BF1 is used for system-level carrier interconnection rather than direct connection to an individual field instrument. It forms part of the DeltaV hardware architecture between compatible system sections.

When would a bottom extender cable assembly be required?

It is required when the DeltaV carrier arrangement calls for an extended connection at the bottom portion of the applicable system configuration. The physical layout should be checked before selecting the extender assembly.

How should the required cable length be determined?

The length should be selected based on the physical spacing and routing between the connected carrier sections. Proper routing should allow the cable to reach both connection points without excessive tension, bending, or unnecessary slack.

What should be inspected if the DeltaV system develops an intermittent connection fault?

Inspect the KJ4002X1-BF1 connectors, cable condition, routing, and connected carrier interfaces. Loose connections, mechanical stress, damaged cable insulation, or contamination can affect system-level interconnection and should be ruled out during troubleshooting.
