Product Overview

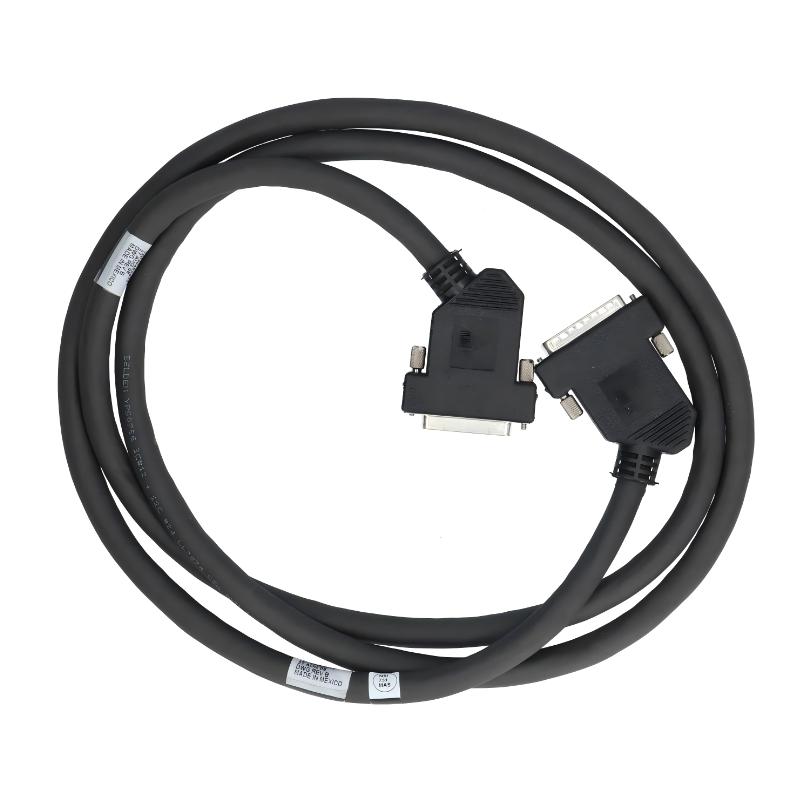

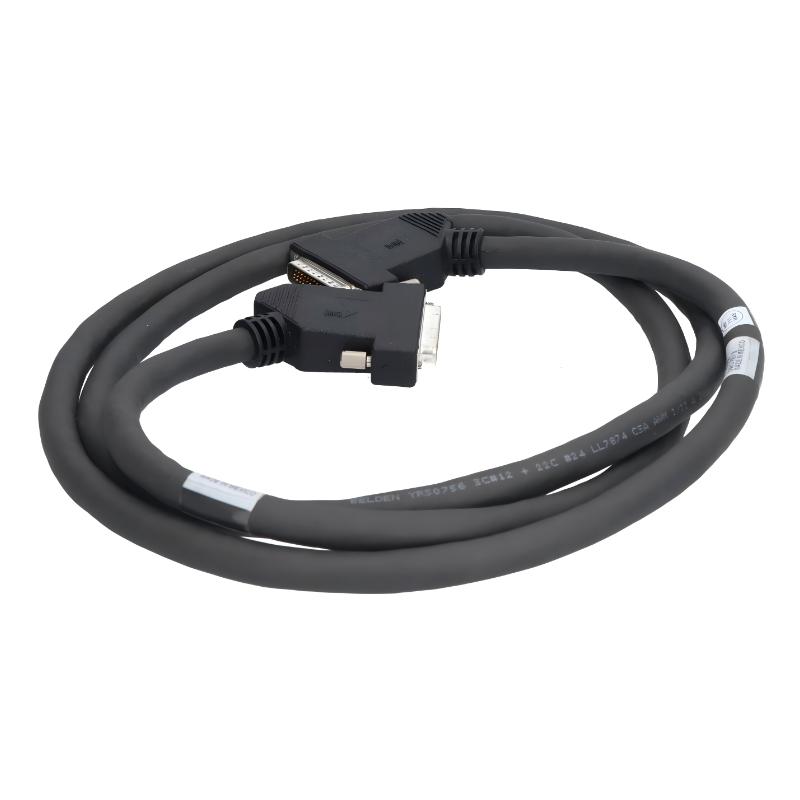

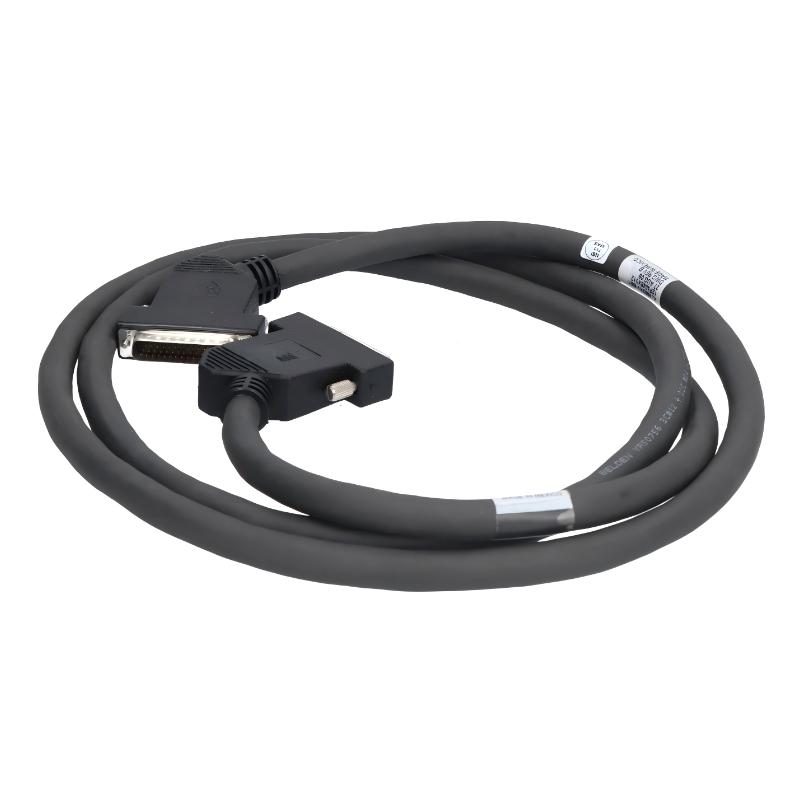

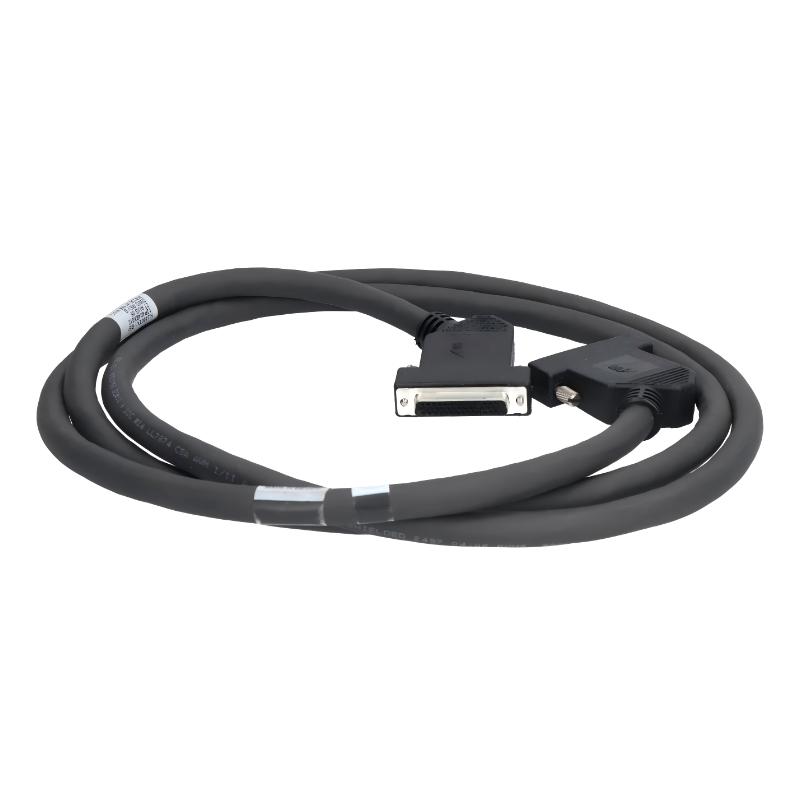

The Emerson KJ4002X1-BE1 DeltaV M-Series Top Extender Cable is a system interconnection cable used within Emerson DeltaV M-Series hardware arrangements. It is associated with the extender section of the DeltaV carrier architecture and allows compatible system components to be connected when the standard carrier arrangement requires an extended interconnection path.
Unlike an I/O cable used directly for field instrumentation, the KJ4002X1-BE1 belongs to the system-level hardware interconnection layer. Its application is mainly associated with DeltaV carrier, controller, power, and LocalBus-related hardware.
The cable is particularly relevant when building or modifying DeltaV cabinet installations where the physical position of system components requires an extender connection. Correct cable selection should take into account the carrier arrangement, installation position, connector compatibility, and required cable length.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | KJ4002X1-BE1 |
| Product Family | DeltaV M-Series |
| Product Type | Top Extender Cable |
| Primary Function | DeltaV System Hardware Interconnection |
| System Role | Carrier / LocalBus Extension |
| Installation Position | Top |
| Cable Length | Optional |
| Shipping Weight | 3 kg |
Product Features
The KJ4002X1-BE1 is intended for DeltaV M-Series installations where an extended system interconnection is required.
Key characteristics include:
- Emerson DeltaV M-Series extender cable
- Model KJ4002X1-BE1
- Top extender configuration
- Suitable for DeltaV carrier interconnection
- Supports extended system hardware arrangements
- Used within the DeltaV carrier architecture
- Suitable for modular control-system construction
- Applicable to system expansion projects
- Useful for cabinet integration and maintenance
- Available with optional cable length
Working Principle
The KJ4002X1-BE1 extends the physical interconnection between compatible sections of the DeltaV M-Series hardware architecture.
A simplified arrangement is:
DeltaV Carrier / Controller Hardware → KJ4002X1-BE1 → Extended Carrier / System Section
The cable transfers the required electrical interconnection between the associated hardware sections, allowing components that are not positioned directly adjacent to one another to remain part of the same system arrangement.
Its function is therefore different from a conventional field signal cable. Rather than carrying an individual sensor or actuator signal to an I/O channel, the KJ4002X1-BE1 is associated with the system-level carrier and LocalBus architecture.
Because the cable is specified for a top extender application, its installation position and connector orientation should match the intended DeltaV carrier configuration.
Role in a DeltaV Control Architecture
The KJ4002X1-BE1 operates within the hardware interconnection layer of a DeltaV M-Series system.
Controller / Power Section → Carrier → KJ4002X1-BE1 → Extended Carrier Section → I/O Hardware
| System Layer | Typical Component | Function |
|---|---|---|
| Control Layer | DeltaV Controller | Executes control strategies |
| Carrier Layer | DeltaV Carrier | Provides module mounting |
| Interconnection Layer | KJ4002X1-BE1 | Extends the system connection |
| I/O Layer | DeltaV I/O Modules | Processes field signals |
| Interface Layer | Terminal Blocks | Connects field wiring |
| Field Layer | Sensors / Actuators | Measures and controls the process |
The extender cable helps maintain the required system connection when the physical arrangement of the DeltaV hardware exceeds the direct carrier configuration.
Industrial Applications
The KJ4002X1-BE1 is useful in DeltaV installations requiring extended carrier or system interconnections.
| Application | Typical Use |
|---|---|
| Process Automation | DeltaV system expansion |
| Oil & Gas | Distributed control cabinet integration |
| Chemical Processing | Extended carrier arrangements |
| Power Generation | Control-system hardware interconnection |
| Water Treatment | Modular DeltaV system installation |
| Pharmaceutical Manufacturing | Control cabinet expansion |
| Manufacturing | Extended automation hardware arrangements |
| Plant Maintenance | Replacement of existing extender cables |
The specific application depends on the DeltaV carrier configuration and the physical arrangement of the connected hardware.
Installation and Maintenance
Proper cable installation is important because an extender cable forms part of the system-level interconnection path.
Recommended checks include:
- Confirm the complete KJ4002X1-BE1 part number.
- Verify that a top extender cable is required.
- Confirm the required cable length.
- Check connector compatibility.
- Verify the intended carrier arrangement.
- Inspect connectors for damage or contamination.
- Check the cable jacket for cuts, crushing, or excessive bending.
- Maintain appropriate cable routing.
- Avoid unnecessary mechanical stress on connectors.
- Verify both ends are fully seated.
- Check the associated carrier hardware before commissioning.
- Inspect the cable during scheduled maintenance.
- Confirm normal system operation after replacement.
When replacing an existing extender cable, recording the original routing and connection points can help prevent installation errors.
Related Components
The KJ4002X1-BE1 works as part of a broader DeltaV M-Series hardware arrangement.
| Component | Function |
|---|---|
| DeltaV Controller | Executes control strategies |
| DeltaV Power Supply | Provides system power |
| DeltaV Carrier | Provides module mounting and interconnection |
| KJ4002X1-BE1 | Extends the system-level carrier connection |
| DeltaV I/O Carrier | Supports I/O module installation |
| DeltaV I/O Modules | Interfaces with field signals |
| LocalBus Hardware | Supports system interconnection |
| Terminal Blocks | Provides field wiring termination |
| Field Wiring | Connects control hardware to field devices |
| Sensors / Actuators | Provides measurements and performs process actions |
The cable should be selected together with the carrier and extender arrangement rather than as an independent wiring component.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson KJ4002X1-BE1 | DeltaV M-Series Top Extender Cable | Extended carrier interconnection |
| Emerson KJ4001X1-GA1 | DeltaV Local Bus Right-Hand Extension Cable | LocalBus extension |
| Emerson KJ4001X1-HA1 | Horizontal LocalBus Cable Extender Assembly | Horizontal LocalBus extension |
| Emerson KJ4002X1-BC2 | 4-Wide Vertical Power/Controller Carrier | Controller and power hardware installation |
| Emerson KJ4002X1-BD2 | 4-Wide Vertical Power/Controller Carrier | Vertical carrier arrangement |
The correct extender cable should be selected according to the carrier configuration, installation position, connection type, and required cable length.
Key Advantages
- Emerson DeltaV M-Series extender cable
- Model KJ4002X1-BE1
- Top extender configuration
- Supports DeltaV system-level interconnection
- Suitable for extended carrier arrangements
- Supports modular DeltaV system construction
- Useful for cabinet expansion
- Applicable to maintenance and replacement projects
- Helps connect physically separated compatible system sections
- Suitable for industrial process-control installations
Technical FAQs
What is the purpose of the KJ4002X1-BE1 in a DeltaV M-Series system?
The KJ4002X1-BE1 extends the interconnection between compatible DeltaV hardware sections. It is used when the physical arrangement requires the system connection to extend beyond the direct carrier configuration.
Why is this cable identified as a top extender?
The top designation indicates its intended position within the applicable DeltaV carrier arrangement. Using the correct extender configuration helps maintain the proper connection between the associated carrier sections.
What should be considered when selecting the cable length?
The required length depends on the physical distance and routing between the connected DeltaV hardware sections. The cable should be long enough for the intended installation without creating unnecessary slack or excessive mechanical stress.
What can cause an extender cable connection to become unreliable?
Loose connectors, damaged cable jackets, excessive bending, mechanical stress, contamination, and incorrect routing can affect the integrity of the connection. Inspection should include both the cable and the carrier connectors when troubleshooting an intermittent system fault.
