Product Overview

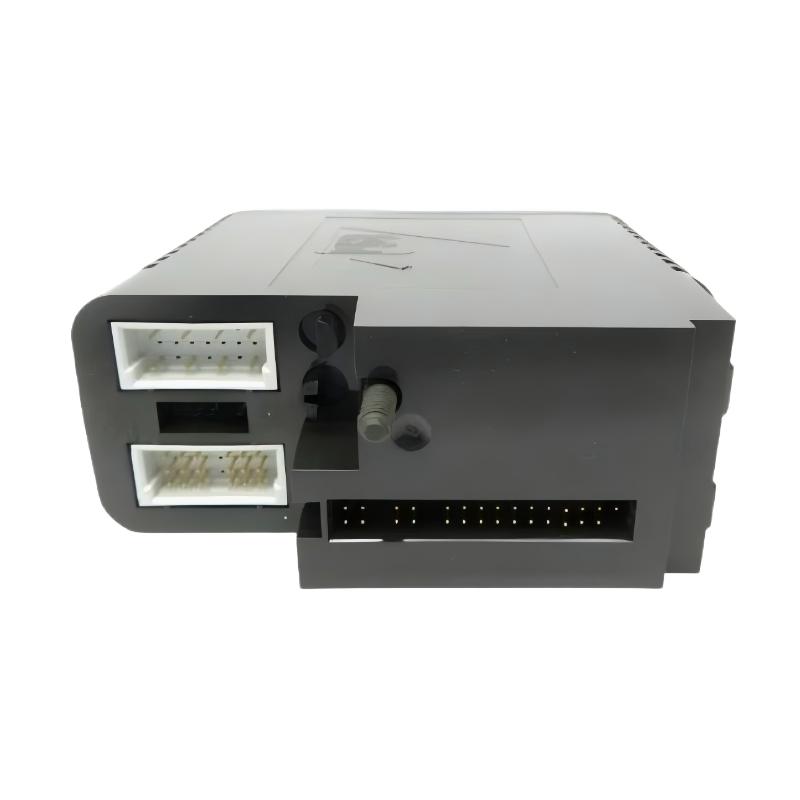

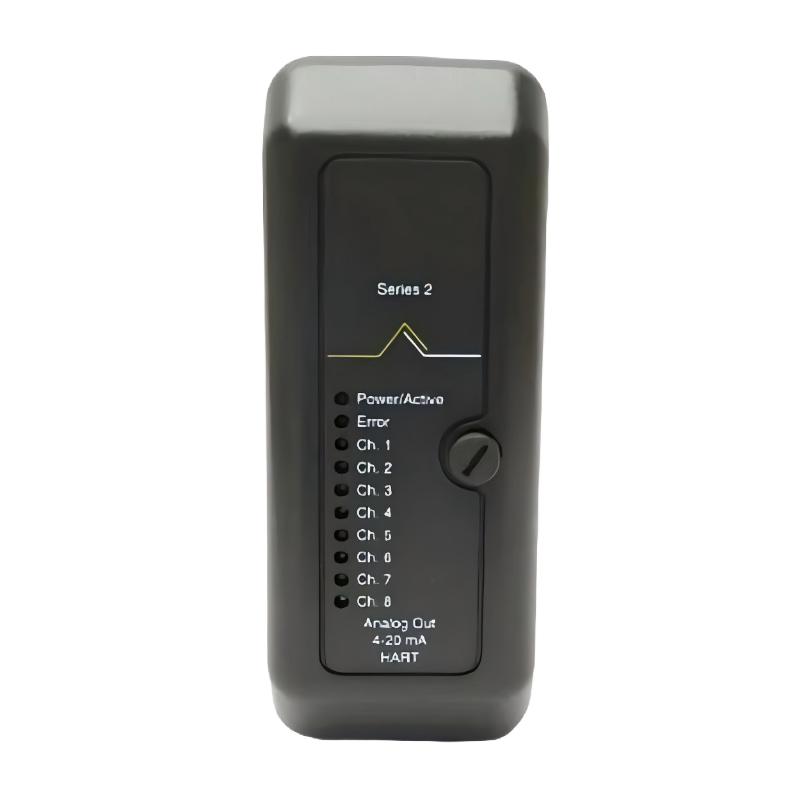

The Emerson KJ3221X1-BA1 + KJ4001X1-CA1 Output Module with Terminal Blocks is a high-performance DeltaV™ Analog Output Module designed for precision process control in industrial automation systems. Combining the KJ3221X1-BA1 analog output card with the KJ4001X1-CA1 standard I/O terminal block, this assembly provides a complete field interface for transmitting accurate analog control signals to industrial equipment. The module supports 8-channel 4–20 mA analog outputs with HART communication, making it suitable for controlling smart field devices such as valve positioners, control valves, variable frequency drives, and other analog-controlled equipment.

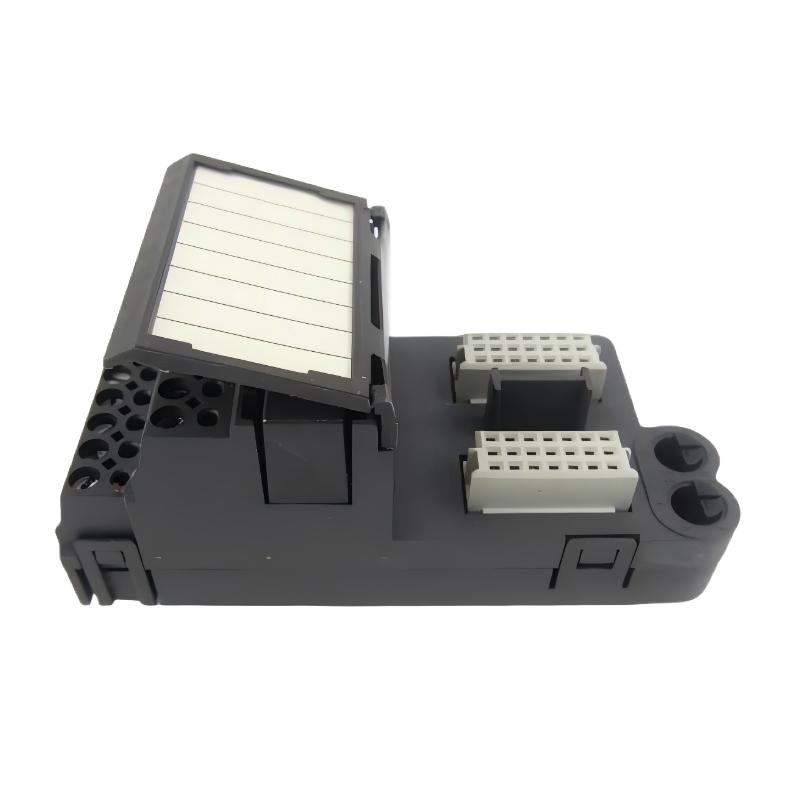

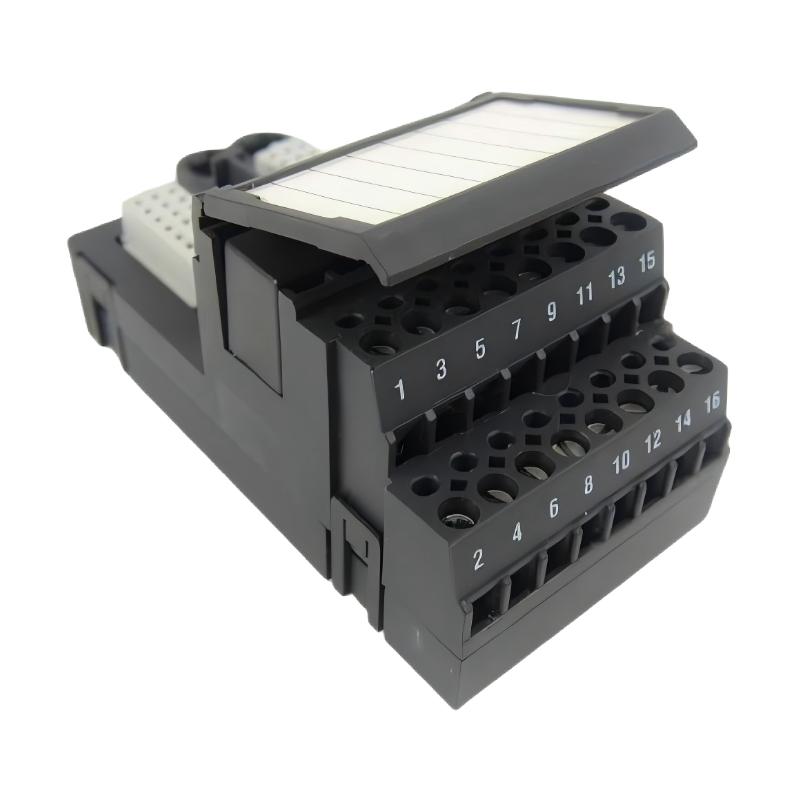

The KJ3221X1-BA1 converts digital commands from the DeltaV controller into precise analog current signals, while the KJ4001X1-CA1 terminal block provides secure field wiring connections for simplified installation and maintenance. Together, they deliver reliable signal transmission, excellent control accuracy, and dependable long-term operation in demanding industrial environments.
Designed for continuous process operation, the module incorporates comprehensive diagnostics that monitor output channels, communication status, and module health. These diagnostic capabilities help maintenance personnel quickly identify faults, reduce downtime, and improve plant availability.
With compact dimensions of 107 × 41 × 105 mm and an approximate weight of 0.18 kg, the module is well suited for high-density DeltaV control cabinets where space optimization is important.
Typical applications include oil and gas production, petrochemical plants, chemical processing, LNG facilities, power generation, pharmaceutical manufacturing, food and beverage processing, pulp and paper, mining, and water and wastewater treatment systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | KJ3221X1-BA1 + KJ4001X1-CA1 |
| Product Type | Analog Output Module with Terminal Blocks |
| Automation Platform | Emerson DeltaV DCS |
| Primary Function | Analog output signal generation |
| Output Channels | 8 Channels |
| Output Signal | 4–20 mA |
| Communication | HART Compatible |
| Terminal Block | KJ4001X1-CA1 Standard I/O Terminal Block |
| Installation | DeltaV I/O subsystem |
| Mounting Method | Modular installation |
| Diagnostics | Channel and module diagnostics |
| Dimensions | 107 × 41 × 105 mm |
| Weight | 0.18 kg |
| Typical Application | Industrial process control |
Function and Working Principle
The Emerson KJ3221X1-BA1 + KJ4001X1-CA1 converts digital control commands from the DeltaV controller into accurate analog output signals while providing secure field wiring through the integrated terminal block.
Typical control architecture:
DeltaV Controller
↓
KJ3221X1-BA1 Analog Output Module
↓
KJ4001X1-CA1 Terminal Block
↓
4–20 mA / HART Output
↓
Control Valve / Positioner / VFD / Actuator
↓
Industrial Process
During operation, the module performs the following functions:
- Converts digital commands into analog outputs
- Generates precise 4–20 mA control signals
- Supports HART communication
- Provides secure field wiring connections
- Monitors output channel status
- Performs continuous diagnostics
- Reports module health
- Improves control loop stability
- Supports reliable industrial automation
- Enhances process efficiency
The module serves as the output interface, while process control strategies are executed by the DeltaV controller.
Role in Industrial Control Systems
Within a DeltaV automation architecture, the KJ3221X1-BA1 + KJ4001X1-CA1 functions as the final analog control interface between the controller and field devices.
Typical automation architecture:
DeltaV Controller
↓
KJ3221X1-BA1 + KJ4001X1-CA1
↓
Analog Output Signals
↓
Control Valves / Variable Speed Drives / Positioners
↓
Industrial Process
Its primary responsibilities include:
- Analog signal generation
- Final control device operation
- Process loop regulation
- HART device communication
- Output diagnostics
- Reliable controller communication
- Field wiring interface
- Continuous operational monitoring
Industrial Applications
Oil and Gas Industry
Typical applications include:
- Pipeline pressure control
- Flow regulation
- Compressor control
- Offshore production
- Wellhead automation
- Emergency shutdown support
Petrochemical and Chemical Plants
Suitable for:
- Reactor control
- Process valve positioning
- Utility systems
- Chemical dosing
- Continuous processing
- Distributed process automation
Power Generation
Common applications include:
- Boiler combustion control
- Turbine governor systems
- Feedwater regulation
- Generator auxiliary control
- Utility automation
- Plant process control
Water and Wastewater Treatment
Applications include:
- Pump speed control
- Flow regulation
- Chemical dosing systems
- Filtration equipment
- Valve positioning
- Treatment process automation
Pharmaceutical Manufacturing
Typical applications include:
- Batch process control
- Utility automation
- Cleanroom systems
- Mixing equipment
- Filling machinery
- Packaging systems
Food and Beverage Processing
Frequently used in:
- Filling lines
- Mixing systems
- Packaging equipment
- Conveyor automation
- Utility systems
- Production process control
Installation and System Integration
Before installation, engineers should verify:
- DeltaV controller compatibility
- I/O carrier compatibility
- Output signal requirements
- Field device compatibility
- HART device configuration
- Power supply capacity
- Wiring integrity
- Grounding and shielding
- Cabinet installation space
- Environmental conditions
Recommended Installation Procedure
- Disconnect system power.
- Verify module and terminal block compatibility.
- Install the module into the DeltaV I/O carrier.
- Connect the KJ4001X1-CA1 terminal block.
- Wire the field devices.
- Verify terminal assignments.
- Restore system power.
- Configure the module in DeltaV engineering software.
- Configure HART parameters if required.
- Test all output channels.
- Verify diagnostic status.
- Perform complete functional testing.
- Complete commissioning documentation.
System Integration Considerations
Proper integration helps maximize process accuracy and system reliability.
Output Signal Verification
Confirm that connected field devices support the configured analog output range.
HART Communication
Verify communication with compatible smart instruments for diagnostics and configuration.
Terminal Block Connections
Inspect terminal wiring carefully to ensure reliable long-term operation.
Grounding and Shielding
Use proper grounding and shielded cables to minimize electrical interference.
Preventive Maintenance
Regular inspection of wiring, terminals, diagnostics, and connected field devices helps maintain dependable operation.
Compatible System Components
| Component | Function |
|---|---|
| DeltaV Controller | Process control |
| KJ3221X1-BA1 | Analog output processing |
| KJ4001X1-CA1 | Standard I/O terminal block |
| DeltaV I/O Carrier | Module installation |
| DeltaV Power Supply | System power |
| Engineering Workstation | Configuration |
| Operator Workstation | Process monitoring |
| Control Valves | Final control element |
| Valve Positioners | Valve positioning |
| Variable Frequency Drives | Motor speed control |
Maintenance and Troubleshooting
Routine maintenance should include:
- Output signal verification
- Terminal inspection
- Wiring integrity checks
- Grounding inspection
- HART communication testing
- Diagnostic review
- Functional verification
- Cabinet cleaning
- Power supply inspection
- Preventive maintenance documentation
Output Channel Failure
Check:
- Field wiring
- Terminal block connections
- Connected field devices
- Module diagnostics
- Controller communication
- Power supply
Communication Failure
Inspect:
- HART configuration
- Wiring quality
- Communication parameters
- Diagnostic indicators
- Grounding
- Device compatibility
Diagnostic Alarm
Verify:
- Module health
- Output channel status
- Terminal block installation
- Controller communication
- System configuration
- Diagnostic records
Recommended Alternative Models
| Model | Product Type | Typical Application |
|---|---|---|
| KJ3221X1-BA1 + KJ4001X1-CA1 | Analog Output Module with Terminal Block | 8-channel 4–20 mA HART output |
| VE4005S2B1 | Analog Output Module | Standard DeltaV analog output |
| VE4035S2B1 | Redundant Analog Output Module | High-availability process control |
| KJ3212X1-BA1 | Multifunction I/O Card | General industrial I/O processing |
| KJ4001X1-CB1 | Fused I/O Terminal Block | Protected field wiring interface |
Key Advantages
- Designed for Emerson DeltaV Distributed Control Systems
- 8-channel 4–20 mA analog output
- Integrated HART communication
- Includes KJ4001X1-CA1 standard I/O terminal block
- High-accuracy analog signal generation
- Comprehensive diagnostics
- Compact dimensions of 107 × 41 × 105 mm
- Lightweight construction of 0.18 kg
- Easy installation and maintenance
- Reliable field wiring connections
- Suitable for continuous industrial operation
- Supports long-term process reliability
Technical FAQs
What is the Emerson KJ3221X1-BA1 + KJ4001X1-CA1?
The KJ3221X1-BA1 + KJ4001X1-CA1 is an 8-channel Analog Output Module with a standard I/O terminal block designed for Emerson DeltaV Distributed Control Systems. It supports 4–20 mA analog outputs with HART communication.
What is its primary function?
Its primary function is to convert digital control commands into precise analog output signals for industrial field devices.
What are the module dimensions?
The module measures 107 × 41 × 105 mm.
What is the approximate weight?
The module weighs approximately 0.18 kg.
Does the module support HART communication?
Yes. It supports HART communication for compatible smart field devices.
Which field devices can be controlled?
Typical devices include control valves, valve positioners, variable frequency drives, actuators, and other analog-controlled equipment.
Which industries commonly use this module?
It is widely used in oil and gas, petrochemical, chemical processing, power generation, pharmaceutical manufacturing, food and beverage processing, mining, and water treatment facilities.
What should engineers verify before installation?
Engineers should verify DeltaV compatibility, field device compatibility, HART configuration, wiring integrity, grounding, power supply capacity, and environmental conditions.
Does the module include diagnostics?
Yes. It continuously monitors output channels, communication status, and module health to support predictive maintenance.
How can long-term reliability be maintained?
Routine inspection of wiring, terminal blocks, HART communication, diagnostics, grounding, and connected field devices helps ensure dependable long-term operation.
