Product Overview

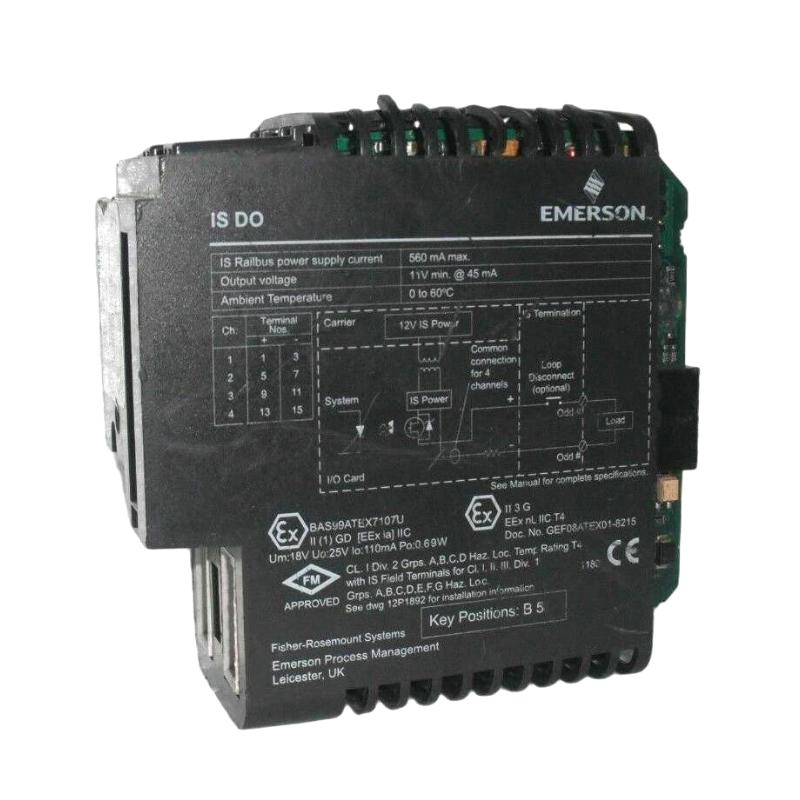

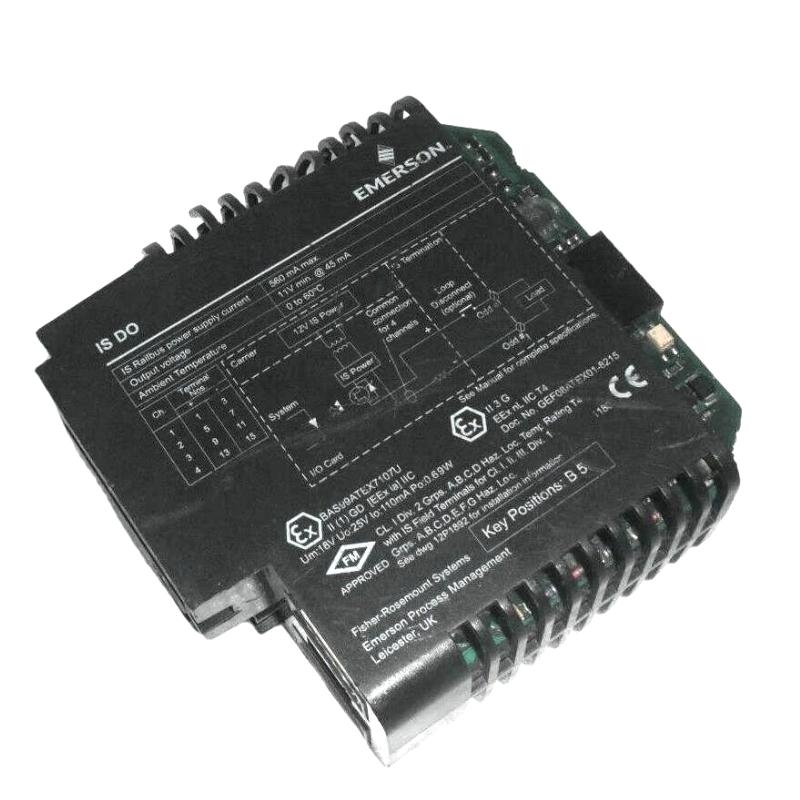

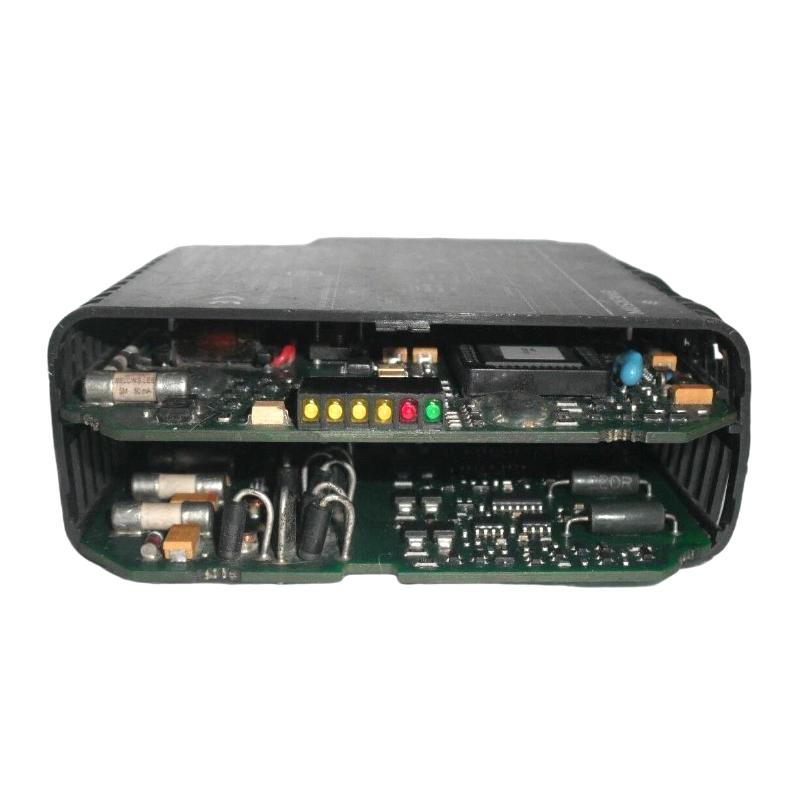

The Emerson KJ3101X1-BA1 DeltaV M-Series Discrete Output Module is a digital output interface module used in Emerson DeltaV distributed control system (DCS) architectures. It provides the connection between the DeltaV controller and field devices that require discrete switching commands, allowing the control system to operate valves, relays, solenoids, actuators, and other on/off devices.
Unlike analog output modules that generate continuously variable control signals, the KJ3101X1-BA1 focuses on discrete command transmission. It receives control instructions from the DeltaV controller and converts them into electrical output states for connected field equipment.
The module plays an important role in process automation applications where reliable digital switching control is required. It allows operators and control strategies to execute equipment start/stop commands, open/close operations, alarm actions, and other binary control functions.
The KJ3101X1-BA1 is commonly used in industrial process plants, including chemical processing, oil and gas facilities, power generation systems, and manufacturing automation environments that use Emerson DeltaV M-Series hardware.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | KJ3101X1-BA1 |
| Product Family | DeltaV M-Series |
| Product Type | Discrete Output Module |
| Function | Digital Control Signal Output |
| Application | Distributed Control System (DCS) |
| System Role | Field Device Output Interface |
| Installation | DeltaV M-Series I/O System |
| Dimensions | 200 x 130 x 45 mm |
| Weight | 0.7 kg |
Product Features
The Emerson KJ3101X1-BA1 provides dependable discrete output control capability for DeltaV automation systems.
Key characteristics include:
- Emerson DeltaV M-Series Discrete Output Module
- Model KJ3101X1-BA1
- Designed for binary field device control
- Provides digital output signal transmission
- Integrates with DeltaV controller architectures
- Suitable for actuator and relay control applications
- Supports process automation operations
- Used for equipment switching commands
- Suitable for industrial control cabinet installation
- Supports DeltaV system expansion and maintenance
- Designed for continuous process operation
- Suitable for legacy DeltaV M-Series installations
The module enables the control system to convert software-based logic decisions into physical field actions.
Working Principle
The Emerson KJ3101X1-BA1 operates as an output interface between the DeltaV controller and discrete field devices.
A simplified control path is:
DeltaV Controller → KJ3101X1-BA1 Discrete Output Module → Field Device → Process Equipment
During operation, the DeltaV controller executes programmed control logic and sends output commands to the module. The KJ3101X1-BA1 processes these commands and switches its output channels according to the configured control state.
Typical operations include:
- Motor start and stop commands
- Solenoid valve activation
- Relay switching
- Alarm output control
- Equipment enable/disable functions
The module allows digital control instructions generated within the DCS software environment to be transferred to physical equipment in the plant.
Role in a DeltaV Control Architecture
The KJ3101X1-BA1 belongs to the field output interface layer within an Emerson DeltaV M-Series control system.
A typical architecture can be represented as:
Operator Station / Control Strategy → DeltaV Controller → Discrete Output Module → Field Actuator
Within this structure:
- Operators define operating commands through the control system.
- DeltaV controllers execute programmed logic.
- The output module converts commands into electrical switching signals.
- Field devices perform the required process actions.
The module acts as the connection point between digital control logic and physical equipment operation.
Industrial Applications
The Emerson KJ3101X1-BA1 is suitable for industrial applications requiring reliable discrete output control.
| Application | Typical Use |
|---|---|
| Oil and Gas | Valve and equipment switching control |
| Chemical Plants | Process equipment operation |
| Power Generation | Auxiliary system control |
| Refining Systems | Digital actuator management |
| Manufacturing Plants | Machine equipment control |
| Water Treatment | Pump and valve operation |
| Process Automation | Binary field control |
| Industrial Utilities | Equipment enable and shutdown functions |
The actual application depends on the DeltaV system configuration and connected field devices.
Installation and Maintenance
Installation of the KJ3101X1-BA1 should follow the DeltaV M-Series system design and field wiring requirements.
Recommended practices include:
- Verify module compatibility with the DeltaV system.
- Confirm output channel configuration.
- Check field device wiring.
- Verify power supply conditions.
- Inspect terminal connections.
- Confirm controller communication.
- Test connected actuators.
- Validate output logic operation.
- Review system diagnostics.
- Backup DeltaV configuration data.
During troubleshooting, engineers should inspect the complete output path, including controller logic, module status, field wiring, power supply, and connected devices.
Related Components
The KJ3101X1-BA1 is commonly integrated with the following DeltaV system components:
| Component | Function |
|---|---|
| DeltaV Controller | Executes control logic |
| DeltaV M-Series I/O Carrier | Provides module installation support |
| Discrete Input Modules | Receive binary field signals |
| Analog Input Modules | Collect process measurements |
| Field Relays | Provide switching interfaces |
| Solenoid Valves | Execute pneumatic control actions |
| Motor Starters | Control motor operation |
| Engineering Station | System configuration and diagnostics |
These components work together to create a complete process control system.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Emerson KJ3101X1-BA1 | DeltaV M-Series Discrete Output Module | Digital field control |
| Emerson KJ3202X1-BA1 | DeltaV Analog Output Module | Continuous control signals |
| Emerson KJ3002X1-BA1 | Analog Input HART Module | Smart transmitter integration |
| Emerson KJ3006X1-BA1 | Multifunction I/O Card | Mixed signal applications |
| Emerson DeltaV M-Series I/O Modules | Control System Hardware | Process automation |
| Emerson DeltaV System Hardware | DCS Platform Components | Industrial control systems |
Model selection should be based on signal type, field equipment requirements, and existing DeltaV system architecture.
Key Advantages
- Emerson DeltaV M-Series discrete output module
- Model KJ3101X1-BA1
- Provides reliable digital control output
- Integrates with DeltaV DCS platforms
- Suitable for valve and actuator control
- Supports industrial switching applications
- Designed for process automation environments
- Suitable for DeltaV system expansion
- Helps maintain existing control infrastructure
- Supports long-term industrial operation
Technical FAQs
What type of devices can be controlled by the Emerson KJ3101X1-BA1?
The module is commonly used for discrete field devices such as solenoid valves, relays, motor starters, and other equipment requiring binary on/off control signals.
How does the KJ3101X1-BA1 differ from an analog output module?
The KJ3101X1-BA1 provides switching-based digital outputs, while an analog output module generates continuous variable signals typically used for proportional control applications.
What should be checked if a field device does not respond to an output command?
Engineers should verify DeltaV control logic, module status, output configuration, field wiring, power conditions, and the condition of the connected actuator or relay.
Can the KJ3101X1-BA1 be used in DeltaV system expansion projects?
Yes. The module can be integrated into compatible DeltaV M-Series configurations when additional discrete output channels are required for new equipment or system upgrades.
