Product Overview

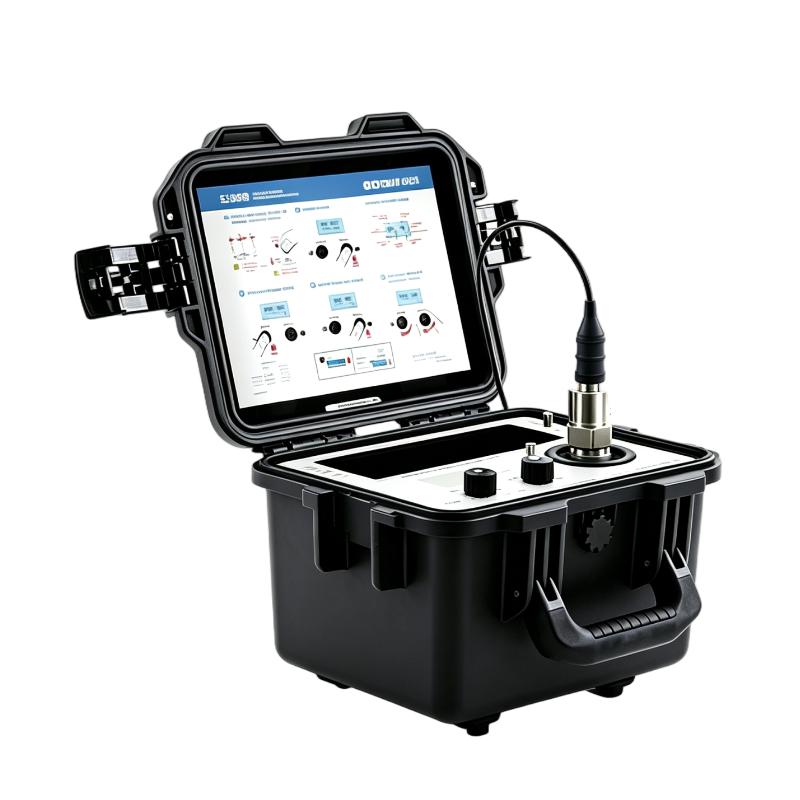

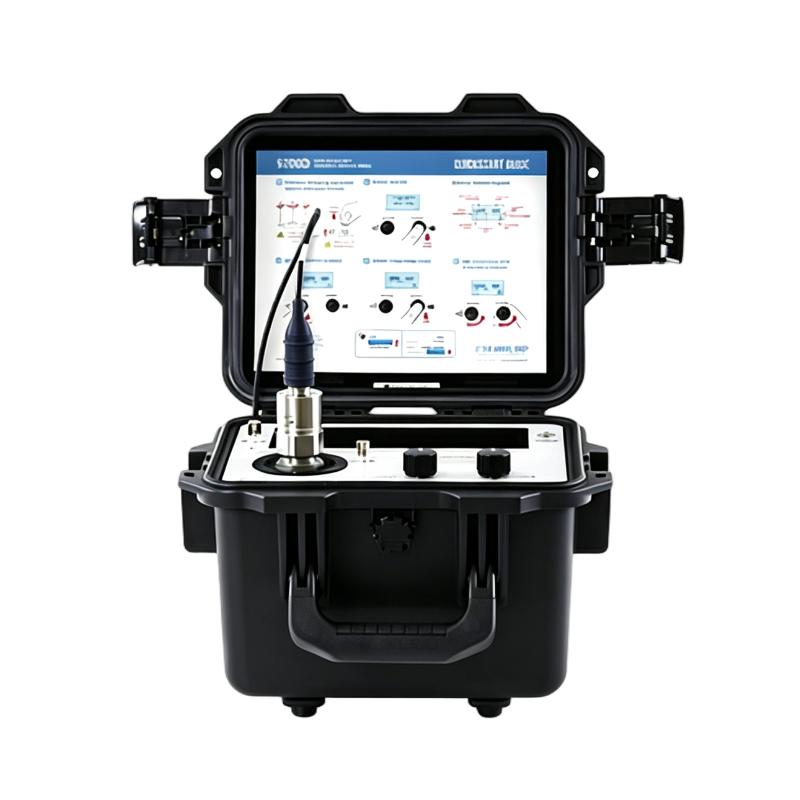

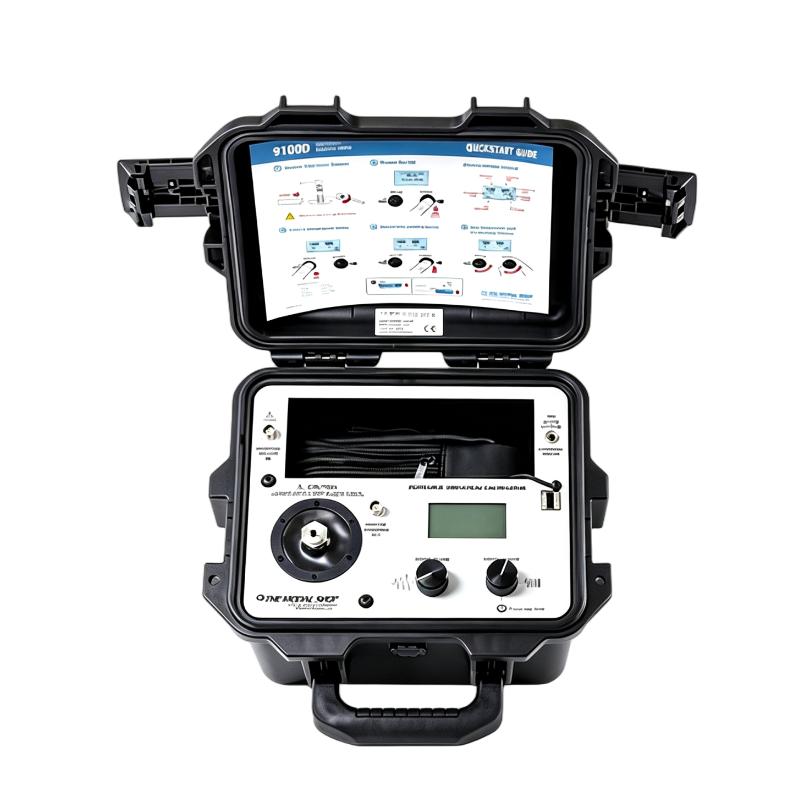

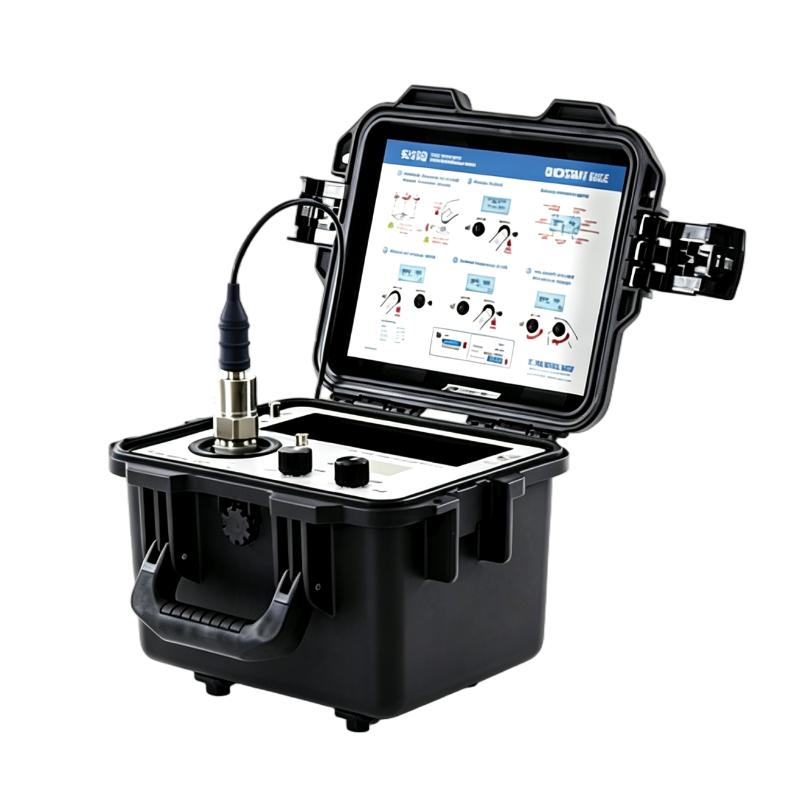

The Bently Nevada 9100D Portable Shaker Vibration Calibrator is a portable vibration calibration instrument used to verify the performance of vibration sensors and associated measurement channels. It provides a controlled mechanical excitation that can be applied to a vibration sensor, allowing maintenance and instrumentation personnel to check whether the sensor and measurement chain respond as expected.

In a machinery monitoring installation, vibration sensors are often installed in locations that are difficult to access and may remain in service for long periods. A calibration check provides a practical way to verify the measurement path without depending entirely on the monitored machine itself as the test source.

The 9100D is particularly useful during commissioning, scheduled maintenance, troubleshooting, and sensor replacement. A technician can use the calibrator with an appropriate vibration sensor and compare the resulting indication with the expected test response. This helps separate a sensor or measurement-chain issue from an actual change in machine vibration.

As a portable shaker instrument, it can also be useful when maintenance teams need to perform verification at different machinery locations rather than bringing every sensor or monitoring channel back to a fixed laboratory setup.

Technical Specifications

Product Features

• Provides a portable mechanical reference for vibration sensor verification.
• Suitable for checking vibration measurement channels during field maintenance.
• Can be used during commissioning and sensor replacement.
• Helps technicians verify sensor response independently of operating machinery.
• Supports troubleshooting of questionable vibration measurements.
• Suitable for predictive-maintenance and machinery monitoring environments.
• Allows verification work to be performed at different equipment locations.

Working Principle

The 9100D works by generating controlled mechanical vibration through its shaker mechanism. The vibration sensor under test is coupled to the shaker so that the sensor experiences a known excitation.

1. Sensor preparation

The vibration sensor being checked is connected and mechanically coupled to the calibrator according to the applicable test procedure. The sensor’s physical condition and connection should be verified before testing.

2. Controlled excitation

The calibrator generates a controlled vibration stimulus. Unlike a machine operating under normal production conditions, the calibrator provides a repeatable test condition that can be used as a reference.

3. Sensor response

The sensor converts the applied mechanical vibration into its corresponding electrical output. The resulting signal represents how the sensor responds to the controlled excitation.

4. Measurement-chain comparison

The sensor output can be observed through the associated monitoring or measurement equipment. The technician compares the observed response with the expected response for the test condition.

5. Fault isolation

If the response is outside the expected behavior, the technician can investigate the sensor, cable, connections, signal-conditioning hardware, and monitoring channel. This approach helps determine whether an abnormal machine reading originates from the machine or from the measurement chain.

Role in a Machinery Vibration Measurement Calibration Architecture

The 9100D occupies the test and verification layer rather than the permanent machinery monitoring layer. It provides an external controlled vibration source that can be used to check the response of sensors and associated measurement channels.

Industrial Applications

Installation and Maintenance

1. Review the test procedure — Confirm the approved calibration or verification procedure before operating the calibrator.
2. Inspect the calibrator — Check the instrument and its associated connections for visible damage before use.
3. Verify sensor suitability — Confirm that the vibration sensor under test is appropriate for the intended shaker verification method.
4. Clean the coupling surfaces — Remove contamination from the sensor and mounting interface to obtain proper mechanical coupling.
5. Mount the sensor securely — Ensure that the sensor is firmly coupled to the shaker according to the applicable procedure.
6. Check the sensor cable — Inspect the cable and connectors for damage, contamination, loose connections, or intermittent contact.
7. Verify the measurement channel — Confirm that the monitoring or measurement system is connected to the correct sensor channel.
8. Apply the test excitation — Operate the calibrator according to the approved test sequence rather than using uncontrolled excitation.
9. Record the measured response — Document the response observed by the connected monitoring equipment.
10. Compare against the expected result — Evaluate the measurement against the applicable calibration or verification criteria.
11. Investigate abnormal results — If the response is incorrect, check the sensor, mounting, cable, signal path, and monitoring channel before concluding that the calibrator or sensor is defective.
12. Document the verification — Record the test date, sensor identification, test conditions, measured response, and maintenance action for future reference.

Related Components

Recommended Related Models

Key Advantages

• Provides a controlled vibration source for sensor verification.
• Supports field-based vibration instrumentation maintenance.
• Helps distinguish sensor-chain problems from machine-condition changes.
• Useful during commissioning, troubleshooting, and scheduled maintenance.
• Supports verification of vibration measurement channels.
• Portable for use across different machinery monitoring locations.

Technical FAQs

What is the purpose of the 9100D Portable Shaker Vibration Calibrator?

The 9100D provides controlled mechanical vibration that can be applied to a vibration sensor for verification. The resulting sensor response can then be checked through the associated measurement or monitoring channel.

Why use a calibrator instead of testing the sensor on an operating machine?

An operating machine does not provide a controlled and repeatable vibration reference. A shaker calibrator supplies a defined test excitation, making it easier to determine whether the sensor and measurement chain are responding correctly.

What should be checked if a sensor fails the verification test?

Inspect the sensor mounting and mechanical coupling first, followed by the sensor cable, connectors, signal-conditioning hardware, and monitoring channel. The sensor itself should not be assumed to be defective until the complete measurement path has been checked.

When should vibration sensors be verified with a portable calibrator?

Verification may be appropriate during commissioning, after sensor replacement, following maintenance on the measurement chain, or when a vibration reading appears inconsistent with other machinery information. The actual verification interval should follow the plant’s maintenance and instrumentation procedures.
