Product Overview

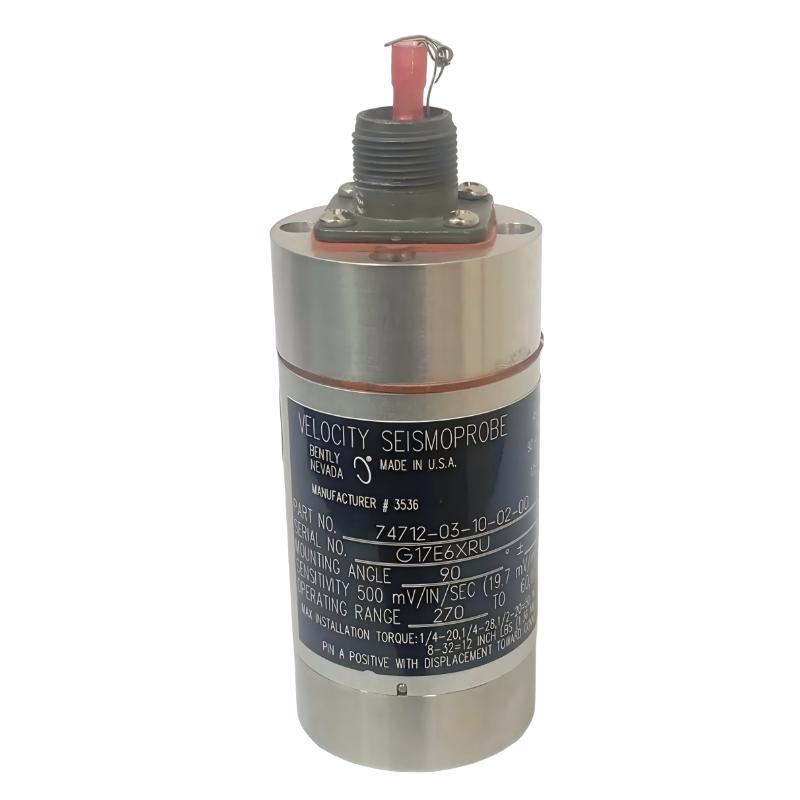

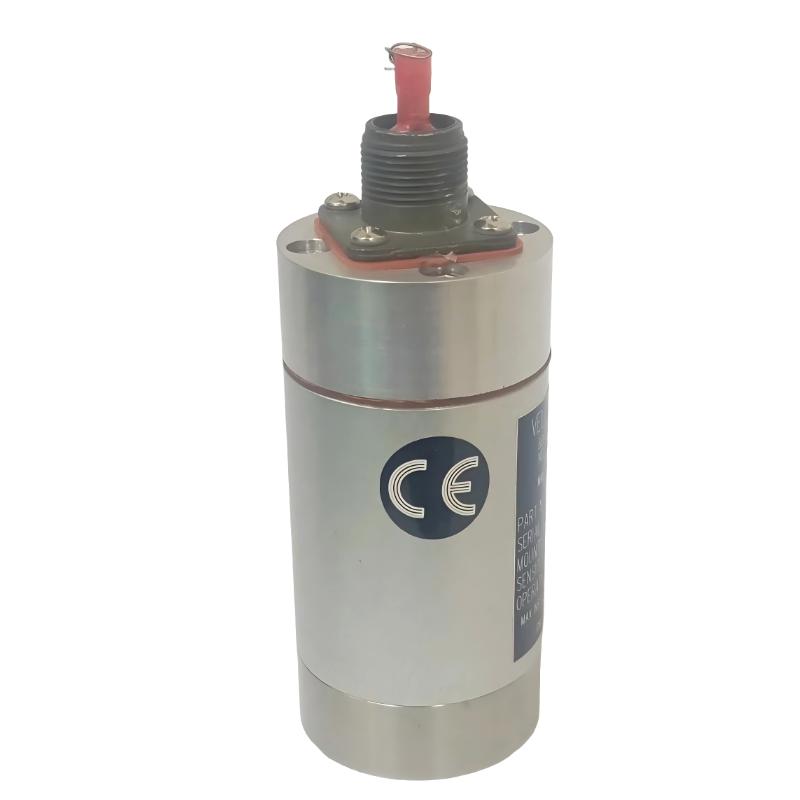

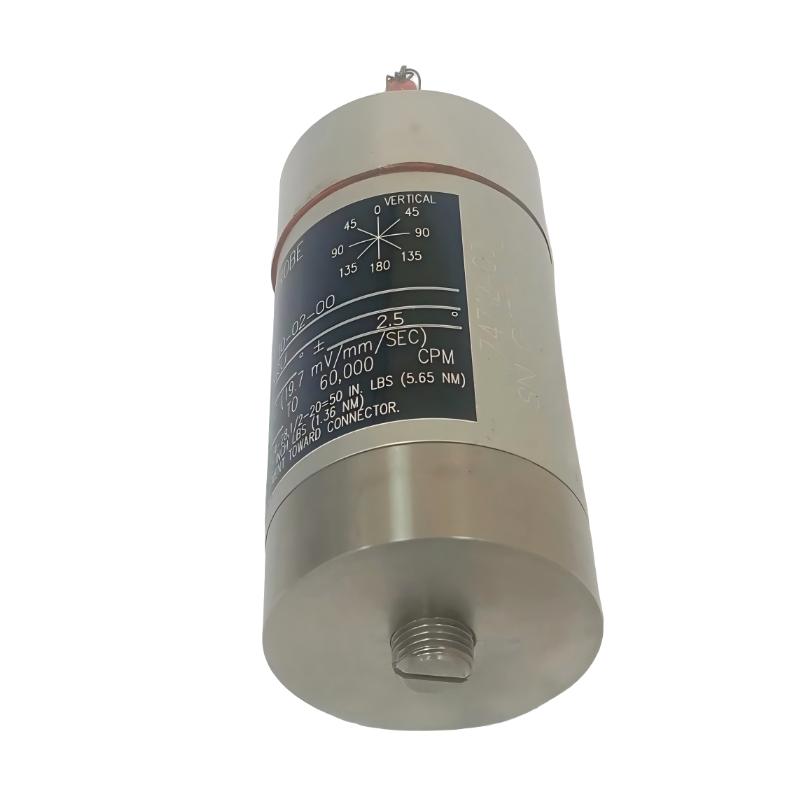

The Bently Nevada 74712-06-05-02-01 High Temperature Two-Wire Velocity Transducer is a machine-mounted vibration transducer for monitoring rotating equipment in locations where the sensor is exposed to elevated operating temperatures. It measures vibration velocity and sends the resulting signal through a two-wire circuit to compatible monitoring equipment.

The transducer can be installed on equipment such as motors, pumps, compressors, fans, blowers, and other rotating machinery where casing vibration needs to be monitored continuously. The direct mounting arrangement allows vibration from the machine housing to reach the sensing element without requiring a separate proximity measurement arrangement.

For field maintenance, the sensor should be considered together with its mounting surface, wiring, monitoring input, and the monitored machine. A change in the displayed vibration value does not necessarily indicate a failed transducer; mechanical mounting, cable condition, channel configuration, and machine operating conditions should all be checked during diagnosis.

Technical Specifications

Product Features

• High-temperature capability for vibration monitoring locations exposed to elevated machine temperatures.
• Two-wire signal connection for integration with compatible vibration monitoring inputs.
• Velocity-based measurement for rotating equipment vibration analysis.
• Direct machine mounting captures vibration through the equipment housing.
• Suitable for continuous machinery condition monitoring.
• Can be incorporated into vibration alarm, monitoring, and machinery protection architectures.

Working Principle

The 74712-06-05-02-01 is mounted directly to the machine so that vibration generated by the rotating equipment is transferred through the mounting interface.

The internal sensing mechanism responds to this mechanical motion and produces an electrical signal representing vibration velocity. The two-wire circuit carries the signal to the compatible monitoring channel, where the measurement can be processed for indication, trending, alarm functions, or machinery protection.

During troubleshooting, the signal path should be checked from the machine to the monitoring system. A loose sensor mount can reduce vibration transmission, while cable damage or a poor termination can interrupt the electrical signal. An abnormal reading can also result from an actual change in machine condition, so sensor replacement should follow basic mechanical and electrical checks.

Role in Machinery Vibration Monitoring Control Architecture

Industrial Applications

Installation and Maintenance

1. Confirm environmental conditions: Verify that the proposed installation location is suitable for the transducer’s intended high-temperature application.
2. Select a rigid mounting location: Choose a machine surface that accurately represents the vibration of the equipment being monitored.
3. Prepare the mounting surface: Remove dirt, loose coating, corrosion products, or other contamination that could affect mechanical contact.
4. Secure the transducer: Ensure that the sensor is firmly mounted and does not move independently of the machine housing.
5. Route the two-wire cable correctly: Keep the field wiring away from moving machinery, excessive heat, sharp edges, and other mechanical hazards.
6. Check electrical continuity: Inspect the complete two-wire circuit and its terminations before commissioning the monitoring channel.
7. Verify monitoring-channel compatibility: Confirm that the receiving input is suitable for the transducer’s signal configuration and electrical requirements.
8. Check the initial operating signal: Observe the sensor output after startup and compare it with the expected vibration behavior of the machine.
9. Record baseline conditions: Establish a normal vibration reference under known operating conditions for future comparison.
10. Investigate abnormal signals systematically: Check mounting, wiring, channel configuration, and actual machine condition before replacing the transducer.
11. Inspect during planned maintenance: Examine the sensor, mounting interface, cable routing, and electrical connections during equipment shutdowns.
12. Verify the replacement model: When replacing the unit, confirm the complete model number and compatibility with the existing monitoring channel.

Compatible System Components

Recommended Related Models

Key Advantages

• High-temperature vibration sensing
• Two-wire signal configuration
• Direct vibration velocity measurement
• Machine-mounted installation
• Suitable for rotating equipment
• Compatible with appropriate vibration monitoring architectures

Technical FAQs

What is the measurement output of the 74712-06-05-02-01?

The transducer provides a vibration velocity signal through its two-wire configuration for connection to compatible monitoring equipment.

Why should the mounting surface be checked when troubleshooting this transducer?

The transducer depends on mechanical vibration transfer from the machine housing. A loose, contaminated, or unsuitable mounting interface can affect the vibration reaching the sensing element and consequently influence the measured signal.

What should be checked before replacing a transducer with an abnormal signal?

Check the mechanical mounting, two-wire field circuit, electrical terminations, monitoring-channel configuration, and actual machine operating condition. These checks help distinguish a sensor problem from an installation or machinery issue.

Can the 74712-06-05-02-01 be connected directly to a standard PLC analog input?

Compatibility should not be assumed from the two-wire configuration alone. The receiving input must match the transducer’s signal and electrical requirements. A dedicated or compatible vibration monitoring interface may be required between the transducer and the control system.
