Product Overview

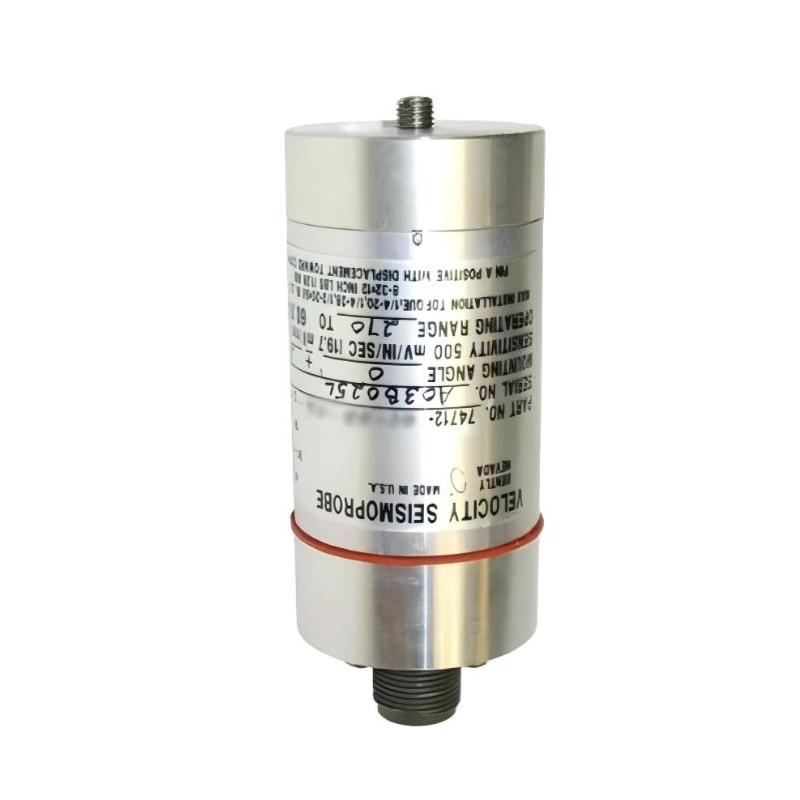

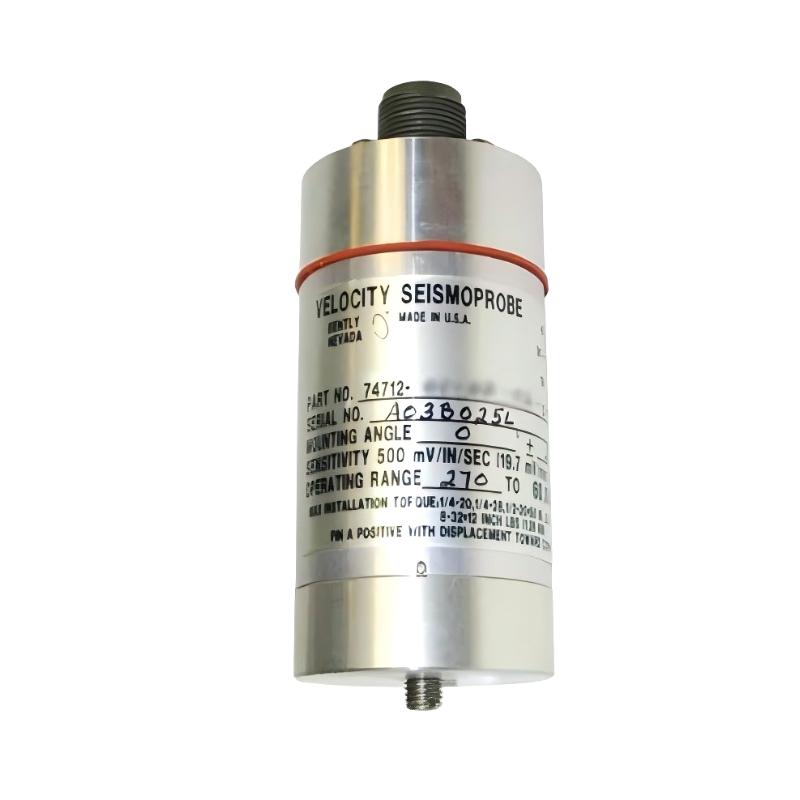

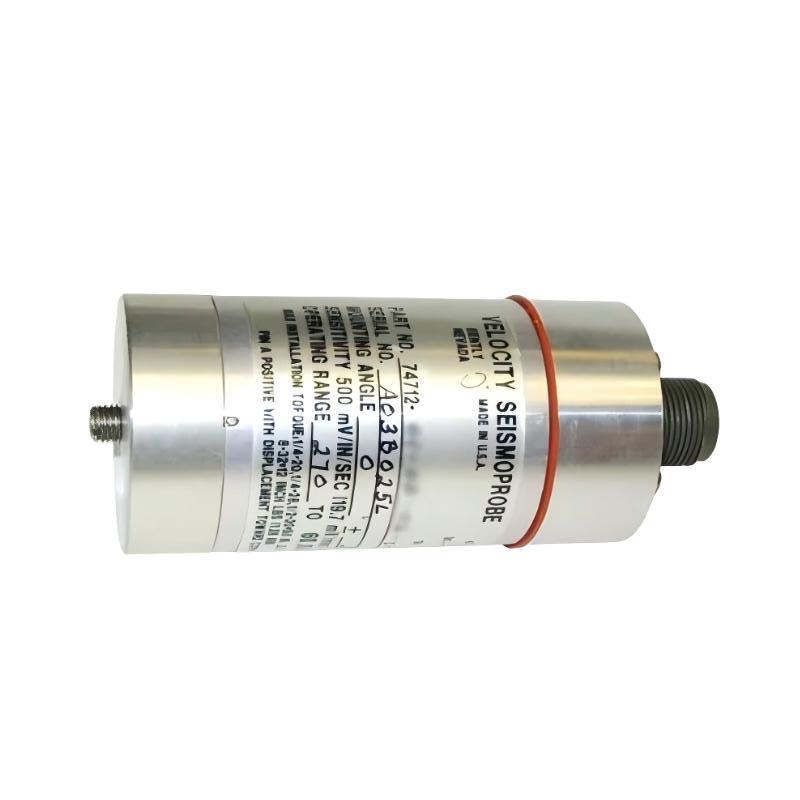

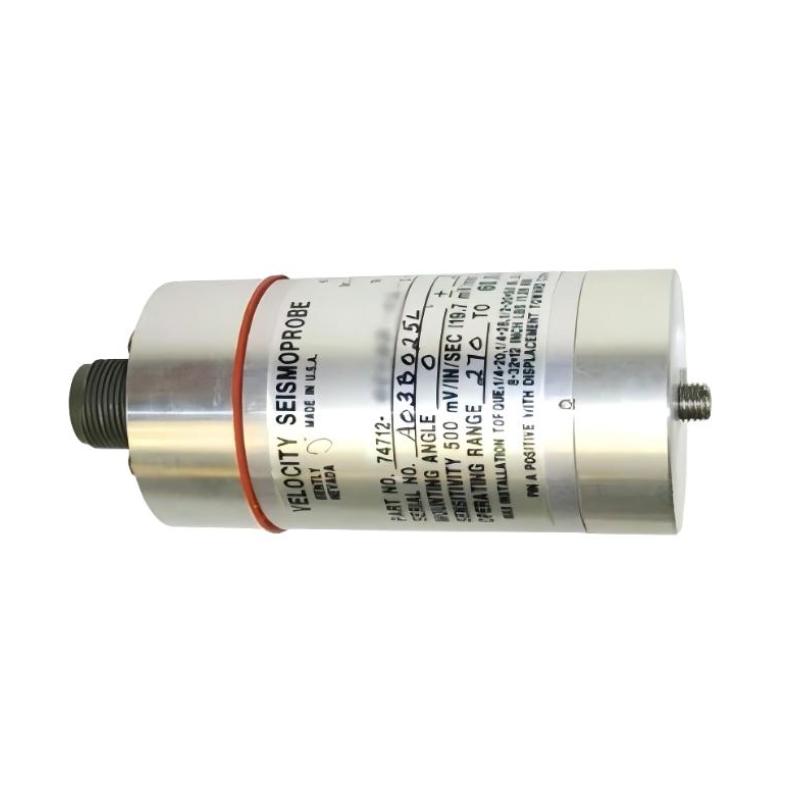

The Bently Nevada 74712-01-10-02-00 High Temperature Two-Wire Velocity Transducer is a machine-mounted vibration measurement device for applications where the monitoring point is exposed to elevated temperatures. As part of the Bently Nevada vibration measurement range, it converts mechanical vibration into an electrical signal that can be connected to compatible monitoring equipment.

The transducer is suited to machinery such as motors, pumps, compressors, fans, blowers, and other rotating equipment where vibration velocity is used to observe changes in mechanical condition. The high-temperature configuration makes sensor selection particularly important when the measurement location is exposed to heat generated by the process or machinery.

Its two-wire arrangement also makes the signal path relatively straightforward: the transducer is installed at the measurement point, connected to the appropriate monitoring channel, and the resulting vibration signal is processed by downstream instrumentation. In maintenance work, the sensor, mounting surface, wiring, and receiving channel should be treated as one measurement chain when investigating abnormal readings.

Technical Specifications

Product Features

• High-temperature configuration for vibration measurement at elevated-temperature machinery locations.
• Two-wire signal arrangement supports connection to compatible vibration monitoring channels.
• Velocity measurement is suitable for monitoring overall mechanical vibration behavior.
• Machine-mounted construction allows vibration to be captured directly from the equipment structure.
• Suitable for continuous monitoring applications where temperature is a significant factor in sensor selection.
• Can be integrated into established vibration monitoring systems when the sensor and receiving channel are electrically compatible.

Working Principle

The 74712-01-10-02-00 is mounted on the machine structure so that mechanical vibration is transferred into the transducer. The sensing mechanism responds to this movement and produces an electrical output corresponding to vibration velocity.

The two-wire circuit carries the sensor output to the connected monitoring instrumentation. The receiving equipment can then process the signal for vibration indication, trending, alarm functions, or machinery condition assessment.

A practical diagnostic approach starts at the physical measurement point. If the reported vibration changes unexpectedly, inspect the sensor mounting and two-wire connection before assuming that the machine has developed a new fault. Temperature exposure, cable condition, electrical connections, and the receiving channel can all affect the resulting measurement.

Role in a Machinery Vibration Monitoring Architecture

Industrial Applications

Installation and Maintenance

1. Verify the Model — Confirm that 74712-01-10-02-00 is the required high-temperature two-wire velocity transducer for the application.
2. Confirm the Measurement Point — Select a rigid, representative location close to the machine component being monitored.
3. Check Operating Temperature — Evaluate the actual temperature at the proposed mounting location before installation.
4. Prepare the Mounting Surface — Remove contamination, loose material, and surface irregularities that could compromise mechanical coupling.
5. Secure the Transducer — Install the sensor firmly using the applicable mounting arrangement and prevent mechanical looseness.
6. Check Orientation — Position the transducer correctly for the intended vibration measurement.
7. Inspect the Two-Wire Circuit — Check the wiring and connections for damaged insulation, loose terminals, corrosion, or heat-related deterioration.
8. Verify Monitoring Channel Compatibility — Confirm that the connected input is appropriate for the transducer’s two-wire electrical interface and vibration measurement function.
9. Route the Cable Carefully — Keep the signal wiring away from excessive heat, moving components, and potential sources of electrical interference.
10. Establish a Baseline — Record representative vibration measurements after installation while the equipment is operating normally.
11. Investigate Signal Changes — Compare abnormal readings with historical data and inspect the sensor, wiring, and machine condition before replacing components.
12. Inspect During Scheduled Shutdowns — Check the transducer, mounting surface, connections, and cable condition, especially where thermal exposure is significant.

Compatible System Components

Recommended Related Models

Key Advantages

• Supports vibration velocity measurement in high-temperature locations.
• Two-wire configuration simplifies signal connection.
• Machine-mounted measurement captures vibration directly from the equipment structure.
• Suitable for rotating equipment condition monitoring.
• Fits applications where temperature is a key factor in sensor selection.

Technical FAQs

What does the Bently Nevada 74712-01-10-02-00 measure?

The 74712-01-10-02-00 is a velocity transducer that converts mechanical vibration at the mounting location into an electrical signal representing vibration velocity.

What makes this transducer suitable for high-temperature applications?

Its high-temperature configuration is intended for measurement locations where elevated operating temperature is a significant environmental condition. The actual temperature at the installation point should still be checked against the applicable sensor requirements.

How can an engineer distinguish a sensor problem from an actual increase in machine vibration?

Start by comparing the current signal with historical measurements and the machine’s operating condition. Then inspect sensor mounting, two-wire connections, cable condition, and the receiving channel. This separates measurement-chain problems from genuine changes in machinery behavior.

Is the 74712-01-10-02-00 compatible with any two-wire vibration input?

Not automatically. The receiving monitoring channel must match the transducer’s electrical interface and intended measurement characteristics. Physical compatibility alone is not sufficient when selecting the monitoring input.
