Product Overview

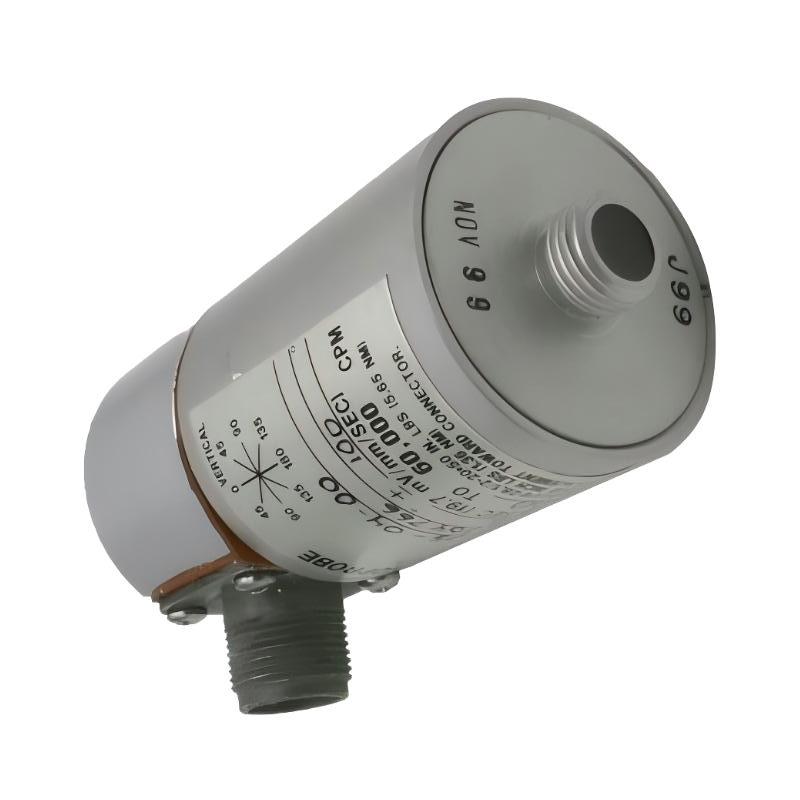

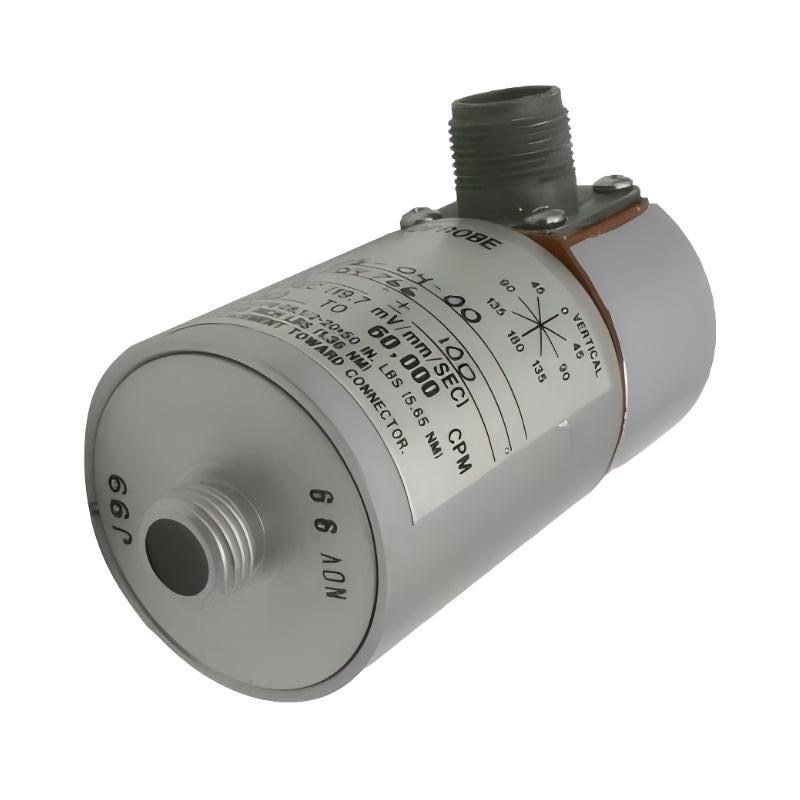

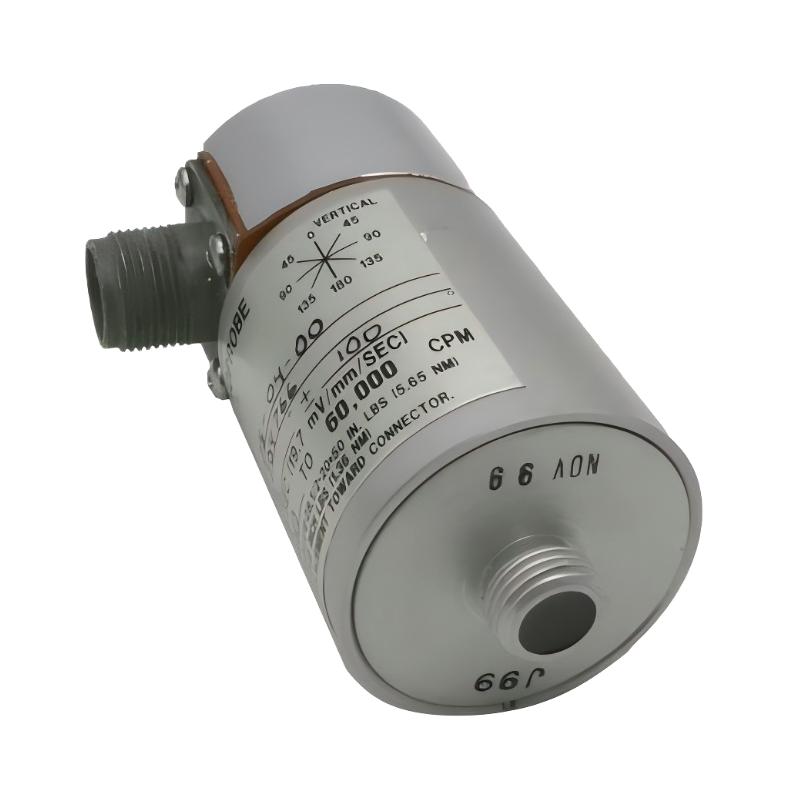

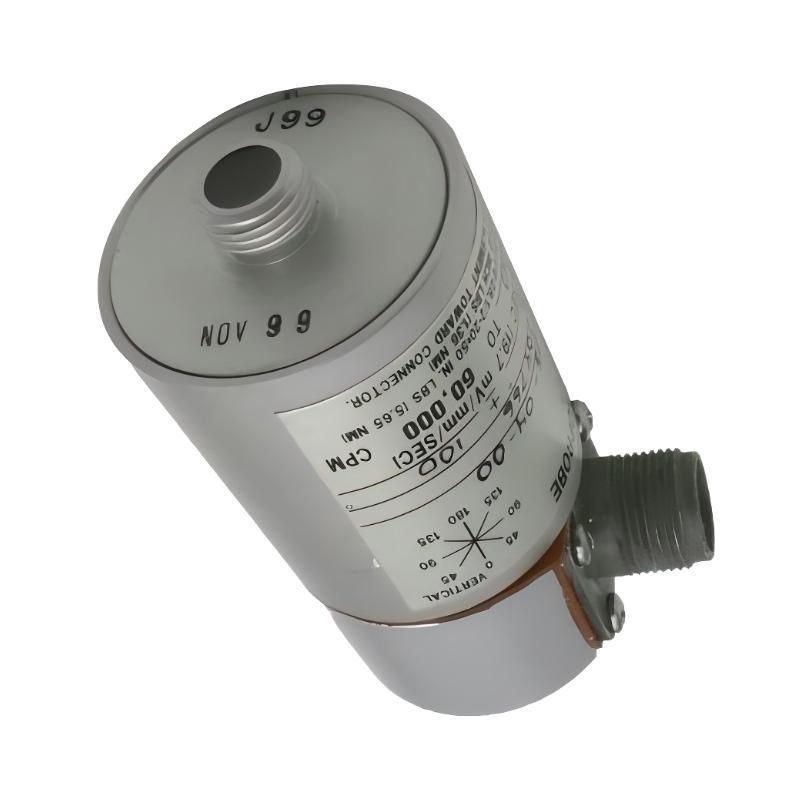

The Bently Nevada 74712-01-02-04-04 High Temperature Two-Wire Velocity Transducer is a vibration measurement device for machinery applications where elevated operating temperatures make conventional vibration sensors unsuitable. It uses a two-wire signal arrangement and is intended for installation directly on or near machinery that requires continuous vibration monitoring.

Velocity transducers are commonly used on rotating equipment such as motors, pumps, fans, compressors, and other machines where overall vibration velocity is a useful indicator of mechanical condition. The high-temperature configuration is particularly relevant when the measurement point is exposed to significantly more heat than a typical equipment monitoring location.

In practical maintenance work, the sensor is part of a complete measurement chain rather than an independent monitoring system. The transducer detects mechanical vibration, its electrical output is carried through the two-wire connection, and downstream monitoring equipment interprets the signal. Sensor mounting, cable condition, polarity, and the receiving channel all need to be considered when investigating an abnormal reading.

Technical Specifications

Product Features

• High-temperature construction supports vibration measurement at elevated-temperature machinery locations.
• Two-wire signal configuration simplifies the connection between the transducer and compatible monitoring equipment.
• Velocity measurement is suitable for monitoring overall mechanical vibration behavior.
• Machine-mounted installation allows vibration to be measured directly from the equipment structure.
• Suitable for continuous machinery monitoring where temperature is a significant factor in sensor selection.
• Can be integrated into existing vibration monitoring channels where the electrical interface and application requirements are compatible.

Working Principle

The transducer converts mechanical vibration at the mounting location into an electrical signal representing vibration velocity. Because it is mounted directly to the machine, the quality of the mechanical connection has a direct effect on the measurement.

The two-wire arrangement carries the sensor signal to the receiving monitoring channel. The downstream instrumentation then processes the signal for display, trending, alarm handling, or machinery condition assessment.

For troubleshooting, the measurement chain should be checked as a whole. A vibration value that suddenly becomes zero, unusually high, or unstable can result from a damaged cable, poor sensor mounting, incorrect channel configuration, electrical connection problems, or an actual change in machine vibration. The high-temperature operating environment also makes installation condition and thermal exposure important parts of sensor inspection.

Role in a Machinery Vibration Monitoring Architecture

Industrial Applications

Installation and Maintenance

1. Verify the Model — Confirm that 74712-01-02-04-04 is the required high-temperature two-wire velocity transducer for the intended monitoring channel.
2. Confirm the Measurement Point — Select a structurally representative location where vibration from the machine component can be transferred effectively to the transducer.
3. Check Temperature Conditions — Confirm that the actual installation environment is appropriate for the high-temperature sensor configuration.
4. Prepare the Mounting Surface — Remove loose material, contamination, or surface irregularities that could compromise mechanical coupling.
5. Secure the Transducer — Mount the sensor firmly using the approved installation method and avoid any looseness that could introduce measurement error.
6. Check Sensor Orientation — Install the transducer in the orientation required for the intended vibration measurement.
7. Inspect the Two-Wire Connection — Check the signal wiring for damaged insulation, loose connections, corrosion, or signs of heat exposure.
8. Verify Channel Compatibility — Confirm that the receiving monitoring channel is suitable for the transducer’s two-wire electrical interface and measurement function.
9. Check Cable Routing — Keep the sensor wiring away from excessive heat, moving machinery, and sources of electrical interference where applicable.
10. Establish a Baseline — Record the vibration condition after commissioning while the machine is operating under a known condition.
11. Investigate Abnormal Readings — If the signal changes unexpectedly, inspect mounting, wiring, channel configuration, and machine operating conditions before replacing the sensor.
12. Inspect During Shutdowns — Check the transducer, mounting point, and two-wire connection during scheduled maintenance, with particular attention to thermal and mechanical damage.

Compatible System Components

Recommended Related Models

Key Advantages

• Supports vibration measurement in high-temperature machinery locations.
• Two-wire configuration simplifies signal integration.
• Measures vibration velocity for machinery condition assessment.
• Suitable for machine-mounted monitoring applications.
• Supports continuous vibration monitoring on rotating equipment.

Technical FAQs

What type of measurement does the 74712-01-02-04-04 provide?

The 74712-01-02-04-04 is a velocity transducer. It converts mechanical vibration at the machine mounting point into an electrical signal representing vibration velocity for use by compatible monitoring equipment.

Why is the high-temperature version important when selecting a vibration transducer?

The sensor’s installation environment can expose it to temperatures beyond the range suitable for standard vibration instrumentation. A high-temperature configuration is intended for applications where elevated temperature is a significant part of the measurement-point conditions.

What should be checked if the two-wire vibration signal is unstable?

Start with the complete signal path. Inspect the transducer mounting, two-wire connections, cable condition, receiving-channel configuration, and machine operating condition. If the mechanical installation and electrical path are normal, investigate whether the vibration itself has changed.

Can the 74712-01-02-04-04 be connected to any vibration monitoring input?

Compatibility should be confirmed before installation. The receiving channel must support the transducer’s two-wire electrical interface and the required vibration measurement arrangement. The sensor should not be connected solely on the basis of its physical mounting compatibility.
