Product Overview

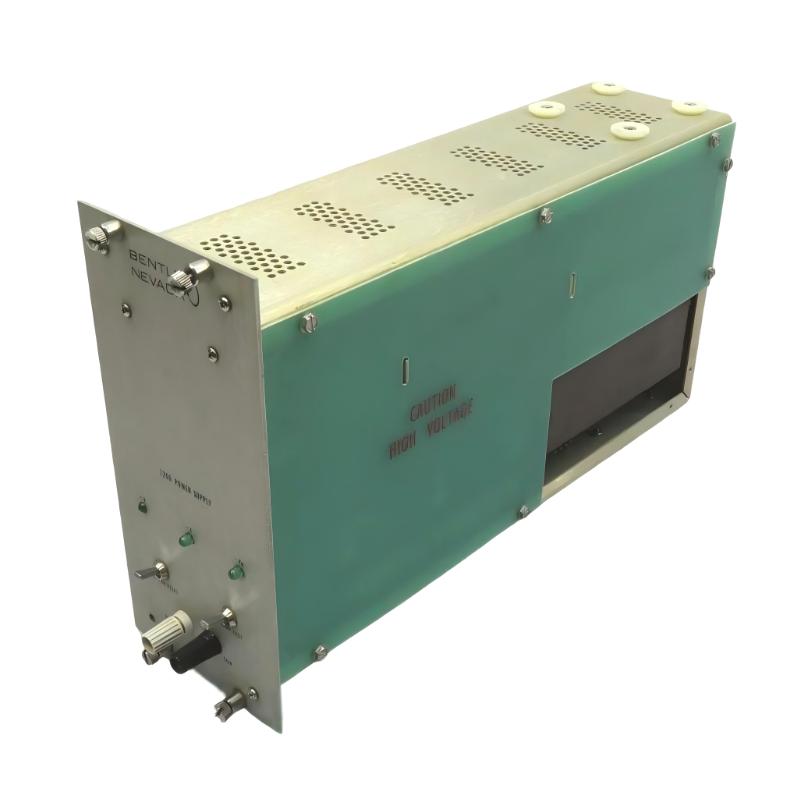

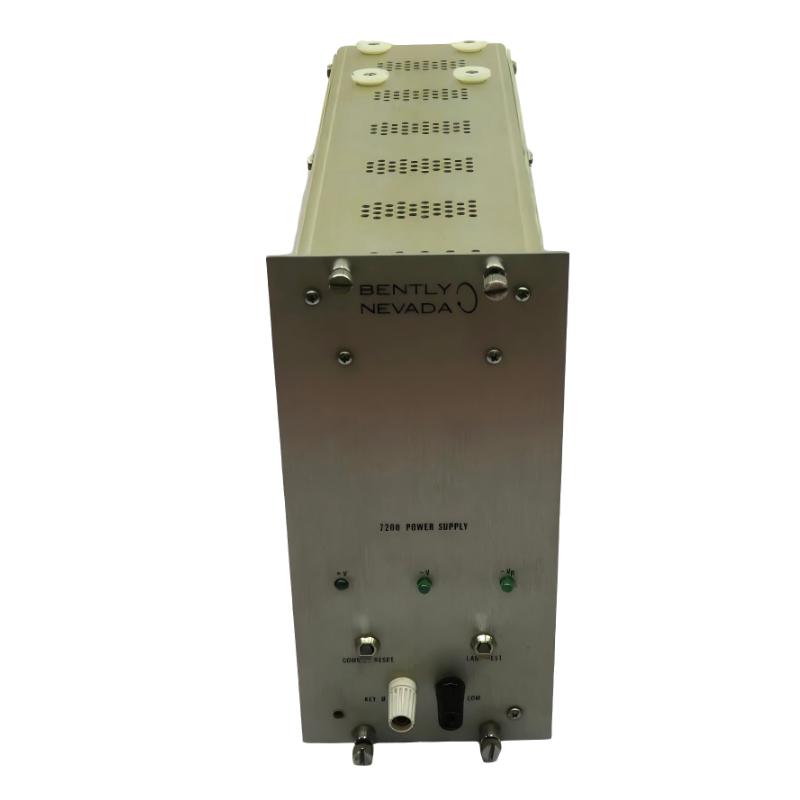

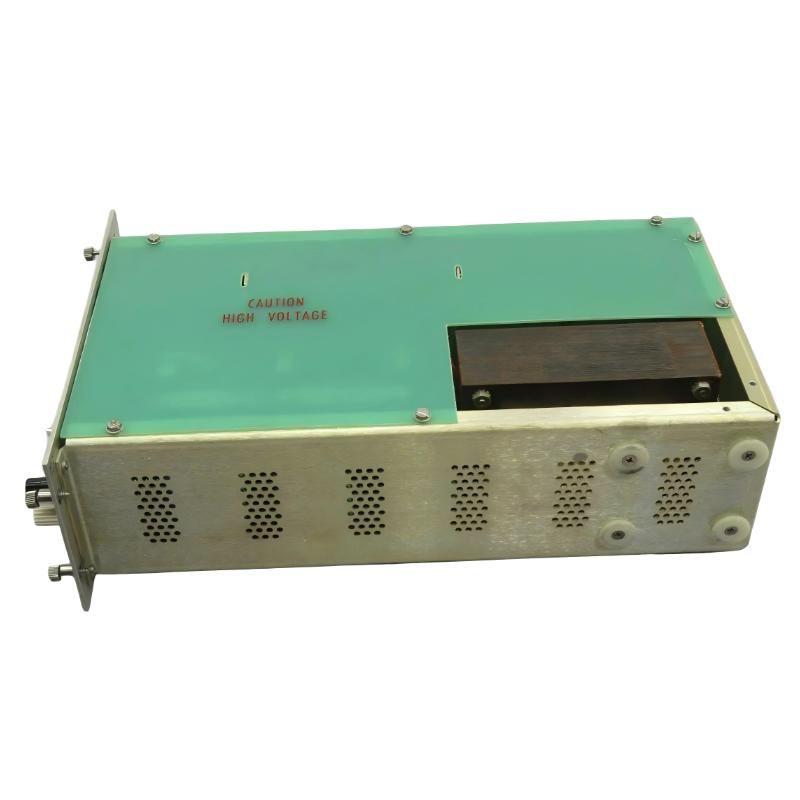

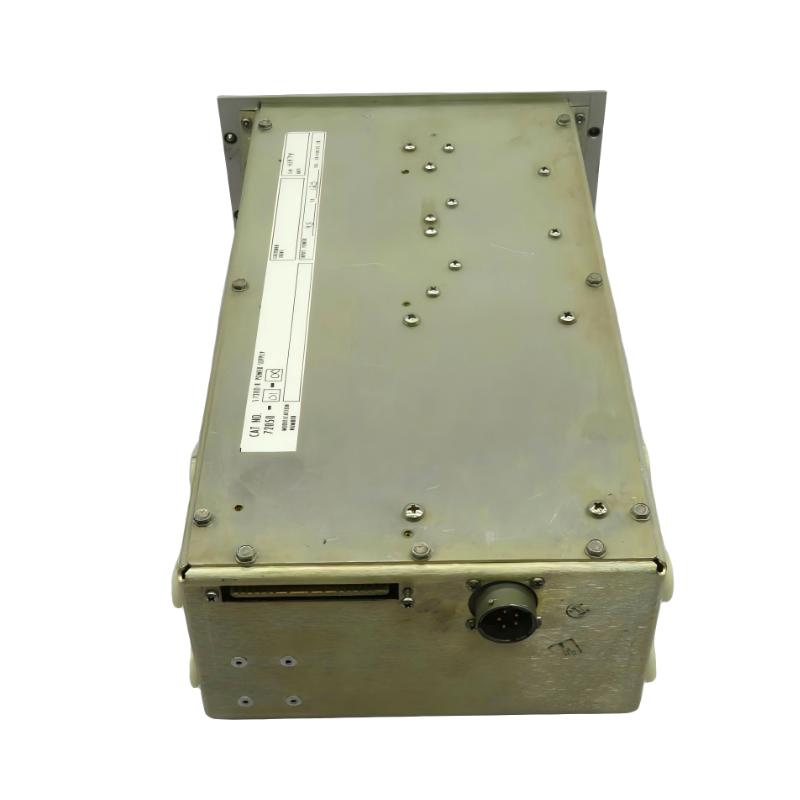

The Bently Nevada 72050-01-00 7200 Series S7200-R Power Supply is a power supply component used within the Bently Nevada 7200 Series machinery monitoring architecture. Its job is to provide the electrical power required by compatible monitoring equipment, allowing the associated sensing and signal-conditioning circuits to operate as part of a complete vibration monitoring system.
In a typical 7200 Series installation, the power supply sits on the infrastructure side of the system rather than at the rotating machine itself. Sensors installed on bearings, shafts, or machine housings generate measurement signals, while the monitoring modules process those signals and provide information to plant operators or maintenance personnel. The S7200-R power supply supports the electrical foundation of this arrangement.
Power-related faults can affect an entire group of monitoring channels, making the S7200-R particularly relevant when several connected devices become unavailable at the same time. When troubleshooting, engineers should distinguish a power-supply problem from individual sensor faults, wiring issues, or failures in downstream monitoring modules.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | Bently Nevada 72050-01-00 7200 Series S7200-R Power Supply |
| Product Type | Power Supply |
| Model | 72050-01-00 |
| Series | 7200 Series |
| Designation | S7200-R |
| System Role | Monitoring system power |
| Main Function | Supplies electrical power to compatible 7200 Series monitoring equipment |
| Application | Machinery vibration and condition monitoring |
| Dimensions | 165 × 50 × 110 mm |
| Weight | 5.44 kg |
Product Features
- 7200 Series compatibility supports the power requirements of the associated machinery monitoring architecture.
- Dedicated power-supply function keeps system power separate from vibration sensing and signal monitoring functions.
- System-level role means a power issue can affect multiple connected monitoring channels.
- S7200-R designation identifies the power supply within the 7200 Series equipment family.
- Suitable for established machinery protection and condition-monitoring installations using 7200 Series hardware.
- Useful as a replacement component when maintaining legacy monitoring equipment and restoring the original system power arrangement.
Working Principle
The S7200-R receives electrical input from the plant power source and converts or conditions it into the power required by compatible monitoring equipment. The resulting supply supports the electronic circuits used for signal processing, monitoring, and associated system functions.
Unlike an accelerometer or proximity probe, the 72050-01-00 does not directly measure shaft movement or vibration. Its contribution is indirect but essential: monitoring modules need a suitable power source before they can process sensor signals or report machine condition.
A practical diagnostic starts with the scope of the failure. If several monitoring channels or modules become unavailable simultaneously, check the S7200-R and its associated power connections before replacing individual sensors. If only one channel is affected while the rest of the system remains powered, the investigation should move toward that channel’s sensor, wiring, signal-conditioning hardware, or monitoring module.
Role in a 7200 Series Machinery Monitoring Architecture
| System Element | Function |
|---|---|
| 72050-01-00 S7200-R Power Supply | Provides electrical power for compatible monitoring equipment |
| 7200 Series Monitoring Modules | Process and monitor machine condition signals |
| Vibration Sensors / Probes | Acquire mechanical condition information from the machine |
| Signal Wiring | Carries sensor signals to the monitoring equipment |
| Monitoring Outputs | Makes processed machine condition information available to the plant system |
| Operator / Maintenance Interface | Supports observation and assessment of machine condition |
| Rotating Machinery | Provides the physical vibration or movement being monitored |
Industrial Applications
| Application | Typical Use |
|---|---|
| Turbomachinery Monitoring | Supporting power for monitoring equipment associated with rotating machinery |
| Compressor Monitoring | Maintaining the electrical supply for compatible monitoring channels |
| Pump Monitoring | Supporting vibration monitoring infrastructure |
| Motor Monitoring | Supplying power to associated machinery monitoring equipment |
| Rotating Equipment Protection | Supporting monitoring systems used to detect abnormal machine conditions |
| Legacy 7200 Series Installations | Replacement of an existing power-supply component |
| Industrial Condition Monitoring | Maintaining continuous operation of compatible monitoring hardware |
Installation and Maintenance
- Verify the Model — Confirm that the replacement is the Bently Nevada 72050-01-00 S7200-R Power Supply and matches the existing 7200 Series installation.
- Check the System Configuration — Verify the power-supply position and identify all equipment that depends on it before removal.
- Isolate the Power Source — Follow the plant’s approved electrical isolation procedure before disconnecting the existing power supply.
- Document Existing Connections — Record terminal positions and wiring arrangement before removing the installed unit.
- Inspect the Replacement — Check the housing, terminals, connectors, and mounting points for physical damage.
- Check Associated Wiring — Inspect incoming and outgoing power connections for loose terminals, damaged conductors, corrosion, or signs of overheating.
- Verify Mounting — Install the power supply securely in the appropriate system location and ensure that mechanical clearance is maintained.
- Check Grounding — Confirm that the equipment grounding arrangement follows the applicable plant and system requirements.
- Verify Input Power — Confirm that the available supply is suitable for the installed 7200 Series configuration before energizing the unit.
- Inspect Downstream Loads — Check connected monitoring modules and associated wiring for short circuits or other conditions that could cause a power-supply fault.
- Energize Under Controlled Conditions — Restore power according to the approved commissioning procedure and observe the connected monitoring equipment.
- Verify System Operation — Confirm that the expected monitoring channels, indicators, and downstream equipment return to normal operation after the replacement.
Compatible System Components
| Component | Function |
|---|---|
| Bently Nevada 7200 Series Monitoring Modules | Process machinery monitoring signals |
| 7200 Series Vibration Sensors | Provide machine vibration measurements |
| Proximity Probe Systems | Monitor shaft position and movement where applicable |
| Sensor Signal Wiring | Transfers measurement signals to monitoring equipment |
| 7200 Series Power Distribution Components | Distribute electrical power within the monitoring arrangement |
| Plant Monitoring System | Receives relevant machinery condition information |
| Maintenance Interface | Supports system diagnostics and condition assessment |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Bently Nevada 7200 Series | Machinery Monitoring System | Vibration and machine condition monitoring |
| Bently Nevada 7200 Series Monitoring Modules | Monitoring / Signal Conditioning Modules | Processing machinery sensor signals |
| Bently Nevada 7200 Series Proximity Probe Components | Proximity Measurement Components | Shaft vibration and position monitoring |
| Bently Nevada 7200 Series Vibration Sensors | Vibration Measurement Components | Rotating machinery condition monitoring |
| Bently Nevada 7200 Series Power Components | Power Supply / Distribution Components | Supporting system electrical power |
Key Advantages
- Supports the electrical operation of compatible 7200 Series monitoring equipment.
- Centralized power function makes system-level troubleshooting easier to structure.
- Suitable for maintaining established 7200 Series installations.
- Helps restore monitoring equipment affected by power-supply failure.
- Integrates into the existing machinery monitoring architecture without changing the sensing function.
Technical FAQs
What is the function of the Bently Nevada 72050-01-00 S7200-R?
The 72050-01-00 is a power supply for compatible 7200 Series monitoring equipment. It supplies the electrical power required by associated monitoring electronics rather than directly measuring vibration or shaft movement.
What symptoms can indicate a problem with the S7200-R power supply?
A power-supply problem may affect multiple connected monitoring devices at the same time. Loss of several channels, unavailable monitoring modules, or a broader system power interruption should prompt an inspection of the S7200-R and its associated power connections.
Should individual vibration sensors be replaced when several monitoring channels fail simultaneously?
Not necessarily. When multiple channels fail together, the common power and infrastructure path should be checked first. The S7200-R, power wiring, distribution connections, and connected loads should be considered before replacing individual sensors.
What should be checked before installing a replacement 72050-01-00?
Verify the exact model and existing system configuration, document the wiring, isolate the power source, inspect associated connections, and check the connected monitoring equipment for conditions that could overload or interrupt the replacement power supply. After installation, restore power in a controlled manner and verify the complete monitoring system.
