Product Overview

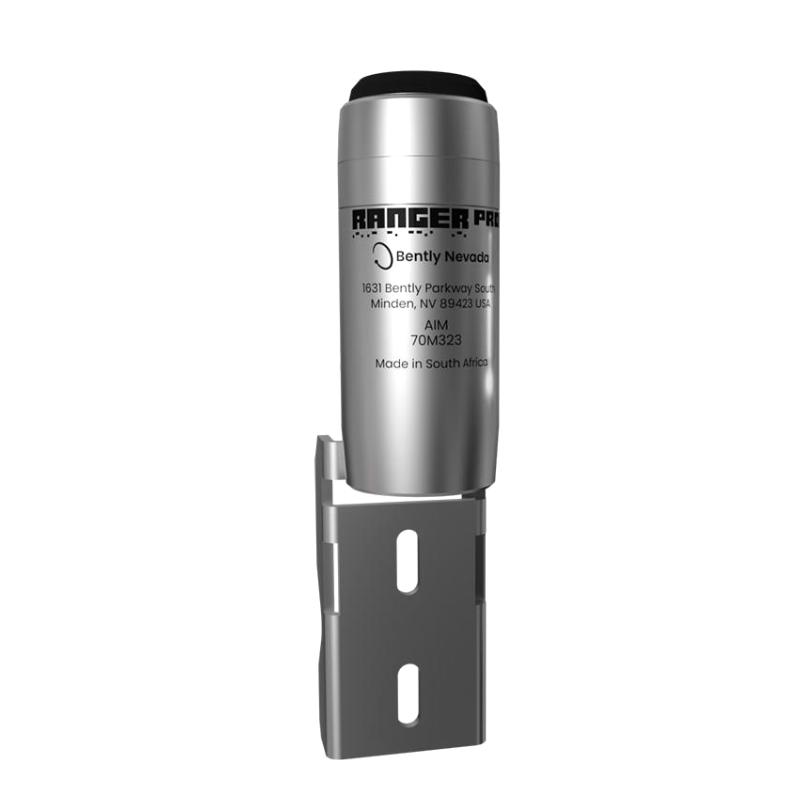

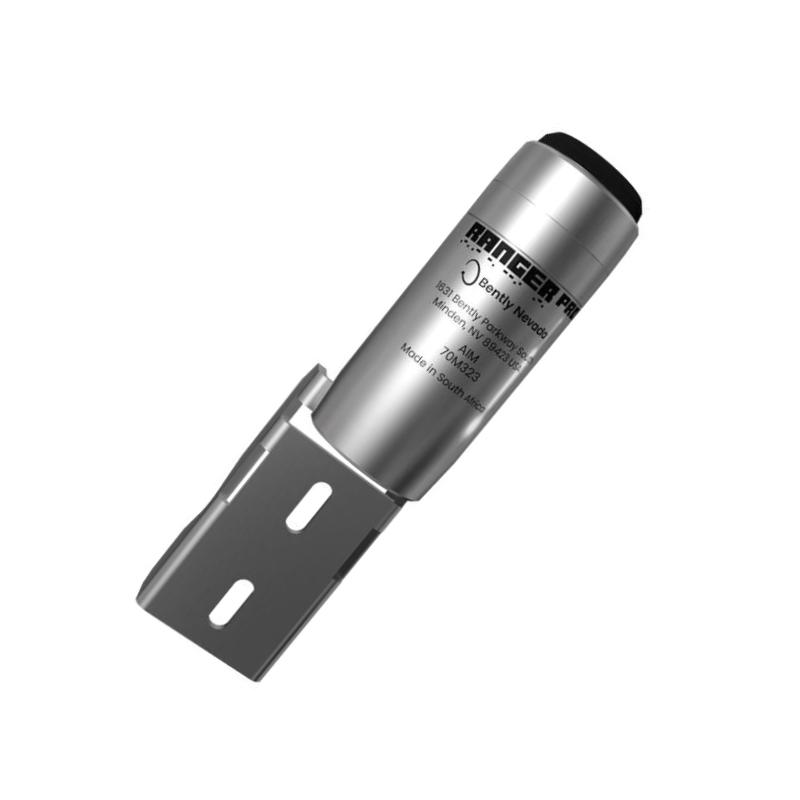

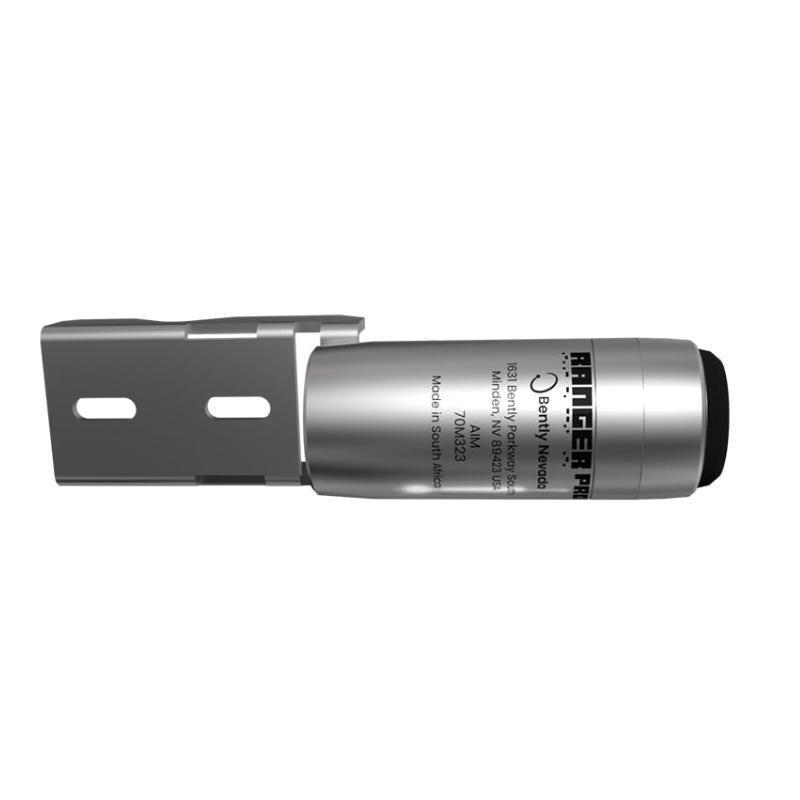

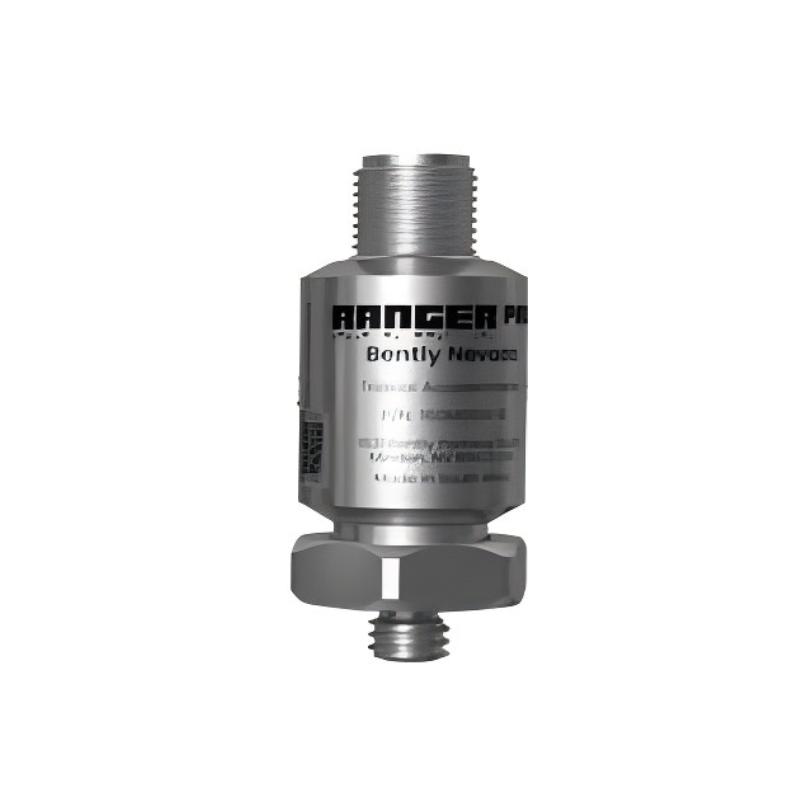

The Bently Nevada 70M323 Ranger Pro ISA100 Interface Module is a communication interface component used within a Ranger Pro wireless monitoring architecture. It provides the interface between the Ranger Pro monitoring environment and an ISA100 wireless network, allowing wireless field devices and the higher-level monitoring infrastructure to exchange equipment condition data.
In a typical plant installation, wireless vibration sensors are distributed around motors, pumps, compressors, fans, gearboxes, and other rotating assets. The interface module forms part of the communication path that carries data from these field devices toward the monitoring and analysis layer. This approach is useful when extending condition monitoring to equipment where running new signal cables would require substantial field work.
The 70M323 is therefore best considered as a communication/interface device, rather than a vibration sensor. When diagnosing a wireless monitoring problem, the sensor itself, wireless network, interface module, gateway functions, and monitoring software should be checked as separate parts of the communication chain.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product | Bently Nevada 70M323 Ranger Pro ISA100 Interface Module |
| Product Type | ISA100 Interface Module |
| Model | 70M323 |
| Series | Ranger Pro |
| Wireless Technology | ISA100 |
| System Role | Wireless communication interface |
| Main Function | Interface between Ranger Pro devices and ISA100 wireless infrastructure |
| Application | Industrial wireless condition monitoring |
| Dimensions | 100 × 40 mm |
| Weight | 0.4 kg |
Product Features
- ISA100 wireless interface supports communication within an industrial wireless monitoring architecture.
- Ranger Pro integration allows the interface to operate as part of a distributed wireless condition-monitoring system.
- Communication-focused design separates network interfacing from the actual vibration sensing function.
- Compact form factor supports installation in industrial monitoring infrastructure.
- Suitable for wireless monitoring systems where multiple field measurement points need to communicate with centralized monitoring equipment.
- Helps extend condition-monitoring coverage without requiring every measurement point to use a dedicated wired signal path.
Working Principle
The 70M323 operates as an interface within the wireless communication path. Data generated by Ranger Pro field devices is transferred through the wireless network, with the interface module handling the connection between the Ranger Pro environment and the ISA100 network infrastructure.
In operation, the module does not perform the same job as an accelerometer. The accelerometer measures physical vibration, while the interface module handles communication between wireless field devices and the system receiving or processing the measurement information.
When communication is interrupted, troubleshooting should follow the complete path: field sensor status, wireless signal path, ISA100 network configuration, interface module condition, gateway or receiving equipment, and monitoring software. This helps avoid replacing a communication module when the actual problem is located at the sensor or wireless network level.
Role in a Ranger Pro ISA100 Wireless Monitoring Architecture
| System Element | Function |
|---|---|
| Ranger Pro Wireless Sensors | Acquire vibration or other equipment condition measurements |
| 70M323 ISA100 Interface Module | Provides the interface between Ranger Pro devices and the ISA100 wireless network |
| ISA100 Wireless Network | Transports wireless measurement and device data |
| Wireless Gateway / Receiving Equipment | Collects and forwards wireless data to the monitoring layer |
| Condition Monitoring Software | Stores, trends, and analyzes equipment condition data |
| Plant Monitoring System | Presents relevant equipment information to operators and maintenance personnel |
| Rotating Machinery | Generates the physical condition signals being monitored |
Industrial Applications
| Application | Typical Use |
|---|---|
| Rotating Equipment Monitoring | Wireless communication for distributed machine condition data |
| Motor Monitoring | Connecting wireless monitoring points to the plant monitoring architecture |
| Pump Monitoring | Supporting wireless vibration monitoring around pump assets |
| Compressor Monitoring | Integrating wireless condition-monitoring data into the monitoring network |
| Fan and Blower Monitoring | Supporting distributed wireless monitoring of rotating equipment |
| Gearbox Monitoring | Transferring condition data from wireless measurement points |
| Plant-Wide Condition Monitoring | Extending wireless monitoring coverage across multiple equipment areas |
| Retrofit Monitoring Systems | Adding wireless condition monitoring where extensive signal cabling is undesirable |
Installation and Maintenance
- Verify the Model — Confirm that the replacement is specifically the 70M323 Ranger Pro ISA100 Interface Module and matches the existing system configuration.
- Inspect the Module — Check the housing, connectors, mounting points, and external surfaces for damage before installation.
- Document Existing Connections — Record the existing communication arrangement and module connections before removing a serviceable unit.
- Isolate the Equipment — Follow the plant’s approved isolation and electrical safety procedures before handling the module.
- Check the Mounting Location — Ensure the installation position is mechanically secure and suitable for the surrounding industrial environment.
- Inspect Network Connections — Check connectors, terminals, and associated communication wiring for looseness, corrosion, or physical damage.
- Verify ISA100 Network Configuration — Confirm that the wireless network settings and device configuration correspond to the existing monitoring architecture.
- Check Associated Sensors — Verify that Ranger Pro field devices are powered, correctly identified, and communicating before diagnosing the interface module.
- Inspect Wireless Coverage — Confirm that the wireless communication path is available between the field devices and the relevant network infrastructure.
- Check Device Identification — Make sure the replacement module is correctly recognized by the monitoring system and associated network configuration.
- Review Diagnostics — Use available network and system diagnostics to distinguish an interface problem from a sensor, gateway, or wireless communication fault.
- Perform a Controlled Communication Test — After installation, verify data transmission from representative Ranger Pro devices through the ISA100 network to the monitoring system.
Compatible System Components
| Component | Function |
|---|---|
| Ranger Pro Wireless Sensors | Provide field equipment condition measurements |
| Ranger Pro Tri-Axial Wireless Accelerometers | Supply multi-direction vibration data |
| Ranger Pro ISA100 Wireless Infrastructure | Provides the wireless communication environment |
| ISA100 Gateway / Receiving Equipment | Transfers wireless data toward the monitoring system |
| Condition Monitoring Software | Processes and trends equipment condition data |
| Plant Control or Monitoring System | Integrates condition information with plant operation |
| Industrial Rotating Equipment | Supplies the physical measurements being monitored |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Bently Nevada 70M301 Ranger Pro | Single-Axis Wireless Vibration Sensor | Single-direction vibration monitoring |
| Bently Nevada 70M303 Ranger Pro | Tri-Axial Wireless Vibration Sensor | Three-axis vibration monitoring |
| Bently Nevada 70M303-10-01-01-02 | Ranger Pro Tri-Axial Wireless Accelerometer | Wireless vibration monitoring of rotating equipment |
| Bently Nevada 70M300 Ranger Pro | ISA100 Wireless Repeater | Extending wireless network coverage |
| Ranger Pro Wireless Monitoring System | Wireless Condition Monitoring Platform | Distributed equipment condition monitoring |
Key Advantages
- Provides an ISA100 communication interface for Ranger Pro wireless monitoring.
- Separates wireless network interfacing from field vibration measurement.
- Supports distributed condition-monitoring architectures.
- Helps extend wireless monitoring to additional plant assets.
- Compact form factor simplifies integration into suitable monitoring infrastructure.
Technical FAQs
Is the 70M323 a vibration sensor?
No. The 70M323 is an ISA100 Interface Module. Vibration is measured by compatible Ranger Pro sensing devices, while the 70M323 serves the communication/interface function within the wireless monitoring architecture.
What should be checked when Ranger Pro sensors are visible but their data does not reach the monitoring system?
Check the communication path in sequence: sensor status, wireless connectivity, ISA100 network configuration, 70M323 interface operation, gateway or receiving equipment, and monitoring software. This helps identify whether the fault is at the field-device or network-interface level.
Can the 70M323 be replaced without checking the wireless network configuration?
The physical replacement alone may not restore communication. The replacement must match the existing system arrangement, and device identification, ISA100 configuration, wireless connectivity, and communication diagnostics should be verified after installation.
What is the relationship between the 70M323 and a Ranger Pro tri-axial accelerometer?
The accelerometer is the measurement device attached to the machine and detects vibration along three axes. The 70M323 belongs to the communication side of the architecture, connecting the Ranger Pro wireless environment with the ISA100 network.
