Product Overview

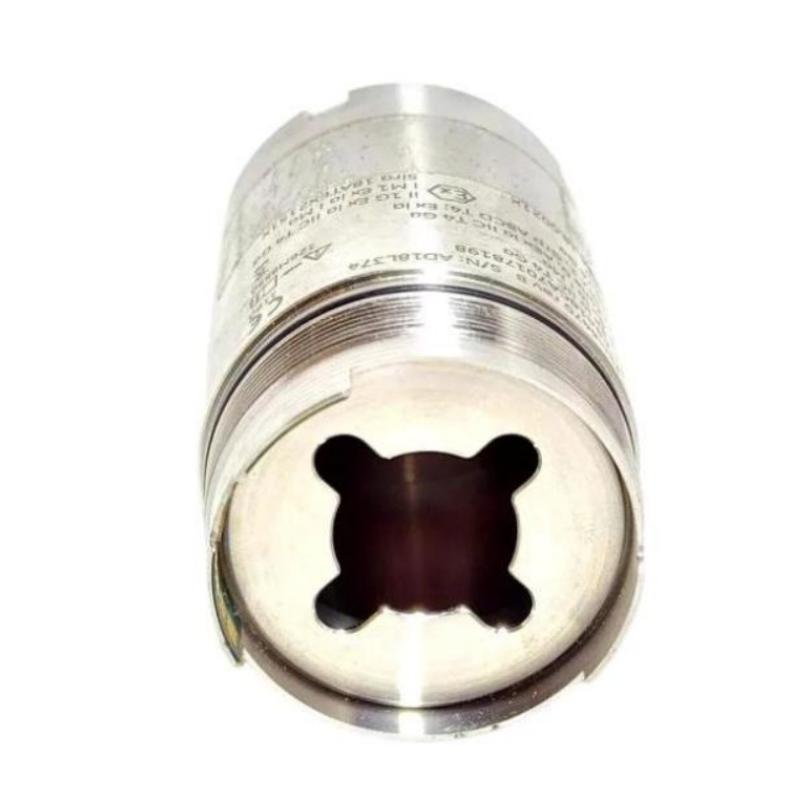

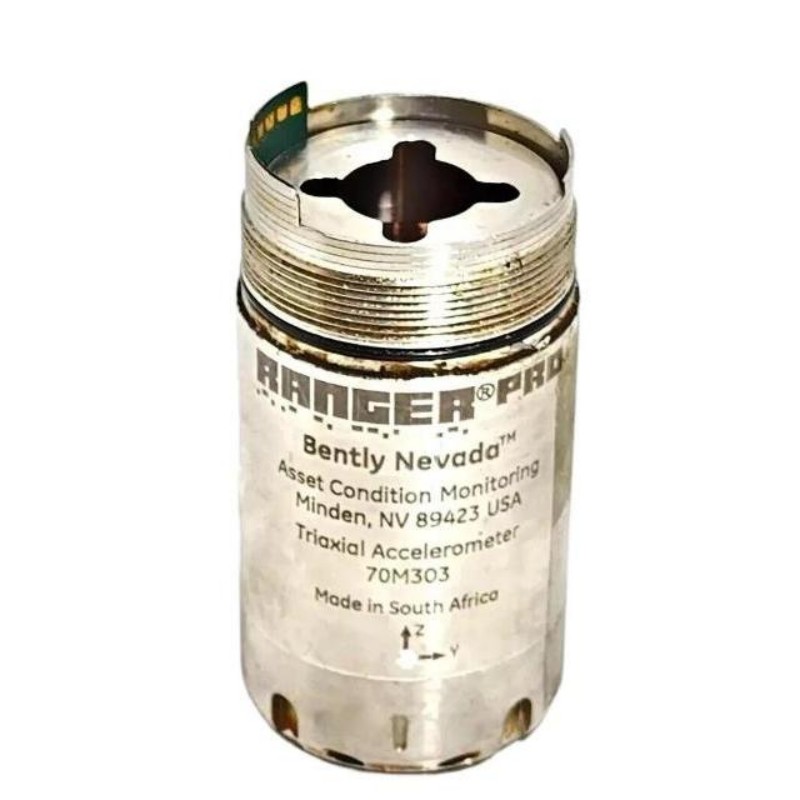

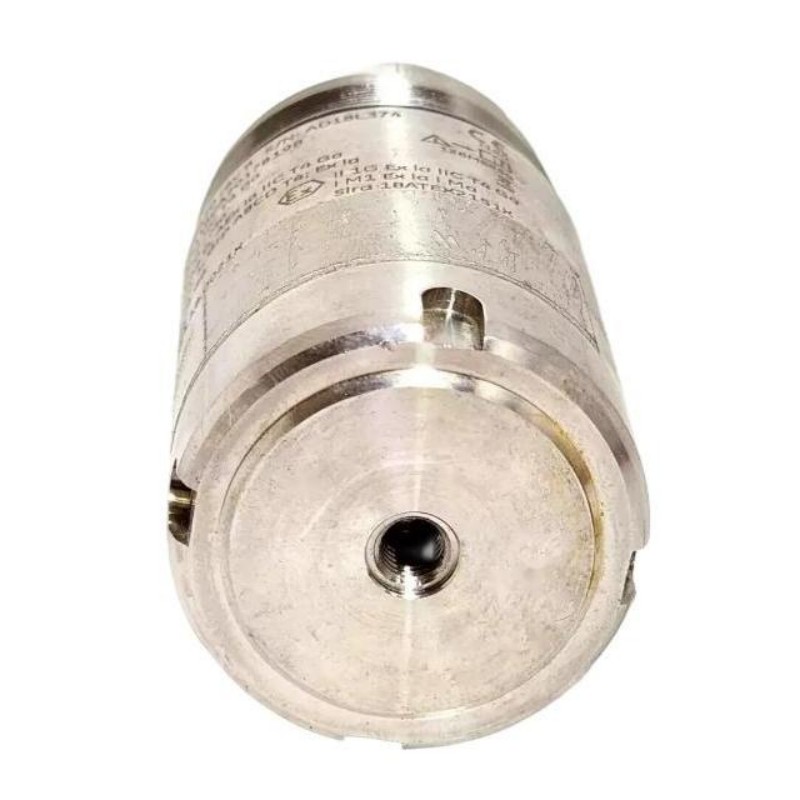

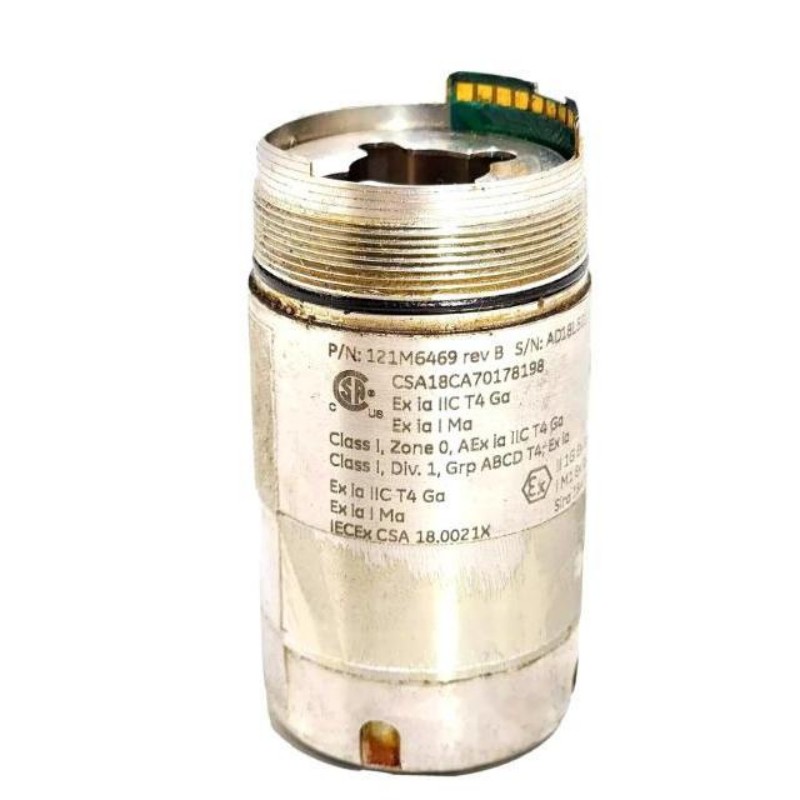

The Bently Nevada 70M303 is a Ranger Pro tri-axial wireless vibration sensor for distributed condition monitoring of industrial rotating machinery. Its three-axis measurement configuration allows vibration behavior to be observed in multiple directions from a single installation point, making it useful where machine response is not limited to one dominant vibration direction.
The sensor can be applied to equipment such as pumps, motors, compressors, fans, blowers, and gearboxes. Its wireless architecture is particularly useful for plants where monitoring points are distributed across large equipment areas or where running individual signal cables from each measurement point would add installation complexity.
Compared with a single-axis vibration sensor, the tri-axial arrangement can provide a broader picture of machine vibration at the selected measurement location. Proper mounting remains important because the sensor’s orientation determines the relationship between its three measurement axes and the physical directions of machine vibration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 70M303 |
| Product Family | Ranger Pro |
| Product Type | Tri-Axial Wireless Vibration Sensor |
| Measurement | Vibration |
| Measurement Configuration | Tri-axial |
| Communication | Wireless |
| Wireless Platform | Ranger Pro |
| Application | Industrial rotating machinery condition monitoring |
| Dimensions | 88 × 40 mm |
| Weight | 0.23 kg |
Product Features
- Tri-axial vibration measurement
- Wireless transmission through the Ranger Pro platform
- Measures vibration in three orthogonal directions from one installation point
- Suitable for distributed rotating machinery monitoring
- Compact field-mounted form factor
- Reduces the need for individual wired vibration signal runs
- Suitable for pumps, motors, compressors, fans, blowers, and gearboxes
- Supports broader vibration assessment at a selected machine location
Working Principle
The 70M303 detects mechanical vibration along three measurement axes and transmits the resulting monitoring information through the Ranger Pro wireless network.
A typical signal path is:
Rotating Machinery → 70M303 Tri-Axial Vibration Sensor → Ranger Pro Wireless Network → Monitoring System
The three-axis configuration allows vibration behavior to be evaluated in multiple directions at the same physical location. This is useful when vibration can develop in different planes due to imbalance, looseness, structural response, bearing-related problems, or other machine-condition changes.
The sensor performs the field measurement, while the Ranger Pro wireless architecture carries the collected information toward the monitoring and analysis environment. Sensor orientation and mechanical coupling should be considered during installation so that the three measurement axes have a clear relationship to the machine structure.
Role in a Ranger Pro Wireless Monitoring Architecture
The 70M303 operates at the field sensing layer of the Ranger Pro architecture. It provides a multi-directional vibration measurement point while using wireless communication to transfer the collected data into the monitoring network.
| System Element | Function |
|---|---|
| Rotating Machinery | Generates mechanical vibration associated with operating condition |
| 70M303 Wireless Vibration Sensor | Measures vibration along three axes and transmits monitoring data wirelessly |
| Ranger Pro Wireless Network | Provides the communication path for wireless sensor data |
| 70M300 Wireless Repeater | Can extend the wireless communication path where additional network coverage is required |
| Wireless Network Infrastructure | Collects and transfers monitoring information toward higher-level systems |
| Monitoring / Analytics Software | Displays, trends, and analyzes collected machinery condition data |
The tri-axial sensor can be useful where a single-axis measurement does not adequately represent the machine’s vibration behavior. Mechanical installation and wireless communication should be evaluated as separate parts of the overall measurement setup.
Industrial Applications
| Application | Typical Use |
|---|---|
| Pump Monitoring | Captures multi-directional vibration around pump bearing and housing locations |
| Motor Monitoring | Provides three-axis vibration information from industrial motor structures |
| Compressor Monitoring | Supports vibration assessment of compressor assemblies and associated rotating equipment |
| Fan and Blower Monitoring | Observes vibration behavior in multiple directions on rotating fan and blower equipment |
| Gearbox Monitoring | Provides multi-axis vibration information from gearbox housings and bearing locations |
| Oil and Gas Facilities | Supports distributed wireless monitoring across rotating process equipment |
| Chemical Processing | Provides additional vibration measurement coverage without extensive signal cabling |
| General Rotating Equipment | Adds multi-directional wireless vibration measurement points for condition-based maintenance |
Installation and Maintenance
- Select a Representative Measurement Point — Install the sensor at a location that provides useful mechanical information about the machine, such as a bearing housing or suitable structural surface.
- Establish the Sensor Orientation — Record the orientation of the three measurement axes so that vibration data can be correctly interpreted during analysis.
- Prepare the Mounting Surface — Ensure the contact surface is clean, secure, and mechanically suitable for the selected installation method.
- Secure the Sensor Properly — Maintain firm mechanical coupling between the sensor and machinery throughout normal operation.
- Consider All Three Measurement Directions — Select the installation orientation based on the machine structure and the vibration directions that need to be observed.
- Verify Wireless Coverage — Confirm that the sensor can communicate with the Ranger Pro wireless network from its final installation location.
- Use a Repeater When Necessary — Where distance or physical structures affect wireless communication, evaluate whether a 70M300 repeater is appropriate for the network layout.
- Check Initial Vibration Data — Review the first measurements after commissioning to confirm that the three-axis data is consistent with the machine’s operating condition.
- Establish a Baseline — Record normal multi-axis vibration behavior under representative operating conditions for future trend comparison.
- Inspect the Mechanical Mounting — During maintenance, check for looseness, surface damage, corrosion, or other changes that could affect vibration transmission to the sensor.
- Separate Measurement and Communication Problems — Determine whether abnormal behavior originates from the vibration measurement, physical installation, wireless path, or network infrastructure.
- Follow Site Safety Procedures — Perform installation and maintenance according to applicable machinery isolation, electrical, process, and wireless equipment safety requirements.
For troubleshooting, compare the three vibration axes rather than examining a single value in isolation. If all communication is lost, investigate the wireless path first; if communication remains available but one or more axes show unexpected changes, inspect the sensor mounting and machinery condition.
Related Components
| Component | Function |
|---|---|
| Ranger Pro Wireless Network | Carries vibration data from field sensors |
| Bently Nevada 70M300 | Provides an additional wireless communication path when coverage extension is required |
| Machinery Mounting Hardware | Establishes the mechanical connection between the sensor and monitored equipment |
| Wireless Network Infrastructure | Receives and routes monitoring information toward plant systems |
| Monitoring / Analytics Software | Trends and analyzes multi-axis vibration data |
| Rotating Machinery | Provides the mechanical condition being monitored |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Bently Nevada 70M300 | Ranger Pro ISA100 Wireless Repeater | Extending wireless communication coverage |
| Bently Nevada 70M301 | Ranger Pro Single Axis Wireless Vibration Sensor | Single-axis wireless vibration monitoring |
| Bently Nevada 70M303 | Ranger Pro Tri-Axial Wireless Vibration Sensor | Multi-directional wireless vibration monitoring |
| Bently Nevada Ranger Pro | Wireless Machinery Monitoring System | Distributed monitoring of rotating equipment |
| Bently Nevada Orbit 60 Series | Machinery Monitoring Platform | Continuous machinery condition monitoring and protection |
Key Advantages
- Tri-axial vibration measurement from one installation point
- Wireless connection for distributed machinery monitoring
- Provides vibration information in three directions
- Compact field-mounted design
- Reduces dedicated signal cabling requirements
- Suitable for a wide range of rotating equipment
- Supports condition-based maintenance and vibration trending
Technical FAQs
What is the difference between the 70M303 and a single-axis Ranger Pro vibration sensor?
The 70M303 uses a tri-axial measurement configuration, allowing vibration to be observed along three axes from one installation point. A single-axis sensor focuses on vibration along one defined direction.
Why is the orientation of the 70M303 important?
The sensor’s three axes correspond to different physical directions. Recording the installation orientation allows vibration trends to be interpreted correctly and makes it easier to relate changes in each axis to the machine’s mechanical behavior.
Where is a tri-axial vibration sensor useful on rotating equipment?
It is useful at locations where vibration may occur in multiple directions, including pump and motor housings, compressor structures, fan assemblies, and gearbox housings. The exact measurement point should be selected according to the machine construction and monitoring objective.
What should be checked if the 70M303 reports abnormal vibration data?
First check the sensor’s mechanical mounting and orientation, then compare the three-axis measurements with the machine’s normal baseline. If the measurement data is unavailable rather than simply abnormal, inspect the Ranger Pro wireless communication path and associated network infrastructure.
