Product Overview

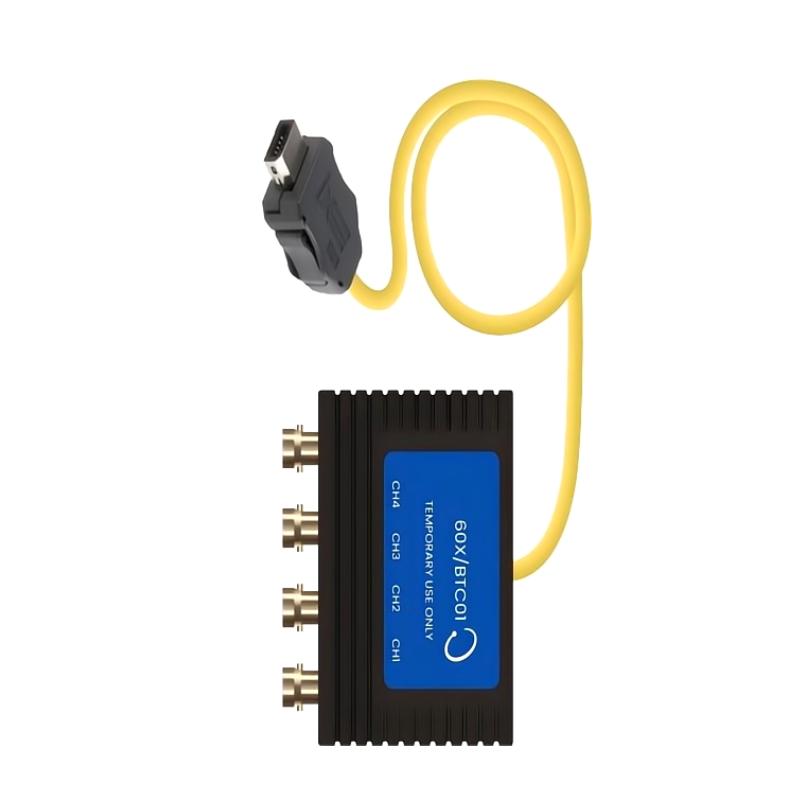

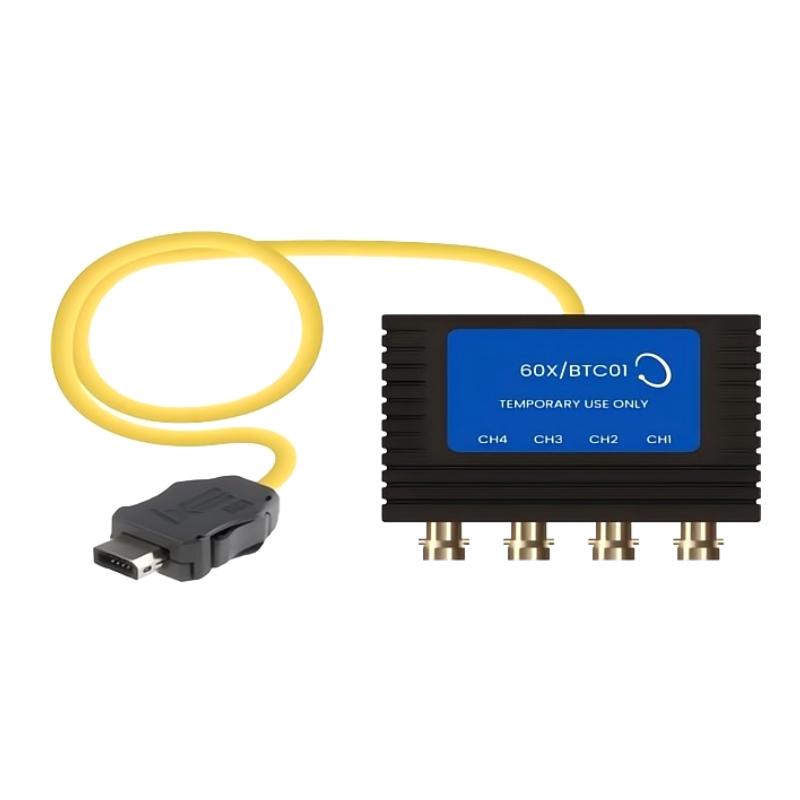

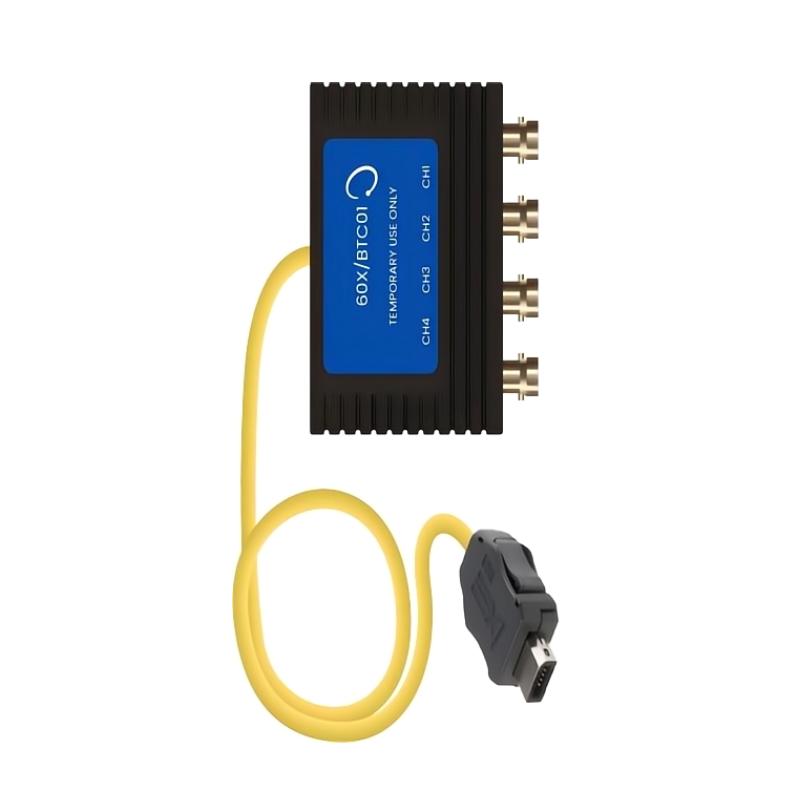

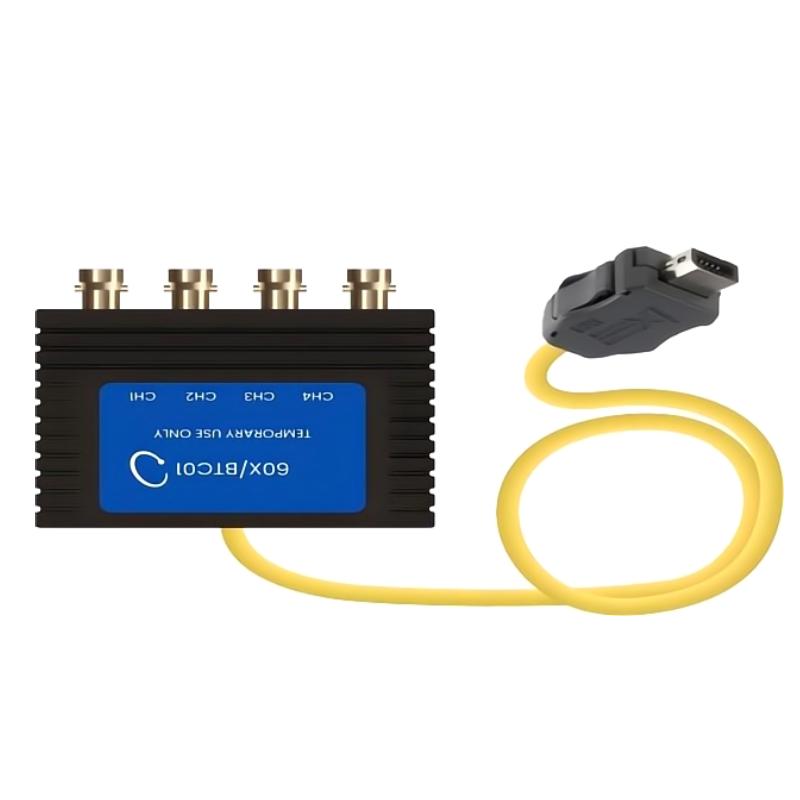

The Bently Nevada 60X/BTC01 Orbit 60 Series Buffered Transducer Breakout Kit is an interface accessory used within the Bently Nevada Orbit 60 machinery monitoring platform. It provides a convenient connection point for buffered transducer signals, allowing engineers to access, distribute, and test sensor signals while maintaining the integrity of the machinery protection system.
Unlike monitoring modules that perform signal processing or protection logic execution, the breakout kit works as a signal access and connection component. It is mainly used to simplify field wiring, commissioning, troubleshooting, and maintenance activities by providing a structured interface between transducers and the Orbit 60 monitoring system.
In rotating machinery applications, buffered signal access is important because maintenance personnel may need to verify sensor outputs, perform diagnostic measurements, or connect external test equipment without interrupting the primary monitoring path. The 60X/BTC01 helps achieve this by providing a dedicated breakout interface for connected transducer signals.
The kit is suitable for applications involving vibration monitoring, shaft displacement measurement, and other machinery condition monitoring tasks where Bently Nevada transducer systems are integrated into industrial protection architectures.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 60X/BTC01 |
| Product Family | Orbit 60 Series |
| Product Type | Buffered Transducer Breakout Kit |
| Function | Transducer Signal Access Interface |
| Application | Machinery Protection and Condition Monitoring |
| Installation | Orbit 60 Monitoring System |
| Dimensions | 150 × 110 × 60 mm |
| Weight | 0.9 kg |
Product Features
The Bently Nevada 60X/BTC01 provides structured signal access for Orbit 60 transducer applications.
Key characteristics include:
- Bently Nevada Orbit 60 Series breakout kit
- Model 60X/BTC01
- Designed for buffered transducer signal connection
- Provides convenient sensor signal access
- Supports commissioning and troubleshooting activities
- Helps simplify field wiring management
- Maintains connection between transducers and monitoring equipment
- Suitable for vibration and displacement monitoring systems
- Supports maintenance testing without modifying primary wiring
- Used with industrial machinery protection installations
- Suitable for rotating equipment monitoring environments
- Improves accessibility of sensor signal paths
The breakout kit is particularly useful during installation, calibration, and maintenance work where technicians need direct access to transducer signals.
Working Principle
The Bently Nevada 60X/BTC01 operates as a signal distribution and access interface between transducers and the Orbit 60 monitoring system.
A simplified signal path is:
Machine Sensor → Transducer Interface → 60X/BTC01 Breakout Kit → Orbit 60 Monitoring Module → Protection System
During normal operation, the connected transducer provides measurement signals from rotating equipment. The breakout kit provides an accessible connection point while allowing the primary signal path to continue toward the monitoring system.
The module enables engineers to:
- Monitor buffered transducer outputs
- Connect diagnostic instruments
- Perform signal verification
- Assist system commissioning
- Support maintenance troubleshooting
It does not analyze vibration signals or execute protection algorithms. Instead, it improves accessibility and serviceability of the sensor signal network.
Role in Machinery Protection Architecture
The 60X/BTC01 serves as the sensor signal interface and maintenance access layer within an Orbit 60 monitoring system.
A typical architecture can be represented as:
Proximity Probe / Transducer → Signal Interface → Breakout Kit → Orbit 60 Monitoring Module → Plant Protection System
Within this structure:
- Transducers collect physical equipment condition information.
- The breakout kit provides signal access and connection flexibility.
- Monitoring modules process measurement data.
- Protection systems respond to abnormal operating conditions.
The breakout kit is especially valuable in complex industrial installations where multiple sensors must be monitored, tested, or maintained without disturbing the overall protection system.
Industrial Applications
The Bently Nevada 60X/BTC01 is used in industrial machinery monitoring applications requiring reliable transducer signal management.
| Application | Typical Use |
|---|---|
| Steam Turbine Systems | Transducer signal access for monitoring |
| Gas Turbine Equipment | Sensor connection and testing |
| Compressors | Vibration signal maintenance access |
| Power Generation Plants | Machinery protection system support |
| Petrochemical Equipment | Condition monitoring integration |
| Rotating Machinery | Sensor diagnostics and verification |
| Industrial Drives | Monitoring system maintenance |
| Process Equipment | Signal troubleshooting and commissioning |
The breakout kit is commonly applied in industries where machinery availability and accurate condition monitoring are critical.
Installation and Maintenance
Installation of the 60X/BTC01 should be completed as part of the overall Orbit 60 transducer and monitoring system configuration.
Recommended practices include:
- Verify the correct breakout kit model.
- Confirm compatibility with connected transducers.
- Check signal wiring identification.
- Inspect connectors and terminals.
- Verify cable routing and shielding.
- Confirm connection polarity.
- Perform signal verification during commissioning.
- Check monitoring module communication.
- Inspect physical mounting condition.
- Record final wiring configuration.
During troubleshooting, the breakout kit should be considered as part of the complete sensor signal chain. Signal issues may also originate from transducers, cables, connectors, or monitoring modules.
Related Components
The 60X/BTC01 works together with multiple components in the Orbit 60 machinery monitoring system.
| Component | Function |
|---|---|
| Proximity Probes | Measure shaft displacement |
| Vibration Sensors | Detect machinery vibration |
| Transducer Systems | Convert physical movement into electrical signals |
| Orbit 60 Monitoring Modules | Process condition data |
| Signal Interface Components | Manage sensor connections |
| Relay Output Modules | Transfer alarm and trip signals |
| PLC / DCS Systems | Receive monitoring information |
| Engineering Software | Configure and diagnose systems |
Together, these components form a complete machinery condition monitoring and protection solution.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Bently Nevada 60X/BTC01 | Buffered Transducer Breakout Kit | Sensor signal access |
| Bently Nevada 60R/SIM01 | System Interface Module | System communication integration |
| Bently Nevada 60R/RLY01-00-0 | Electro-Mech Relay Module | Alarm output interface |
| Bently Nevada 60R/RLY02 | Solid State Relay Module | Electronic protection output |
| Bently Nevada 60R/REC01-00-0 | Recorder Output Module | Monitoring data output |
| Bently Nevada Orbit 60 Series | Machinery Protection Platform | Complete monitoring system |
Selection should be based on sensor type, monitoring architecture, and required maintenance access functions.
Key Advantages
- Bently Nevada Orbit 60 Series breakout kit
- Model 60X/BTC01
- Provides buffered transducer signal access
- Supports easier commissioning and maintenance
- Simplifies sensor signal troubleshooting
- Maintains connection integrity within monitoring systems
- Suitable for rotating machinery protection applications
- Supports vibration and displacement monitoring systems
- Improves accessibility of field signal paths
- Suitable for industrial condition monitoring environments
Technical FAQs
What is the purpose of the Bently Nevada 60X/BTC01?
The 60X/BTC01 provides an accessible interface point for buffered transducer signals, allowing technicians to test, verify, and troubleshoot sensor signals while maintaining connection with the Orbit 60 monitoring system.
Does the 60X/BTC01 process vibration measurement data?
No. The breakout kit does not perform signal analysis or protection calculations. Its function is to provide signal connection and access between transducers and monitoring modules.
Why is a breakout kit useful during machinery commissioning?
During commissioning, engineers often need to verify sensor installation, signal quality, and wiring conditions. A breakout interface allows testing activities without repeatedly disconnecting field wiring.
What should be checked if a transducer signal cannot be accessed through the breakout kit?
Technicians should inspect the transducer, cable connections, connector condition, signal routing, and monitoring module configuration before determining whether the breakout kit requires replacement.
