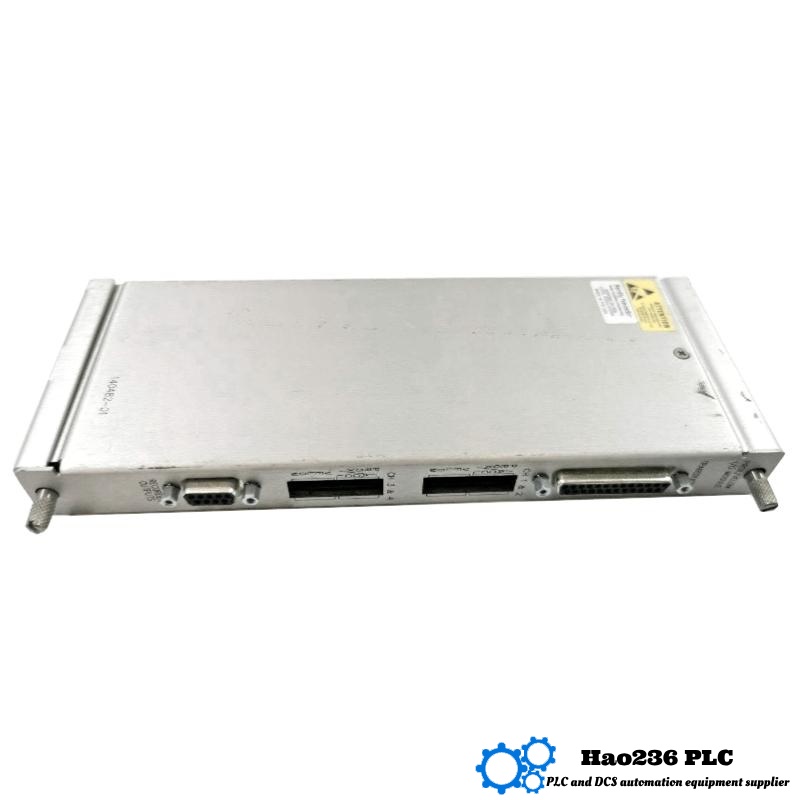

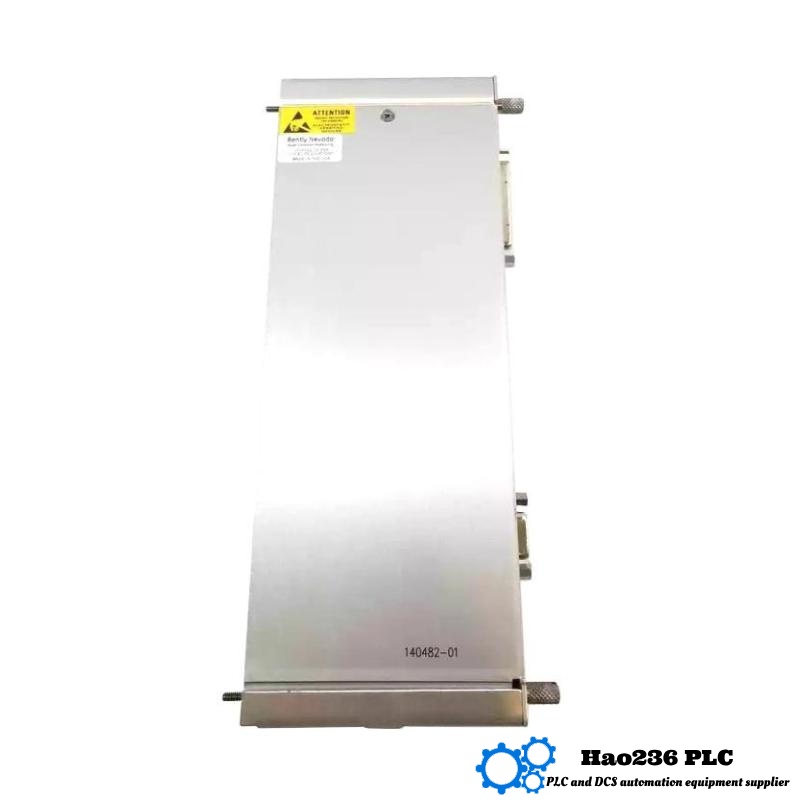

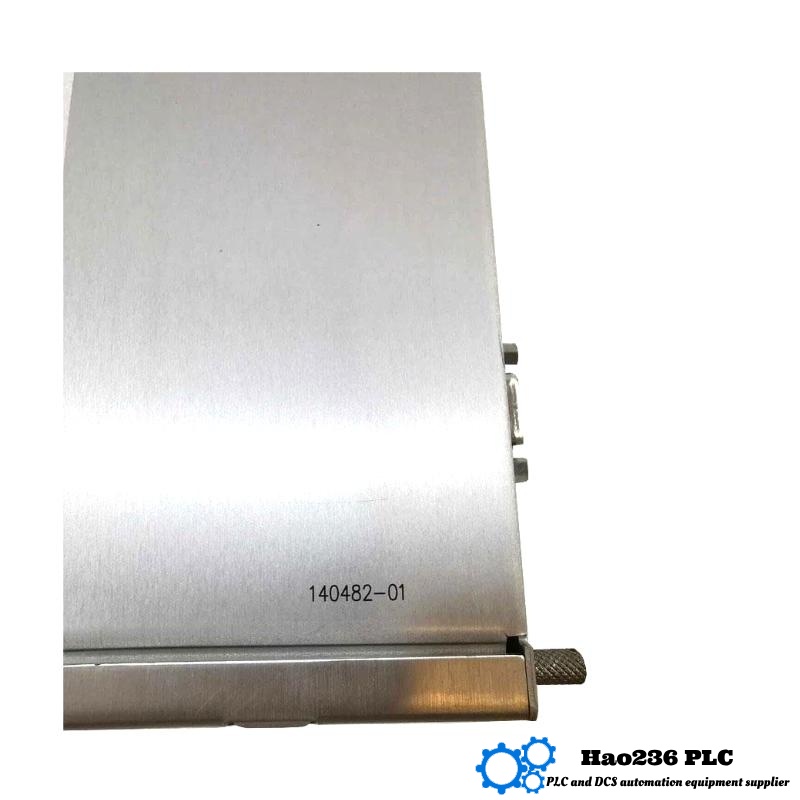

📌 Product Overview: Bently Nevada 3500/72M 140482-01
The Bently Nevada 3500/72M 140482-01 is a dual-channel interface module designed for use in the 3500 Machinery Protection System. It is tailored for advanced condition monitoring of rotating machinery, specifically measuring shaft position and vibration to prevent catastrophic failure.
This module accepts input from proximity probes and eddy current sensors to monitor radial and axial position changes, shaft vibration, and casing vibration. It integrates seamlessly into the 3500 Series rack for reliable and continuous machinery protection.
📊 Technical Specifications
| Parameter | Details |
|---|---|
| Model | 3500/72M 140482-01 |
| Channels | 2 (Dual-channel module) |
| Input Signal | Proximity Probes / Eddy Current Sensors |
| Measurement Parameters | Shaft Vibration, Axial Position, Radial Vibration |
| Output Signal | 4-20 mA, Relay Contacts, Buffered Output |
| Power Supply | Supplied from 3500 Rack Power Supply |
| Alarm Functions | Alert and Danger thresholds per channel |
| Interface | Configurable via 3500 Rack Configuration Software |
| Mounting | Rack-mounted (3500 Series Rack) |
| Dimensions | 24.1 cm x 2.5 cm x 24.1 cm (Height x Width x Depth) |
| Weight | 0.52 kg |
| Operating Temperature | -30°C to +65°C |
| Humidity Range | 0% to 95% non-condensing |
| Certifications | CE, CSA, ATEX, IECEx |
🧩 Applications
The 3500/72M 140482-01 is ideal for use in:
-
Steam turbines
-
Gas turbines
-
Compressors
-
Motors
-
Pumps
-
Generators
-
Gearboxes
-
Other rotating machinery in critical service
It is commonly used in power generation, petrochemical plants, oil & gas facilities, and manufacturing industries where reliable machinery monitoring is essential.
💡 Product Advantages
-
Real-time Monitoring: Ensures continuous and accurate measurement of vibration and shaft position to avoid machinery damage.
-
Dual-channel Efficiency: Two fully independent channels allow simultaneous monitoring of different parameters or components.
-
Seamless Integration: Easily integrates into the 3500 System with support for configuration through dedicated software.
-
Rugged Design: Industrial-grade construction ensures reliable performance in harsh environments.
-
Flexible Outputs: Includes multiple output options like 4-20 mA and relay alarms for system integration.
🏷️ Brand
-
Brand: Bently Nevada
-
Series: 3500 Series
-
Product Line: Machinery Protection and Condition Monitoring
🔄 Recommended Related Models (Same Series or Compatible)
| Model | Function | Channels | Measurement Type | Dimensions | Weight (kg) |
|---|---|---|---|---|---|
| 3500/42M 140734-02 | Vibration Monitor | 4 | Vibration | 24.1 x 2.5 x 24.1 cm | 0.52 |
| 3500/32M 149986-01 | 4-Channel Relay Module | 4 | Relay Output | 24.1 x 2.5 x 24.1 cm | 0.48 |
| 3500/20 133434-01 | Rack Interface Module | 1 | System Interface | 24.1 x 2.5 x 24.1 cm | 0.45 |
| 3500/15E 106M1079-01 | Power Supply Module | 1 | Power Supply | 24.1 x 5 x 24.1 cm | 0.60 |
| 3500/25 149369-01 | Keyphasor Module | 2 | Shaft Speed / Phase | 24.1 x 2.5 x 24.1 cm | 0.52 |
⭐ Popular Models from Same Brand
| Model | Function | Channels | Measurement Type | Dimensions | Weight (kg) |
|---|---|---|---|---|---|
| 3300 XL 8mm Proximity Probe | Shaft Vibration & Position Sensor | N/A | Vibration/Position | Probe Length: 80mm | 0.10 |
| 3500/22M 288055-01 | Transient Data Interface Module | 1 | Data Acquisition | 24.1 x 2.5 x 24.1 cm | 0.52 |
| 3500/94 147663-01 | Display Interface Module | 1 | Human-Machine Interface | 24.1 x 2.5 x 24.1 cm | 0.55 |
| 3500/70M 176449-08 | Velocity Monitor | 2 | Seismic / Casing Velocity | 24.1 x 2.5 x 24.1 cm | 0.52 |
| 3500/33 149992-01 | 16-Channel Relay Module | 16 | System Alarms | 24.1 x 5 x 24.1 cm | 0.65 |
❓ FAQ – Bently Nevada 3500/72M 140482-01
Q1: What does the 3500/72M module measure?
A1: It measures shaft vibration and position using eddy current proximity probes, allowing for effective machinery protection.
Q2: Can it be used in high-temperature environments?
A2: Yes, it operates reliably in temperatures from -30°C to +65°C.
Q3: How many channels does this module have?
A3: The 3500/72M has two independent monitoring channels.
Q4: What kind of sensors are compatible with this module?
A4: It works with Bently Nevada proximity probes and eddy current sensors.
Q5: Can this module be configured?
A5: Yes, it is fully configurable using the 3500 configuration software.
Q6: Is this module hot-swappable?
A6: No, modules must be removed and installed with the power off to ensure system integrity.
Q7: What are the alarm capabilities?
A7: Each channel supports Alert and Danger setpoints, along with corresponding relay outputs.
Q8: Can I use this module without the 3500 rack?
A8: No, it must be installed in the Bently Nevada 3500 rack for power and signal integration.
Q9: Is the module certified for hazardous areas?
A9: Yes, it carries certifications such as CE, CSA, ATEX, and IECEx for hazardous environments.
Q10: What happens if one channel fails?
A10: The system continues monitoring using the remaining functional channel and activates relevant alarms to notify the failure.
