- Bently Nevada
- 3500/05-02-05-00-00
- 3500/05 System Rack
- USA
- 12-inch (7 module slots)
- 4.5 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 1
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Introduction

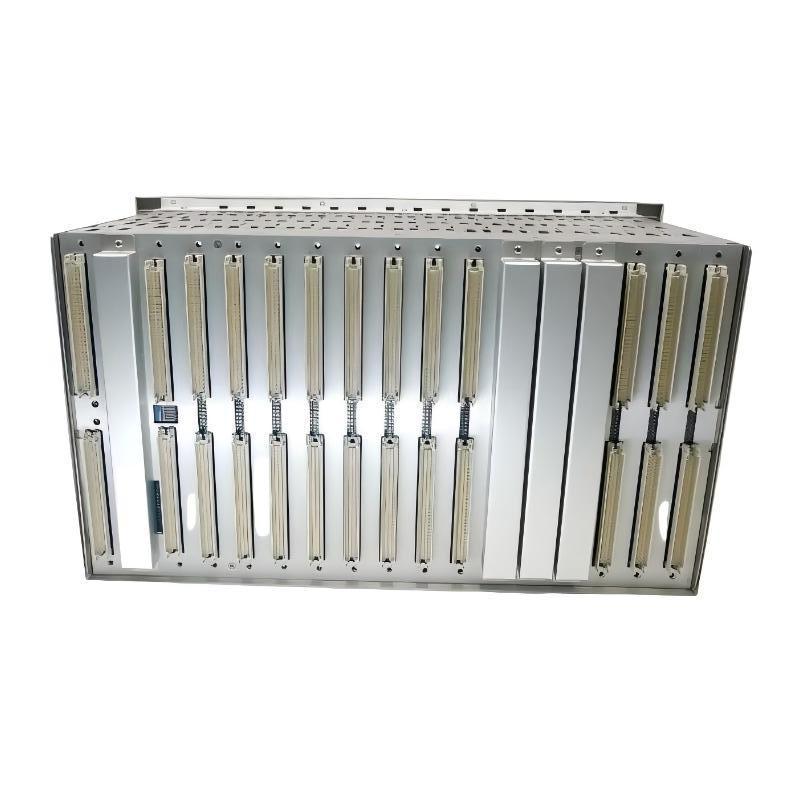

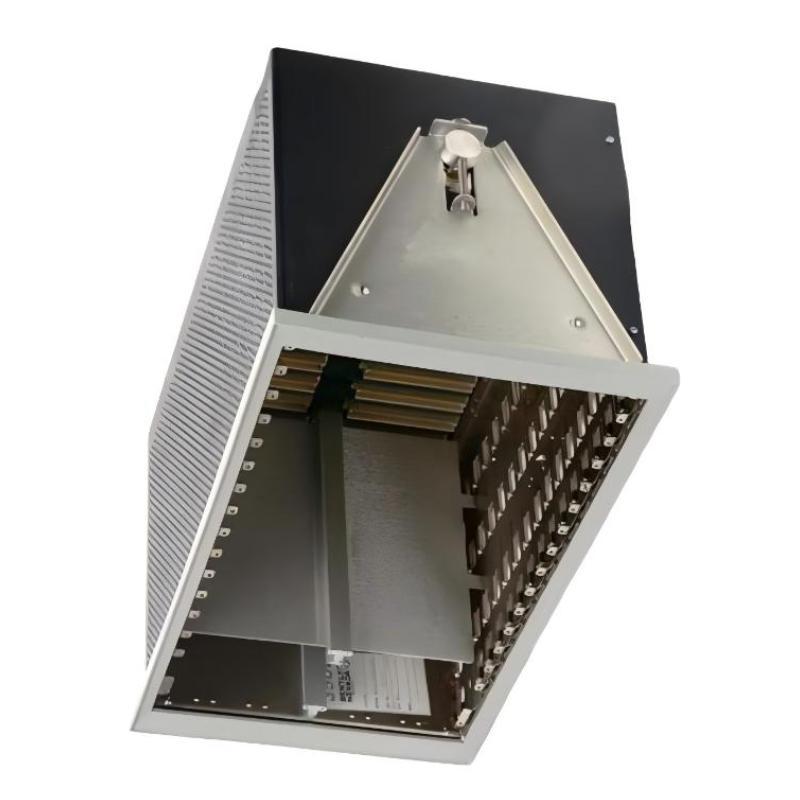

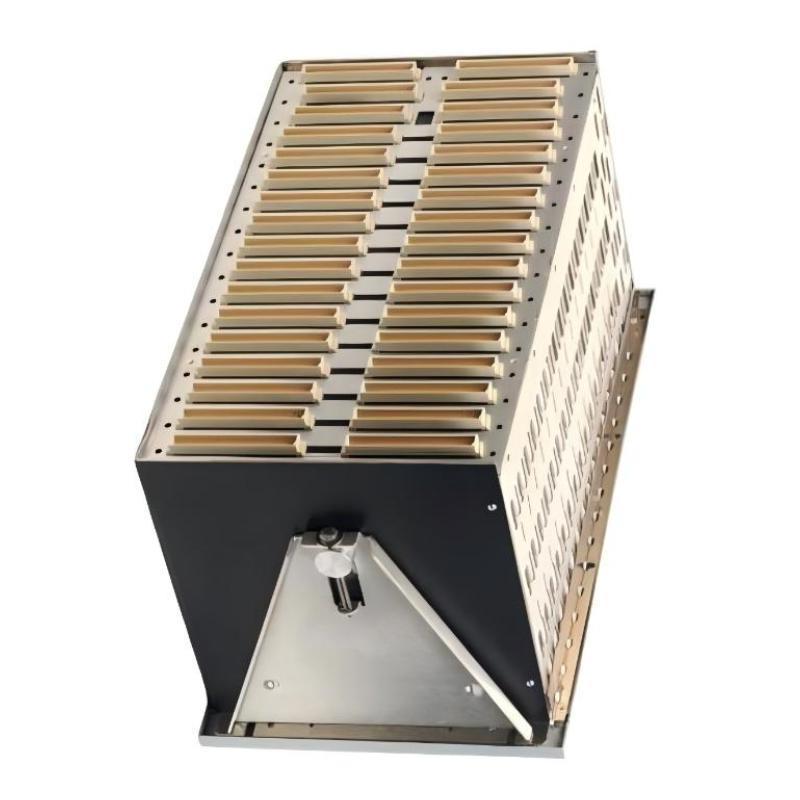

The Bently Nevada 3500/05-02-05-00-00 is a 3500/05 System Rack engineered to provide a reliable and compact platform for the Bently Nevada 3500 machinery protection system. It acts as a central hub for multiple monitoring modules, supporting vibration analysis, shaft position detection, and overall machinery condition monitoring.
Designed for installations where space is limited, this rack allows flexible system configurations without compromising operational reliability. Its integrated backplane provides seamless power distribution and communication among all installed modules, forming the backbone of a complete machinery protection solution.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3500/05-02-05-00-00 |
| Product Type | 3500/05 System Rack |
| System Series | Bently Nevada 3500 Monitoring System |
| Module Capacity | 7 monitoring module slots |
| Rack Function | Housing and interconnection of monitoring modules |
| Mounting Type | Rack-mounted installation |
| System Compatibility | Compatible with Bently Nevada 3500 series modules |
| Application Environment | Industrial machinery monitoring and protection systems |
Product Overview
The 3500/05-02-05-00-00 system rack provides a durable and compact foundation for Bently Nevada 3500 monitoring modules. Its internal backplane enables reliable power distribution and communication among modules, ensuring coordinated and reliable operation.
Modules installed in this rack perform essential functions such as vibration monitoring, Keyphasor signal processing, and relay outputs for alarms or emergency shutdowns. The modular design allows easy expansion or reconfiguration as operational needs evolve, while the industrial-grade construction ensures consistent performance in demanding environments.
Applications
Small Turbine Monitoring
Provides a platform for modules monitoring vibration, shaft displacement, and rotational speed in compact turbine installations.
Compressor and Pump Monitoring
Supports modules that detect mechanical anomalies and monitor vibration in compressors and pumps.
Power Generation Equipment
Installed in generator monitoring systems to maintain reliable operation of rotating machinery.
Oil and Gas Industrial Facilities
Forms a compact hub for machinery protection systems in critical rotating equipment.
Predictive Maintenance
Acts as the central system for early detection of mechanical faults in smaller industrial installations.
Advantages
Compact and Modular Design
Supports multiple modules for flexible monitoring system configurations.
Space-Efficient Rack
Ideal for installations where full-sized racks are impractical.
Integrated Backplane
Provides reliable power distribution and communication among all modules.
Scalable Monitoring Infrastructure
Additional modules can be installed as operational needs grow.
Industrial-Grade Durability
Engineered for continuous operation in demanding industrial environments.
Compatible Modules
The 3500/05-02-05-00-00 rack works with modules from the Bently Nevada 3500 system.
| Module | Module Type | Function |
|---|---|---|
| 3500/15 | Power Supply Module | Provides power for all modules |
| 3500/22M | Data Interface Module | Enables communication with monitoring software |
| 3500/25 | Keyphasor Module | Supplies rotational reference signals |
| 3500/42M | Proximitor / Seismic Monitor | Monitors vibration and shaft displacement |
| 3500/32M | Relay Output Module | Provides alarm and shutdown outputs |
These modules collectively provide a fully functional machinery protection and condition monitoring system.
Recommended Alternative Models
| Model | Product Type | Application | Key Feature |
|---|---|---|---|
| Bently Nevada 3500/05-02-01 | Compact System Rack | Small machinery monitoring | 7-slot modular design |
| Bently Nevada 3500/05-02-02 | Compact Rack | Space-constrained installations | Flexible module configuration |
| Bently Nevada 3500/05-02-05 | Compact Rack | Condition monitoring | Modular system design |
| Bently Nevada 3500/05 Monitoring Rack | Rack Platform | Machinery protection | High compatibility with monitoring modules |
| Bently Nevada 3500/05-01-01 | Standard System Rack | Full machinery monitoring | 14-slot rack |
Technical FAQs
What is the main function of this system rack?
It provides a reliable platform for installing and interconnecting monitoring modules within the 3500 machinery protection system.
How many modules can this rack support?
The rack supports multiple monitoring modules, allowing flexible configuration for compact installations.
Is this rack compatible with all 3500 series modules?
Yes, it is compatible with modules designed for 3500/05 compact rack configurations.
Where is this rack typically used?
It is installed in industrial control cabinets in power plants, oil and gas facilities, and other industrial environments where space efficiency is essential.
