Introduction

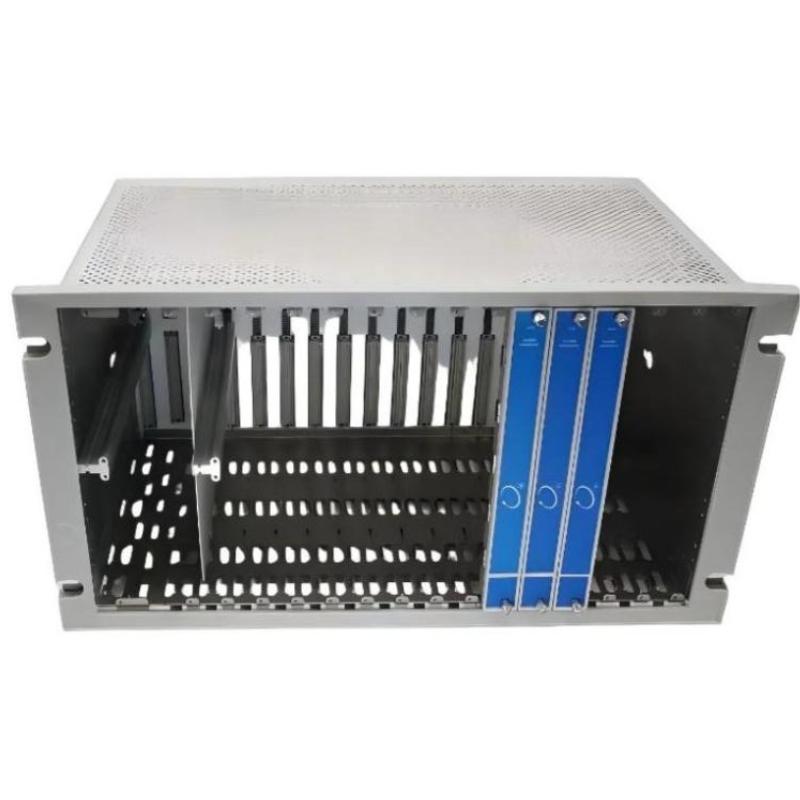

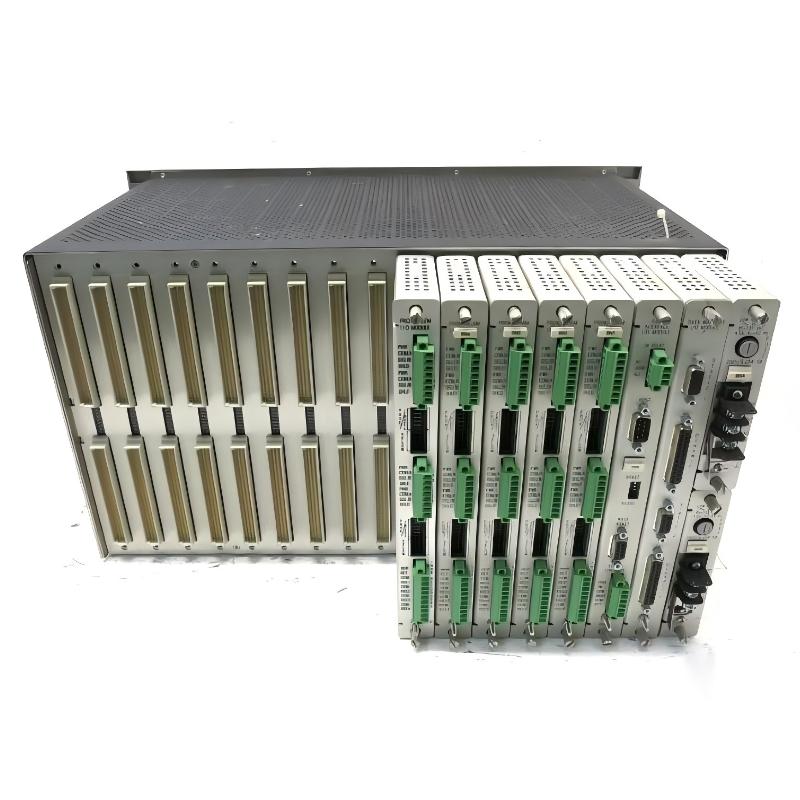

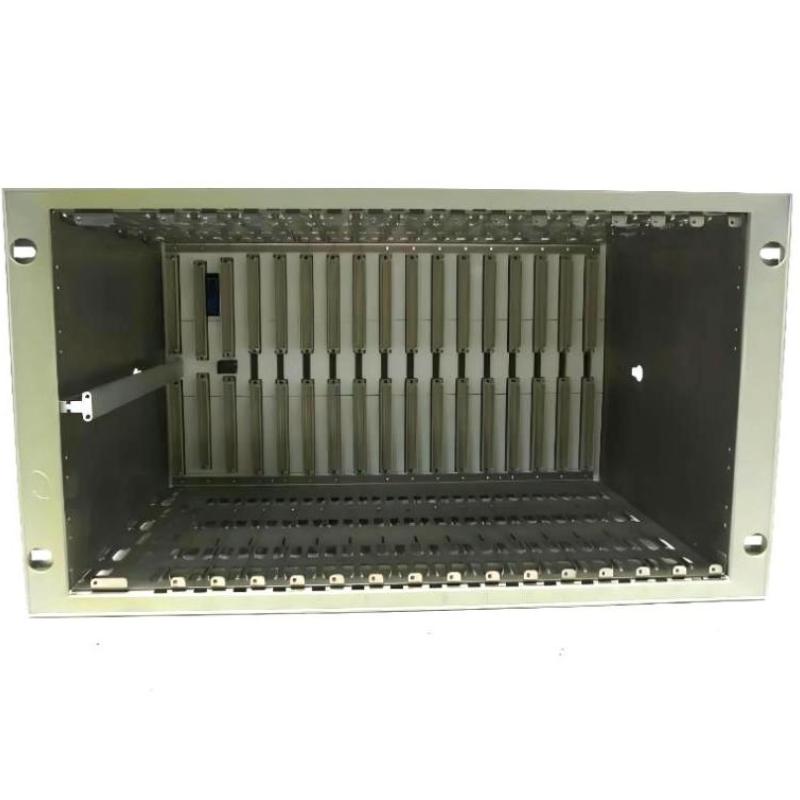

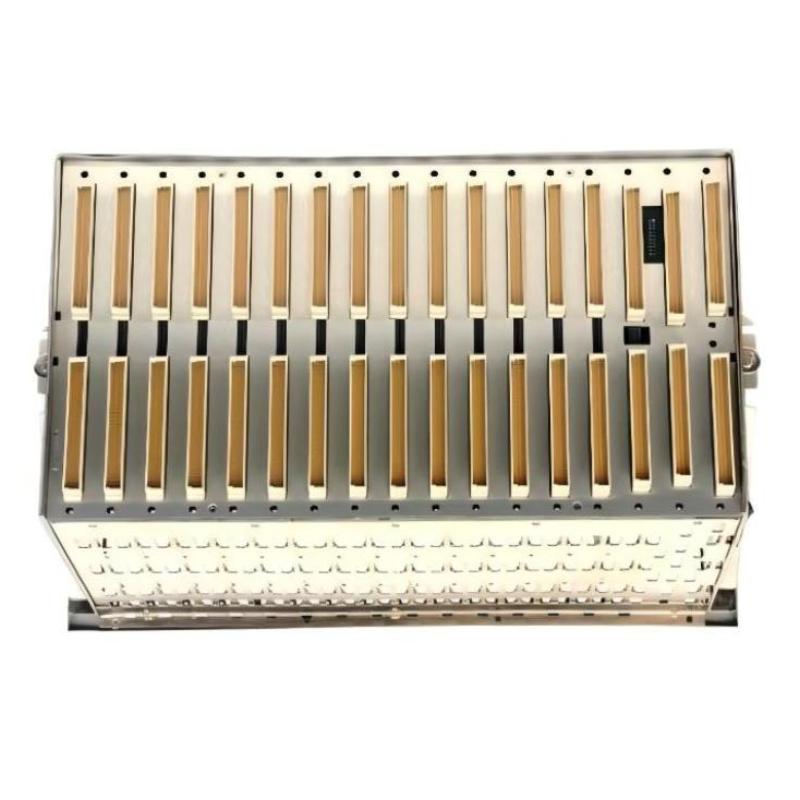

The Bently Nevada 3500/05-02-04-00-00-00 is a 3500/05 System Rack designed to provide a reliable platform for the Bently Nevada 3500 machinery protection system. It serves as a central hub for mounting multiple monitoring modules, supporting critical functions such as vibration monitoring, shaft position detection, and machinery condition assessment.
This rack is optimized for installations requiring a compact system without compromising monitoring performance. Its integrated backplane ensures reliable power distribution and communication among all installed modules, forming the core of a complete machinery protection solution.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3500/05-02-04-00-00-00 |
| Product Type | 3500/05 System Rack |
| System Series | Bently Nevada 3500 Monitoring System |
| Module Capacity | 7 monitoring module slots |
| Rack Function | Housing and interconnection of monitoring modules |
| Mounting Type | Rack-mounted installation |
| System Compatibility | Compatible with Bently Nevada 3500 series modules |
| Application Environment | Industrial machinery monitoring and protection systems |
Product Overview
The 3500/05-02-04-00-00-00 system rack provides a compact and robust foundation for Bently Nevada 3500 monitoring modules. Its internal backplane distributes power and ensures seamless communication between modules, guaranteeing reliable and coordinated operation.
Modules installed in this rack perform essential functions such as vibration monitoring, Keyphasor signal generation, and relay outputs for alarms or shutdowns. The modular design allows easy expansion or reconfiguration as operational requirements change, while the industrial-grade construction ensures consistent performance in demanding environments.
Applications
Small Turbine Monitoring
Provides a platform for modules monitoring vibration, shaft displacement, and rotational speed in smaller turbine installations.
Compressor and Pump Monitoring
Supports modules that detect mechanical issues and abnormal vibration in industrial compressors and pumps.
Power Generation Equipment
Used in generator monitoring systems to maintain reliable operation of rotating machinery.
Oil and Gas Facilities
Forms a compact machinery protection hub for critical rotating equipment in space-constrained areas.
Predictive Maintenance
Acts as the central system for early detection of mechanical faults in smaller industrial installations.
Advantages
Compact and Modular Design
Supports multiple modules for customized monitoring system configurations.
Space-Efficient Rack
Optimized for installations where full-sized racks are impractical.
Integrated Backplane
Provides reliable power distribution and signal communication between all modules.
Scalable Monitoring Infrastructure
Additional modules can be added as operational needs evolve.
Industrial-Grade Durability
Engineered for continuous and dependable operation in demanding industrial environments.
Compatible Modules
The 3500/05-02-04-00-00-00 rack works with modules from the Bently Nevada 3500 system.
| Module | Module Type | Function |
|---|---|---|
| 3500/15 | Power Supply Module | Provides electrical power for all modules |
| 3500/22M | Data Interface Module | Enables communication with monitoring software |
| 3500/25 | Keyphasor Module | Supplies rotational reference signals |
| 3500/42M | Proximitor / Seismic Monitor | Monitors vibration and shaft displacement |
| 3500/32M | Relay Output Module | Provides alarm and shutdown outputs |
Together, these modules provide a fully functional machinery protection and condition monitoring system.
Recommended Alternative Models
| Model | Product Type | Application | Key Feature |
|---|---|---|---|
| Bently Nevada 3500/05-02-01 | Compact System Rack | Small machinery monitoring | 7-slot modular design |
| Bently Nevada 3500/05-02-02 | Compact Rack | Space-constrained installations | Flexible module configuration |
| Bently Nevada 3500/05-02-04 | Compact Rack | Condition monitoring | Modular system design |
| Bently Nevada 3500/05 Monitoring Rack | Rack Platform | Machinery protection | High compatibility with monitoring modules |
| Bently Nevada 3500/05-01-01 | Standard System Rack | Full machinery monitoring | 14-slot rack |
Technical FAQs
What is the main function of this system rack?
It provides a stable platform for installing and interconnecting monitoring modules within the 3500 machinery protection system.
How many modules can this rack support?
This rack supports multiple monitoring modules, allowing flexible configuration for smaller installations.
Is this rack compatible with all 3500 series modules?
Yes, it works with modules designed for 3500/05 compact rack configurations.
Where is this rack typically used?
It is installed in industrial control cabinets in power plants, oil and gas facilities, and other industrial environments where space efficiency is required.
