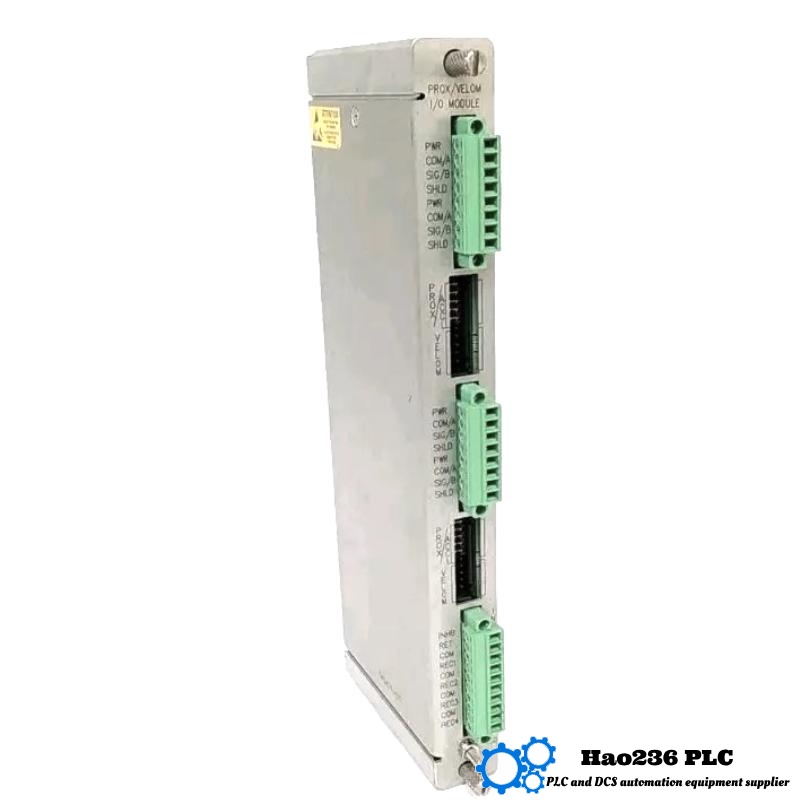

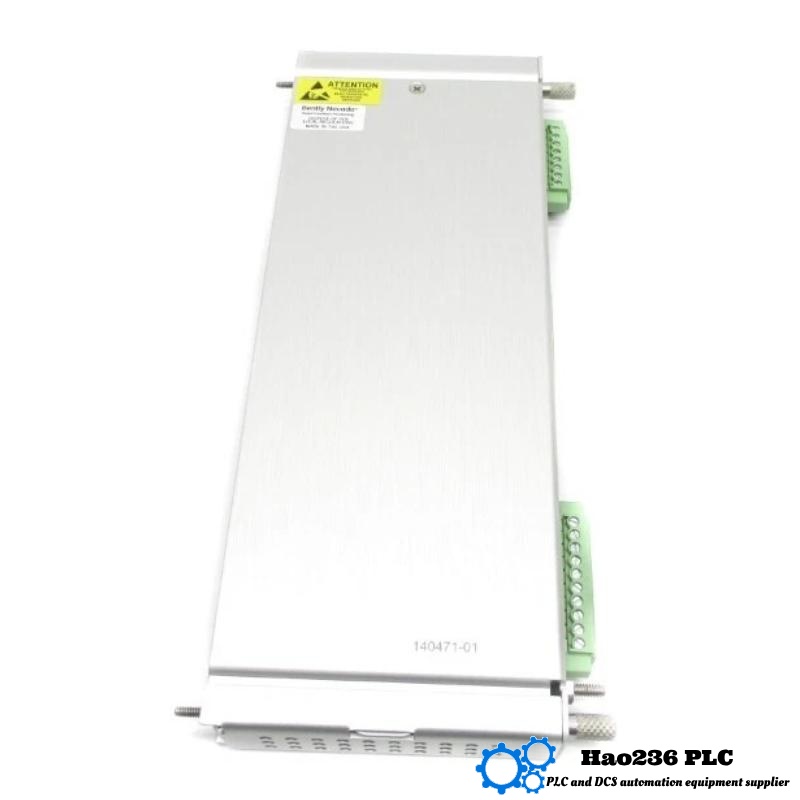

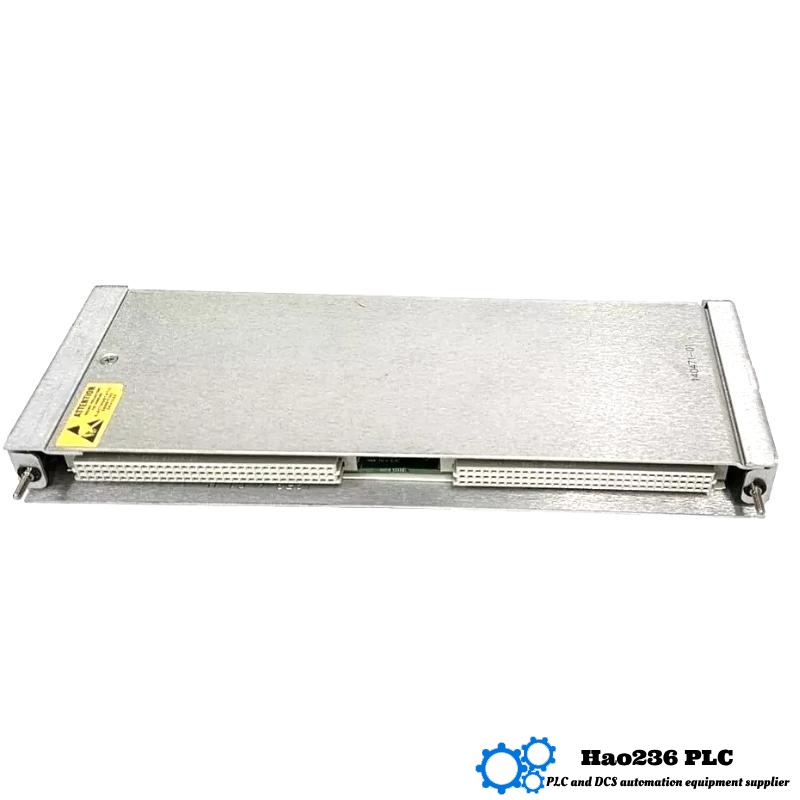

Bently Nevada 3500/72M 140471-01
Product Introduction
The Bently Nevada 3500/72M 140471-01 is a specialized Input/Output (I/O) module designed for vibration and machinery monitoring within the 3500 Series system. It provides precise signal conditioning and acquisition for proximity probes and seismic sensors, enabling reliable and continuous machine condition monitoring. The module plays a critical role in protecting rotating equipment by delivering accurate displacement, velocity, and vibration data to the monitoring system, facilitating early fault detection and predictive maintenance.
Product Applications
-
Turbine Shaft Monitoring: Measures shaft displacement and vibration to prevent catastrophic failures.
-
Compressor Health Monitoring: Detects axial and radial movement to ensure operational safety.
-
Pump Equipment: Monitors misalignment and imbalance issues to reduce wear and extend equipment life.
-
Gearbox Condition Assessment: Tracks vibrations indicating gear wear or damage.
-
General Rotating Machinery Protection: Suitable for various heavy machinery requiring reliable vibration data acquisition.
Product Advantages
-
Multi-Channel Capability: Supports multiple input channels for comprehensive sensor data collection.
-
Robust Signal Conditioning: Offers superior signal clarity in harsh industrial environments.
-
Seamless Integration: Compatible with 3500 Series racks for easy expansion and system upgrades.
-
High Reliability: Designed for continuous operation with redundant power input options.
-
Wide Operating Range: Operates efficiently under extreme temperature and environmental conditions.
-
Advanced Diagnostics: Enables detailed machine diagnostics and early fault detection, reducing unplanned downtime.
Brand and Series
-
Brand: Bently Nevada
-
Series: 3500 Series
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 3500/72M 140471-01 |
| Input Channels | 4 Proximity or Seismic Inputs |
| Input Signal Range | ±10 VDC |
| Power Consumption | Approximately 10 Watts |
| Communication Interface | Modbus RTU / TCP, 4-20 mA |
| Operating Voltage | 24 VDC (Redundant Supported) |
| Operating Temperature | -40°C to +85°C |
| Dimensions (L×W×H) | 160 mm × 110 mm × 250 mm |
| Weight | 1.3 kg |
| Ingress Protection | IP66 |
| Standards Compliance | API 670, IEC 61000-6-2, IEC 61000-6-3 |
Recommended Related Models
| Model | Description | Input Channels | Dimensions (L×W×H) | Weight (kg) |
|---|---|---|---|---|
| 3500/70 140471-01 | Velocity and Proximity Monitor Module | 4 | 160 mm × 110 mm × 250 mm | 1.3 |
| 3500/42M 140471-01 | Proximity/Seismic I/O Module | 8 | 160 mm × 110 mm × 250 mm | 1.5 |
| 3500/60 140471-01 | Temperature Monitoring Module | 16 | 160 mm × 110 mm × 250 mm | 1.6 |
| 3500/92 140471-01 | Communication Gateway Module | N/A | 160 mm × 110 mm × 250 mm | 1.2 |
| 3500/55 140471-01 | Speed Monitoring Module | 4 | 160 mm × 110 mm × 250 mm | 1.3 |
Recommended Popular Models from the Same Brand
| Model | Description | Input Channels | Dimensions (L×W×H) | Weight (kg) |
|---|---|---|---|---|
| 3500/22 140471-01 | Vibration Monitoring Module | 8 | 160 mm × 110 mm × 250 mm | 1.2 |
| 3500/55 140471-01 | Speed Monitoring Module | 4 | 160 mm × 110 mm × 250 mm | 1.3 |
| 3500/60 140471-01 | Temperature Monitoring Module | 16 | 160 mm × 110 mm × 250 mm | 1.6 |
| 3500/72 140471-01 | I/O Module with External Terminations | 4 | 160 mm × 110 mm × 250 mm | 1.4 |
| 3500/92 140471-01 | Communication Gateway Module | N/A | 160 mm × 110 mm × 250 mm | 1.2 |
FAQ (Frequently Asked Questions)
Q1: What kind of sensors does the 3500/72M module support?
A1: It supports both proximity probes and seismic sensors for vibration and displacement measurements.
Q2: How many channels does this module have?
A2: The module supports four input channels.
Q3: Can the module operate under harsh environmental conditions?
A3: Yes, it has an operating temperature range of -40°C to +85°C and an IP66 rating for dust and water protection.
Q4: What is the power consumption of the 3500/72M module?
A4: It consumes approximately 10 watts during operation.
Q5: Is the module compatible with redundant power supplies?
A5: Yes, it supports 24 VDC redundant power supply for increased reliability.
Q6: What communication protocols does the module support?
A6: It supports Modbus RTU and TCP communication protocols.
Q7: How does this module contribute to machinery protection?
A7: By providing real-time data on vibration and displacement, it enables early detection of faults, preventing equipment damage.
Q8: What are the physical dimensions of this module?
A8: The module measures 160 mm in length, 110 mm in width, and 250 mm in height.
Q9: How much does the 3500/72M module weigh?
A9: The module weighs approximately 1.3 kilograms.
Q10: What industry standards does the module comply with?
A10: It complies with API 670 for machinery protection systems and IEC 61000-6 for electromagnetic compatibility.
