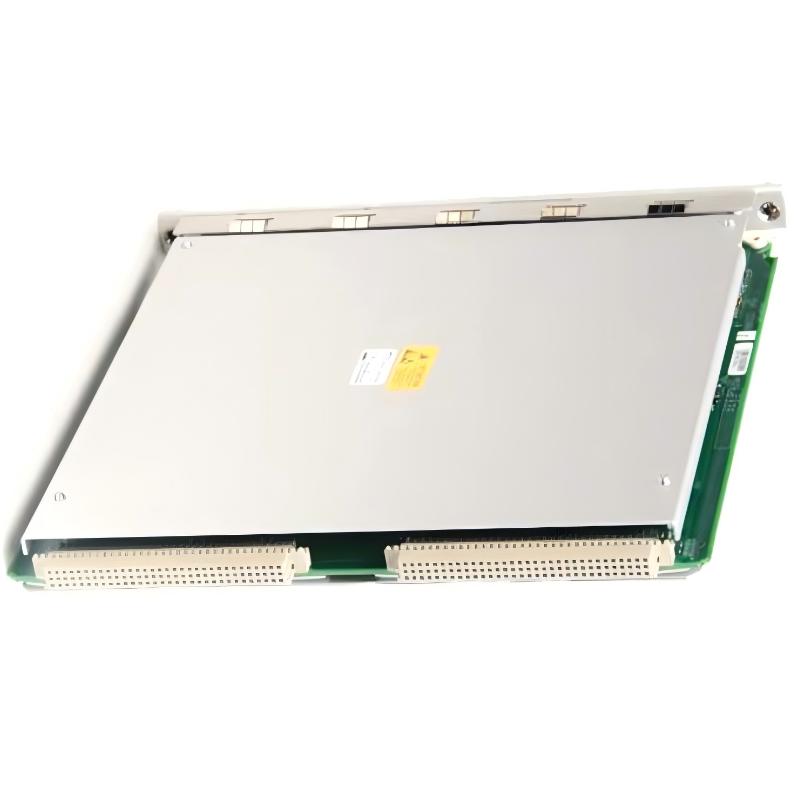

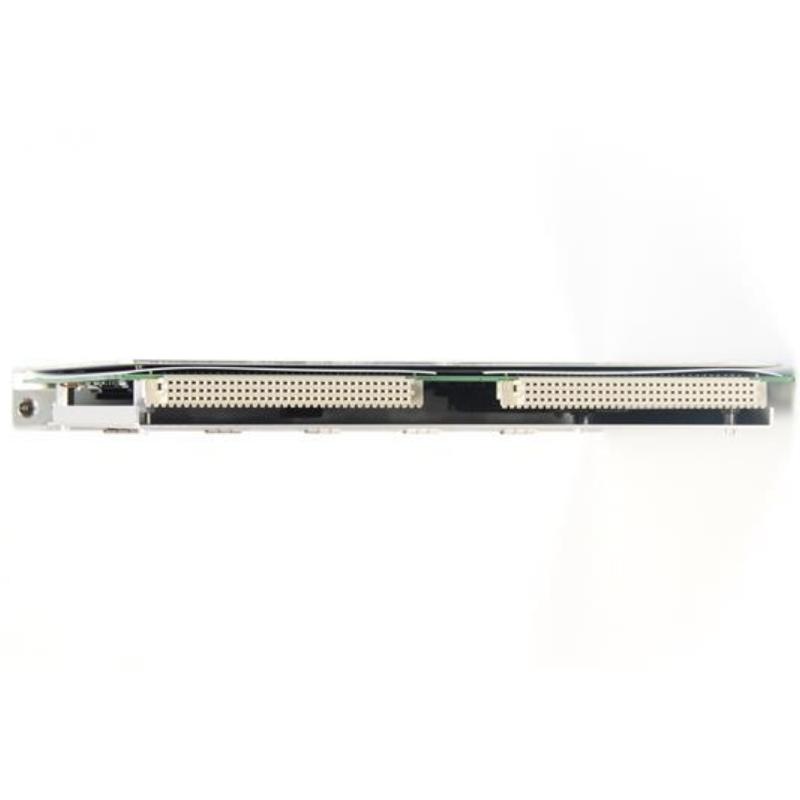

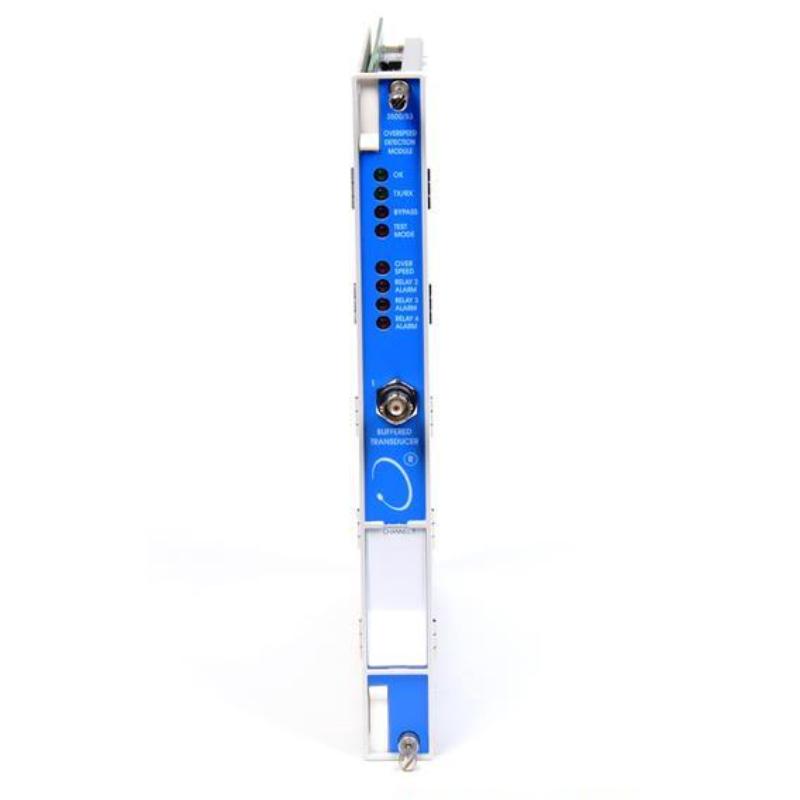

Bently Nevada 3500/53-02-00 133388-01 Electronic Overspeed Detection Module

1. Product Overview

The 3500/53-02-00 133388-01 is an electronic overspeed detection module in the 3500 Series machinery protection system. It is designed to monitor rotational speed using signals from compatible proximity transducers or magnetic pickups and to provide overspeed detection for critical rotating machinery.

The module is intended for applications where excessive rotational speed must be detected quickly and reliably. It receives a speed-related input signal, evaluates the signal against configured protection settings, and communicates status or protection information through the monitoring system.

Typical applications include steam turbines, gas turbines, compressors, and other high-speed rotating machines. In these installations, overspeed protection is an important layer of machinery protection because a significant overspeed event can place severe mechanical stress on rotating components.

The 3500/53 is designed to operate within a compatible 3500 rack. Multiple modules can be configured for redundant voting arrangements, subject to the system design and applicable configuration requirements. Redundancy can improve the availability of the protection function when properly engineered, installed, and tested.

The model designation includes the 3500/53-02-00 system configuration and the 133388-01 part number. The module should be selected and commissioned according to the complete ordering code, rack configuration, sensor compatibility, and protection requirements of the installation.

2. Brand and Product Classification

The module’s dimensions and weight should be treated separately from those of the shipping package. For panel-layout design, rack-slot planning, or freight calculations, use the appropriate mechanical drawing and the actual shipment specification.

3. Detailed Technical Specifications

The table below summarizes the main electrical, environmental, and mechanical specifications associated with the 3500/53 overspeed detection module. Exact limits should be checked against the applicable hardware revision and installation manual.

These specifications describe the general module configuration. Input compatibility, relay logic, output behavior, and response characteristics must be confirmed against the actual hardware revision and configured protection scheme.

Apter Power

+2

4. Model Number Explanation

The complete product identifier contains both a system configuration code and a hardware part number.

The system configuration and hardware part number should be checked together when ordering a replacement. A module that shares the same general family name may have a different channel configuration, approval option, or hardware revision.

When replacing an existing module, compare the rack requirements, connector arrangement, firmware compatibility, and approved configuration rather than relying on the front-panel model number alone.

5. Product Introduction

The 3500/53-02-00 is designed to support overspeed protection in industrial machinery. Overspeed occurs when a rotating machine exceeds its permitted operating speed. Depending on the machine, this can create excessive centrifugal forces, damage rotating components, and place the equipment and surrounding process at risk.

The module receives a speed-related signal from a compatible sensor. The signal may originate from a proximity transducer or a magnetic pickup, depending on the installation. The module processes the incoming signal and evaluates the measured speed against the configured protection settings.

When the measured condition meets the configured trip criteria, the module can provide the appropriate protection output through the system’s configured logic and interfaces. The actual trip action depends on the complete protection architecture, including relay configuration, external logic, and the shutdown circuit.

The 3500/53 is not a standalone speed sensor. It works as part of a larger protection arrangement that includes suitable sensing hardware, rack power, configuration software or approved setup procedures, and the required trip interface.

For applications requiring additional availability, multiple modules may be combined in supported voting arrangements. Depending on the design, these may include two-out-of-two or two-out-of-three voting. Redundancy must be engineered carefully: it requires compatible hardware, correct configuration, independent and suitable signal paths where required, and documented proof testing.

The module’s primary role is to support a dedicated overspeed protection function. It should not be confused with a general-purpose vibration monitor, a standalone tachometer, or a controller that independently manages every aspect of machine operation.

6. Main Product Applications

6.1 Steam turbine overspeed protection

Steam turbines can operate at high rotational speeds and may be connected to generators or industrial drives. Overspeed protection helps detect when turbine speed exceeds its configured operating limit.

The 3500/53 can process compatible speed-sensor signals and provide protection outputs within an appropriately designed turbine protection system. Its suitability depends on the turbine’s speed range, sensor arrangement, trip logic, and required safety architecture.

6.2 Gas turbine protection

Gas turbines are used in power generation, mechanical drive applications, and industrial processes. Overspeed monitoring is an important part of the overall protection strategy because excessive rotational speed can impose substantial stress on the rotor and connected equipment.

The module may be used where the sensor and rack configuration are compatible with the installation. Engineering teams should verify the required response characteristics, trip thresholds, voting arrangement, and proof-test procedures before commissioning.

6.3 Centrifugal compressor systems

High-speed centrifugal compressors are used in petrochemical plants, refineries, gas processing facilities, and other continuous-process industries.

A dedicated overspeed protection function helps detect a potentially dangerous speed excursion. The module can form part of the protection system that monitors the compressor’s speed signal and provides the appropriate output when configured limits are exceeded.

6.4 Turboexpanders

Turboexpanders operate at high speeds and may be used in gas processing, refrigeration, and energy-recovery applications.

Overspeed monitoring is particularly relevant where operating conditions can change rapidly. The protection system must be configured for the actual machine, including its speed range, sensor arrangement, and shutdown requirements.

6.5 Generator and turbine drive trains

In suitable generator-drive applications, speed monitoring supports the protection of the prime mover and rotating assembly. The exact protection requirements depend on the machine type, operating mode, and electrical or mechanical system design.

The 3500/53 can provide a speed-related protection function within a compatible rack-based system. It does not replace the generator’s electrical protection or other required turbine and drivetrain protection functions.

6.6 Industrial high-speed rotating machinery

Other applications may include specialized rotating machinery where a dedicated overspeed trip is required.

The module should be considered only when its input characteristics, configured speed range, response behavior, and system interfaces meet the machine’s requirements. General-purpose vibration monitoring alone is not a substitute for a properly designed overspeed protection function.

7. Main Product Advantages

7.1 Dedicated overspeed detection

The module is designed specifically for overspeed detection rather than being limited to general condition monitoring. This helps separate a critical speed-protection function from other machinery measurements.

7.2 Compatible with different sensor types

The documented module configuration supports suitable proximity transducer signals and magnetic pickup inputs. This allows the protection system to be designed around the appropriate sensing arrangement for the machine.

Sensor selection must still be based on the input signal requirements, installation conditions, and the complete system specification.

7.3 Redundancy options for critical applications

Supported voting arrangements allow multiple modules to participate in the overspeed decision. In a properly engineered system, this can improve protection availability and help reduce the impact of an individual module fault.

Redundancy does not automatically guarantee safety. The entire architecture—including sensors, power supplies, wiring, logic, and trip devices—must be designed, tested, and maintained as a system.

7.4 Rack-based modular installation

The 3500 architecture uses a modular rack arrangement. This allows compatible monitoring and protection modules to be installed within a common system framework.

The rack-based design can simplify equipment organization and maintenance, provided that slot allocation, power requirements, and module compatibility are observed.

7.5 Configurable alarm and trip functions

The module supports configured speed-related protection settings and associated outputs. These functions allow the protection scheme to be adapted to the operating requirements of the machine.

The settings must be established by qualified personnel using the applicable engineering documentation. Incorrect thresholds or output logic can undermine the intended protection function.

7.6 Status indication for maintenance

Front-panel indicators help personnel identify basic operating states, communication conditions, bypass or test status, and alarm conditions where supported by the installed configuration.

These indicators are useful during commissioning and maintenance, but they do not replace diagnostic checks, system-event review, or formal proof testing.

7.7 Integration with a broader machinery protection system

The module can operate as part of a wider rack-based protection system. This allows the overspeed function to coexist with other compatible monitoring and protection functions in the same installation.

The complete design must ensure that the overspeed trip path remains suitable for its intended role and is not dependent on an unrelated monitoring or control function unless the approved architecture explicitly requires it.

8. Installation and Commissioning Considerations

Before installing or replacing the 3500/53-02-00 133388-01, review the following items.

– Confirm the exact part number. Check the module model, hardware part number, revision, and configuration against the equipment register.

– Check rack compatibility. Verify that the rack, power supplies, slot allocation, and other installed modules support the intended configuration.

– Verify sensor compatibility. Confirm that the connected proximity transducer or magnetic pickup produces a signal suitable for the module.

– Validate the speed range. Ensure that the sensor arrangement and configured thresholds cover the machine’s actual operating and overspeed requirements.

– Review trip logic. Confirm how the module output interacts with the relay circuit, external logic, and final shutdown device.

– Check redundant arrangements. For voting systems, confirm the number of modules, designated slots, signal paths, configuration settings, and fault-response behavior.

– Verify power requirements. Check rack power capacity and the applicable system requirements before adding or replacing a module.

– Perform functional testing. Follow the approved commissioning and proof-test procedure to confirm sensor input, alarm behavior, trip output, and reset behavior.

– Document the configuration. Record the installed part number, module revision, configured thresholds, test results, and any approved deviations.

Overspeed protection is a critical function. Installation, configuration changes, and proof testing should be carried out by qualified personnel under the site’s machinery-protection procedures.

9. Five Related Models in the Same Series

The following models are related to the 3500 rack-based machinery monitoring and protection system. They serve different functions and are not interchangeable with the 3500/53 overspeed module.

Dimensions and weights below are approximate where stated. Exact values depend on the hardware revision, I/O module, connector arrangement, and packaging.

These modules cover different functions within the wider system: rack power, data communication, phase reference, and vibration or displacement monitoring. A complete installation may use several of them alongside the overspeed module, depending on the machine’s protection requirements.

10. Five Other Popular Models from the Same Brand

The following models cover common industrial monitoring and protection functions. The list is intended as a product-selection reference, not a ranking of performance or a statement that every model is compatible with the 3500/53.

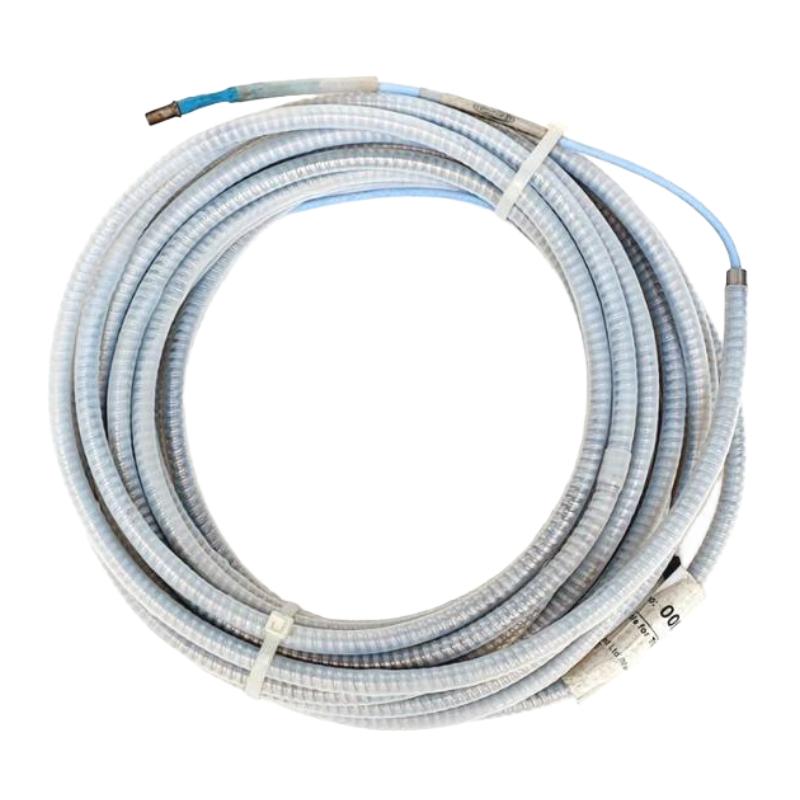

The 3300 XL probe and extension-cable families are sensing-system components, while the 3500/42M is a rack-based monitoring module. Their roles differ from the 3500/53’s dedicated overspeed function, so selection should be based on the measurement or protection task required.

11. Product Comparison and Selection Guide

12. Maintenance and Lifecycle Management

Regular maintenance helps ensure that the overspeed protection function remains available when required.

During planned maintenance, inspect the module’s front panel and rack connections for visible damage, loose seating, contamination, or abnormal status indications. Review system events and fault indications in accordance with the site’s procedures.

Functional proof testing is especially important for overspeed protection. Testing should verify that the intended input signal is detected correctly, configured thresholds are applied, and the resulting output reaches the appropriate protection circuit. Test procedures must be designed to avoid unintended trips or unsafe machine operation.

When replacing a module, preserve the configuration records and verify that the replacement has the correct hardware part number and compatible revision. After replacement, confirm the settings and perform the required functional checks before returning the protection function to service.

If the system reports unexpected speed values, intermittent signals, or inconsistent trip behavior, investigate the complete measurement and protection path. Possible causes include the sensor, wiring, module configuration, rack power, output circuit, or external trip logic. Replacing the module without checking these related components may not resolve the underlying issue.

Lifecycle planning should also account for spare availability, revision compatibility, test equipment, documentation, and the site’s required proof-test interval.

13. Product Summary

The Bently Nevada 3500/53-02-00 133388-01 is an electronic overspeed detection module designed for use in a compatible 3500 Series machinery protection system.

Its main role is to receive a speed-related signal from a compatible proximity transducer or magnetic pickup, evaluate the signal against configured protection settings, and provide the appropriate outputs for the installed protection architecture.

Key selection points include the two-channel configuration associated with the -02 option, the -00 approval option, sensor compatibility, rack requirements, relay and recorder outputs, and the complete overspeed protection design.

The module is most relevant to applications where rotational-speed monitoring and overspeed protection are essential, such as turbines, high-speed compressors, turboexpanders, and other critical rotating machinery.

For purchasing and engineering purposes, confirm the exact part number, hardware revision, mechanical drawing, net weight, and package dimensions against the supplied unit. This is especially important when the module will be used in a critical protection function.
