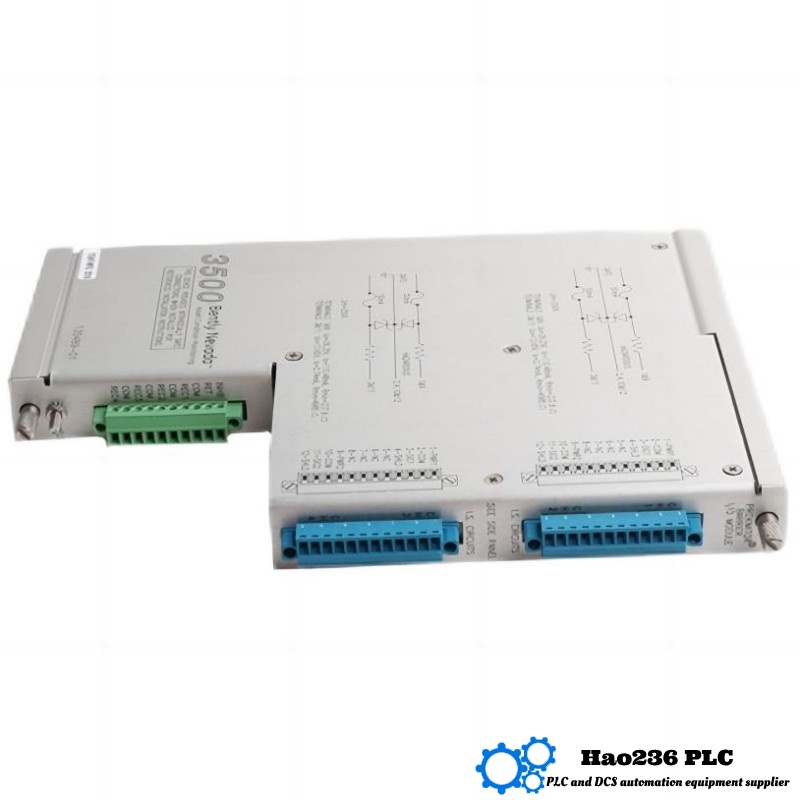

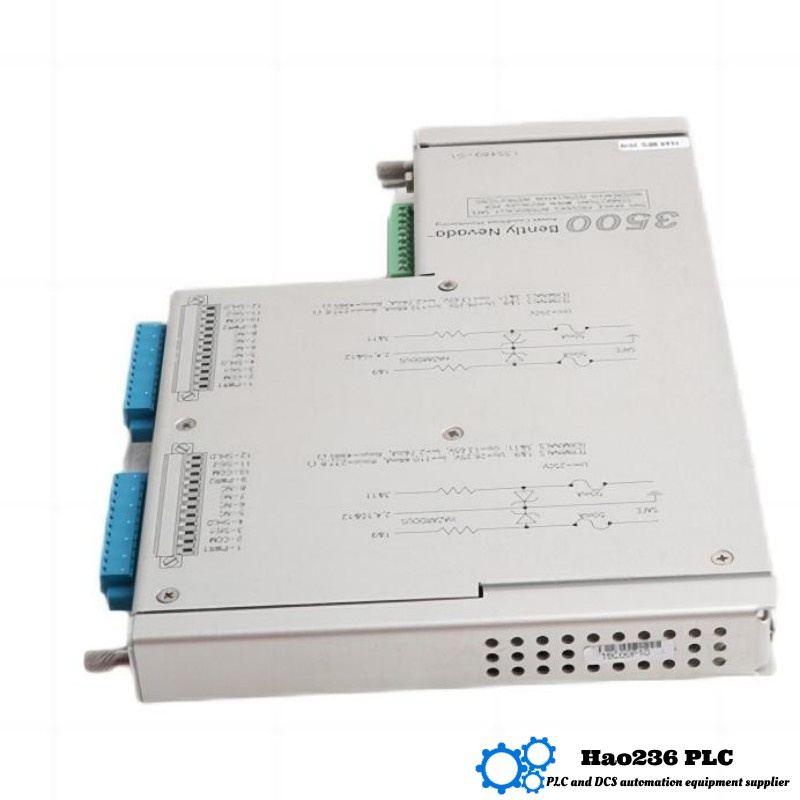

Bently Nevada 3500/42M (135489‑02)
Product Introduction
The 3500/42M (135489‑02) is a four-channel Proximitor/Seismic I/O module in the 3500 Machinery Protection System. Built with internal safety barriers and engineered for inherently safer installations, it captures real-time vibration, displacement, velocity, and acceleration data from rotating machinery. Featuring powerful diagnostics and alarm capabilities, it supports robust condition monitoring in demanding plant environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/42M (135489‑02) |
| Brand | Bently Nevada (Baker Hughes) |
| Series | 3500 Machinery Protection System |
| Channel Configuration | Four input channels (configurable for velocity or position sensors) |
| Intrinsic Safety | Internal safety barriers for hazardous area installation |
| Sensor Types Supported | Proximity probes or accelerometers |
| Measurement Types | Vibration, shaft position, acceleration, velocity |
| Alarm Levels | Dual (Alert / Danger) per channel |
| Signal Outputs | 4–20 mA analog outputs for trending systems |
| Power Consumption | Approximately 7.7 W |
| Supply Voltage | –24 V DC via rack power buses |
| Frequency Range | Up to 30 kHz |
| Accuracy | ±0.33% FS (typical) |
| Operating Temperature | 0 °C to +65 °C |
| Mounting Format | Full-width rack module in 3500 rack |
| Dimensions | Approx. 241.3 mm × 24.4 mm × 163.1 mm |
| Weight | Approx. 0.91 kg |
| Certifications | cNRTLus Div.2, ATEX/IECEx Zone 2, RoHS, EMC, Low Voltage, SIL2 compliant |
Applications
-
Condition monitoring (vibration, position, acceleration) of rotating machinery
-
Installation in hazardous zones requiring intrinsic safety
-
Turbine, pump, compressor protection systems
-
Real-time machinery health tracking and diagnostics
-
Integration with System 1® for trend analysis and alarm management
Key Advantages
-
Safety First: Built-in intrinsic safety allows operation in explosive environments
-
Versatile Monitoring: Captures multiple dynamic signals with a single, compact module
-
Rack Efficiency: Fits four channels into one rack slot, optimizing system footprint
-
Reliable Diagnostics: Dual alarms and 4–20 mA outputs support preventive maintenance strategies
-
Durable Performance: Field-tested for industrial reliability and long-term durability
Related Models (Same Series)
| Model | Description |
|---|---|
| 3500/42M (135489‑02) | Four-channel IO module with safety barriers (current) |
| 3500/42M (128229‑01) | Four-channel IO without barriers |
| 3500/42M (135489‑01) | Internal barrier module with proximity & accelerometer inputs |
| 3500/44M | Aeroderivative gas turbine vibration monitor |
| 3500/46M | Hydro turbine air-gap / vibration monitor |
Popular Bently Nevada Modules
| Model | Description |
|---|---|
| 3500/50M | Speed monitor / tachometer module |
| 3500/60 | Temperature monitoring module |
| 3500/32M | Four-channel alarm logic module |
| 3500/62 | Process variable (4–20 mA) module |
| 3500/25 | TMR-based overspeed protection module |
Frequently Asked Questions (QA)
Q1: What does the 135489‑02 module monitor?
A1: It monitors vibration, shaft position, acceleration, and velocity via proximitor or accelerometer sensors.
Q2: Does it include safety features for hazardous areas?
A2: Yes, it includes internal safety barriers for installation in explosive environments.
Q3: How many alarm thresholds are available per channel?
A3: Two thresholds—Alert and Danger—can be configured per channel.
Q4: What type of signal output is provided?
A4: A 4–20 mA output per channel enables trending and integration with DCS or PLC systems.
Q5: What is its frequency response capability?
A5: The module supports up to 30 kHz frequency, capturing high-frequency vibration data.
Q6: Can it connect to System 1®?
A6: Yes, via rack-mounted communication modules that feed data to System 1® for analysis.
Q7: What power does it require?
A7: It draws around 7.7 W and is powered through the –24 VDC rack bus.
Q8: What are the module’s physical dimensions and weight?
A8: Approximately 241.3 × 24.4 × 163.1 mm, and weighs about 0.91 kg.
Q9: What environmental conditions can it endure?
A9: Designed for industrial use, operating between 0 °C and 65 °C reliably.
Q10: Is it more compact than standalone sensors?
A10: Yes, it consolidates four channels into a single rack slot, saving significant cabinet space.
