- Bently Nevada

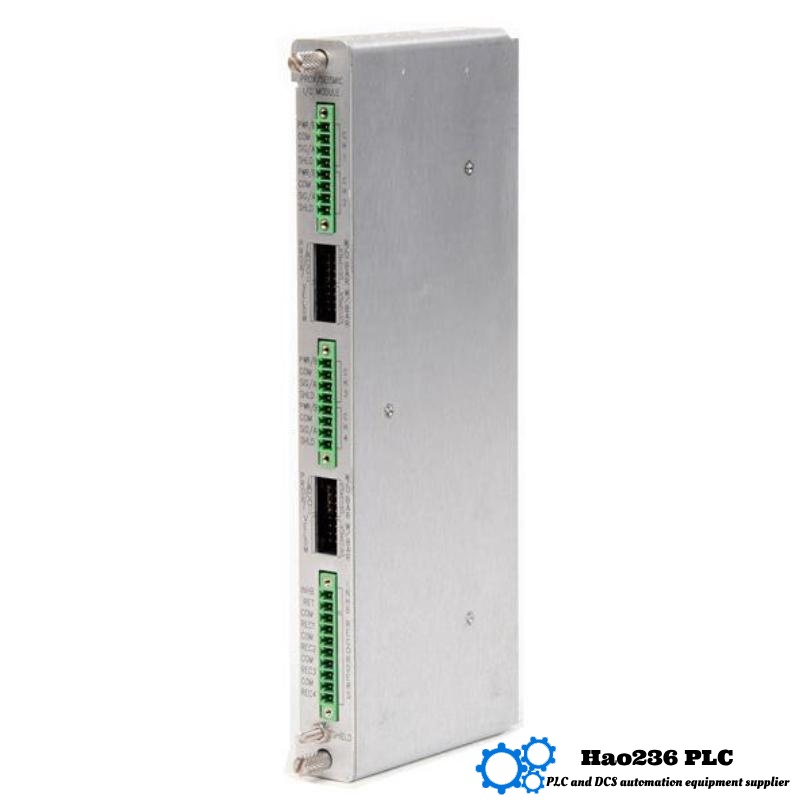

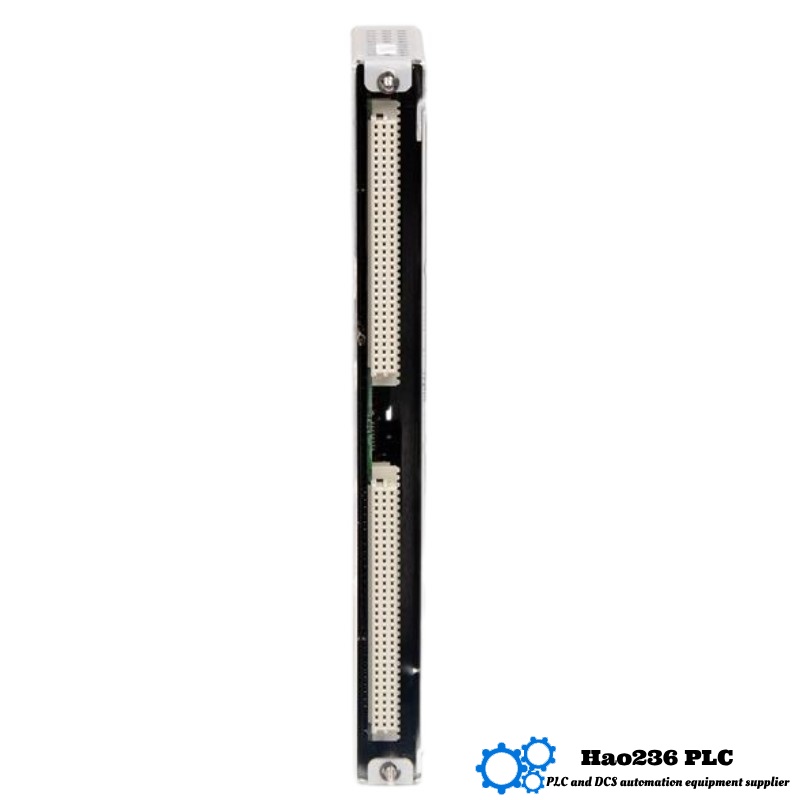

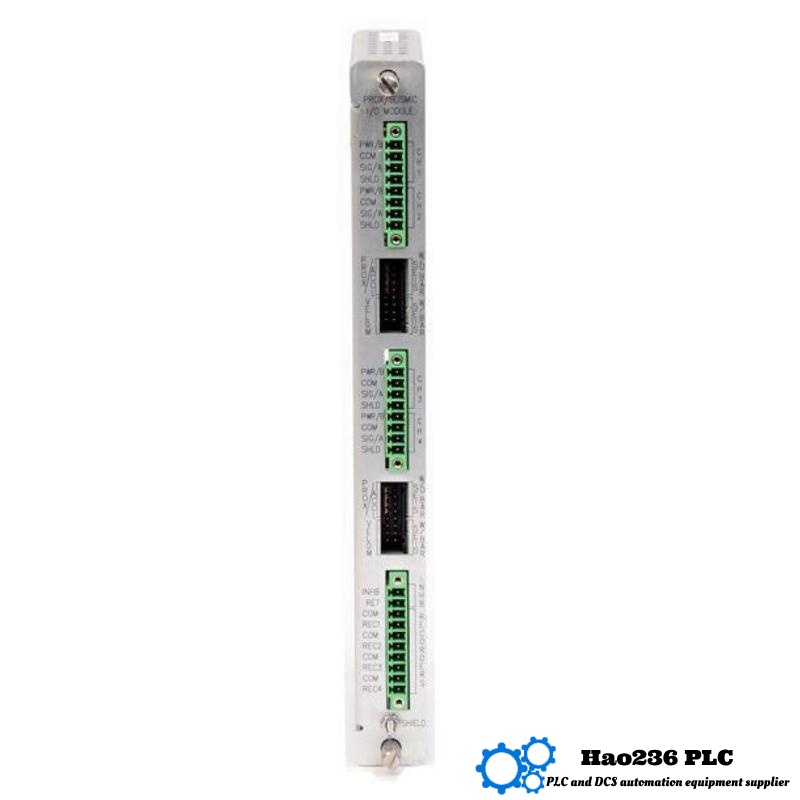

- 3500/42M 128229-01
- Prox/Seismic I/O Module with Internal Terminations
- USA
- 266 × 72 × 229 mm
- 0.2kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 41
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| sales@plc-automations.com | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Bently Nevada 3500/42M (128229‑01)
Product Introduction
The 3500/42M (128229‑01) is a four-channel Proximitor/Seismic Monitor in the 3500 Series, designed to monitor both vibration and shaft position in rotating machinery. Each channel supports a variety of transducers—such as proximity probes, velocity sensors, or accelerometers—and allows comprehensive diagnostics including radial vibration, thrust position, acceleration, and velocity. It’s built for rack-mount integration in machinery protection systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/42M (128229‑01) |
| Brand | Bently Nevada (a division of Baker Hughes) |
| Series | 3500 Machinery Protection System |
| Channels | 4 configurable inputs (vibration or position) |
| Sensor Compatibility | Proximity probes, accelerometers, velocity transducers |
| Measurement Range | – Displacement: ±25 mm – Velocity: 0–50 mm/s – Acceleration: 0–500 m/s² |
| Position Range | 0–25 mm (approx. 0–1 in) |
| Frequency Range | 0.1 Hz to 10 kHz |
| Alarm Levels | Dual levels (Alert, Danger) per channel |
| Communication Interface | Through 3500 backplane with communication via 3500/53 modules |
| Power Requirements | 5 VDC and ±15 VDC via rack power supply |
| Power Consumption | Typical: 9 W; Max: 12 W |
| Operating Temp | 0 °C to +60 °C |
| Dimensions (H×W×D) | 266 × 72 × 229 mm (approx. 10.5″ × 2.8″ × 9.0″) |
| Weight | 0.2 kg (200 g) |
| Certifications | UL, CE, RoHS compliant; IEC 61010‑1 |
Applications
-
Real-time vibration and position monitoring in turbines, compressors, and pumps
-
Machinery fault analysis using correlated data (e.g., shaft orbit trend)
-
High-accuracy protection logic in rotating equipment systems
-
Integrated data for condition monitoring frameworks like System 1®
-
Critical fault detection for maintenance planning
Advantages
-
Dual-Function Measurement: Monitors vibration and position from a single module
-
Synchronized Channels: Correlation of movement and vibration for enhanced diagnostics
-
High Dynamic Range: Captures broad frequency and amplitude spectra
-
Flexible Alarm Configuration: Individual alert/danger thresholds per channel
-
Efficient Rack Integration: Compact form factor for minimal slot usage
-
Rugged Reliability: Designed for industrial environments with stable temperature certification
Related Models (Same or Similar Family)
| Model | Description |
|---|---|
| 3500/42M (128229‑01) | Four-channel vibration/position monitor (this model) |
| 3500/53 (133388‑01) | Communication module for data transmission |
| 3500/60 (163179‑01) | Display module for local visualization |
| 3500/15 (127610‑01) | Power supply module for 3500 rack |
| 3500/32M | Four-channel relay logic module |
Popular Models from Bently Nevada
| Model | Description |
|---|---|
| 3500/50M | Tachometer/speed monitoring module |
| 3500/44M | Aeroderivative gas turbine vibration monitor |
| 3500/46M | Hydro turbine condition monitor |
| 3500/25 | Triple-redundant overspeed module |
| 3500/60 | Temperature monitoring module |
Frequently Asked Questions (QA)
Q1: What functions does this module provide?
A1: Simultaneous vibration and shaft position monitoring across four configurable channels.
Q2: Which sensors can be connected?
A2: Proximity probes, accelerometers, and velocity transducers.
Q3: What are the typical measurement ranges?
A3: Displacement ±25 mm, velocity 0–50 mm/s, acceleration 0–500 m/s², position 0–25 mm.
Q4: How wide is the frequency response?
A4: From 0.1 Hz up to 10 kHz.
Q5: Can alarms be customized per channel?
A5: Yes—each channel has separate alert/danger thresholds.
Q6: What type of output interface is used?
A6: Outputs transmitted via the 3500 backplane to communication modules.
Q7: How much power does it consume?
A7: Typically 9 W, up to 12 W at peak.
Q8: What are its physical dimensions and weight?
A8: 266 × 72 × 229 mm; weighs approximately 0.2 kg.
Q9: What environments can it endure?
A9: Operates reliably between 0 °C and +60 °C in industrial settings.
Q10: Is it compatible with diagnostics software?
A10: Yes—it integrates seamlessly with System 1® through data communication modules.
