Product Overview & Description

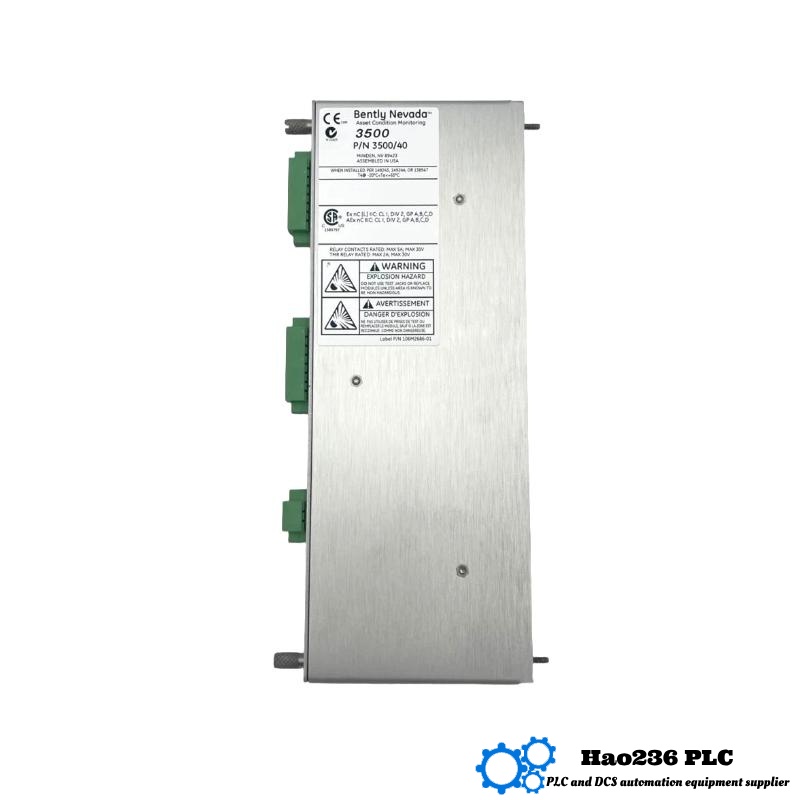

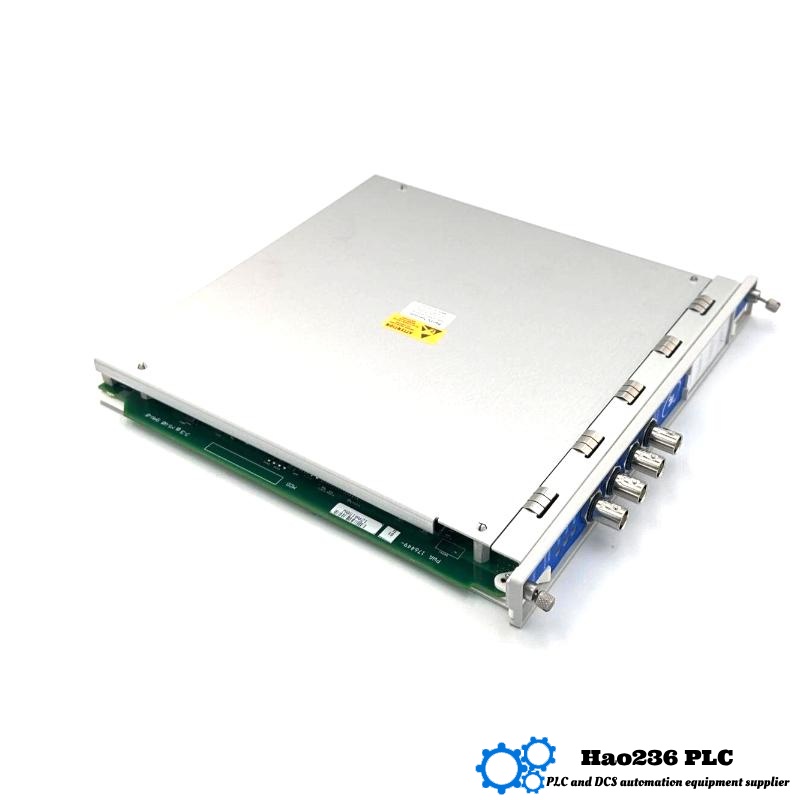

The 3500/40M 176449‑01 + 125680‑01 is a four‑channel Proximitor Monitor designed for online vibration and displacement monitoring of rotating machinery. It belongs to the 3500 Series Machinery Monitoring System and plugs into a 3500 rack. The unit accepts proximity transducer inputs and delivers conditioned signals, enabling measurement of multiple parameters such as radial vibration, axial (thrust) position, differential expansion, eccentricity, and advanced diagnostics like REBAM (Rolling Element Bearing Analysis Measurement). Embedded alarm logic and hot‑swappable design allow continuous operation and efficient maintenance.

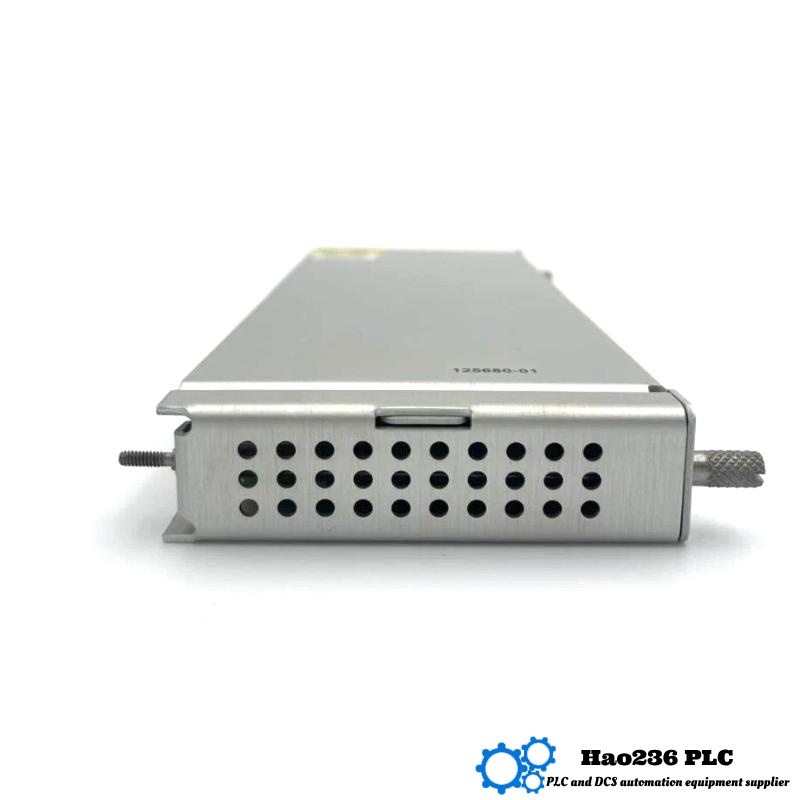

The module comes pre‑terminated with the 125680‑01 I/O module, which supplies seamless internal termination and interface connectivity.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 3500/40M 176449‑01 + 125680‑01 |
| Brand | Bently Nevada (3500 Series) |
| Type | 4‑channel Proximitor Monitor + Internal I/O Module |
| Dimensions (mm) | 241.3 × 24.4 × 241.8 (≈ 241 × 24 × 242) |
| Weight (kg) | 0.91 |
| Input Channels | 4 differential channels, 10 kΩ impedance |
| Sensor Compatibility | Proximity transducers (e.g., 3300 XL series) |
| Measurement Modes | Radial vibration, thrust position, eccentricity, differential expansion, REBAM |
| Sensitivity Examples | Radial/Eccentricity: ~3.94 mV/µm (100 mV/mil) or ~7.87 mV/µm (200 mV/mil); Diff. Expansion: ~0.394 mV/µm or ~0.787 mV/µm |
| Accuracy | ± 0.33 % of full scale (typical); up to ± 1 % max |
| Frequency Response Range | ~0.1 Hz to ~10–15 kHz |
| Power Consumption | ~7.5 W (typical) |
| Power Supply | 24 V DC |
| Outputs | Buffered transducer outputs; recorder 4‑20 mA; alarm relay outputs; optional Modbus/serial |

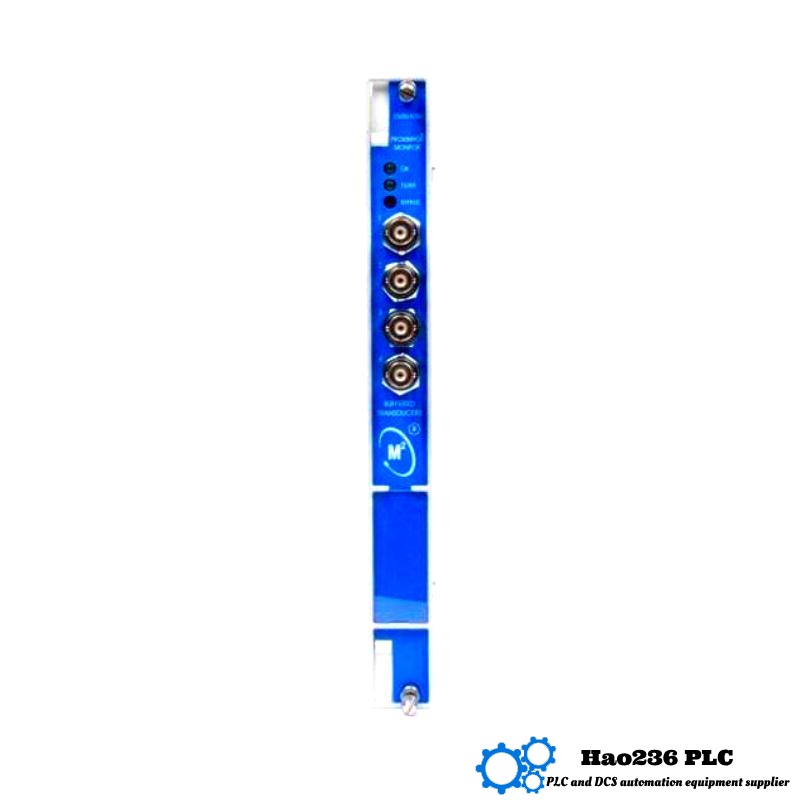

| LED Indicators | Channel fault (red), status (green), TX/RX |
| Operating Temperature | –30 °C to +65 °C (some sources say –40 °C to +85 °C) |
| Certifications | API 670, CE, RoHS, ATEX, IECEx, CSA (depending on variant) |
| Mounting | Rack‑mounted in 3500 Series enclosure, hot‑swappable |
Applications
-
Rotating machinery protection: Monitors equipment such as turbines, compressors, pumps for radial vibration, misalignment, axial displacement, and expansion.
-
Predictive maintenance: With REBAM and multivariate data, it supports early bearing fault detection.
-
Industrial and hazardous environments: Compliant with API 670 and approved for various zones and atmospheres.
-
System integration: Full compatibility with System 1 software, 3500 racks, communication gateways (Modbus/SCADA), enabling condition monitoring systems.
Key Advantages
-
Multifunction per module: Handles multiple diagnostic parameters in one device.
-
High precision: ± 0.33 % accuracy ensures reliable readings over time.
-
Hot‑swappable: Allows mid‑operation maintenance without system shutdown.
-
Robust design: Galvanic isolation, EMI resilience, industrial approvals; interfaces embedded via 125680‑01 module.
-
Seamless integration: Works with existing 3500 Series racks and network infrastructure.
Related Models (Same Series)
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| 3500/40M‑01‑00 | Proximitor Monitor with Internal Termination | 241.3 × 24.4 × 241.8 | 0.91 |
| 3500/40M‑02‑00 | Proximitor Monitor with External Termination | same | 0.91 |
| 3500/40M‑03‑00 | Proximitor Monitor with Internal Barriers | same | 0.91 |
| 3500/42M | Proximitor / Seismic Monitor (adds acceleration/seismic monitoring) | same | 0.91 |
| 3500/46M | Hydrodynamic Monitor (for hydro-turbine applications) | same | 0.91 |
Popular Models (Same Brand)
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| 3500/22M | Transient Data Interface Module (waveform capture) | 241.3 × 24.4 × 241.8 | 0.91 |
| 3500/32M | 4‑Channel Relay Module | same | 0.91 |
| 3500/33 | Temperature Monitor | same | 0.91 |
| 3500/60 | Temperature Monitor (alternate variant) | same | 0.91 |
| 3500/50 | Speed (tachometer) Module | same | 0.91 |
FAQ (10 Q&A)
-
Q: What exactly does the 3500/40M module monitor?
A: It monitors radial vibration, thrust position, eccentricity, differential expansion, and REBAM diagnostics—all via four proximity channels. -
Q: Why is the 125680‑01 I/O module included?
A: It provides internal termination and I/O connection to simplify installation and ensure clean signal handling. -
Q: Can it be replaced while the system is running?
A: Yes—its hot‑swappable design ensures continuous operation without shutting down the rack. -
Q: How accurate are its measurements?
A: Typically within ± 0.33 % of full scale, with a maximum error of ± 1 %. -
Q: What environments is it built for?
A: Industrial and hazardous environments—compliant with API 670 and available with ATEX, IECEx, CSA approvals. -
Q: How are alarms handled?
A: Via 3500 Rack Configuration Software, you set alert and danger thresholds and configure relay outputs. -
Q: What sensors can connect to it?
A: Standard proximity transducers like the 3300 XL series are supported. -
Q: What is REBAM?
A: It’s Rolling Element Bearing Analysis Measurement—a diagnostics method for detecting bearing issues. -
Q: Can this module communicate with control systems?
A: Yes—through buffered sensor outputs, 4‑20 mA recorder outputs, and can interface via Modbus or gateways to SCADA/PLCs. -
Q: What is the typical power consumption?
A: Approximately 7–7.7 watts at 24 V DC.
