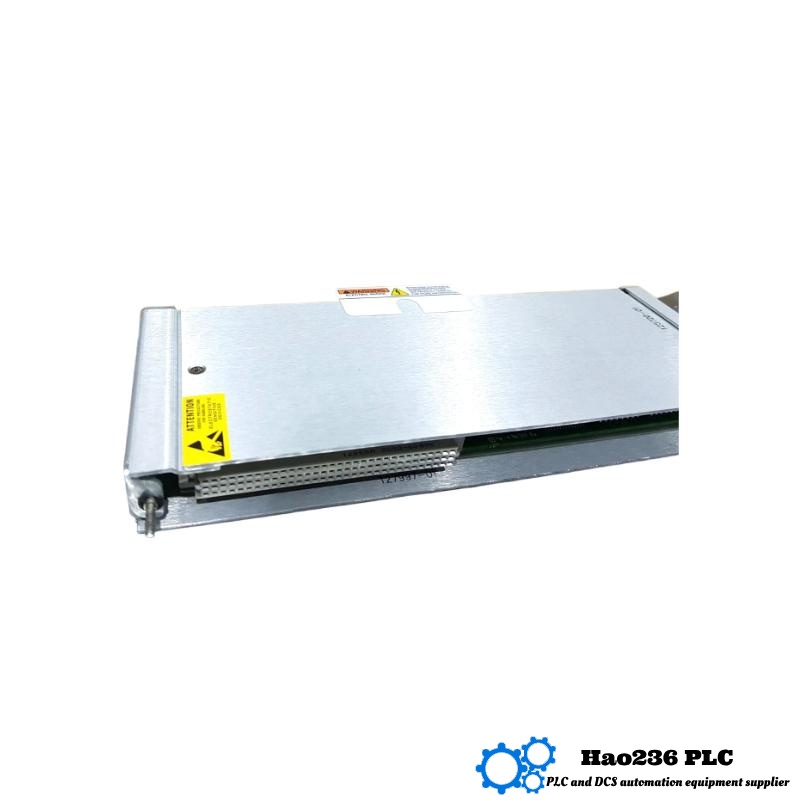

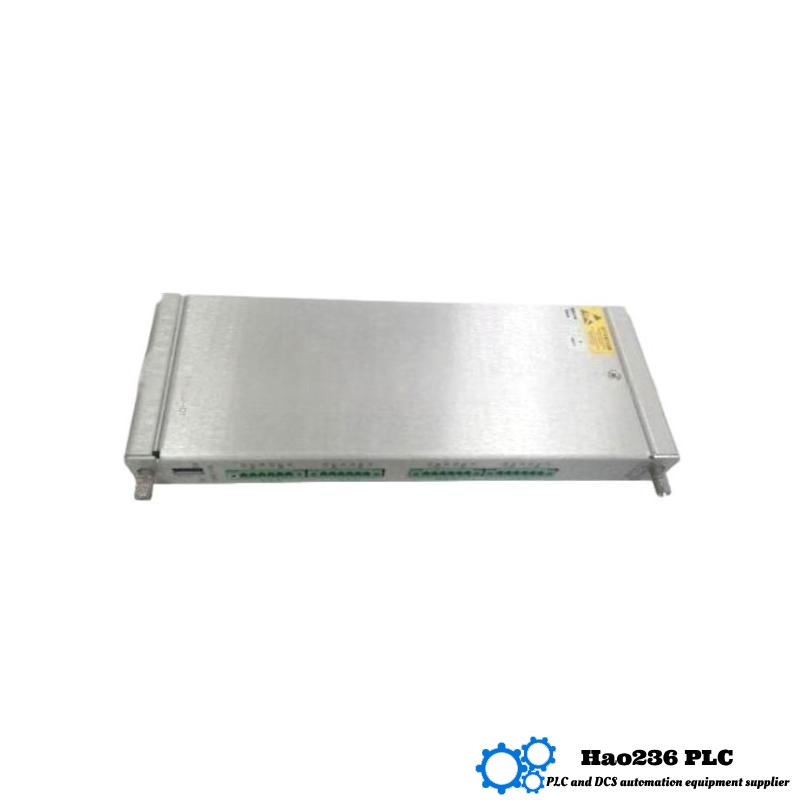

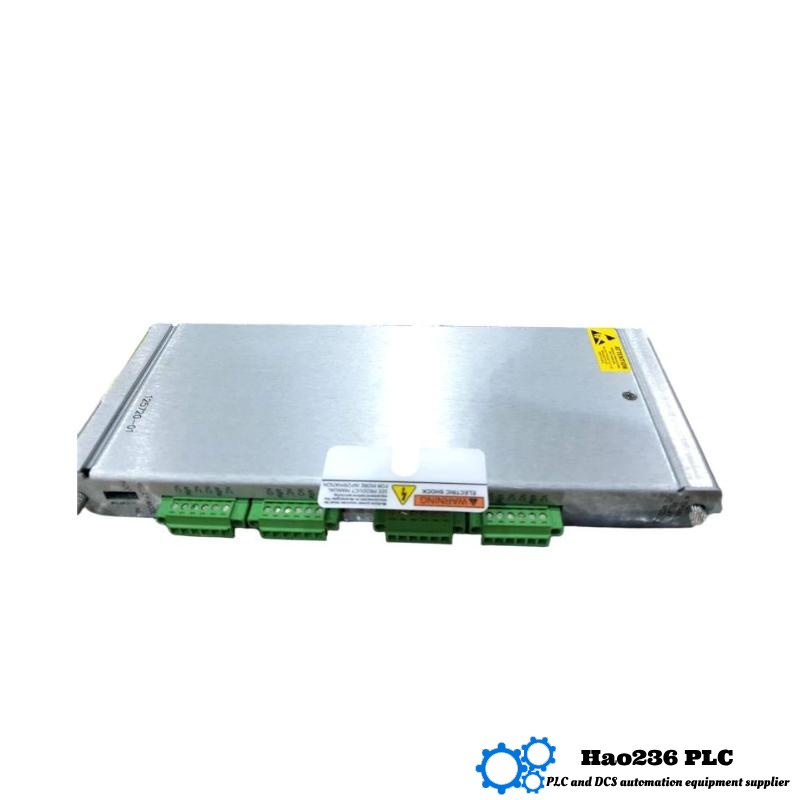

Bently Nevada 3500/32M 125720-01 4-Channel Relay Output Module
Product Introduction
The Bently Nevada 3500/32M 125720-01 4-Channel Relay Output Module is a critical component in the Bently Nevada 3500 Series of machinery protection and condition monitoring systems. This module provides reliable relay outputs, offering 4 independent relay channels to control external devices in response to alarm conditions or operational thresholds in your machinery monitoring systems.
The 3500/32M module is designed to interface seamlessly with other Bently Nevada 3500 Series components, making it an integral part of advanced predictive maintenance programs. It ensures that machinery protection systems can trigger necessary actions, such as shutting down machinery or alerting operators, to prevent potential failures. It’s especially useful in high-risk industrial environments such as oil & gas, power generation, and heavy manufacturing, where downtime can result in significant losses.
Product Parameters
| Specification | Details |
|---|---|
| Model | 3500/32M 125720-01 |
| Dimensions (L x W x H) | 241 x 24.4 x 99.1 mm |
| Weight | 0.4 kg |
| Channels | 4 Relay Output Channels |
| Input Voltage | 24V DC |
| Relay Type | SPDT (Single Pole Double Throw) |
| Maximum Relay Load | 2 A @ 30 VDC or 0.5 A @ 125 VAC |
| Operating Temperature Range | -40°C to +70°C |
| Power Consumption | 5W |
| Mounting Type | Rack-mountable |
| Communication Protocol | Bently Nevada Communication Bus (BNC) |
| Protection Class | IP20 |
Product Applications
The 3500/32M 125720-01 4-Channel Relay Output Module is designed to provide versatile output control in a range of industrial applications:
-
Machinery Protection Systems: It ensures that machinery protection systems can trigger external devices, such as alarms, shutdown systems, or cooling systems, in response to changes in machinery behavior.
-
Predictive Maintenance Systems: The module works with monitoring systems to activate preventive measures when machinery performance falls outside of acceptable parameters, reducing the risk of catastrophic failures.
-
Alarm Systems: It allows for the integration of audible or visual alarms to warn operators of impending machinery issues or failure conditions.
-
Emergency Shutdown Systems: In the event of an emergency, the module can activate shutdown systems to protect machinery and prevent further damage or risk to personnel.
-
Industrial Automation: It is used in automation systems to control devices like motors, valves, and other components based on machine condition or operational thresholds.
Product Advantages
-
Four Independent Relay Outputs: The 3500/32M 125720-01 module provides 4 independent relay outputs, giving users flexibility in managing different alarms, shutdown procedures, or control systems.
-
High Current Capacity: The relay channels support up to 2 A at 30 VDC or 0.5 A at 125 VAC, making them suitable for controlling a wide range of external devices.
-
Flexible Configuration: Each channel is independently configurable to suit specific needs, allowing for detailed control over different aspects of machinery protection.
-
Reliable Performance: Designed for industrial environments, the module offers high reliability in critical machinery protection and monitoring systems.
-
Durable and Robust: With a wide operating temperature range of -40°C to +70°C, the module is designed to operate in harsh industrial settings.
-
Compact Design: The module’s compact size (241 x 24.4 x 99.1 mm) and light weight (0.4 kg) allow for easy integration into existing machinery monitoring systems.
Brand Information
Bently Nevada, is a leading provider of machinery protection and condition monitoring solutions for industries worldwide. With over 50 years of expertise, Bently Nevada is trusted by industrial operators to provide advanced technology that ensures the reliability, safety, and performance of critical machinery across power generation, oil & gas, manufacturing, and other heavy industries.
Product Series
The 3500/32M is part of the Bently Nevada 3500 Series, a family of machinery protection and condition monitoring modules that deliver real-time data for monitoring machinery health. The 3500 Series helps prevent downtime, improve operational efficiency, and reduce maintenance costs by providing accurate, actionable insights into the condition of industrial assets.
Recommendations for Similar or Related Models
Here are five related models from the Bently Nevada 3500 Series or similar families:
| Model | Description | Parameters |
|---|---|---|
| 3500/22M 138607-01 | Transient Data Interface Module | Dimensions: 241.3 x 24.4 x 241.8 mm, Weight: 0.91 kg, 24V DC input |
| 3500/21-01-01-00 | Vibration Data Acquisition Module | Dimensions: 241.3 x 24.4 x 241.8 mm, Weight: 0.91 kg, 24V DC input |
| 3500/33-01-01-00 | Machinery Condition Monitoring Module | Dimensions: 241.3 x 24.4 x 241.8 mm, Weight: 0.91 kg, 24V DC input |
| 3500/40-01-01-00 | Machinery Protection System | Dimensions: 241.3 x 24.4 x 241.8 mm, Weight: 0.91 kg, 24V DC input |
| 3500/23-01-03-00 | Process Monitoring Interface Module | Dimensions: 241.3 x 24.4 x 241.8 mm, Weight: 0.91 kg, 24V DC input |
Recommendations for Top Bently Nevada Models
Here are five other popular Bently Nevada models widely used in industrial machinery monitoring:
| Model | Description | Parameters |
|---|---|---|
| 3500/44-01-01-00 | Vibration and Dynamic Data Collection Module | Dimensions: 241.3 x 24.4 x 241.8 mm, Weight: 0.91 kg, 24V DC input |
| 3500/42-01-01-00 | Dynamic Pressure Monitoring Module | Dimensions: 241.3 x 24.4 x 241.8 mm, Weight: 0.91 kg, 24V DC input |
| 3500/31-01-01-00 | Speed and Position Monitoring Module | Dimensions: 241.3 x 24.4 x 241.8 mm, Weight: 0.91 kg, 24V DC input |
| 3500/30-01-01-00 | Dynamic Pressure and Speed Monitoring Module | Dimensions: 241.3 x 24.4 x 241.8 mm, Weight: 0.91 kg, 24V DC input |
| 3500/22-01-03-00 | Transient Data Interface Module | Dimensions: 241.3 x 24.4 x 241.8 mm, Weight: 0.91 kg, 24V DC input |
FAQs
-
Q: What is the purpose of the 3500/32M 125720-01 module?
A: The 3500/32M 125720-01 module provides four independent relay output channels, allowing external devices to be controlled based on machine condition or alarm conditions. -
Q: How many relay channels does the 3500/32M module have?
A: The 3500/32M provides 4 relay output channels for controlling alarms, shutdown systems, or other external devices. -
Q: What is the maximum load for the relay channels?
A: The relay channels support up to 2 A at 30 VDC or 0.5 A at 125 VAC. -
Q: Can the 3500/32M 125720-01 module be used to trigger alarms?
A: Yes, the module can trigger alarms or activate emergency shutdown systems when machinery exceeds predefined thresholds. -
Q: What is the power consumption of the 3500/32M 125720-01 module?
A: The module consumes 5W of power during operation. -
Q: What is the protection class of the 3500/32M module?
A: The module has an IP20 protection class, ensuring basic protection against dust and moisture. -
Q: What is the weight of the 3500/32M module?
A: The module weighs 0.4 kg, making it compact and easy to integrate into machinery protection systems. -
Q: What is the operating temperature range of the 3500/32M?
A: The module operates in a temperature range from -40°C to +70°C, suitable for harsh industrial environments. -
Q: Can the 3500/32M integrate with other Bently Nevada systems?
A: Yes, it integrates seamlessly with other modules in the Bently Nevada 3500 Series. -
Q: How is the 3500/32M mounted?
A: The 3500/32M is designed for rack-mounting, allowing for easy integration into existing monitoring systems.
