Product Overview

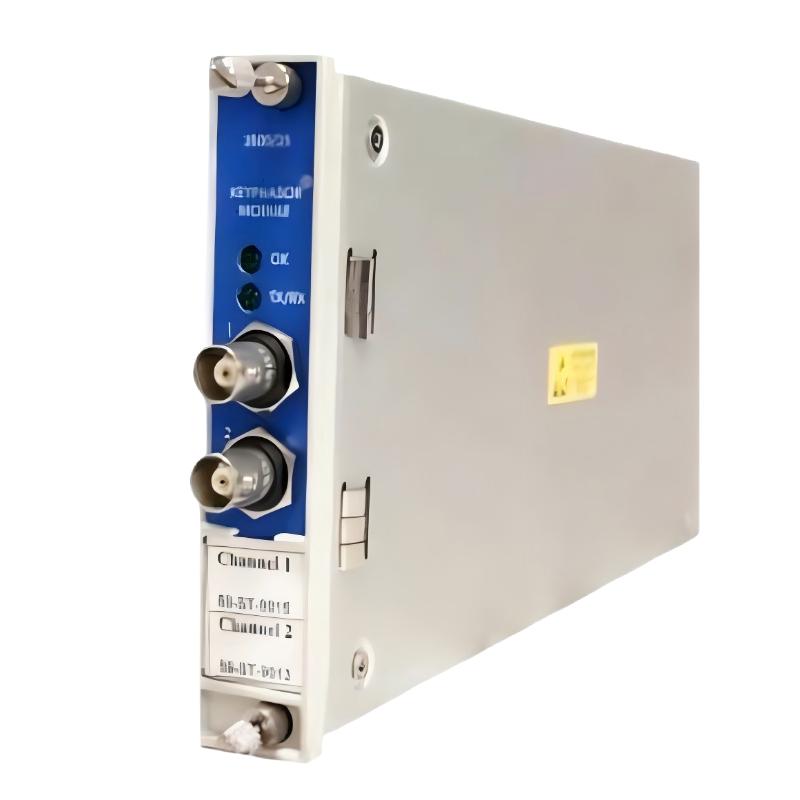

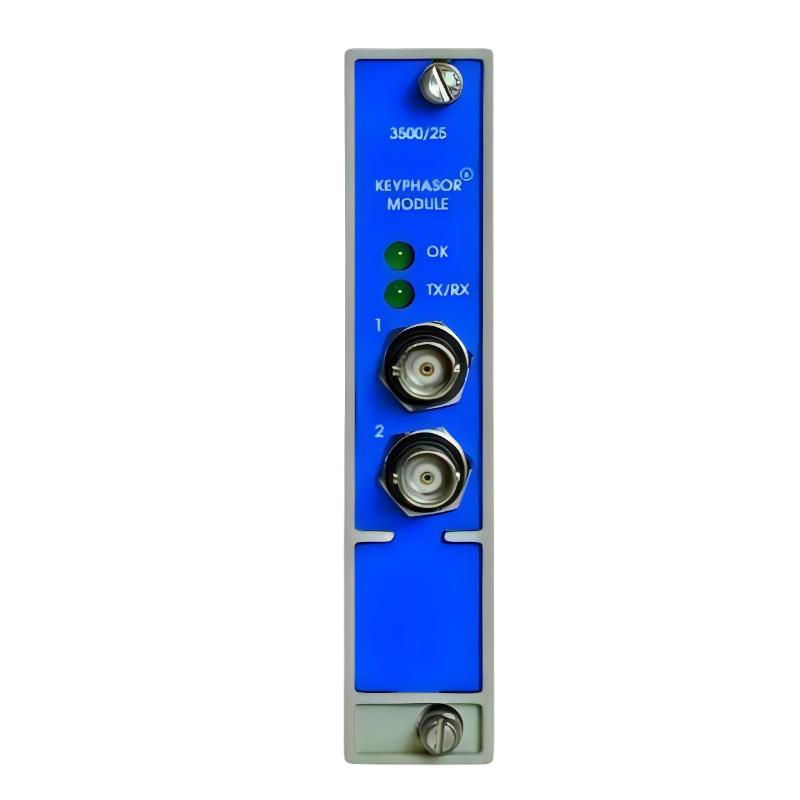

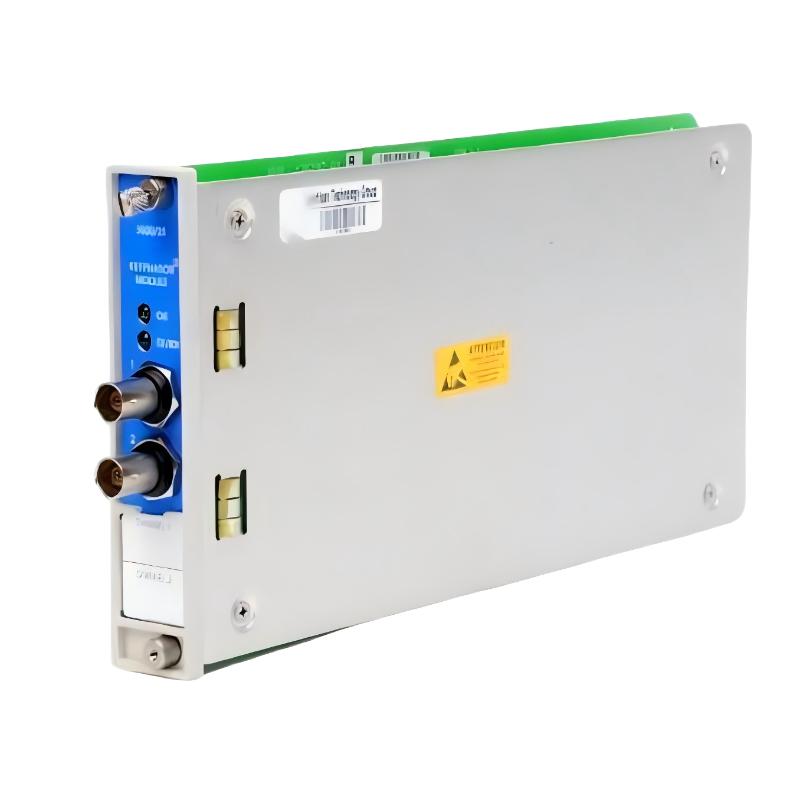

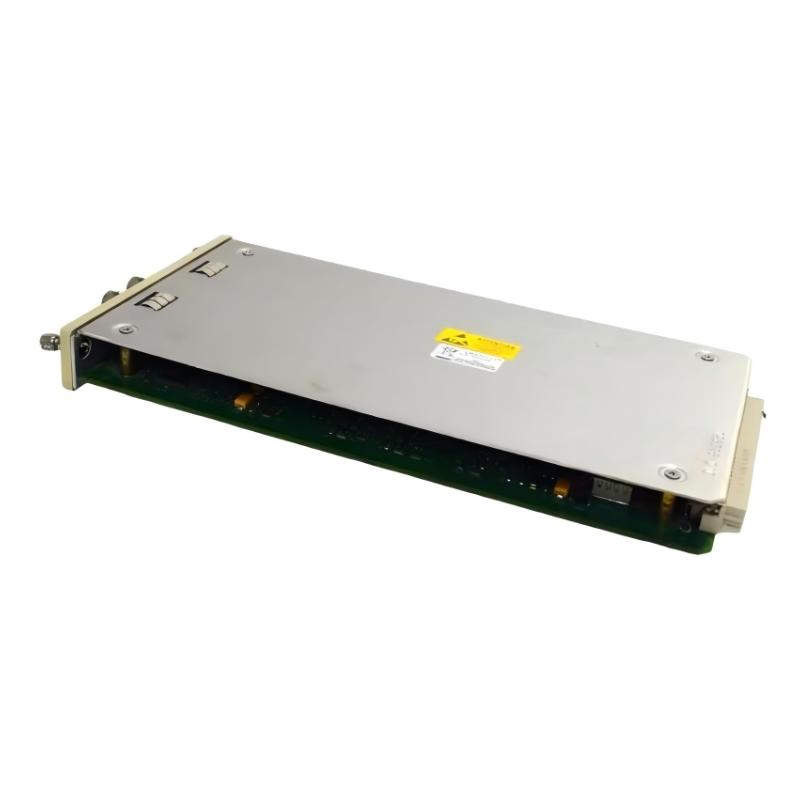

The Bently Nevada 3500/25 (125800-01 + 149369-01) I/O Module + Enhanced Key Phase Module is an integrated configuration within the Bently Nevada 3500 machinery protection system, combining an Enhanced Key Phase module with an I/O interface module.
This configuration provides accurate phase reference signal processing along with reliable signal input/output capabilities, enabling precise synchronization of vibration data with shaft rotation. It is essential for advanced machinery diagnostics and condition monitoring in industrial environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3500/25 |
| Configuration | 125800-01 + 149369-01 |
| Product Type | Key Phase Module + I/O Module |
| Function | Phase measurement and signal interface |
| Dimensions | 119.9 × 24.4 × 256.5 mm |
| Weight | 0.34 kg |
| Installation | Rack-mounted (3500 system rack) |
| Application | Phase monitoring and vibration analysis |
| Environment | Industrial-grade |
| Signal Type | Keyphasor (phase reference signal) |
| Compatibility | Bently Nevada 3500 system |
Function and Working Principle
The Bently Nevada 3500/25 (125800-01 + 149369-01) I/O Module + Enhanced Key Phase Module integrates phase processing and signal interfacing functions.
Working Principle:
-
Receives phase signals from proximity probes or keyphasor sensors
-
Processes and conditions phase signals through the enhanced module
-
Transfers signals via the I/O module to the monitoring system
-
Synchronizes phase data with vibration and speed measurements
Core Functions:
-
Phase signal acquisition and processing
-
Keyphasor signal generation and synchronization
-
Signal input/output interfacing
-
Support for vibration and dynamic analysis
Role in Industrial Control Systems
This module configuration plays a critical role by:
-
Providing accurate phase reference for rotating machinery
-
Enabling synchronization of vibration and speed data
-
Supporting advanced diagnostics and fault detection
-
Enhancing predictive maintenance capabilities
It ensures reliable and precise monitoring of machine dynamics.
Industrial Applications
The Bently Nevada 3500/25 (125800-01 + 149369-01) I/O Module + Enhanced Key Phase Module is widely used in:
-
Turbine monitoring systems
-
Compressor and pump diagnostics
-
Generator and motor monitoring
-
Oil and gas facilities
-
Power generation plants
-
High-speed rotating machinery
It is ideal for applications requiring accurate phase synchronization and signal interfacing.
Installation and System Integration
For optimal performance:
-
Installed in a Bently Nevada 3500 rack system
-
Connected to phase sensors and monitoring modules
-
Integrated with vibration monitoring systems
-
Configured according to system requirements
-
Installed following manufacturer guidelines
Proper installation ensures stable signal processing and accurate diagnostics.
Compatible System Components
This configuration works with:
-
Bently Nevada vibration monitoring modules
-
Keyphasor sensors and proximity probes
-
Rack Interface Modules (RIM)
-
Transient Data Interface (TDI) modules
-
External monitoring and control systems
Together, these components create a complete machinery monitoring solution.
Recommended Alternative Models
| Model | Type | Key Feature | Application |
|---|---|---|---|
| 125800-01 + 149369-01 | Key Phase + I/O Module | Integrated phase monitoring | Advanced systems |
| 125792-01 | Phase Module | Phase processing | Standard monitoring |
| 125800-01 | I/O Module | Internal terminal interface | Compact systems |
| 3500/22 | TDI Module | Data acquisition | Communication |
| 3500/23E | TDI Module | Advanced diagnostics | High-end applications |
Key Advantages
-
Integrated phase processing and I/O interface
-
High-precision Keyphasor signal handling
-
Supports accurate vibration analysis
-
Enhances diagnostic and monitoring capabilities
-
Seamless integration with 3500 systems
-
Reliable industrial performance
Technical FAQs
What is the function of this configuration?
It combines phase signal processing with I/O interfacing for accurate monitoring and communication.
Why combine phase module and I/O module?
To provide both signal processing and flexible connectivity in a single configuration.
Where is it used?
In industrial rotating machinery monitoring systems requiring precise phase synchronization.
Conclusion
The Bently Nevada 3500/25 (125800-01 + 149369-01) I/O Module + Enhanced Key Phase Module is a powerful integrated solution for phase monitoring and signal interfacing.
It provides:
-
Accurate Keyphasor signal processing
-
Reliable I/O communication
-
Enhanced vibration diagnostics
-
Seamless integration with 3500 systems
For engineers and system integrators, this module configuration is a key component for achieving high-precision machinery monitoring and advanced predictive maintenance.
