📦 Product Overview
Product Name

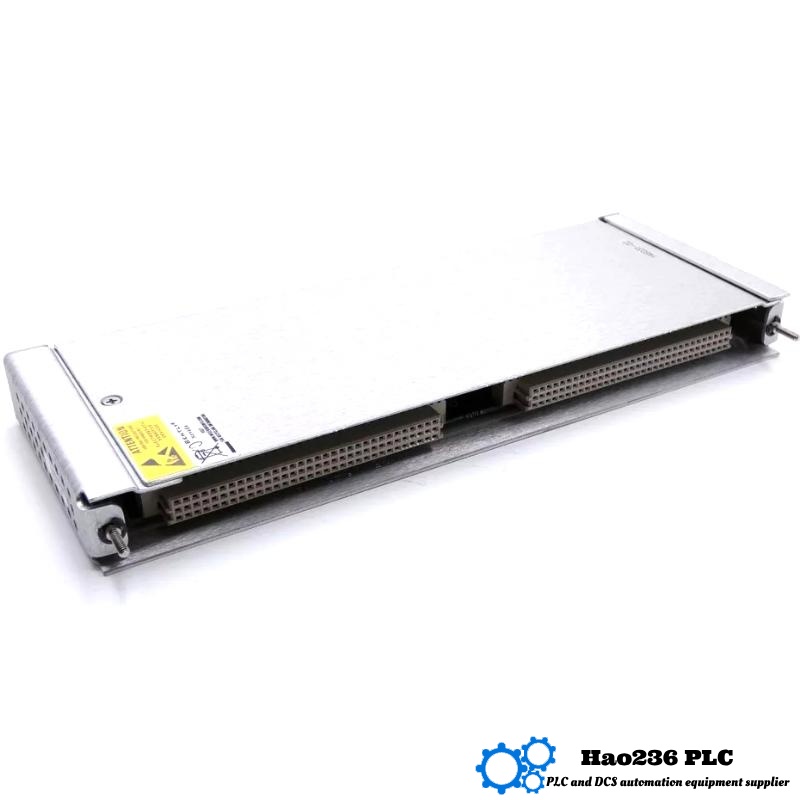

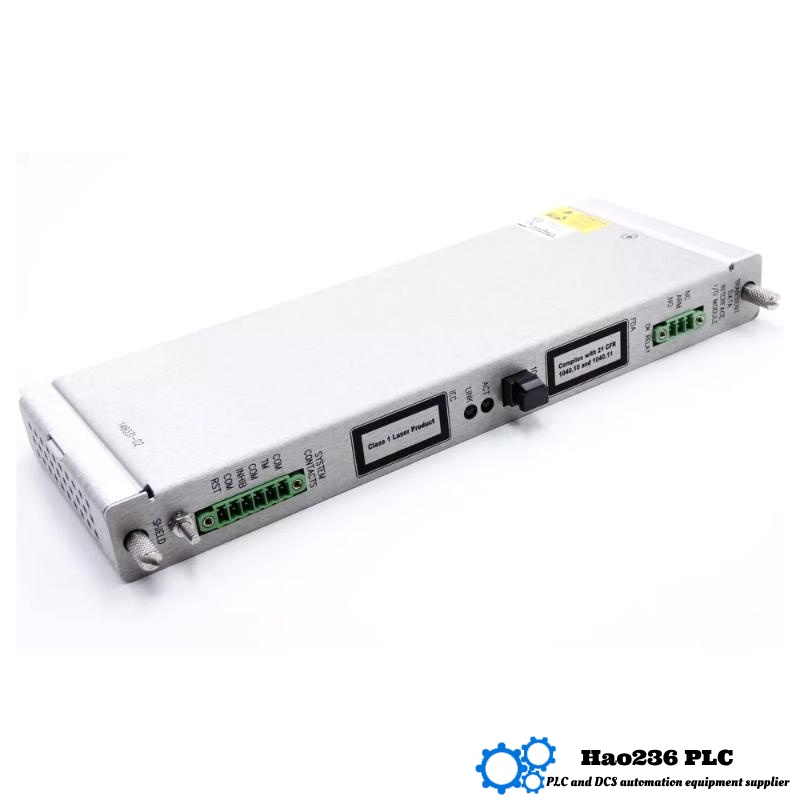

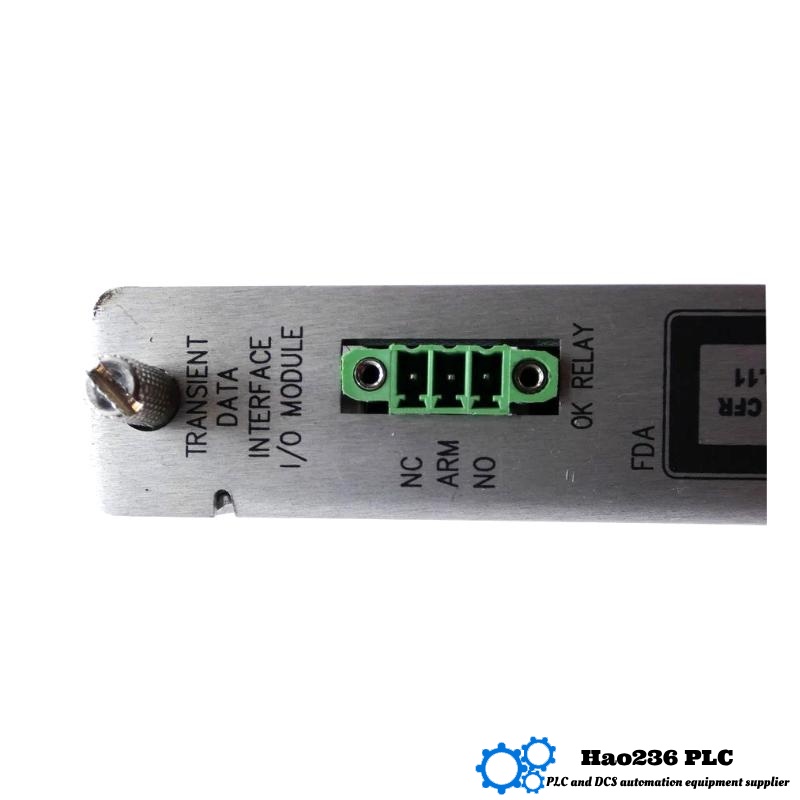

Bently Nevada 3500/22 288055-01 + 146031-02
Product Series
3500 Series – High-Speed Machinery Protection and Condition Monitoring
📝 Product Description
The combination of 3500/22 288055-01 and 146031-02 provides advanced transient data collection and storage within the high-performance 3500 Series machinery protection system.
-
288055-01 is a Transient Data Interface (TDI) module that captures detailed dynamic machine behavior such as vibration, shocks, and operational anomalies during startup, shutdown, or fault events.
-
146031-02 is an upgraded High-Speed Memory Module, offering enhanced memory capacity and storage performance over previous versions. It retains high-resolution waveform and envelope data for post-event analysis.
Together, they enable in-depth diagnostics and empower condition-based maintenance strategies with reliable transient event logging.
🏭 Applications
-
High-speed rotating equipment (turbines, compressors, motors)
-
Transient event capture during startup/shutdown
-
Monitoring rubs, misalignments, or shaft imbalance
-
Oil & Gas, Power Generation, Petrochemical, Mining, and Marine applications
-
Root-cause analysis and predictive maintenance
🌟 Key Advantages
-
High Sampling Rate: Captures up to 64k samples per second for precise vibration profiling
-
Extended Memory: 146031-02 provides enhanced capacity for multiple event captures
-
Modular & Hot-Swappable: Can be replaced without shutting down the rack or system
-
Real-Time Protection Compatibility: Operates in parallel with protection logic, ensuring no data loss or interference
-
Compact Rack Design: Efficient use of rack space while maintaining reliability
-
Post-Event Diagnostics: Enables deeper insights into machine failures or process anomalies
📐 Technical Specifications
| Parameter | 288055-01 (TDI Module) | 146031-02 (Memory Module) |
|---|---|---|
| Function | Transient Data Acquisition | Event Data Storage Module |
| Sampling Rate | Up to 64,000 samples/sec | N/A (Storage only) |
| Trigger Mechanism | Fault/Event-Based Triggers | Receives data from TDI |
| Memory Capacity | Internal Buffer for Data Handling | ~16 MB (Double previous generation) |
| Hot Swappable | Yes | Yes |
| Operating Temperature | –40°C to +85°C | –40°C to +85°C |
| Dimensions (HxWxD) | 241 × 24 × 99 mm | 241 × 24 × 99 mm |
| Weight (kg) | ~0.95 kg | ~0.95 kg |
| Mounting Type | Full-Height Rack-Mount | Full-Height Rack-Mount |
| Data Output | Transmits via rack backplane to system | Data stored internally for analysis retrieval |
| Power Consumption | Approx. 5 W | Approx. 3 W |
🔁 Recommended Related Models (Same Series or Functionality)
| Model | Function | Form Factor | Weight (kg) |
|---|---|---|---|
| 3500/22M | Modern TDI Module with advanced firmware | Full-height | ~0.9 kg |
| 3500/22 138607-01 | Base Transient Interface for Vibration Capture | Full-height | ~0.9 kg |
| 3500/22 138620-01 | High-Capacity Memory for Transient Capture | Full-height | ~1.0 kg |
| 3500/20 125744-02 | Rack Interface Module (Standard RIM) | Full-height | ~0.9 kg |
| 3500/20 125768-01 | Rack Interface Module with Serial Output | Full-height | ~0.45 kg |
🔝 Popular Models from the Same Brand
| Model | Function | Form Factor | Weight (kg) |
|---|---|---|---|
| 3500/40M | Vibration Monitoring (Proximitor/Seismic) | Full-height | ~0.75 kg |
| 3500/60 | Temperature Monitoring Module | Full-height | ~0.8 kg |
| 3500/45 | Speed/Keyphasor Module | Full-height | ~0.9 kg |
| 3500/65 | Multi-Channel Temperature Module | Full-height | ~0.85 kg |
| 3500/92 | Communication Gateway (Modbus TCP/Serial) | Full-height | ~0.7 kg |
❓ FAQ
Q1: What is the purpose of the 288055-01 module?
A1: It collects high-speed vibration data during abnormal machine events for condition monitoring and diagnostics.
Q2: What is the main difference between 146031-01 and 146031-02?
A2: 146031-02 has upgraded memory capacity and improved data retention performance for complex transient events.
Q3: Can I use the 288055-01 without the memory module?
A3: No. Without the memory module, the captured data has no location for storage, limiting its diagnostic value.
Q4: Is hot-swapping safe for both modules?
A4: Yes. Both are designed for hot-swapping, so you can replace them without shutting down the entire rack.
Q5: What kind of machines benefit most from this setup?
A5: High-speed, rotating machinery such as turbines, compressors, and large motors with dynamic loading profiles.
Q6: How does transient data capture help maintenance?
A6: It enables detection of early failure symptoms before catastrophic breakdown, allowing for predictive maintenance planning.
Q7: What is the maximum number of events that can be stored?
A7: It depends on waveform size, but typically dozens of events can be stored in 16 MB of memory.
Q8: Will data capture interfere with machine protection?
A8: No. Data capture operates in parallel with protection logic and doesn’t compromise system reliability.
Q9: What communication protocol does the system use?
A9: The TDI module interfaces with the rack’s backplane and can be integrated via Ethernet or serial output modules.
Q10: Can the stored data be exported for analysis?
A10: Yes. The memory module retains event data which can be extracted using compatible software tools for diagnostics.
