Product Overview

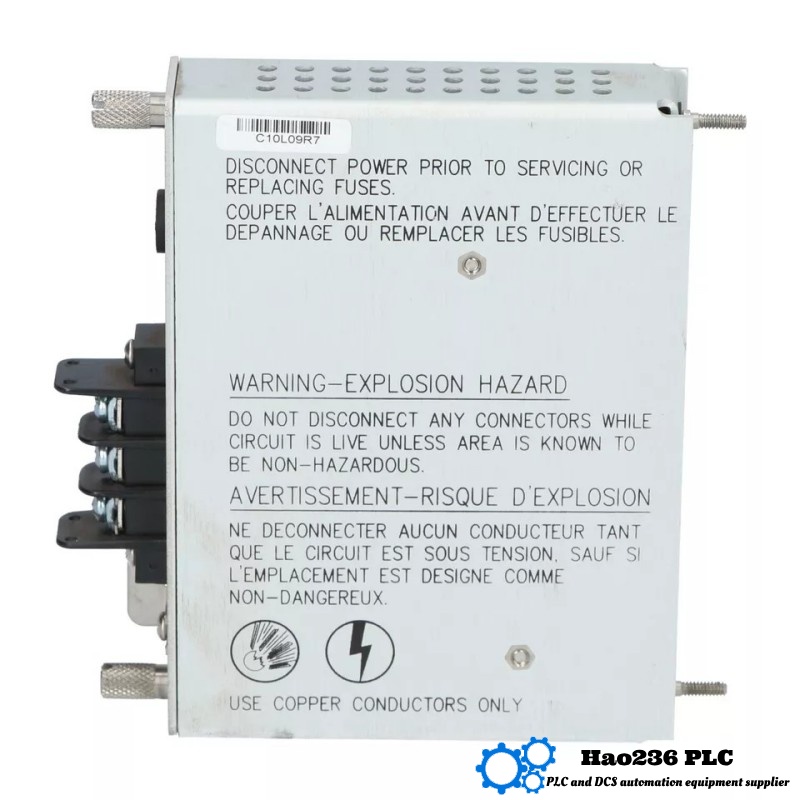

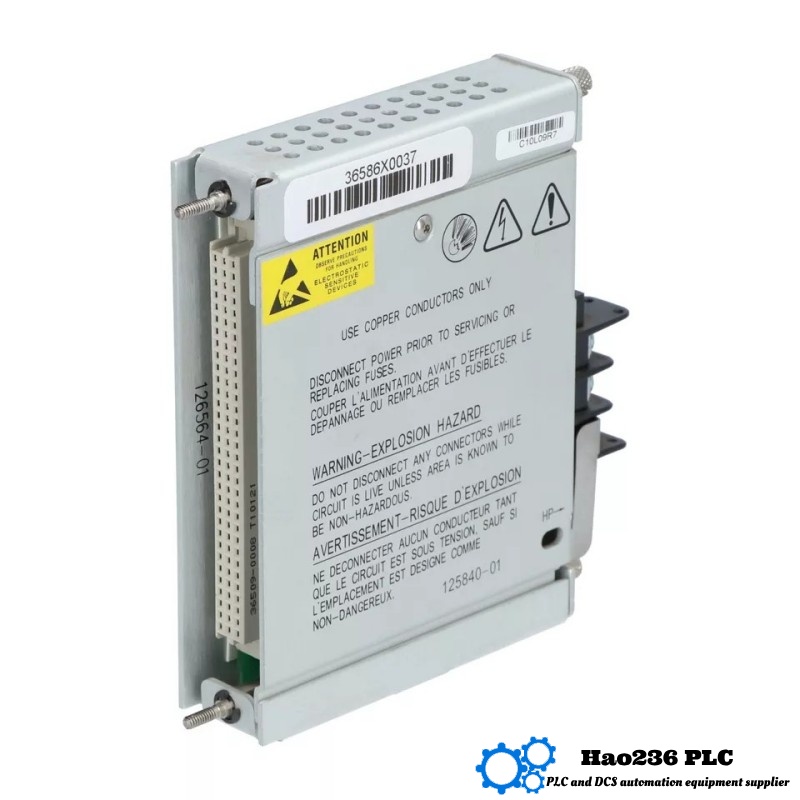

Model: 3500/15 127610‑01 + 125840‑01
Brand & Series
-
Brand: Bently Nevada
-
Series: 3500 Series – Modular Machinery Protection & Monitoring System
1. Technical Parameters
| Parameter | Specification |
|---|---|
| Model Number | 3500/15 127610‑01 + 125840‑01 |
| Dimensions (mm) | Approx. 120 × 50 × 252 (each module) |
| Weight (kg) | Approximately 1.4 kg per module |
| Input Power Range | 85–264 VAC, 47–63 Hz (universal AC input) |
| Primary Output | Regulated 24 VDC to supply rack backbone |
| Extended Outputs | Multi-rail DC outputs (+8.5 VDC, +21 VDC, –31 VDC) via 125840‑01 |
| Total Power Capacity | Around 180 W across all output rails |
| Mounting Type | Half-height rack slot within 3500 chassis |
| Redundancy Support | Yes—capable of dual power supply redundancy |
| Status Indicators | LEDs indicating Power OK and Fault status |
| Cooling | Passive airflow through rack |
| Operating Temp Range | –20 °C to +65 °C |
| Storage Temp Range | –40 °C to +85 °C |
| Protection Features | Short-circuit protection, overload protection |
2. Product Introduction
The 127610‑01 + 125840‑01 combination serves as a robust dual-module power solution for the 3500 Series rack system. The 127610‑01 module acts as the universal AC-to-DC converter, providing stable primary 24 VDC to power the entire rack assembly. The companion 125840‑01 is a DC distribution or multi-voltage output module that supplies multiple required voltage rails for auxiliary sensors and internal electronics (+8.5 V, +21 V, –31 V). Together, they form a scalable, reliable, and redundant power foundation for machinery-monitoring applications.
3. Product Applications
This power module assembly is suited for:
-
Supplying conditioned power within 3500 rack configurations for rotating machinery protection
-
High-availability systems in turbines, compressors, generators
-
Power redundancy setups in power plants and petrochemical facilities
-
Supplementing power for analog/digital sensors, I/O boards, and communication modules
-
Environments requiring maintenance without downtime through hot-swappable configurations
4. Product Advantages
-
Redundant Power Capability: Dual supply support ensures seamless operation even during module replacement
-
Versatile Voltage Delivery: Multi-rail outputs eliminate need for separate separate converters
-
Compact Form Factor: Half-height modules save rack space and allow system scalability
-
Plug-and-Play Design: Installed directly into 3500 rack system—no adapters required
-
Operational Ruggedness: Rated over wide temperature range with protective circuitry built in
-
Easy Monitoring: Clear LED indicators simplify status checks and error detection
5. Five Related or Same‑Series Models
| Model | Dimensions (mm) | Weight (kg) | Features |
|---|---|---|---|
| 3500/15 127610‑02 | 120 × 50 × 252 | 1.4 | Similar power supply with added filtering |
| 3500/15 106M2686‑00 | 120 × 50 × 252 | 1.5 | DC distribution version with multi-rail |
| 3500/15 125840‑02 | 120 × 50 × 252 | 1.5 | Alternate DC output configuration |
| 3500/15 106M1079‑01 | 120 × 50 × 252 | 1.3 | Standard front-end power module |
| 3500/15 133292‑01 | 120 × 50 × 252 | 1.2 | Low-voltage output module |
6. Five Popular Models from the Same Brand
| Model | Dimensions (mm) | Weight (kg) | Key Feature |
|---|---|---|---|
| 3500/33 Relay I/O | 100 × 25 × 250 | 0.8 | 16-channel relay outputs for alarms |
| 3500/25 Keyphasor | 100 × 25 × 250 | 0.9 | Shaft speed sensing module |
| 3500/65 Temperature Module | 100 × 25 × 250 | 1.1 | Multi-point temperature monitoring |
| 3500/42M Proximitor | 100 × 25 × 250 | 0.9 | Displacement sensor interface |
| 3500/22M Communicator | 100 × 25 × 250 | 1.0 | Data communication and transient capture support |
7. FAQ (Q & A)
Q1: What is the function of the 127610‑01 module?
A1: It converts universal AC input to 24 VDC, powering the backbone of the rack system.
Q2: What role does the 125840‑01 module fulfill?
A2: It distributes multiple specific DC voltage rails (e.g. ±21 V, +8.5 V) required by different subsystems.
Q3: Can these power modules be replaced while the rack is operational?
A3: Yes, when configured with redundancy (dual power supplies), they support hot-swapping without downtime.
Q4: What protections are built into these modules?
A4: They include short-circuit and overload protection along with visual LED status indicators.
Q5: What is the total power capacity of this module pair?
A5: Approximately 180 W across all provided voltage rails.
Q6: Will this pair fit in older 3500 racks?
A6: Yes—they adhere to the standard half-height 3500 series form-factor and mounting design.
Q7: How do I verify module health?
A7: The Power OK and Fault LEDs provide immediate visual status of module operation.
Q8: Are these modules rated for industrial temperatures?
A8: Yes—they operate reliably between –20 °C and +65 °C and can be stored from –40 °C to +85 °C.
Q9: Why choose this dual-module combo over a single power supply?
A9: It allows multi-voltage delivery within the same rack and supports seamless failover configuration—improving uptime and system flexibility.
Q10: What happens in case of a module failure?
A10: The redundant module maintains system operation. The faulty module can then be swapped out without interrupting service.
