Product Overview

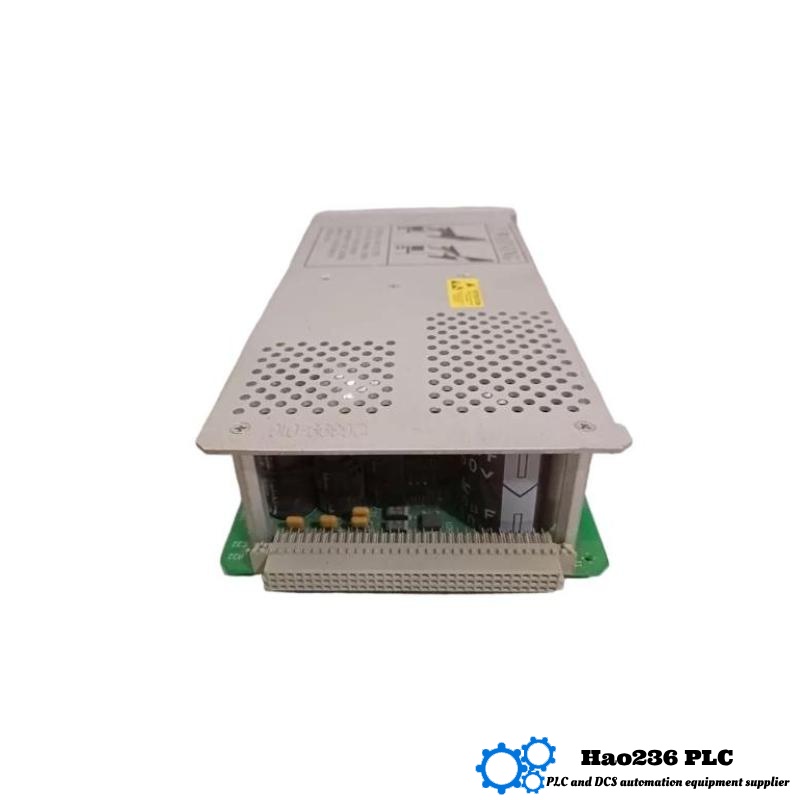

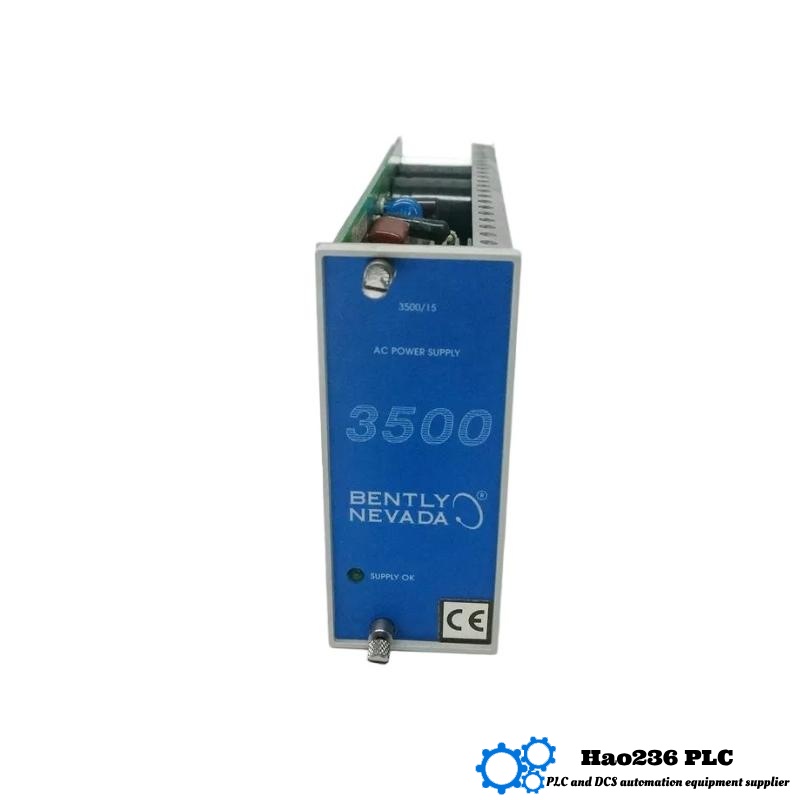

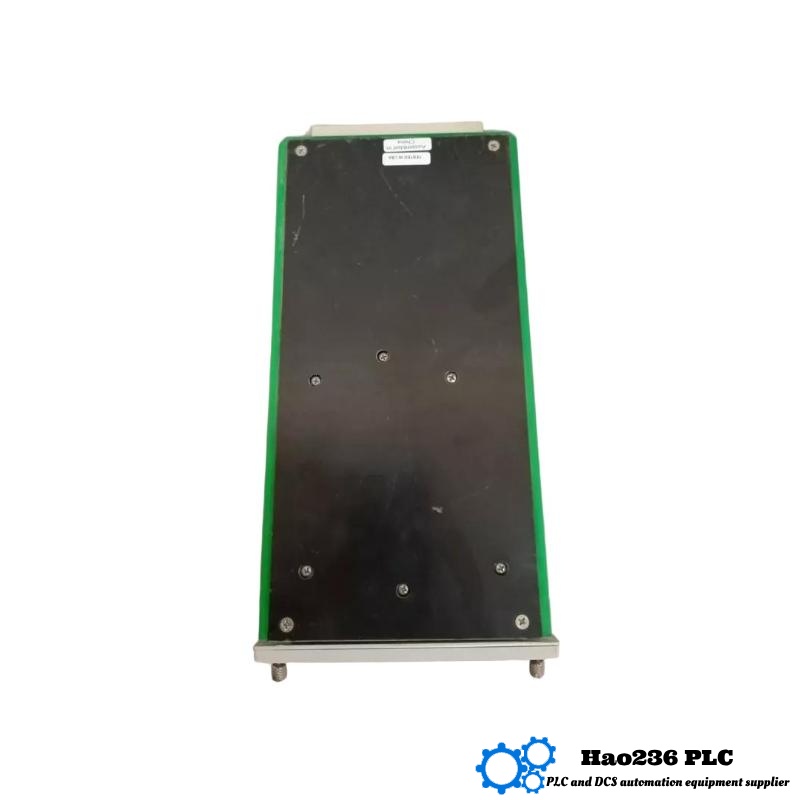

The Bently Nevada 3500/15 126399-01 is an AC/DC power supply module designed for the 3500 Series Machinery Protection System. It is a half-height module installed in the dedicated left-side slot of the rack, capable of supporting both AC and DC power inputs. This module can be used singly or redundantly in pairs to provide reliable power to the entire rack, ensuring system stability and high availability for critical machinery monitoring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/15 126399-01 |
| Type | AC/DC Power Supply Module |
| Input Voltage Range | AC: 85–264 VAC; DC: 20–30 VDC |
| Output Voltage | 24 VDC |
| Output Power | Typically up to 100 W; some variants up to 200–500 W |
| Input Frequency | 47–63 Hz |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% RH, non-condensing |
| Dimensions (HxWxD) | 120.7 mm × 50.8 mm × 251.5 mm |
| Weight | 1.39 kg |
Product Advantages
-
Redundancy Support: Can be configured as single or dual modules for redundant power supply to enhance system reliability.
-
Wide Input Range: Compatible with a broad range of AC and DC power sources.
-
High Efficiency: Typically above 90%, minimizing energy losses.
-
Compact Design: Half-height module saves rack space and facilitates easy installation.
-
Robust and Reliable: Designed to withstand industrial conditions and ensure continuous operation.
Applications
-
Power Generation: Provides reliable power for turbine and generator protection systems.
-
Oil & Gas: Powers monitoring systems for pumps, compressors, and drilling equipment.
-
Manufacturing: Ensures continuous operation of production machinery monitoring.
-
Water Treatment: Supports power needs for pumps and valve control monitoring.
Brand and Series
-
Brand: Bently Nevada
-
Series: 3500 Series Machinery Protection System
Related Models in 3500 Series
| Model | Description | Input Voltage Range | Output Voltage | Dimensions (HxWxD mm) | Weight (kg) |
|---|---|---|---|---|---|
| 3500/15 126399-01 | AC/DC Power Supply Module | AC: 85–264 VAC; DC: 20–30 VDC | 24 VDC | 120.7 × 50.8 × 251.5 | 1.39 |
| 3500/15 127610-01 | General AC Power Supply Module | 85–264 VAC | 24 VDC | 120.7 × 50.8 × 251.5 | 1.39 |
| 3500/15 114M5330-01 | Low Voltage DC Power Module | 20–30 VDC | 24 VDC | 120.7 × 50.8 × 251.5 | 1.39 |
| 3500/15 115M7750-01 | High Voltage DC Power Module | 88–140 VDC | 24 VDC | 120.7 × 50.8 × 251.5 | 1.39 |
| 3500/15 106M1079-01 | General AC Power Module | 85–264 VAC | 24 VDC | 120.7 × 50.8 × 251.5 | 1.39 |
Popular Models from the Same Brand
| Model | Description | Key Parameters | Dimensions (HxWxD mm) | Weight (kg) |
|---|---|---|---|---|
| 3300/16 330850-50-CN | Vibration Monitoring System | Frequency: 1 Hz to 20 kHz | 175 × 90 × 320 | 3.2 |
| 3300/12 102566-02 | Proximity Transducer System | Max Speed: 30,000 RPM | 160 × 75 × 260 | 2.9 |
| 3300/20 88984-01 | Speed Monitoring System | Speed Range: 0–10,000 RPM | 140 × 60 × 200 | 2.5 |
| 3300/25 84933-02 | Temperature Monitoring System | Temp Range: -50°C to 150°C | 120 × 50 × 180 | 2.1 |
| 3300/30 135813-01 | Displacement Monitoring System | Measurement Range: 0–2 mm | 130 × 60 × 190 | 2.3 |
FAQ
Q1: What input voltage range does the 3500/15 126399-01 support?
A1: It supports AC input voltage from 85 to 264 VAC and DC input voltage from 20 to 30 VDC.
Q2: What is the output voltage of this module?
A2: The module provides a stable 24 VDC output.
Q3: What is the typical output power?
A3: Typically up to 100 W, with some variants providing 200 to 500 W.
Q4: What are the operating temperature limits?
A4: The module operates reliably between -30°C and +65°C.
Q5: What is the storage temperature range?
A5: The module can be stored safely between -40°C and +85°C.
Q6: What are the physical dimensions of the module?
A6: Dimensions are approximately 120.7 mm (H) × 50.8 mm (W) × 251.5 mm (D).
Q7: How much does the module weigh?
A7: The module weighs about 1.39 kilograms.
Q8: Can the module be used redundantly?
A8: Yes, it can be installed as a single or dual redundant power supply module.
Q9: What industries commonly use this power supply module?
A9: It is widely used in power generation, oil and gas, manufacturing, and water treatment industries.
Q10: Is the module suitable for humid industrial environments?
A10: Yes, it operates effectively in up to 95% relative humidity, non-condensing conditions.
