- Bently Nevada

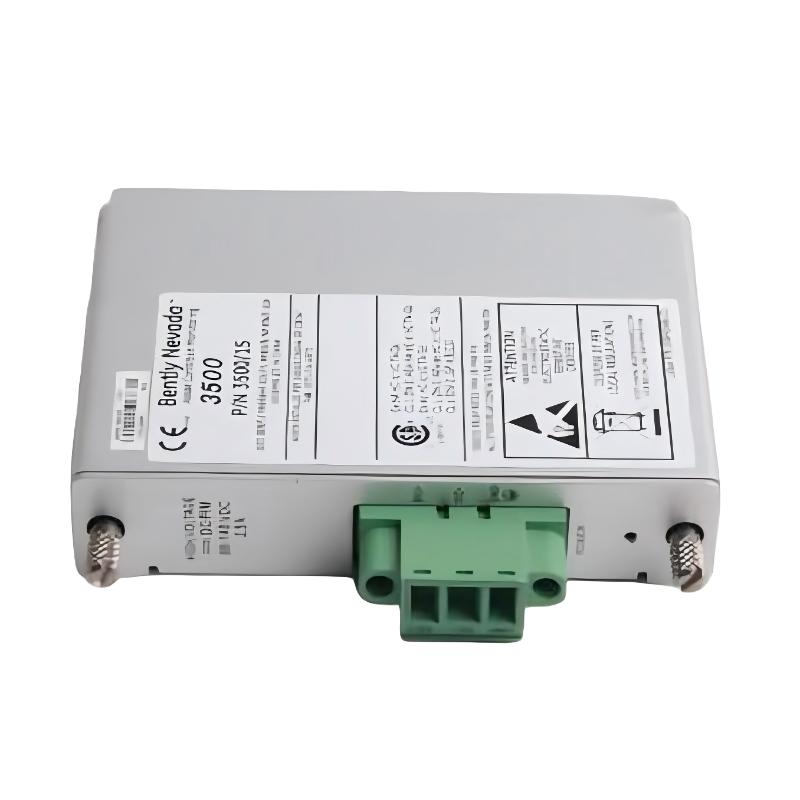

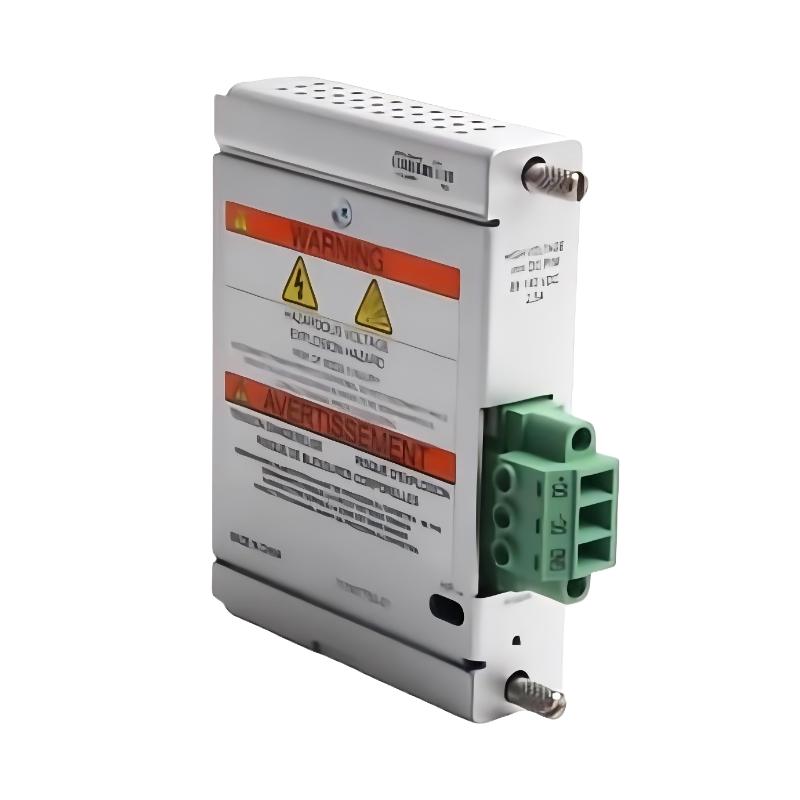

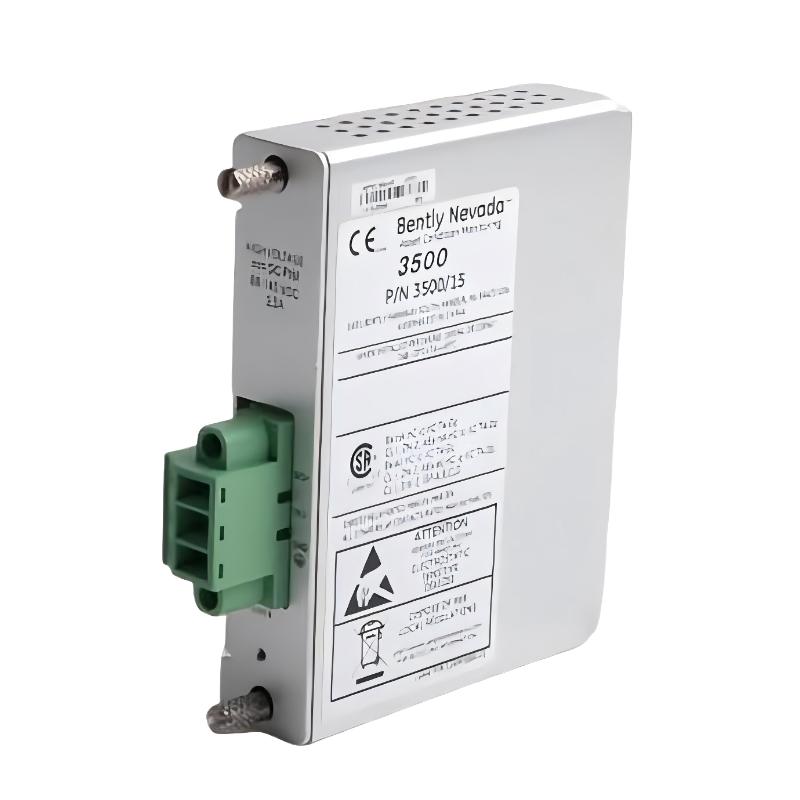

- 3500/15 115M7750-01
- High-Voltage DC PIM (3500/15 AC And DC Power Modules)
- USA
- 120.7 x 50.8 x 251.5 mm
- 1.39 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 1
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Introduction
The Bently Nevada 3500/15 (115M7750-01) High-Voltage DC PIM (Power Input Module) is an essential component of the 3500 Series machinery protection and condition monitoring system. It serves as the interface for high-voltage DC inputs, ensuring safe and reliable distribution of power to AC and DC modules within the system.
This module is specifically designed for industrial applications requiring high-voltage DC support, providing flexibility, reliability, and protection for critical monitoring infrastructure.
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3500/15 |
| Part Number | 115M7750-01 |
| Product Type | High-Voltage DC Power Input Module (PIM) |
| Dimensions | 120.7 × 50.8 × 251.5 mm |
| Input Type | High-voltage DC |
| Functional Role | Power input management and distribution |
| Installation | Works with 3500/15 AC and DC power modules |
| Compatibility | Bently Nevada 3500 Series |
| System Application | Industrial machinery monitoring and protection |
Functional Role in the 3500 System
The 3500/15 High-Voltage DC PIM is a central element in the system’s power architecture. Its main roles include:
-
Managing high-voltage DC input safely
-
Interfacing with AC and DC power modules
-
Ensuring stable and reliable power distribution
-
Supporting continuous operation of all monitoring modules
This PIM is critical in systems that require redundancy, high reliability, and flexible power configurations.
Application Areas
The 115M7750-01 PIM module is widely used in industrial environments where high-voltage DC power is standard:
-
Power generation and distribution facilities
-
Oil and gas processing plants
-
Heavy industrial automation and control systems
-
Large rotating machinery monitoring and protection
-
Critical infrastructure with high-reliability power requirements
Key Advantages
High-Voltage DC Compatibility
Designed to safely handle high-voltage DC inputs.
Flexible Integration
Works with both AC and DC modules for adaptable system configurations.
Improved System Reliability
Ensures stable power delivery to all system modules, minimizing downtime.
Industrial-Grade Durability
Built for long-term performance in demanding industrial environments.
Compatible Modules and System Integration
The 3500/15 115M7750-01 PIM integrates with:
-
3500/15 AC power modules
-
3500/15 DC power modules
-
3500/05 system racks
-
3500 Series vibration and monitoring modules
-
Alarm and relay modules
This combination forms a complete, flexible, and reliable power system for industrial monitoring.
Recommended Related Models
| Model | Product Type | Application |
|---|---|---|
| 3500/15 114M5335-01 | Low-Voltage DC PIM | Low-voltage DC integration |
| 3500/15 106M1079-01 | AC Power Module | Standard AC-powered systems |
| 3500/15 106M1081-01 | DC Power Module | Standard DC-powered systems |
| 3500/15 125840-02 | DC Power Module | Alternative DC configuration |
| 3500/05 | System Rack | Module installation platform |
Technical FAQs
What is the function of the 3500/15 115M7750-01 module?
It acts as a high-voltage DC input interface, managing power distribution to AC and DC modules in the 3500 system.
Is this module a standalone power supply?
No, it is a Power Input Module (PIM) that works in conjunction with AC and DC power modules.
Where is this module installed?
Inside the 3500 Series system rack alongside AC or DC power modules.
Why is a high-voltage PIM important?
It ensures safe and reliable management of high-voltage DC power, maintaining stable operation of all monitoring modules.
