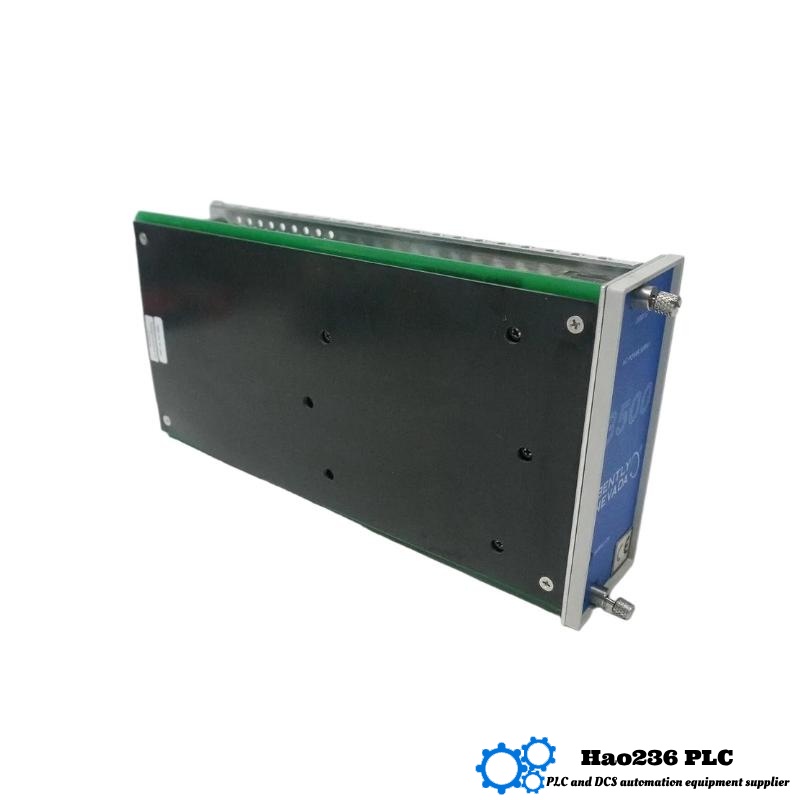

🧾 Product Overview – Bently Nevada 3500/15 114M5335-01
The Bently Nevada 3500/15 114M5335-01 is a Low Voltage DC Power Input Module designed to supply DC power to the 3500 Machinery Protection System. This module fits into the 3500 rack and works in conjunction with power supply modules to ensure continuous and stable operation of the system even under variable power conditions.
It enables users to power the 3500 system using a low-voltage DC source, providing flexibility for installations where AC power may be unreliable or where DC power is part of the design strategy. It also allows for redundancy by enabling a dual power source architecture.
⚙️ Technical Specifications
| Parameter | Value |
|---|---|
| Model | 3500/15 114M5335-01 |
| Module Type | Low Voltage DC Power Input Module |
| Input Voltage Range | 20–30 VDC |
| Power Consumption | < 10 W |
| Rack Compatibility | Bently Nevada 3500 Rack System |
| Mounting Style | Plug-in Module (half-height) |
| Material | Industrial-grade alloy and PCB composite |
| Operating Temperature | –30°C to +65°C |
| Storage Temperature | –40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (mm) | 120.7 × 25.4 × 114.3 mm |
| Weight (kg) | 0.34 kg |
| Redundancy Support | Yes – supports dual/redundant power configuration |
| Series | 3500 Machinery Protection System |
| Brand | Bently Nevada |
| Installation Position | Left side of the 3500 rack (Power Supply slot) |
| Certification | Designed to meet industrial compliance standards |
🏭 Applications
-
Gas and steam turbine monitoring systems
-
Compressor protection and monitoring systems
-
Oil & gas processing facilities
-
Petrochemical and power generation plants
-
Industrial machinery requiring continuous monitoring
-
Remote or DC-powered installations
-
Systems requiring power source redundancy
✅ Product Advantages
-
DC Power Flexibility – Enables use of 20–30 VDC input in systems not served by AC.
-
Redundancy Ready – Can operate alongside AC power input for failover security.
-
Compact Form Factor – Half-height design saves rack space.
-
Industrial Grade – Built to withstand harsh environmental conditions.
-
Plug-and-Play Design – Easily installable into the 3500 rack.
-
Reliable Operation – Ensures steady DC input for critical monitoring modules.
-
Minimal Heat Generation – Efficient operation reduces thermal footprint.
-
System Integration – Fully compatible with 3500/15 power modules.
-
Failsafe Design – Helps maintain uptime in critical infrastructure.
-
Brand Trust – Supported by a trusted name in machinery protection.
🧩 Series and Brand
-
Brand: Bently Nevada
-
Product Series: 3500 Machinery Protection System
-
Product Type: Power Input Module
-
Product Role: DC power input integration for rack power supply
🔁 Related Models in the Same Series
| Model | Description | Role |
|---|---|---|
| 3500/15 106M1079-01 | Universal AC Power Supply Module | Accepts wide-range AC input |
| 3500/15 125712-01 | Standard AC Power Supply Module | Primary AC input module |
| 3500/15 128229-01 | High Voltage DC Power Input Module | For high-voltage DC applications |
| 3500/15 127610-01 | Backup Power Supply Input Module | For redundancy with primary module |
| 3500/15 135813-01 | Hybrid AC/DC Power Supply Module | Accepts both AC and DC inputs |
🔝 Top 5 Popular Models from the Same Brand
| Model | Description | Application |
|---|---|---|
| 3500/22M | Transient Data Interface (TDI) Module | System communications |
| 3500/42M | Dynamic Vibration Monitor | Machinery vibration monitoring |
| 3500/40M | Proximitor Monitor | Shaft position and vibration |
| 3500/25 | Keyphasor Module | Rotational speed detection |
| 3500/33 | Relay Module | Alarm relay output |
📊 Comparison Table of Related Models
| Model | Type | Dimensions (mm) | Weight (kg) | Voltage Input | Notes |
|---|---|---|---|---|---|
| 114M5335-01 | Low Voltage DC PIM | 120.7×25.4×114.3 | 0.34 | 20–30 VDC | Used with backup DC power |
| 106M1079-01 | Universal AC Supply | 120.7×25.4×114.3 | 0.36 | 85–264 VAC | Supports wide AC input range |
| 127610-01 | Backup Input Module | 120.7×25.4×114.3 | 0.34 | 120/240 VAC | Works with main PSU for redundancy |
| 128229-01 | High Voltage DC Input | 120.7×25.4×114.3 | 0.38 | 90–150 VDC | For HVDC industrial installations |
| 135813-01 | Hybrid Power Supply | 120.7×25.4×114.3 | 0.40 | AC + DC | Accepts both AC and DC simultaneously |
❓ FAQ – 10 Common Questions
Q1: What power range does the 114M5335-01 support?
A1: It supports low voltage DC input from 20 to 30 VDC.
Q2: Can it be used alone to power the 3500 rack?
A2: Yes, it can serve as the primary DC input, or in redundancy with an AC module.
Q3: Does it support hot-swapping?
A3: No, power modules should be replaced with system power off unless otherwise instructed.
Q4: What is the weight of this module?
A4: Approximately 0.34 kg.
Q5: What are the physical dimensions?
A5: 120.7 mm (H) × 25.4 mm (W) × 114.3 mm (D).
Q6: Where is it installed in the rack?
A6: In the power supply slot of the 3500 rack (left section).
Q7: What happens if DC input fails?
A7: If redundancy is configured, the AC input module (if present) will take over.
Q8: Is it compatible with older 3500 racks?
A8: Yes, as long as the rack supports the 3500/15 configuration.
Q9: Does it emit heat or require cooling?
A9: It has minimal heat generation and typically does not require extra cooling.
Q10: Is it a programmable module?
A10: No, it is a passive power interface module without user programmability.
