Introduction

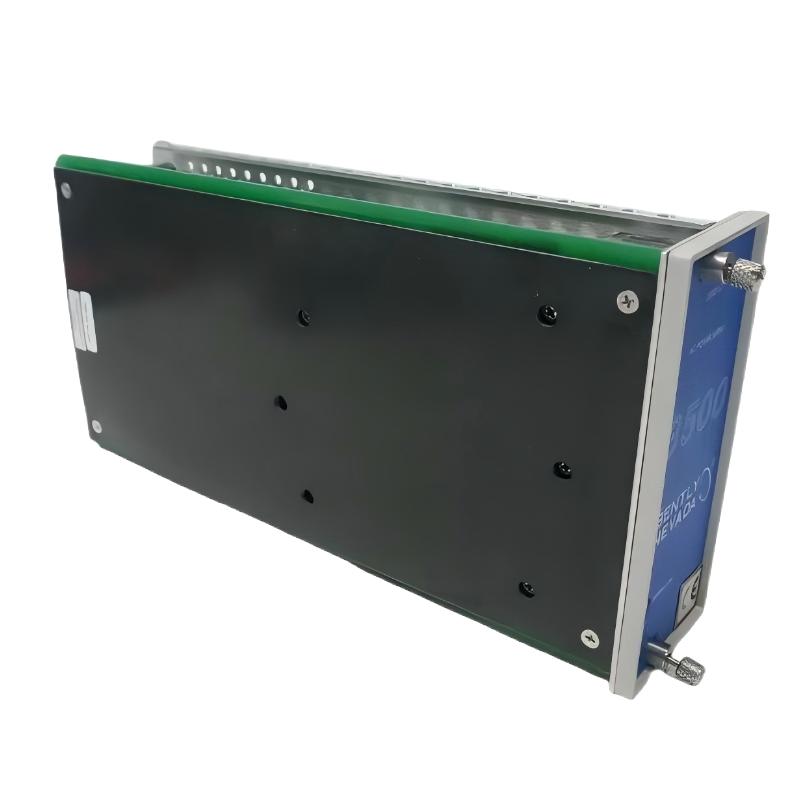

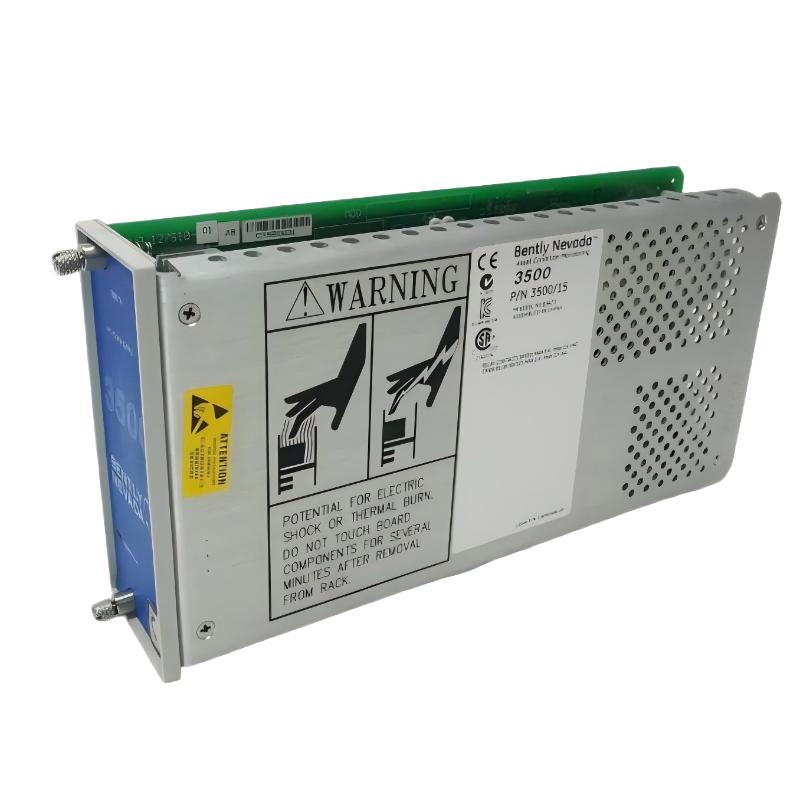

The Bently Nevada 3500/15 (114M5335-01) Low-Voltage DC PIM (Power Input Module) is a critical interface component used in the 3500 Series machinery protection system. It works in conjunction with AC and DC power supply modules to manage and distribute incoming power efficiently within the system.
Unlike standard power modules, this PIM unit acts as an interface layer, ensuring proper power routing and system compatibility across different power configurations.
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 3500/15 |
| Part Number | 114M5335-01 |
| Product Type | Low-Voltage DC Power Input Module (PIM) |
| Dimensions | 120.7 × 50.8 × 251.5 mm |
| Input Type | Low-voltage DC |
| Functional Role | Power input and interface management |
| Installation | Integrated with 3500/15 power modules |
| Compatibility | AC and DC power supply modules |
| System Use | 3500 Series monitoring system |
Functional Role in Power Architecture
The 3500/15 Low-Voltage DC PIM is responsible for handling incoming power and interfacing it with the system’s power modules. It ensures that the power is correctly distributed and compatible with the internal architecture of the 3500 system.
Key functions include:
-
Managing low-voltage DC power input
-
Acting as an interface between external power and internal modules
-
Supporting both AC and DC power supply configurations
-
Enhancing system power reliability and safety
This module is essential when configuring flexible or redundant power supply systems.
Application Scenarios
The 114M5335-01 PIM module is used in industrial systems where advanced power configuration and reliability are required:
-
Power plants with redundant power systems
-
Oil and gas facilities with mixed power configurations
-
Industrial monitoring systems requiring flexible power input
-
Critical machinery protection systems
-
Automation environments with high reliability requirements
Key Advantages
Flexible Power Integration
Supports both AC and DC power module configurations.
Reliable Power Interface
Ensures proper distribution and routing of incoming power.
Enhanced System Stability
Improves overall reliability of the 3500 monitoring system.
Designed for Industrial Systems
Built for continuous operation in demanding environments.
Compatible Power Modules and Components
The 3500/15 114M5335-01 PIM works together with:
-
3500/15 AC Power Modules
-
3500/15 DC Power Modules
-
3500/05 system racks
-
Monitoring and protection modules within the 3500 Series
This combination enables a complete and flexible power supply architecture.
Recommended Related Models
| Model | Product Type | Application |
|---|---|---|
| 3500/15 106M1079-01 | AC Power Module | Standard AC power systems |
| 3500/15 106M1081-01 | DC Power Module | DC-powered configurations |
| 3500/15 125840-02 | DC Power Module | Alternative DC systems |
| 3500/15 127610-01 | DC Power Module | Industrial DC applications |
| 3500/05 | System Rack | System installation and integration |
Technical FAQs
What is the function of the 3500/15 114M5335-01 module?
It acts as a power input interface, managing low-voltage DC power for the system.
Is this module a power supply?
No, it is a Power Input Module (PIM) that works together with AC or DC power supply modules.
Can it be used with both AC and DC systems?
Yes, it is designed to support integration with both AC and DC power modules.
Why is a PIM important in the system?
It ensures proper power routing, compatibility, and stable operation of the entire monitoring system.
