📦 Product Overview

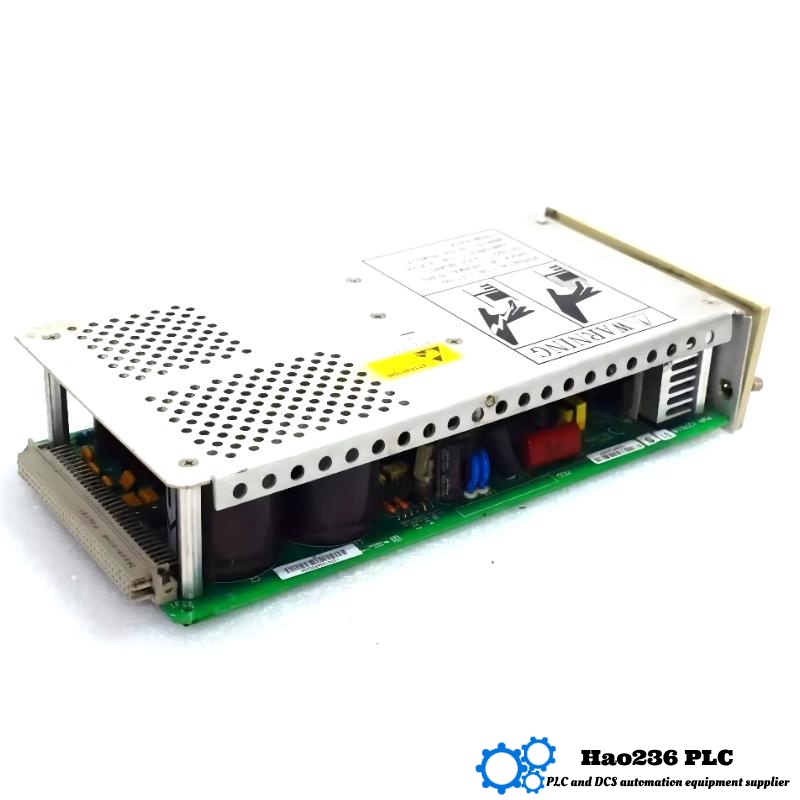

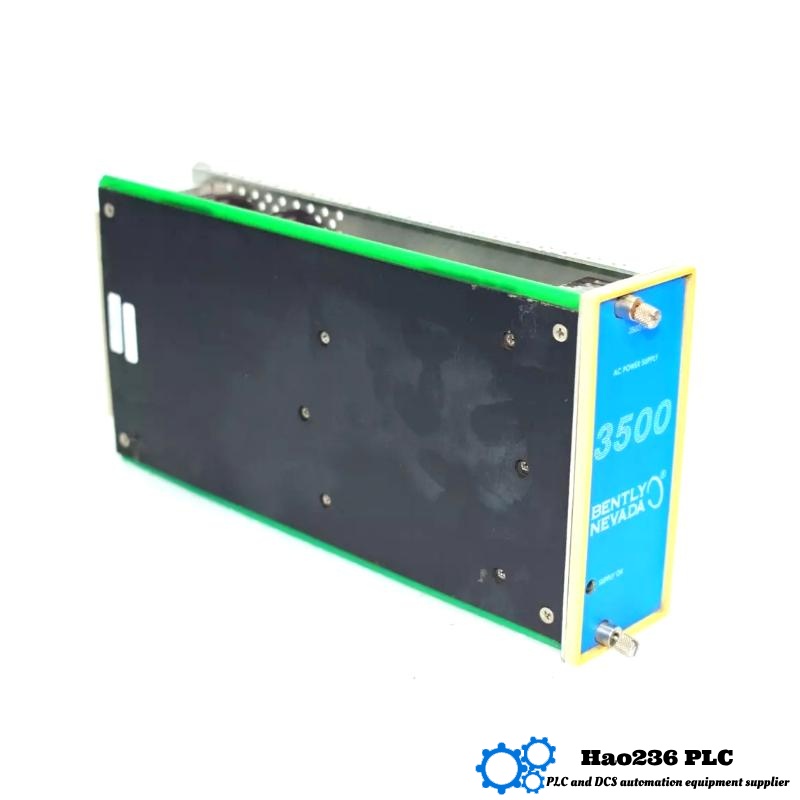

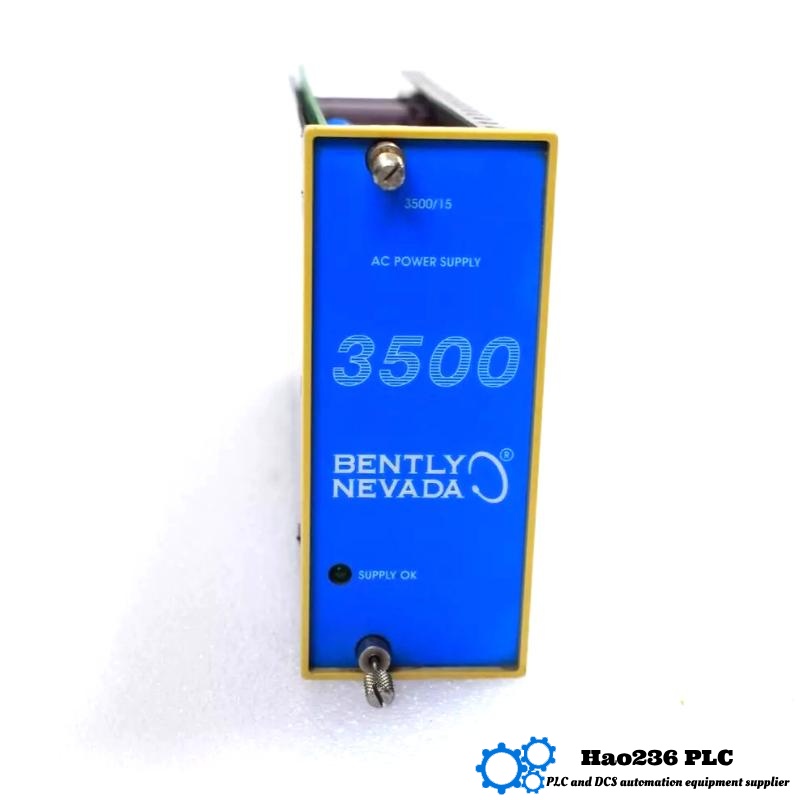

Model: 3500/15 106M2686-00 + 127610-01
🔹 Brand & Series
-
Brand: Bently Nevada
-
Series: 3500 Series – Machinery Protection & Condition Monitoring Platform
📐 Technical Parameters
| Parameter | Specification |
|---|---|
| Model Number | 3500/15 106M2686-00 + 127610-01 |
| Dimensions | 120 mm × 51 mm × 252 mm (each module approx.) |
| Weight (kg) | Approx. 1.5 kg (per module) |
| Input Power | 85–264 VAC, 47–63 Hz |
| Output Power | +24 VDC (Main), Multi-rail DC: +8.5 VDC, +21 VDC, –31 VDC |
| Output Current | Up to 10 A (depending on voltage rail) |
| Max Power Output | 180 W total |
| Mounting Type | Rack-mount, 3500 Rack, left-side position |
| Redundancy Support | Yes (dual-redundant capable) |
| Status Indication | LED indicators: Power OK, Fault |
| Cooling Method | Passive airflow |
| Operating Temperature | –20°C to +65°C |
| Storage Temperature | –40°C to +85°C |
| Protection Features | Short circuit protection, overload protection |
📘 Product Introduction
The 3500/15 106M2686-00 + 127610-01 is a combined power solution used within the 3500 Series machinery protection systems. The 127610-01 module functions as an AC Power Supply, converting external AC voltage to reliable DC output for the rack system. The 106M2686-00 acts as a DC Distribution Module, supplying multiple voltage rails (+8.5 V, +21 V, –31 V) required by subsystems and monitoring modules.
Engineered for high availability, this combination supports redundant configurations. Its modular design and failover capabilities make it a trusted choice for continuous, uninterrupted operation of rotating machinery monitoring systems in critical industrial environments.
🏭 Product Applications
-
Large-scale turbomachinery systems (compressors, turbines)
-
Power generation plants requiring uninterrupted monitoring
-
Oil & gas infrastructure and upstream/downstream equipment
-
Industrial automation with sensitive monitoring equipment
-
Chemical processing and heavy manufacturing plants
✅ Product Advantages
-
Redundant Power Option: Enables dual power supplies to ensure maximum system uptime
-
Multi-Voltage Output: Provides three DC voltage rails for versatile applications
-
Compact Design: Half-height format conserves space in 3500 rack
-
Easy Integration: Plug-and-play compatibility with other 3500 series modules
-
Reliable Operation: Wide temperature tolerance and electrical protections
-
Visual Status Indicators: LED indicators provide clear operational status
🔄 Related Models – Same Series or Equivalent
| Model | Dimensions (mm) | Weight (kg) | Features |
|---|---|---|---|
| 3500/15 106M1079-01 | 120 × 50 × 252 | 1.3 | Standard AC power supply module |
| 3500/15 106M1081-01 | 120 × 50 × 252 | 1.4 | Power module with status monitoring |
| 3500/15 125840-02 | 120 × 50 × 252 | 1.5 | Universal input voltage range |
| 3500/15 129486-01 | 120 × 50 × 252 | 1.2 | High-reliability power module |
| 3500/15 133292-01 | 120 × 50 × 252 | 1.3 | Enhanced performance, extended output range |
🌟 Popular Models – Same Brand
| Model | Dimensions (mm) | Weight (kg) | Key Features |
|---|---|---|---|
| 3500/42M Proximitor | 100 × 25 × 250 | 0.9 | Proximity & vibration monitor |
| 3500/33 Relay Module | 100 × 25 × 250 | 0.7 | 16-channel relay output for alarms |
| 3500/25 Keyphasor Module | 100 × 25 × 250 | 0.8 | Speed sensing for rotating machinery |
| 3500/22M Comm. Interface | 100 × 25 × 250 | 1.0 | Transient and static data communication |
| 3500/65 Temperature Mon. | 100 × 25 × 250 | 1.1 | Temperature inputs for condition monitoring |
❓ Frequently Asked Questions (FAQ)
Q1: What is the main function of this module pair?
A1: The 127610-01 provides primary AC-to-DC conversion; the 106M2686-00 distributes multi-rail DC power to subsystems.
Q2: Can the modules be used independently?
A2: No, they function together within the 3500 rack to provide a complete power solution.
Q3: Does it support redundant configurations?
A3: Yes, you can install two power supplies side-by-side for automatic failover redundancy.
Q4: What happens if one power module fails?
A4: In a dual setup, the secondary unit takes over immediately without system interruption.
Q5: Can the power modules be replaced live?
A5: Yes, with redundancy enabled, hot-swapping is supported.
Q6: What voltages are available from the DC distributor?
A6: +8.5 VDC, +21 VDC, and –31 VDC, with a total capacity of 180 W.
Q7: Are the modules compatible with older 3500 racks?
A7: Yes, they are designed to be backward-compatible within the 3500 Series.
Q8: What kind of protections are included?
A8: Overcurrent protection, short-circuit protection, and thermal shutdown features are built in.
Q9: Are firmware updates required?
A9: Power modules do not typically require firmware updates; they operate based on fixed hardware logic.
Q10: What environments are these modules suited for?
A10: Designed for harsh industrial conditions including high temperature, vibration, and electrical noise.
