Product Overview

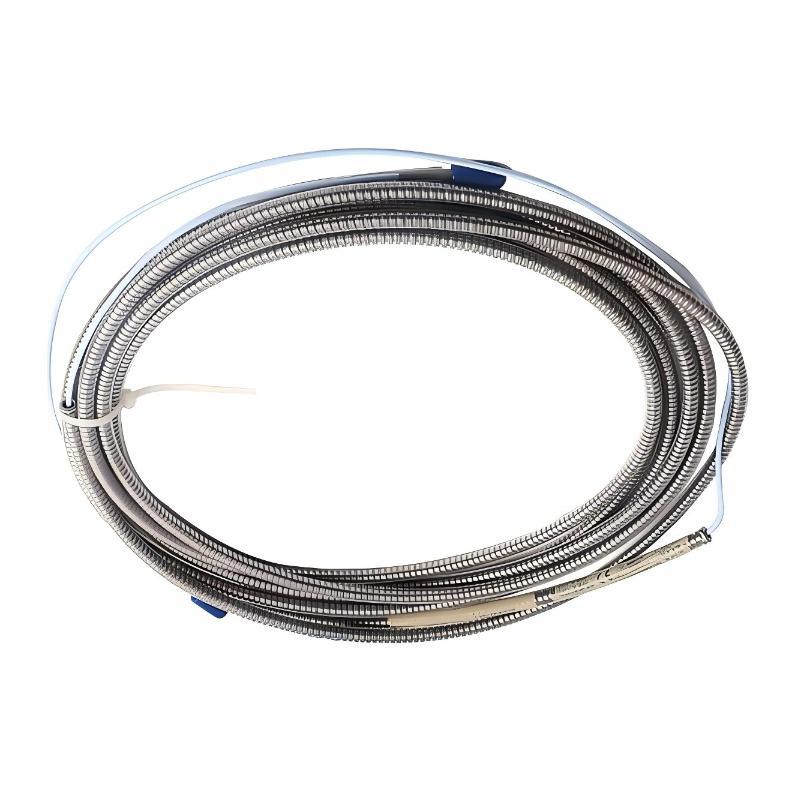

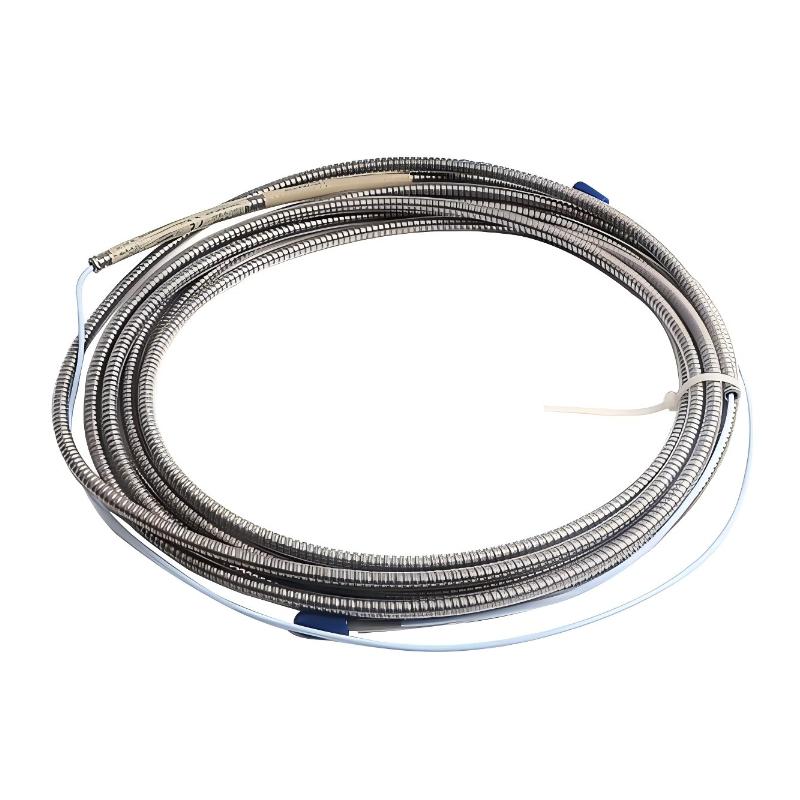

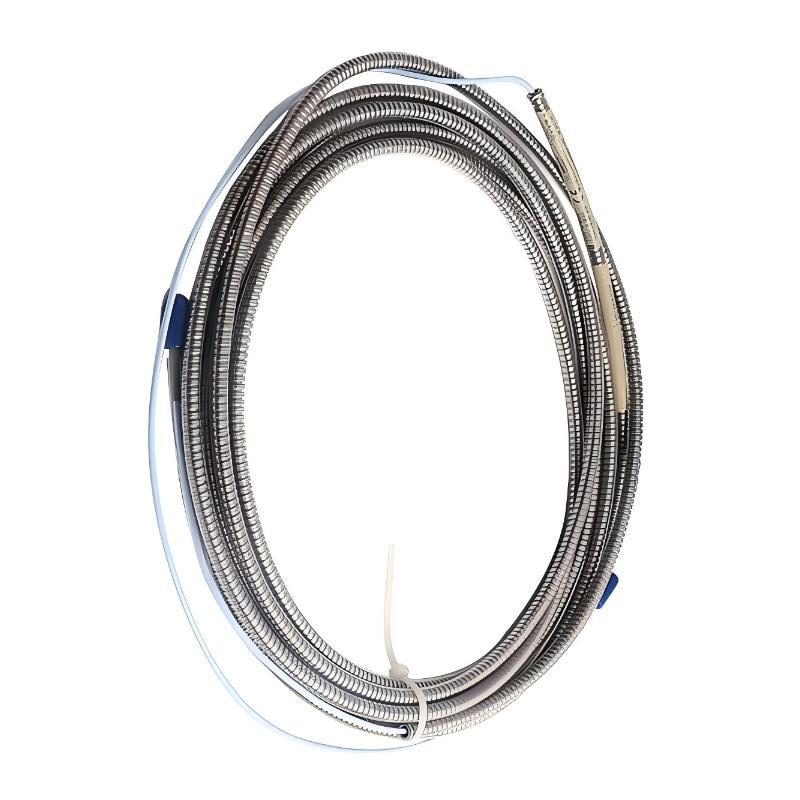

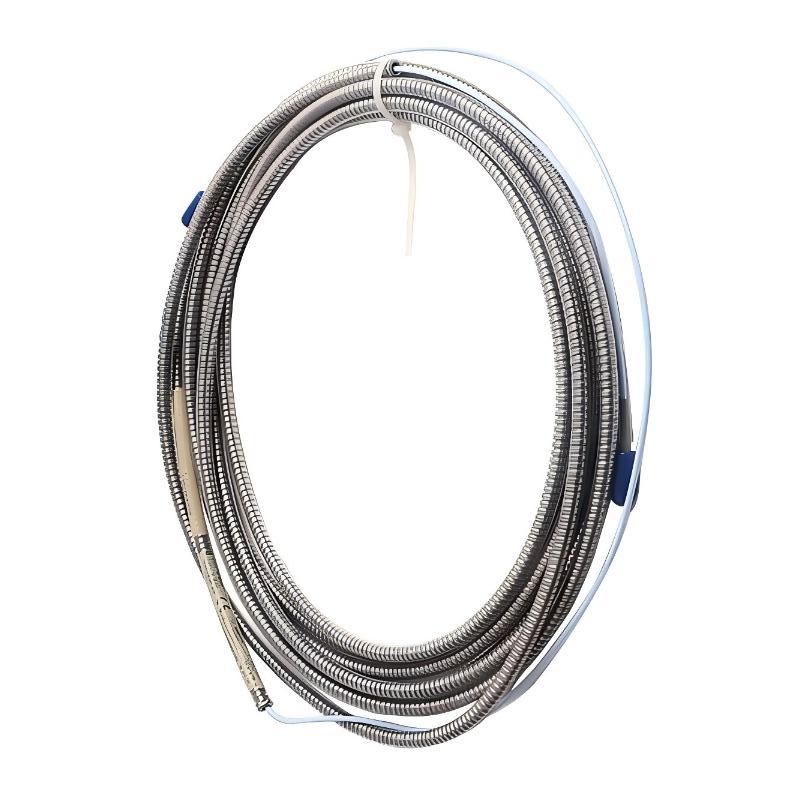

The Bently Nevada 330930-060-02-05 is a 3300 NSv Extension Cable used as part of a proximity measurement system for rotating machinery. It extends the connection between a compatible NSv proximity probe and the associated sensor/proximity interface, allowing the sensing point to be positioned at the required location on the machine while keeping the signal path connected to the monitoring system.

In a typical machinery monitoring installation, the probe is mounted close to a shaft, thrust collar, or other monitored target, while the connection point to the monitoring electronics may be located farther away. The extension cable bridges this physical distance and forms part of the complete probe-to-monitoring circuit. It is therefore selected together with the appropriate NSv probe and compatible system components rather than treated as a general-purpose cable.

For maintenance teams working on compressors, turbines, pumps, motors, gearboxes, and other rotating equipment, the extension cable also becomes important during probe replacement or system refurbishment. Correct cable identification helps maintain the intended measurement chain and avoids mixing cable components from incompatible proximity system families.

Technical Specifications

Product Features

• Intended for Bently Nevada 3300 NSv proximity measurement applications.
• Extends the physical connection between a compatible proximity probe and the monitoring interface.
• Supports installation where the probe location and monitoring electronics are separated by additional cable distance.
• Forms part of the complete proximity measurement circuit rather than functioning as a standalone monitoring device.
• Suitable for machinery condition monitoring installations involving rotating equipment.
• Helps maintain an organized probe-to-monitoring connection during system installation and maintenance.
• Can be used when replacing an existing extension cable with the same specified model.
• Appropriate for applications where correct cable family and connection compatibility are required.

Working Principle

The 330930-060-02-05 operates as a passive connection element within the 3300 NSv proximity measurement chain. The active sensing function comes from the compatible proximity probe and associated electronics; the extension cable provides the additional electrical path needed to connect these components when they are not installed directly next to each other.

1. Probe connection

A compatible 3300 NSv proximity probe is installed at the machinery measurement point. The probe senses changes associated with the relative position of the monitored target, such as a rotating shaft.

2. Cable extension

The extension cable connects the probe assembly to the corresponding monitoring or interface component. This allows the physical probe location to remain close to the machine while the downstream electronics can be installed at a more suitable cabinet or monitoring location.

3. Signal path

During operation, the electrical measurement path passes through the probe and extension cable to the associated monitoring electronics. The extension cable therefore becomes part of the complete measurement circuit and must match the intended NSv system configuration.

4. Monitoring

The connected monitoring system processes the proximity measurement for machinery condition monitoring. Depending on the overall system configuration, the measurement can be used for parameters such as shaft position, vibration-related behavior, or other machine-condition analysis.

5. Maintenance

Because the cable is part of the measurement chain, damaged connectors, poor connections, physical cable damage, or incorrect cable selection can affect the overall measurement system. Cable condition should therefore be considered whenever abnormal proximity readings appear after maintenance work.

Role in a 3300 NSv Proximity Monitoring Architecture

The extension cable occupies the physical connection layer between the proximity sensing element and the associated monitoring electronics. It does not replace the probe or monitoring module; instead, it allows those components to be positioned correctly within the machinery monitoring installation.

Industrial Applications

Installation and Maintenance

1. Verify the model – Confirm that 330930-060-02-05 matches the existing 3300 NSv system configuration before installation.
2. Check probe compatibility – Confirm that the connected proximity probe belongs to the intended NSv product family and is compatible with the associated electronics.
3. Inspect connectors – Check connector surfaces for contamination, corrosion, mechanical damage, or signs of poor contact.
4. Route the cable carefully – Keep the cable properly supported and avoid unnecessary bends or mechanical stress.
5. Avoid abrasion – Prevent the cable from rubbing against rotating equipment, sharp cabinet edges, or other moving components.
6. Maintain connection integrity – Make sure both ends are fully seated and mechanically secured according to the system installation practice.
7. Separate from mechanical hazards – Route the cable away from areas where it could be pinched, crushed, or exposed to excessive vibration.
8. Check after probe replacement – Whenever a proximity probe is replaced, inspect the extension cable and its connections at the same time.
9. Inspect during maintenance shutdowns – Look for cuts, deformation, loose connections, or other visible signs of deterioration.
10. Investigate abnormal readings – If a proximity measurement changes unexpectedly after maintenance, check the complete probe, cable, and interface chain before assuming a sensor failure.
11. Keep cable identification clear – Record the cable model during maintenance to prevent accidental substitution with a different cable family.
12. Replace damaged cables – A cable showing physical or connection-related damage should be replaced with a correctly matched component rather than repaired with an improvised connection.

Related Components

Recommended Related Models

Key Advantages

• 3300 NSv system compatibility
• Extends probe-to-electronics connection
• Supports flexible probe installation
• Suitable for rotating machinery monitoring
• Useful for maintenance and system replacement work
• Maintains the intended proximity measurement signal path

Technical FAQs

What is the function of the Bently Nevada 330930-060-02-05?

The 330930-060-02-05 is an extension cable used in a Bently Nevada 3300 NSv proximity measurement system. Its primary function is to extend the electrical connection between a compatible proximity probe and the associated monitoring electronics.

Can the 330930-060-02-05 be used with any Bently Nevada proximity probe?

It should not be treated as a universal Bently Nevada probe cable. Compatibility depends on the specific proximity system family, probe configuration, and associated electronics. The complete existing system should be checked before selecting a replacement cable.

What should be checked if the proximity signal becomes unstable after cable replacement?

First inspect both cable connections and the probe connection for looseness, contamination, or mechanical damage. Then check the cable routing and physical condition. If the problem remains, the probe and associated monitoring electronics should also be evaluated as part of the complete measurement chain.

Why is the extension cable important in a proximity monitoring installation?

The extension cable allows the sensing probe to remain at the required machinery measurement point while the associated monitoring electronics can be located elsewhere in the installation. Correct cable selection helps preserve the intended electrical connection and system configuration.
