Bently Nevada 330930-040-04-05 Extension Cable — Technical Specifications, Product Introduction, Applications, and Related Models

1. Product Overview

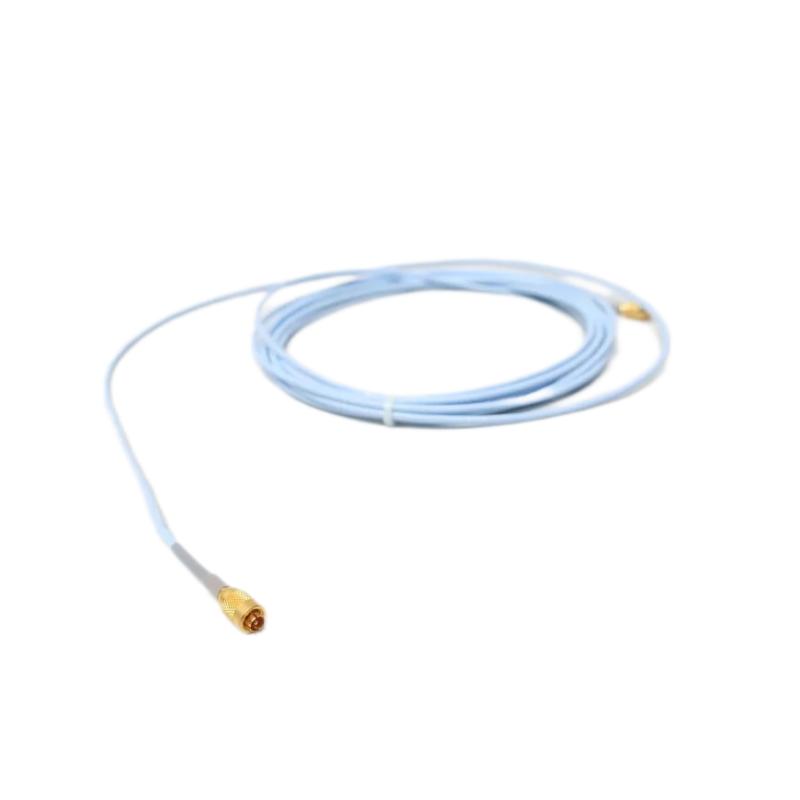

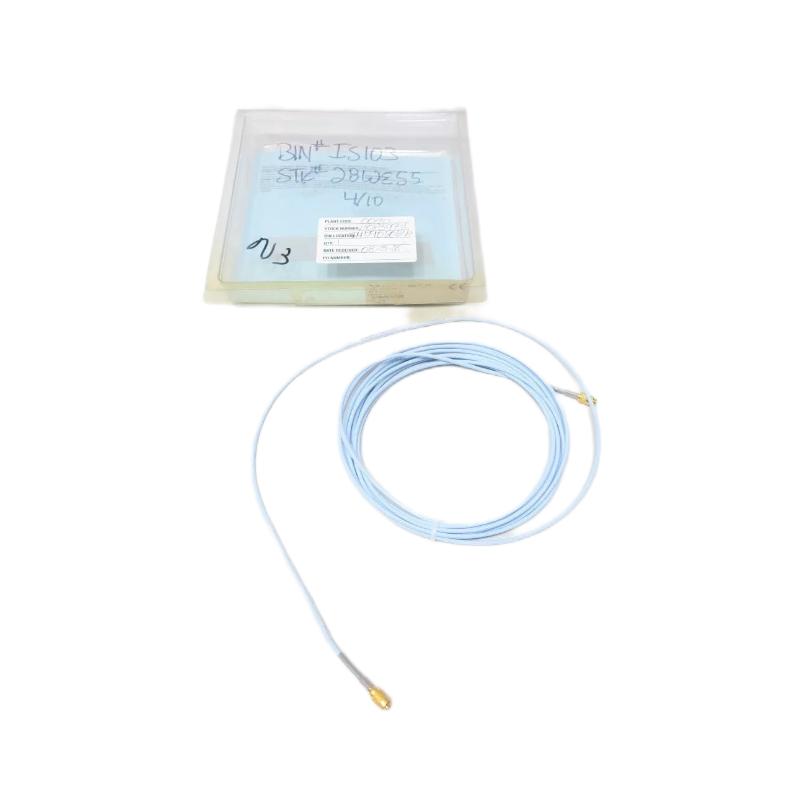

The Bently Nevada 330930-040-04-05 is an extension cable designed for the 3300 XL NSv proximity transducer system. It connects a compatible proximity probe to its matching Proximitor sensor and helps maintain the electrical characteristics needed for accurate shaft-displacement and vibration-related measurements.

This configuration has a nominal cable length of 4.0 m, stainless-steel armor, an FEP outer jacket, and a connector protector. The final 05 suffix denotes the multiple-approvals option in this ordering format. These features make it suitable for compatible industrial installations where the cable needs additional mechanical protection and where specified approvals are required.

Apter Power

+1

The cable is not a sensor by itself. It does not directly measure vibration or shaft position; instead, it forms part of a complete measurement channel consisting of a compatible probe, extension cable, Proximitor sensor, and monitoring equipment.

The 3300 XL NSv system is intended for machinery installations where conventional proximity probes may be unsuitable because of limited mounting clearance, small shaft targets, or counterbore and side-view constraints.

2. Technical Parameters

The 4.0 m length is the nominal cable length, not the package length. The approximate weight and package dimensions are commercial reference values rather than guaranteed engineering dimensions. The exact connector envelope, cable diameter, and certification details should be confirmed for the supplied assembly.

https://www.apter.com

+1

3. Model Number Breakdown

The complete model number identifies the cable family, cable length, construction, and approval configuration.

The complete ordering code is important when replacing an existing cable. A cable with the same nominal length but a different construction or approval suffix may not meet the mechanical, environmental, or certification requirements of the installation.

4. Product Introduction

4.1 Function within the proximity transducer system

The 330930 extension cable connects the proximity probe to the matching Proximitor sensor. The probe detects changes in the gap between its sensing tip and a suitable conductive target. The Proximitor sensor processes the probe response and produces the signal used by the monitoring equipment.

The extension cable must have the electrical characteristics required by the transducer system. Substituting a general-purpose coaxial cable can affect the measurement response even if the connector appears to fit.

4.2 Stainless-steel armored construction

The stainless-steel armor provides mechanical protection around the cable. It can help reduce the risk of damage from incidental contact, handling, and other mechanical stresses encountered around industrial machinery.

Armor is especially useful when the cable passes through a machine area where ordinary cable insulation alone may not provide sufficient protection.

However, the armor does not make the cable immune to damage. Correct routing, suitable bend radius, strain relief, and protection from excessive pulling or twisting remain necessary.

4.3 FEP outer jacket

FEP is used as a cable insulation and jacket material in industrial instrumentation because of its useful temperature and chemical-resistance characteristics.

The jacket provides an additional protective layer around the cable construction. Its suitability for a particular chemical, temperature, or process environment should still be checked against the applicable technical specifications.

4.4 Connector protector

The connector protector helps shield the connection area from incidental handling and environmental exposure. This is useful where the cable connection is installed near machinery and may be accessed during inspection or maintenance.

The protector should be installed and secured according to the applicable instructions. It should not be assumed to provide a particular ingress-protection rating unless that rating is explicitly specified for the assembly.

4.5 Designed for restricted installation spaces

The 3300 XL NSv system is intended for applications where probe installation may be constrained by small targets, limited clearance, counterbores, or restricted side-view geometry.

The extension cable supports these applications by providing the required electrical connection between the probe and the associated electronics.

4.6 Multiple-approval configuration

The 05 suffix indicates the multiple-approvals option in this cable ordering format. This may be relevant when equipment is installed in regulated industrial locations.

The actual approvals applicable to the delivered cable should be confirmed from its product identification and certification documentation. The suffix alone should not be used to assume that every hazardous-area or regional requirement is satisfied.

5. Product Applications

5.1 Centrifugal compressors

Centrifugal compressors are widely used in process industries, gas handling, refrigeration, and industrial utilities. A compatible proximity transducer system can monitor shaft displacement and vibration-related movement.

The 330930 extension cable connects the installed probe to the matching electronics. Its armored construction can be useful where cable protection is important around the compressor casing.

5.2 Process gas compressors

Process gas compressors often operate continuously, making reliable condition monitoring important for plant availability. Proximity measurements can help operators observe changes in shaft behavior and compare them with historical trends.

The cable supports the measurement channel, but accurate readings depend on the complete transducer system, correct installation, and compatible monitoring equipment.

5.3 Refrigeration compressors

Large refrigeration systems use compressors that may require continuous monitoring. Where an NSv proximity system is appropriate, the extension cable can provide the connection between the sensing probe and the Proximitor sensor.

The cable’s temperature and environmental limits must be considered when routing it through machinery rooms or other controlled process areas.

5.4 Steam and gas turbines

In compatible turbine installations, proximity probes can measure shaft movement relative to a fixed reference point. The extension cable carries the probe signal to the associated electronics.

The cable should be routed and secured to avoid unnecessary mechanical stress, vibration-related movement, or exposure to temperatures outside its specified limits.

5.5 Pumps and auxiliary rotating equipment

Some pumps, fans, gearboxes, and auxiliary rotating machines use proximity transducers to monitor shaft displacement. The cable can be used where the selected NSv system is suitable for the machine’s geometry and measurement requirements.

The exact probe and cable configuration should be determined by the machine design rather than by physical fit alone.

5.6 Small-shaft and restricted-clearance installations

The 3300 XL NSv family is intended for installations where a conventional 5 mm or 8 mm proximity system may be difficult to use because of limited space or target geometry.

This makes it relevant to selected applications involving small shafts and restricted mounting locations. The suitability of the complete system depends on the probe, target, mounting geometry, cable, and driver configuration.

5.7 Industrial condition monitoring

In an online monitoring system, shaft-related measurement signals can be reviewed continuously or recorded for trend analysis. A correctly selected extension cable helps maintain the connection between the probe and electronics.

The cable is one element of the system; it does not independently detect faults or determine machine condition.

5.8 Predictive maintenance

A properly configured proximity monitoring channel can provide measurements that maintenance teams compare over time. Changes in the readings may prompt further inspection or a review of operating conditions.

The value of these measurements depends on stable electrical connections, correct installation, and appropriate interpretation of the monitoring data.

6. Main Product Advantages

6.1 Additional mechanical protection

The stainless-steel armor helps protect the cable against incidental mechanical contact. This can be beneficial in machinery areas where routine inspection and maintenance create a risk of cable damage.

6.2 FEP-jacketed construction

The FEP jacket provides an additional layer of protection and has useful chemical-resistance characteristics for many industrial environments. Suitability must be confirmed for the actual chemicals and temperatures involved.

6.3 Integrated connector protection

The connector protector helps protect the connection area during installation and normal service. It can also make the assembly easier to handle when connections need to be inspected or maintained.

6.4 Four-metre cable length

The nominal 4.0 m length gives installers flexibility when positioning the probe and associated electronics. It can accommodate a range of physical layouts without requiring an unnecessarily long cable, provided the system design permits that length.

6.5 Compatibility with the NSv system

The cable is designed for the 3300 XL NSv transducer arrangement. Using the correct system-specific cable helps maintain the electrical characteristics required by the complete measurement channel.

6.6 Supports continuous monitoring

When correctly connected to a compatible probe and Proximitor sensor, the cable supports the continuous transmission of measurement signals to the monitoring equipment.

6.7 Useful for maintenance and replacement work

The complete model number identifies the cable length, construction, and approval option. This helps maintenance personnel distinguish the required part from similar cables with different configurations.

6.8 Suitable for demanding industrial installations

The combination of stainless-steel armor, FEP jacket, and connector protection can be useful where cable durability is an important consideration. Actual suitability depends on the operating environment and the specified limits of the assembly.

7. Installation and Maintenance Recommendations

1. Check the complete model number. Confirm that the replacement is 330930-040-04-05, including all suffixes.

2. Verify the cable length. Ensure that 4.0 m is appropriate for the installation and compatible with the selected transducer system.

3. Confirm system compatibility. Match the extension cable to the installed probe and Proximitor sensor.

4. Inspect the armor and jacket. Check for crushing, severe kinks, exposed conductors, corrosion, or other damage before installation.

5. Protect the connector. Keep the connector clean and use the protector as specified by the installation instructions.

6. Avoid excessive bending. Maintain the required bend radius and avoid sharp turns that could damage the cable.

7. Secure the cable properly. Prevent unnecessary pulling, twisting, and movement at the connector ends.

8. Check the approval documentation. Confirm that the multiple-approvals option meets the requirements of the installation site.

9. Verify the complete measurement channel. Check the probe, cable, driver, and monitor together rather than assessing the cable in isolation.

10. Record replacement details. Document the full model number, installation location, date, and relevant commissioning checks.

8. Five Related Models in the Same Series

The following are related 3300 NSv extension-cable configurations. They are useful comparison options when cable length, jacket construction, or connector protection requirements differ.

These models are related configurations, not necessarily direct replacements. The correct choice depends on the required cable length, jacket and armor design, connector protection, and approval requirements. Confirm the exact dimensions and net weight for the supplied part before procurement.

9. Five Other Commonly Used Models from the Same Brand

The following models cover related sensing and machinery-monitoring functions. They are not all extension cables, so each must be evaluated according to its role in the complete monitoring system.

The probes, extension cables, and monitoring modules serve different functions. A model from another family should not be used as a substitute without confirming electrical compatibility and the design requirements of the complete measurement channel.

10. Purchasing Checklist

11. Product Summary

The Bently Nevada 330930-040-04-05 is a 4.0 m extension cable for the 3300 XL NSv proximity transducer system. Its principal features are stainless-steel armor, an FEP outer jacket, a connector protector, and a multiple-approvals configuration.

The cable provides the electrical connection between a compatible proximity probe and its Proximitor sensor. It supports shaft-displacement and vibration-related measurement applications by maintaining the connection required by the complete transducer system.

Its main advantages are additional mechanical protection, a defined 4.0 m cable length, connector protection, and a construction intended for industrial monitoring installations. For replacement or new installation, the most important checks are the complete model number, cable length, connector arrangement, system compatibility, and approval documentation.

The listed weight of approximately 0.25 kg and package dimensions of 27 × 27 × 2 cm should be treated as commercial reference figures, not guaranteed engineering specifications. Confirm the supplied assembly’s actual weight and dimensions when exact procurement records are required.
