Product Overview

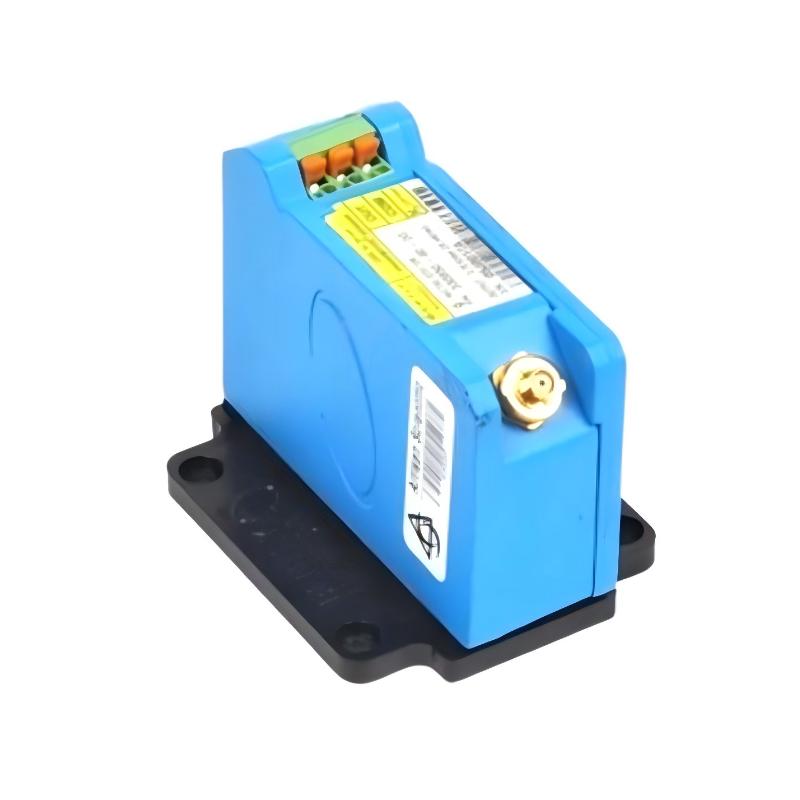

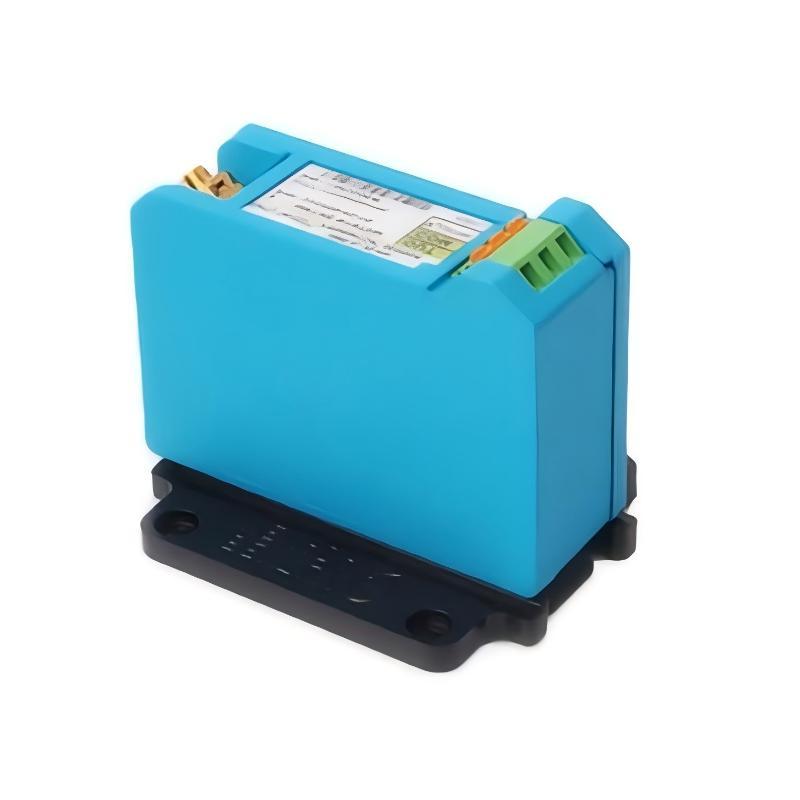

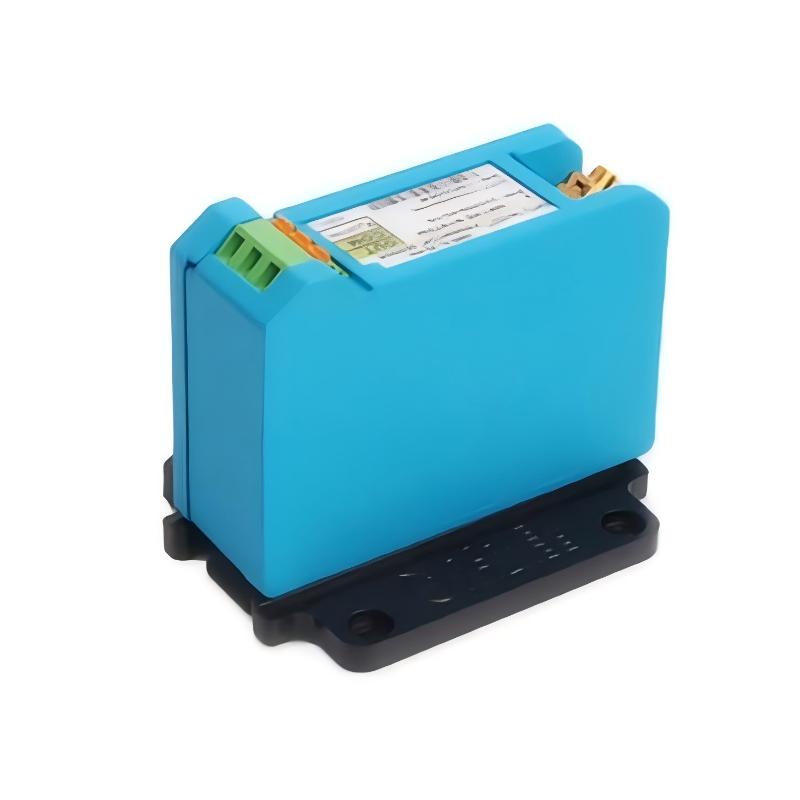

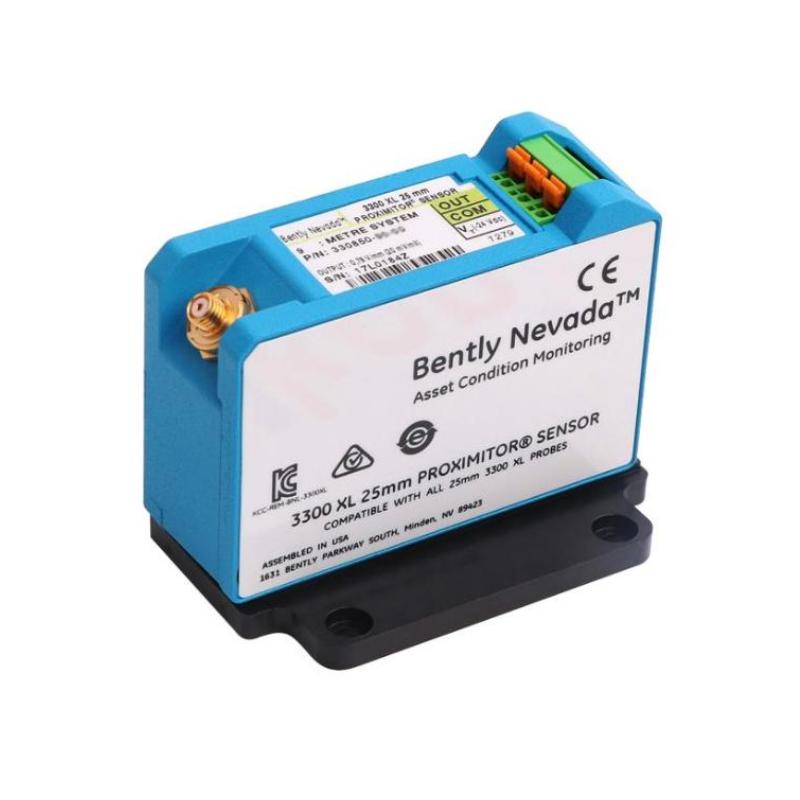

The Bently Nevada 330850-51-CN is a 25 mm proximity front sensor from the 3300 XL series, designed for high-precision monitoring of vibration and shaft displacement in rotating machinery. It is part of the widely used Bently Nevada 3300 XL condition monitoring system, which provides reliable machinery protection and real-time performance analysis in industrial environments.

This sensor is engineered for continuous operation in demanding applications, ensuring stable and accurate measurement of mechanical movement in critical rotating equipment such as turbines, compressors, and pumps.

Technical Specifications

Function and Working Principle

The 330850-51-CN sensor operates using eddy current proximity sensing technology. It generates a high-frequency electromagnetic field at the probe tip. When a conductive target such as a rotating shaft enters this field, eddy currents are induced on the surface.

Changes in these currents are measured and converted into precise displacement and vibration signals.

This allows the sensor to provide:

• Accurate shaft vibration measurement
• Precise displacement tracking
• Stable long-term monitoring performance
• Non-contact operation with no mechanical wear
• Real-time dynamic response for rotating machinery

Role in Industrial Control Systems

The Bently Nevada 330850-51-CN plays a critical role in machinery protection and condition monitoring systems. Integrated into the 3300 XL architecture, it continuously delivers vibration and position data to monitoring modules.

Its main functions include:

• Detecting early-stage mechanical faults
• Monitoring rotor dynamics and shaft movement
• Providing input for alarm and shutdown systems
• Supporting predictive maintenance programs
• Enhancing overall equipment reliability and safety

This makes it an essential component in protecting high-value industrial assets.

Industrial Applications

The 330850-51-CN sensor is widely used in industries where precise rotating equipment monitoring is required:

• Power generation plants (steam and gas turbines)
• Oil and gas production facilities
• Petrochemical and chemical processing plants
• Industrial compressors and pump systems
• Marine propulsion and engine systems
• Heavy manufacturing machinery

It is designed for harsh environments where continuous and reliable monitoring is critical.

Installation and System Integration

Proper installation is essential to ensure accurate measurement performance:

• Installed close to rotating shafts with precise gap calibration
• Mounted in machine housings or bearing support structures
• Connected to Bently Nevada 3300 XL monitoring modules
• Aligned accurately with the target surface
• Integrated into vibration monitoring and protection systems

Correct setup ensures stable signal output and accurate vibration data acquisition.

Compatible System Components

The 330850-51-CN sensor is typically used with:

• Bently Nevada 3300 XL monitoring system modules
• Proximity probe drivers and signal conditioners
• Extension cables and connectors
• Machinery protection systems
• Vibration monitoring processors
• Condition monitoring software platforms

These components work together to form a complete industrial monitoring solution.

Recommended Alternative Models

Key Advantages

• High-precision non-contact measurement technology
• Reliable performance in harsh industrial environments
• Full compatibility with 3300 XL monitoring systems
• Long cable length for flexible installation (5.0 m)
• Supports predictive maintenance strategies
• Continuous and stable operation capability

Technical FAQs

What is the main function of the 330850-51-CN sensor?
It measures shaft vibration and displacement using eddy current proximity technology.

Which system is it compatible with?
It is designed for the Bently Nevada 3300 XL monitoring system.

What industries commonly use this sensor?
It is widely used in power generation, oil and gas, petrochemical, marine, and heavy industry applications.

Is it suitable for continuous operation?
Yes, it is designed for long-term industrial monitoring and continuous operation.

Conclusion

The Bently Nevada 330850-51-CN 3300 XL 25 mm Front Sensor is a high-performance proximity sensor designed for accurate vibration and displacement monitoring in critical rotating machinery. With its eddy current sensing technology and integration into the 3300 XL system, it delivers reliable real-time data for machinery protection and condition monitoring.

This sensor is a key solution for engineers aiming to improve asset reliability, reduce downtime, and implement effective predictive maintenance strategies in industrial environments.
