Product Overview

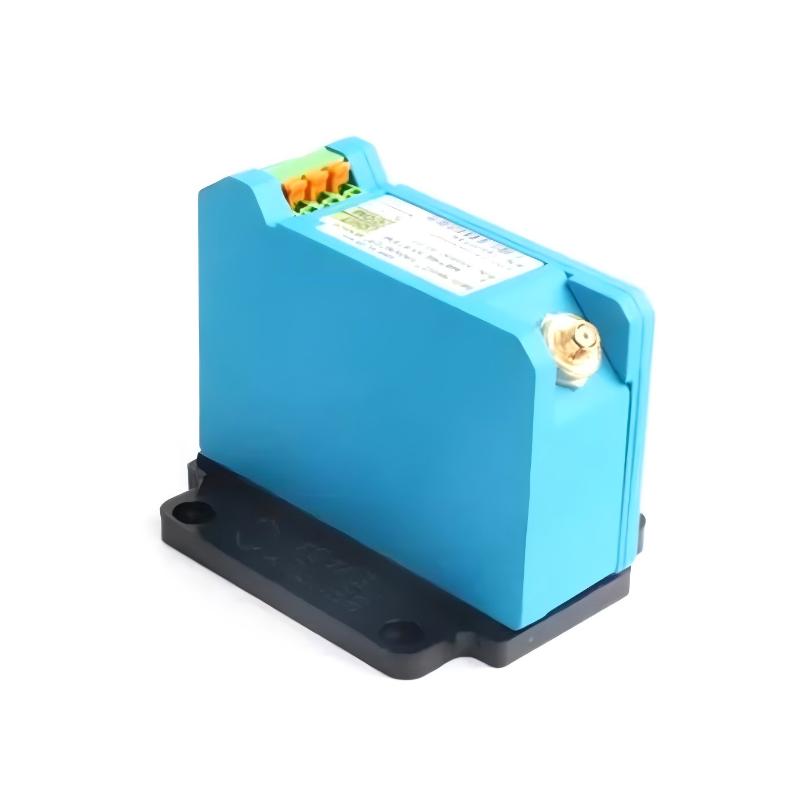

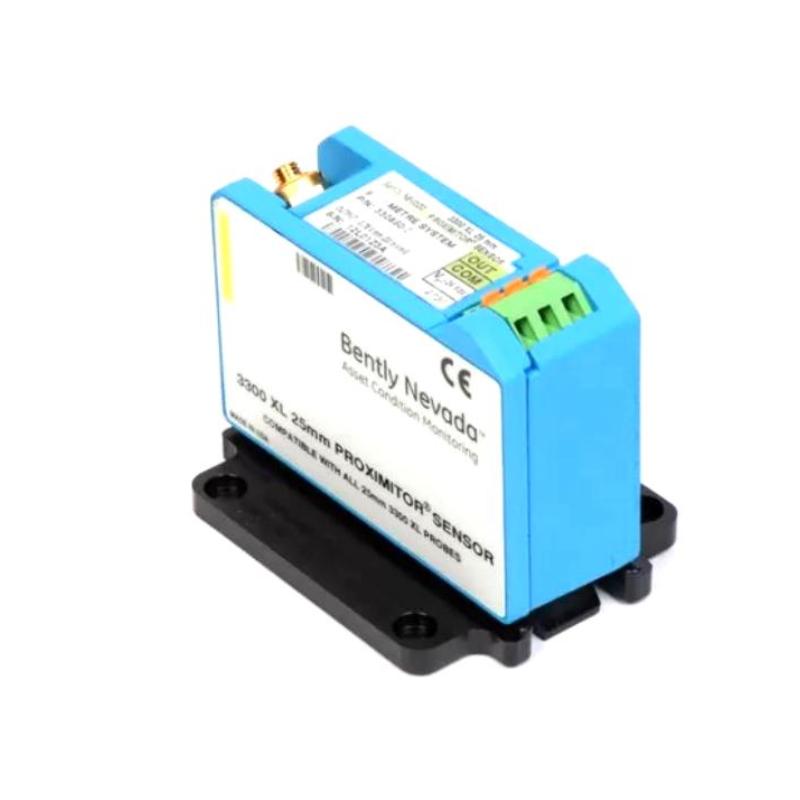

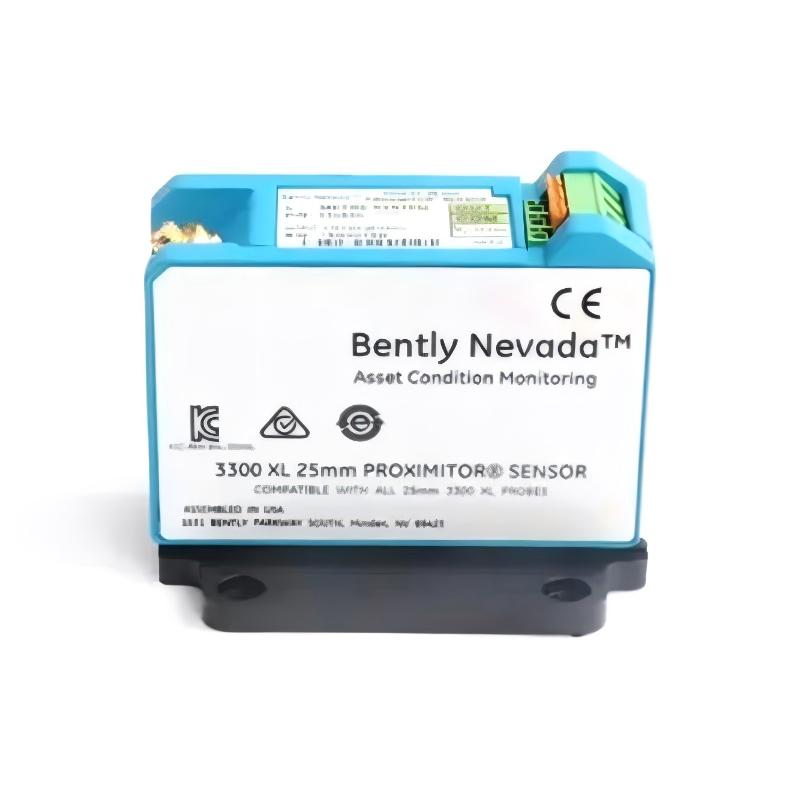

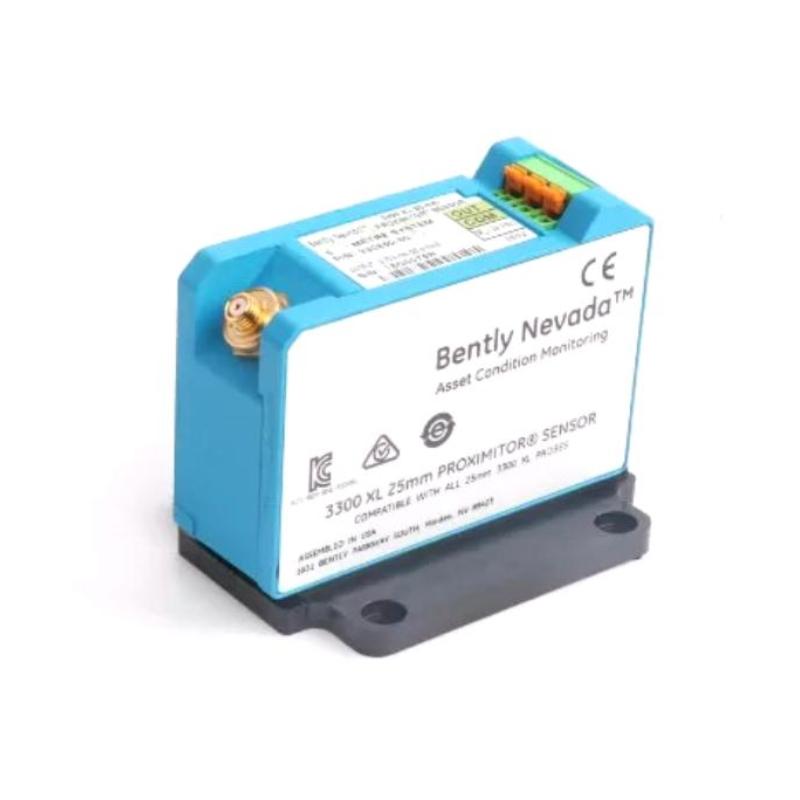

The Bently Nevada 330850-50-CN is a 25 mm front proximity sensor from the 3300 XL series, designed for high-precision vibration and displacement monitoring in critical rotating machinery. As part of the renowned Bently Nevada 3300 XL system, this sensor delivers accurate, real-time measurement data that supports machinery protection and condition monitoring in industrial environments.

Engineered for rugged performance, the 330850-50-CN sensor helps maintain equipment reliability and enables predictive maintenance strategies by continuously tracking vibration and shaft position.

Technical Specifications

Function and Working Principle

The 330850-50-CN sensor operates using eddy current proximity sensing technology, which generates an electromagnetic field at the sensor tip. When a conductive target, such as a rotating shaft, moves within this field, eddy currents are induced on the surface.

Changes in the induced currents are measured and converted into precise displacement and vibration data. Because the measurement is non-contact, the sensor avoids mechanical wear and provides long-term stability and reliability.

This working principle allows the sensor to deliver:

• High-accuracy vibration measurement
• Precise shaft position tracking
• Continuous monitoring without mechanical wear
• Real-time data for protection and control systems

Role in Industrial Control Systems

The Bently Nevada 330850-50-CN sensor plays a vital role in industrial control systems by feeding real-time vibration and displacement data into the 3300 XL monitoring architecture. This data is used by machinery protection modules and condition monitoring systems to:

• Detect early signs of imbalance, misalignment, or bearing wear
• Trigger alarms or protective shutdowns
• Provide feedback to control systems for corrective action
• Support long-term asset performance analysis

As a core component of machine protection systems, this sensor helps prevent catastrophic failures and extend equipment life.

Industrial Applications

The 330850-50-CN sensor is widely used across industries where precise machinery monitoring is essential:

• Power generation (steam and gas turbines)
• Oil and gas processing plants
• Petrochemical facilities
• Industrial compressors and pumps
• Heavy manufacturing equipment
• Marine propulsion systems

In these environments, continuous monitoring of vibration and shaft movement is critical for safety, performance, and maintenance planning.

Installation and System Integration

To ensure accurate and reliable operation, the sensor must be installed correctly:

• Mounted near the rotating shaft with proper gap calibration
• Secured in the machine housing or bearing support structure
• Connected to the monitoring system via high-quality cables
• Integrated into the 3300 XL proximity probe network
• Aligned precisely to target surfaces for optimal measurement

Proper installation and configuration are essential for achieving stable signal output and precise measurement data.

Compatible System Components

The 330850-50-CN sensor is typically used with the following components:

• Bently Nevada 3300 XL monitoring system modules
• Proximity probe drivers and signal conditioners
• Extension cables and connectors
• Machinery protection and alarm systems
• Data acquisition and condition monitoring software

Together, these components form a comprehensive vibration monitoring and protection solution for critical rotating machinery.

Recommended Alternative Models

Key Advantages

• High-precision non-contact vibration and displacement measurement
• Durable industrial design for continuous operation
• Full compatibility with the 3300 XL monitoring system
• Long-length cable for flexible installation
• Supports predictive maintenance and machinery protection
• Stable performance in harsh industrial environments

Technical FAQs

What is the primary function of the 330850-50-CN sensor?
It measures shaft vibration and displacement in rotating machinery using eddy current proximity technology.

Which system is it designed for?
It is designed for use with the Bently Nevada 3300 XL monitoring system.

What industries commonly use this sensor?
It is used in power generation, oil and gas, petrochemical, and heavy industrial applications.

Is this sensor suitable for continuous monitoring?
Yes, it is engineered for long-term industrial operation with reliable performance.

Conclusion

The Bently Nevada 330850-50-CN 3300 XL 25 mm Front Sensor is a high-performance proximity sensor designed for critical vibration and displacement monitoring in industrial environments. With its precise eddy current sensing technology and integration into the 3300 XL monitoring architecture, it delivers reliable data for machinery protection and condition monitoring.

This sensor is an essential component for engineers and maintenance professionals seeking to enhance equipment reliability, reduce downtime, and support advanced predictive maintenance strategies.
