- Bently Nevada
- 330702-00-25-10-02-00

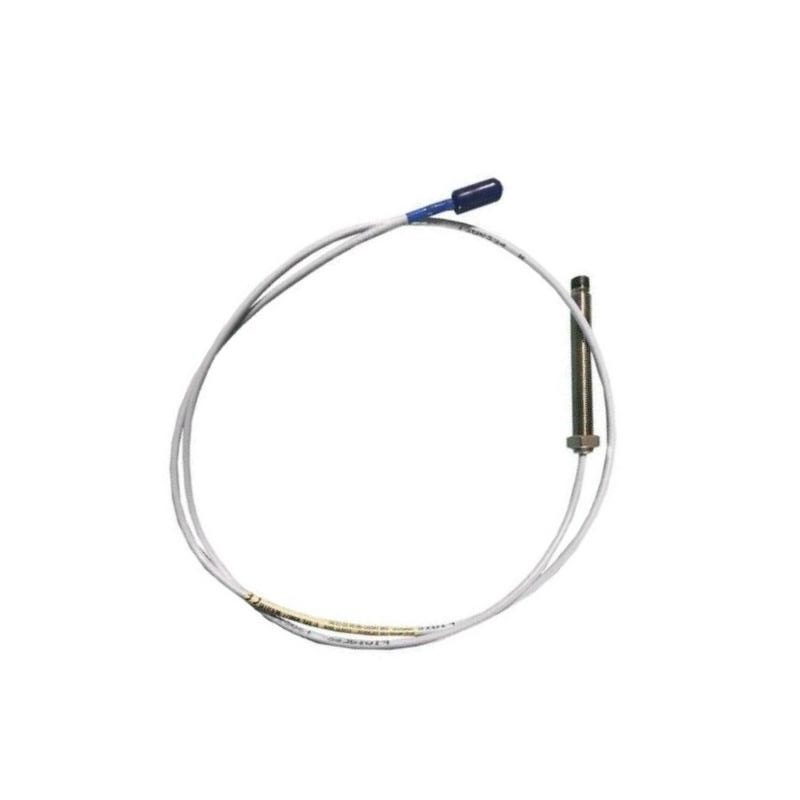

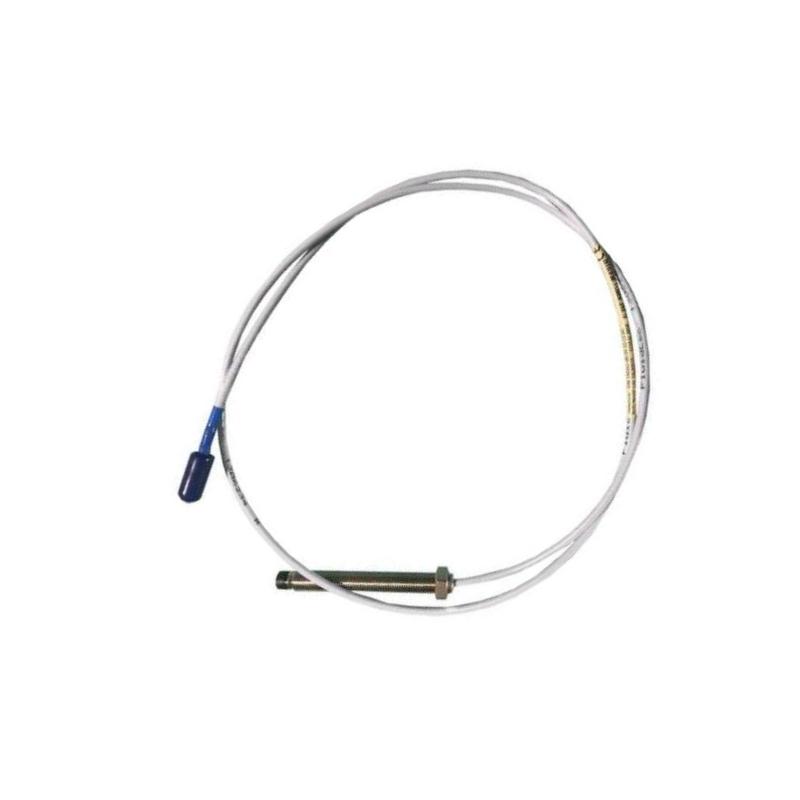

- 3300 XL 11 mm Eddy Current Probe
- USA
- 1 meter
- 0.17 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 4
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview
In modern industrial plants, reliable monitoring of rotating equipment is critical for improving operational safety, reducing maintenance costs, and preventing unexpected equipment failures. The Bently Nevada 330702-00-25-10-02-00 3300 XL 11 mm Eddy Current Probe is a precision non-contact displacement sensor designed for continuous vibration and position monitoring of critical rotating machinery.
The probe uses advanced eddy current sensing technology to measure the distance between the probe tip and the rotating shaft surface. Without physical contact with the machine shaft, it can continuously detect shaft movement, vibration changes, and displacement conditions during equipment operation.
The 3300 XL 11 mm Eddy Current Probe series is widely used in applications requiring high reliability and accurate measurement performance, including steam turbines, gas turbines, compressors, generators, pumps, and other large rotating equipment.
The Bently Nevada 330702-00-25-10-02-00 features a 1-meter total length configuration and is designed for integration with machinery protection and condition monitoring systems. Its robust construction allows stable operation in demanding industrial environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330702-00-25-10-02-00 |
| Product Series | 3300 XL 11 mm Eddy Current Probe |
| Product Type | Eddy Current Proximity Probe |
| Measurement Principle | Non-contact eddy current sensing |
| Probe Diameter | 11 mm |
| Measurement Function | Shaft vibration and displacement monitoring |
| Total Length | 1 meter |
| Sensor Type | Proximity displacement sensor |
| Installation Method | Threaded mounting |
| Measurement Target | Conductive rotating shaft surface |
| Application | Machinery condition monitoring |
| Operating Environment | Industrial rotating equipment |
| Weight | 0.17 kg |
Function and Working Principle
The Bently Nevada 330702-00-25-10-02-00 operates based on eddy current measurement technology.
The probe creates a high-frequency electromagnetic field around the sensing tip. When the probe is positioned near a conductive shaft surface, the electromagnetic field changes according to the distance between the probe and the target.
These changes are converted into electrical signals that represent shaft displacement and vibration characteristics. The monitoring system uses this information to evaluate machine health and provide early warning of potential mechanical problems.
Main Functions
1. Non-Contact Shaft Vibration Measurement
The main function of the probe is measuring shaft vibration without physical contact.
Benefits include:
- No mechanical wear
- Continuous online monitoring
- Stable measurement during high-speed rotation
- Improved equipment protection
This makes the probe suitable for machines operating under continuous load conditions.
2. Shaft Displacement Monitoring
The 3300 XL 11 mm Eddy Current Probe provides accurate shaft position measurement.
Typical monitoring parameters include:
- Radial vibration
- Axial displacement
- Rotor movement
- Shaft position changes
- Mechanical clearance variation
These measurements are essential for maintaining rotating equipment reliability.
3. Machinery Protection Support
The probe provides real-time condition data for machinery protection systems.
It helps detect:
- Rotor imbalance
- Shaft misalignment
- Mechanical looseness
- Bearing-related problems
- Abnormal operating conditions
By identifying early warning signals, maintenance teams can perform corrective actions before serious failures occur.
Role in Industrial Monitoring Systems
The Bently Nevada 330702-00-25-10-02-00 acts as a key sensing element in industrial machinery monitoring applications.
It works together with signal processing equipment and protection systems to provide complete equipment condition analysis.
| System Component | Function |
|---|---|
| Eddy Current Probe | Measures shaft vibration and displacement |
| Signal Processing Unit | Converts sensor signals |
| Monitoring Module | Evaluates machine condition |
| Alarm System | Provides abnormal condition notification |
| Control System | Performs equipment supervision |
The complete monitoring system helps improve reliability and reduce unexpected shutdowns.
Industrial Applications
Steam Turbine Monitoring
The probe is widely used in steam turbine systems for:
- Shaft vibration measurement
- Rotor position monitoring
- Turbine protection
- Condition-based maintenance
Accurate vibration data helps protect expensive turbine equipment.
Gas Turbine Applications
Typical uses include:
- High-speed rotor monitoring
- Shaft displacement measurement
- Mechanical protection
- Operating condition analysis
Compressor Condition Monitoring
The probe is suitable for:
- Centrifugal compressors
- Industrial process compressors
- Large rotating compression equipment
It helps identify abnormal vibration before equipment damage occurs.
Generator and Motor Monitoring
Applications include:
- Power generation equipment
- Large electric motors
- Industrial drive systems
- Heavy rotating machinery
Installation and System Integration
Correct installation is important for maintaining measurement accuracy and long-term reliability.
Mechanical Installation
Recommended installation procedures:
- Install the probe at the correct measurement location
- Maintain proper probe gap distance
- Align the probe tip with the shaft surface
- Secure the mounting position
- Prevent damage to the sensing tip
Electrical Integration
During installation, engineers should verify:
- Correct cable connection
- Proper signal transmission
- Cable protection
- Grounding conditions
- Monitoring system configuration
Proper wiring helps prevent signal instability and measurement errors.
Commissioning Process
Before operation:
- Confirm probe installation position
- Check sensor output signals
- Verify vibration readings
- Test monitoring functions
- Confirm alarm response
A complete commissioning process ensures reliable machinery monitoring.
Compatible System Components
The Bently Nevada 330702-00-25-10-02-00 can be integrated with related machinery monitoring components.
| Component | Function |
|---|---|
| 3300 XL Extension Cable | Extends probe connection distance |
| Signal Conditioner | Processes sensor output |
| Vibration Monitoring Module | Analyzes machine condition |
| Protection System | Provides alarm and shutdown functions |
| Industrial Control System | Supervises equipment operation |
Common Fault Symptoms and Troubleshooting
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| No signal output | Cable connection problem | Check probe wiring |
| Incorrect vibration value | Incorrect probe gap | Adjust installation distance |
| Signal fluctuation | Electrical interference | Improve cable routing |
| High vibration alarm | Mechanical equipment issue | Inspect rotating components |
| Sensor failure alarm | Probe or cable damage | Check sensor circuit |
| Intermittent measurement | Loose connection | Verify connectors |
Recommended Alternative Models
| Model | Product Type | Key Feature | Application |
|---|---|---|---|
| Bently Nevada 330702-00-25-10-02-00 | 3300 XL 11 mm Eddy Current Probe | 1 meter configuration | Machinery protection systems |
| Bently Nevada 330702-00-10 Series | Eddy Current Probe | Standard 11 mm sensing | Rotating equipment monitoring |
| Bently Nevada 330701 Series | Eddy Current Probe | General 3300 XL sensing solution | Industrial vibration monitoring |
| Bently Nevada 3300 XL 8 mm Probe | Eddy Current Probe | Compact sensing design | General machinery applications |
| Bently Nevada Proximity Probe Series | Displacement Sensor | Various installation options | Industrial equipment monitoring |
Key Advantages
- High-accuracy non-contact measurement
- Reliable shaft vibration monitoring
- Continuous online condition monitoring
- Suitable for critical rotating equipment
- Supports predictive maintenance strategies
- Reduces unexpected equipment downtime
- Provides stable industrial performance
- Improves machinery protection reliability
Technical FAQs
What is the Bently Nevada 330702-00-25-10-02-00?
The Bently Nevada 330702-00-25-10-02-00 is a 3300 XL 11 mm Eddy Current Probe designed for non-contact shaft vibration and displacement measurement.
What is the purpose of an eddy current probe?
An eddy current probe measures the distance between the sensor tip and a conductive shaft surface to monitor vibration and displacement.
Where is this probe commonly used?
It is commonly installed on turbines, compressors, generators, pumps, and other critical rotating machinery.
Does this probe contact the rotating shaft?
No. The probe uses electromagnetic sensing technology and operates without direct mechanical contact.
Conclusion
The Bently Nevada 330702-00-25-10-02-00 3300 XL 11 mm Eddy Current Probe is a reliable and accurate sensor designed for industrial machinery condition monitoring and protection applications.
With advanced non-contact measurement technology, it provides essential vibration and displacement data for maintaining the health of critical rotating equipment.
For industries such as power generation, oil and gas, petrochemical processing, and manufacturing automation, the Bently Nevada 330702-00-25-10-02-00 helps improve equipment reliability, optimize maintenance planning, and enhance operational safety.
