- Bently Nevada
- 330702-00-10-10-01-00
- 3300 XL 11 mm Eddy Current Probe
- USA
- 1 meter
- 0.17 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 4
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

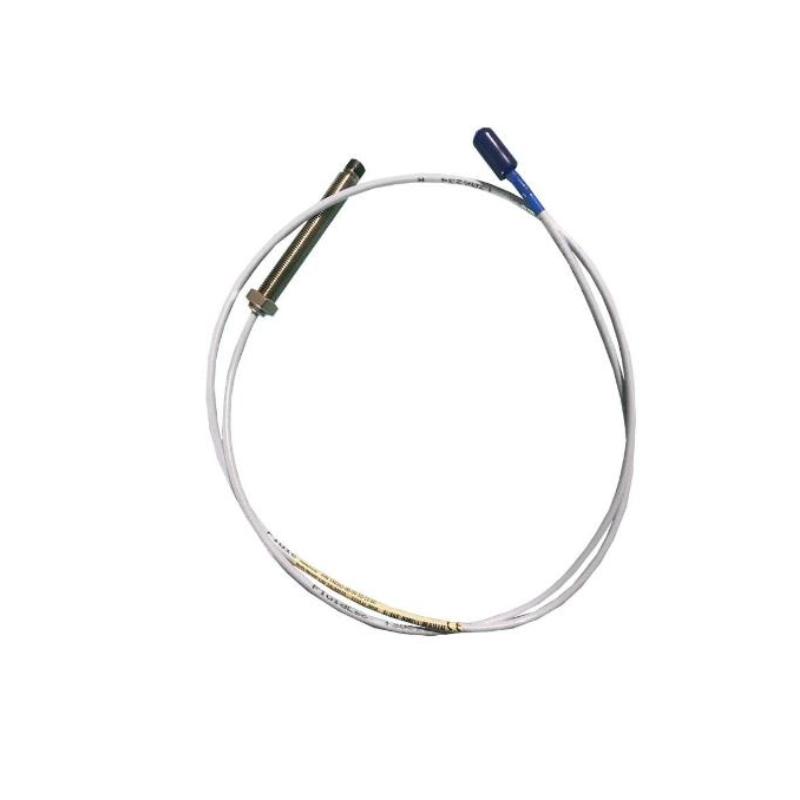

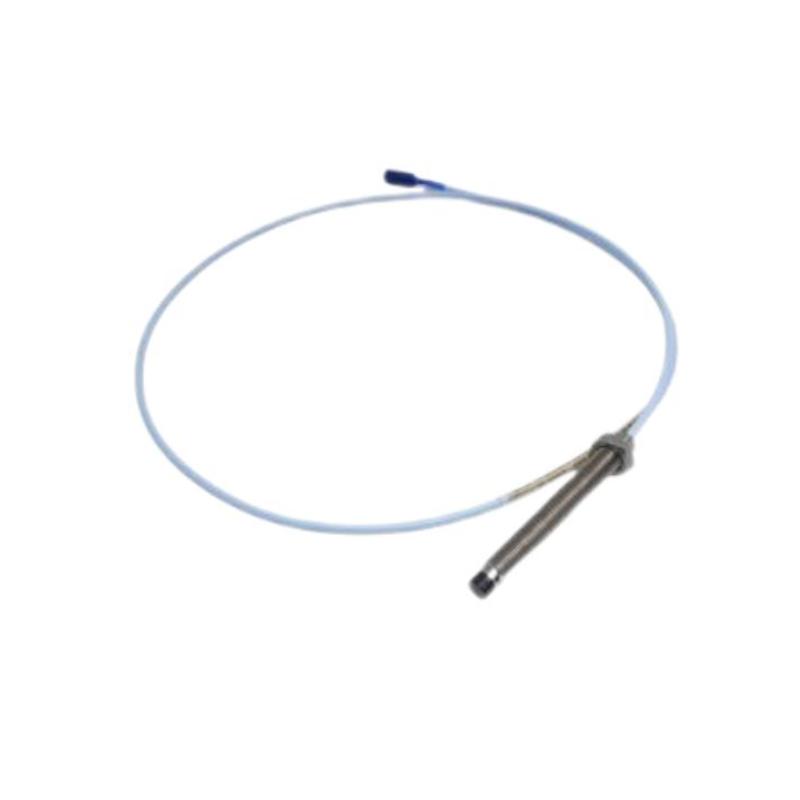

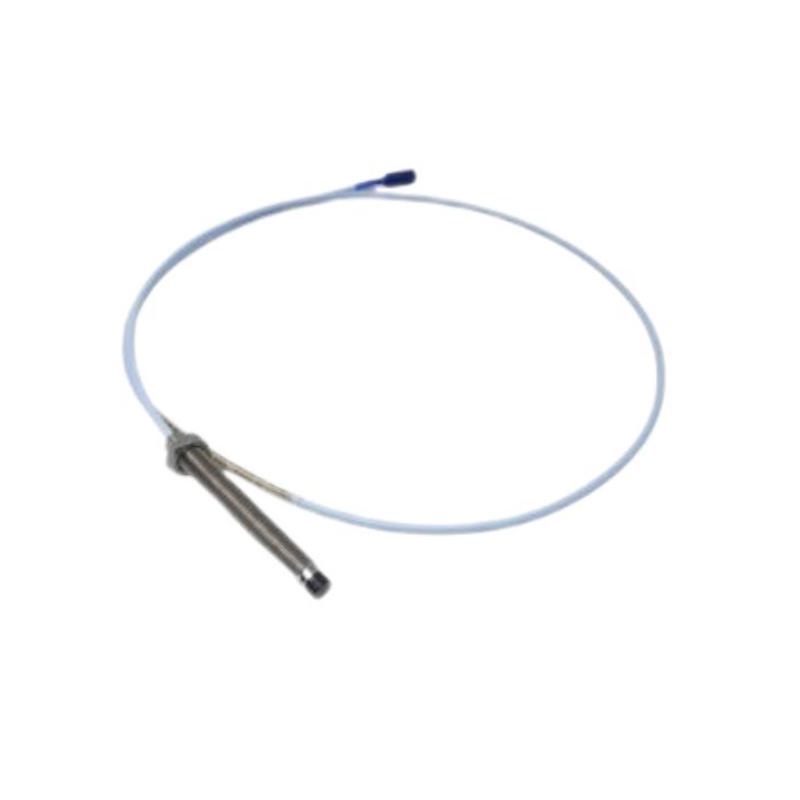

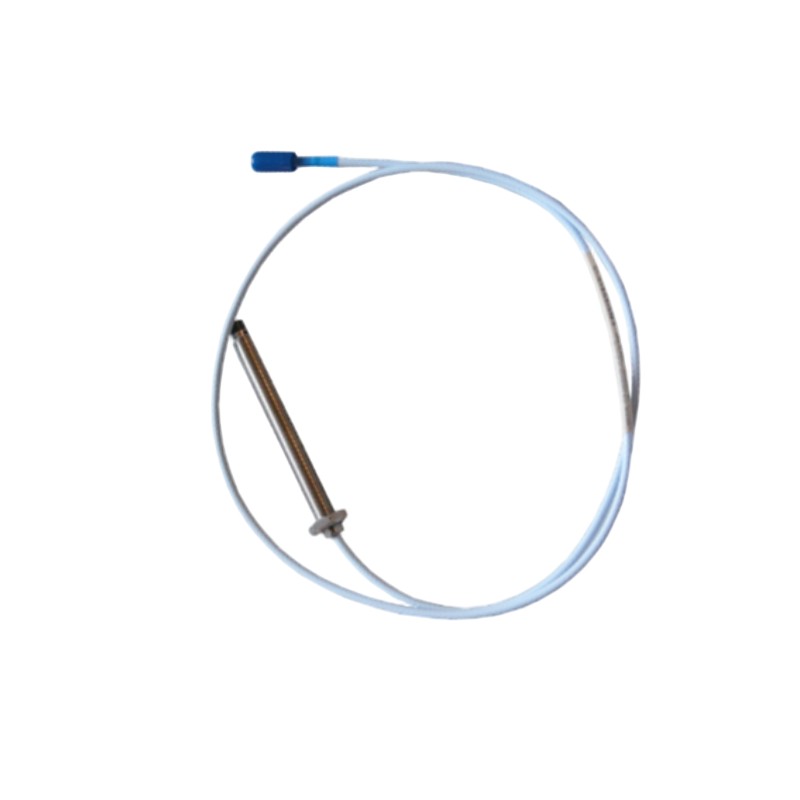

In modern industrial plants, continuous monitoring of rotating machinery is essential for improving equipment reliability, reducing downtime, and preventing unexpected failures. The Bently Nevada 330702-00-10-10-01-00 3300 XL 11 mm Eddy Current Probe is a high-performance non-contact displacement sensor designed for vibration monitoring and machinery protection applications.
The probe uses eddy current sensing technology to measure the distance between the probe tip and the rotating shaft surface. By detecting changes in the electromagnetic field generated around the conductive target, the sensor provides accurate information about shaft vibration, displacement, and mechanical movement.
The 3300 XL 11 mm Eddy Current Probe series is designed for large rotating equipment that requires reliable and continuous condition monitoring. It is commonly applied in turbines, compressors, generators, pumps, and other critical industrial machines where early detection of mechanical problems is necessary.
The Bently Nevada 330702-00-10-10-01-00 model features a 1-meter total length configuration and an enhanced probe design suitable for demanding industrial environments. Its robust construction helps maintain stable measurement performance under continuous operating conditions.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330702-00-10-10-01-00 |
| Product Series | 3300 XL 11 mm Eddy Current Probe |
| Product Type | Eddy Current Proximity Probe |
| Measurement Principle | Non-contact eddy current sensing |
| Probe Diameter | 11 mm |
| Measurement Function | Shaft vibration and displacement monitoring |
| Total Length | 1 meter |
| Cable Configuration | Integrated industrial cable design |
| Installation Type | Threaded mounting installation |
| Sensor Type | Non-contact displacement sensor |
| Application | Rotating machinery condition monitoring |
| Environment | Industrial machinery protection systems |
| Weight | 0.17 kg |
Function and Working Principle
The Bently Nevada 330702-00-10-10-01-00 operates using electromagnetic eddy current technology.
The probe generates an alternating electromagnetic field at the sensing tip. When the probe approaches a conductive shaft surface, eddy currents are created within the target material. Changes in the distance between the probe and the shaft modify the electromagnetic response, allowing the system to calculate shaft movement accurately.
The measured signal is transmitted to monitoring equipment for vibration analysis, machine condition evaluation, and protection functions.
Main Functions
1. Non-Contact Shaft Vibration Measurement
The probe measures shaft movement without direct mechanical contact.
Advantages include:
- No physical wear between sensor and shaft
- Suitable for high-speed rotating equipment
- Continuous online monitoring
- Stable measurement accuracy
This makes it ideal for critical machinery operating continuously.
2. Shaft Displacement Monitoring
The 3300 XL 11 mm Eddy Current Probe provides accurate displacement measurement.
Typical monitoring parameters include:
- Radial shaft vibration
- Axial shaft movement
- Rotor position changes
- Mechanical clearance variation
These measurements help engineers evaluate machine operating conditions.
3. Predictive Maintenance Support
The sensor provides important data for predictive maintenance programs.
It helps identify:
- Rotor imbalance
- Shaft misalignment
- Mechanical looseness
- Bearing deterioration
- Abnormal vibration conditions
Early detection allows maintenance teams to schedule repairs before major equipment damage occurs.
Role in Industrial Machinery Protection Systems
The Bently Nevada 330702-00-10-10-01-00 acts as a critical sensing component within machinery monitoring systems.
It collects real-time shaft movement information and works with signal processing and protection equipment.
| System Component | Function |
|---|---|
| Eddy Current Probe | Detects shaft displacement |
| Signal Processing Device | Converts and processes sensor signals |
| Monitoring Module | Evaluates vibration conditions |
| Alarm System | Provides abnormal condition warnings |
| Control System | Performs equipment supervision |
Together, these components provide complete protection for valuable rotating assets.
Industrial Applications
Steam Turbine Monitoring
The probe is widely used for:
- Turbine shaft vibration measurement
- Rotor position monitoring
- Mechanical protection
- Condition-based maintenance
Reliable vibration monitoring helps prevent severe turbine failures.
Gas Turbine Systems
Typical applications include:
- High-speed rotor monitoring
- Shaft displacement measurement
- Equipment protection
- Performance analysis
Compressor Monitoring
The sensor is suitable for:
- Centrifugal compressors
- Industrial process compressors
- High-speed compression equipment
It helps detect mechanical issues before production losses occur.
Generator and Motor Applications
The probe can monitor:
- Large generators
- Electric motors
- Industrial drive systems
- Rotating power equipment
Installation and System Integration
Proper installation is essential to achieve accurate measurement performance.
Mechanical Installation
Recommended installation practices:
- Install the probe at the correct measurement position
- Maintain proper probe gap distance
- Align the sensing tip with the shaft surface
- Secure mounting hardware
- Protect the probe from mechanical impact
Electrical Integration
During system installation, engineers should check:
- Correct cable connection
- Signal transmission path
- Cable protection
- Proper grounding
- Monitoring system compatibility
Commissioning Process
Before operation:
- Verify probe installation
- Check sensor output signal
- Confirm vibration measurement
- Adjust probe position if required
- Test monitoring alarms
Proper commissioning ensures reliable long-term operation.
Compatible System Components
The 330702-00-10-10-01-00 can be integrated with various machinery monitoring components.
| Component | Function |
|---|---|
| 3300 XL Extension Cable | Provides connection extension |
| Proximity Signal Conditioner | Processes probe signals |
| Vibration Monitoring Modules | Analyze equipment condition |
| Machinery Protection System | Provides alarm and shutdown functions |
| Industrial Control System | Supervises machine operation |
Common Fault Symptoms and Troubleshooting
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| No measurement signal | Cable connection failure | Check probe wiring |
| Incorrect vibration reading | Incorrect probe gap | Adjust installation distance |
| Signal instability | Electrical interference | Improve cable shielding |
| Excessive vibration alarm | Mechanical equipment issue | Inspect rotating components |
| Sensor failure indication | Probe or cable damage | Check sensor loop |
| Intermittent output | Loose connection | Verify installation connections |
Recommended Alternative Models
| Model | Product Type | Key Feature | Application |
|---|---|---|---|
| Bently Nevada 330702-00-10-10-01-00 | 3300 XL 11 mm Eddy Current Probe | 1 meter configuration | Machinery protection |
| Bently Nevada 330701 Series | Eddy Current Probe | Standard 3300 XL sensing | General vibration monitoring |
| Bently Nevada 330702 Series | Eddy Current Probe | Enhanced mechanical design | Industrial environments |
| Bently Nevada 3300 XL 8 mm Probe | Eddy Current Probe | Smaller sensing diameter | Compact applications |
| Bently Nevada Proximity Sensor Series | Displacement Sensor | Multiple installation options | Rotating equipment |
Key Advantages
- Advanced non-contact measurement technology
- Accurate shaft vibration monitoring
- Reliable displacement detection
- Suitable for critical rotating machinery
- Supports predictive maintenance strategies
- Reduces unexpected equipment downtime
- Designed for continuous industrial operation
- Improves machinery protection performance
Technical FAQs
What is the Bently Nevada 330702-00-10-10-01-00?
The Bently Nevada 330702-00-10-10-01-00 is a 3300 XL 11 mm Eddy Current Probe designed for non-contact shaft vibration and displacement measurement.
What is the main purpose of an eddy current probe?
An eddy current probe measures the distance between the sensor tip and a conductive shaft surface to monitor vibration and displacement.
Where is this probe commonly installed?
It is commonly installed on turbines, compressors, generators, pumps, and other large rotating machinery.
Does the probe physically contact the shaft?
No. The probe uses electromagnetic sensing technology and operates without mechanical contact.
Conclusion
The Bently Nevada 330702-00-10-10-01-00 3300 XL 11 mm Eddy Current Probe is a reliable solution for industrial machinery vibration monitoring and protection applications.
With accurate non-contact displacement measurement, robust industrial design, and stable performance, it provides essential condition monitoring data for critical rotating equipment.
For industries such as power generation, oil and gas, petrochemical processing, and manufacturing automation, the Bently Nevada 330702-00-10-10-01-00 helps improve equipment reliability, optimize maintenance strategies, and enhance operational safety.
