- Bently Nevada
- 330701-00-40-10-12-05

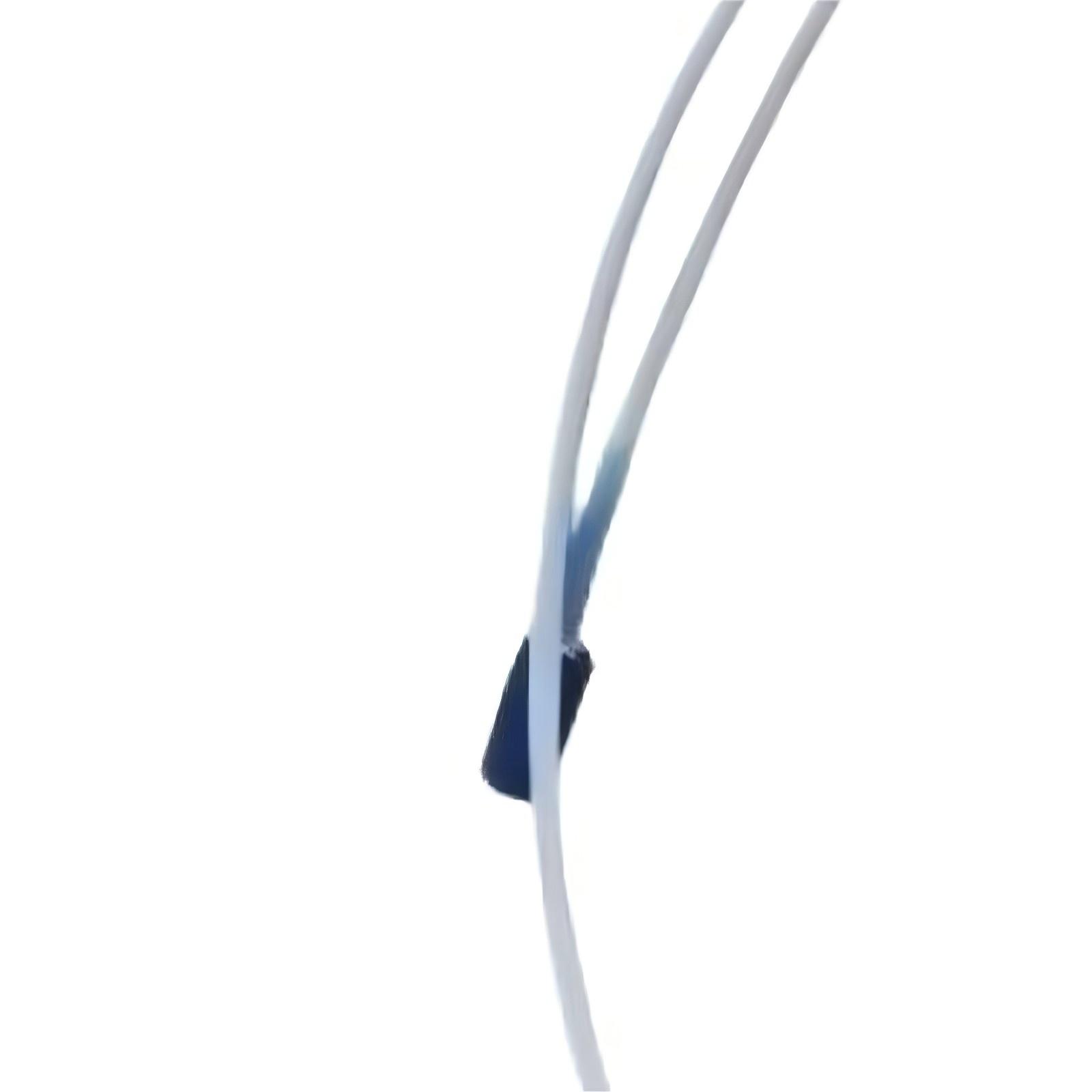

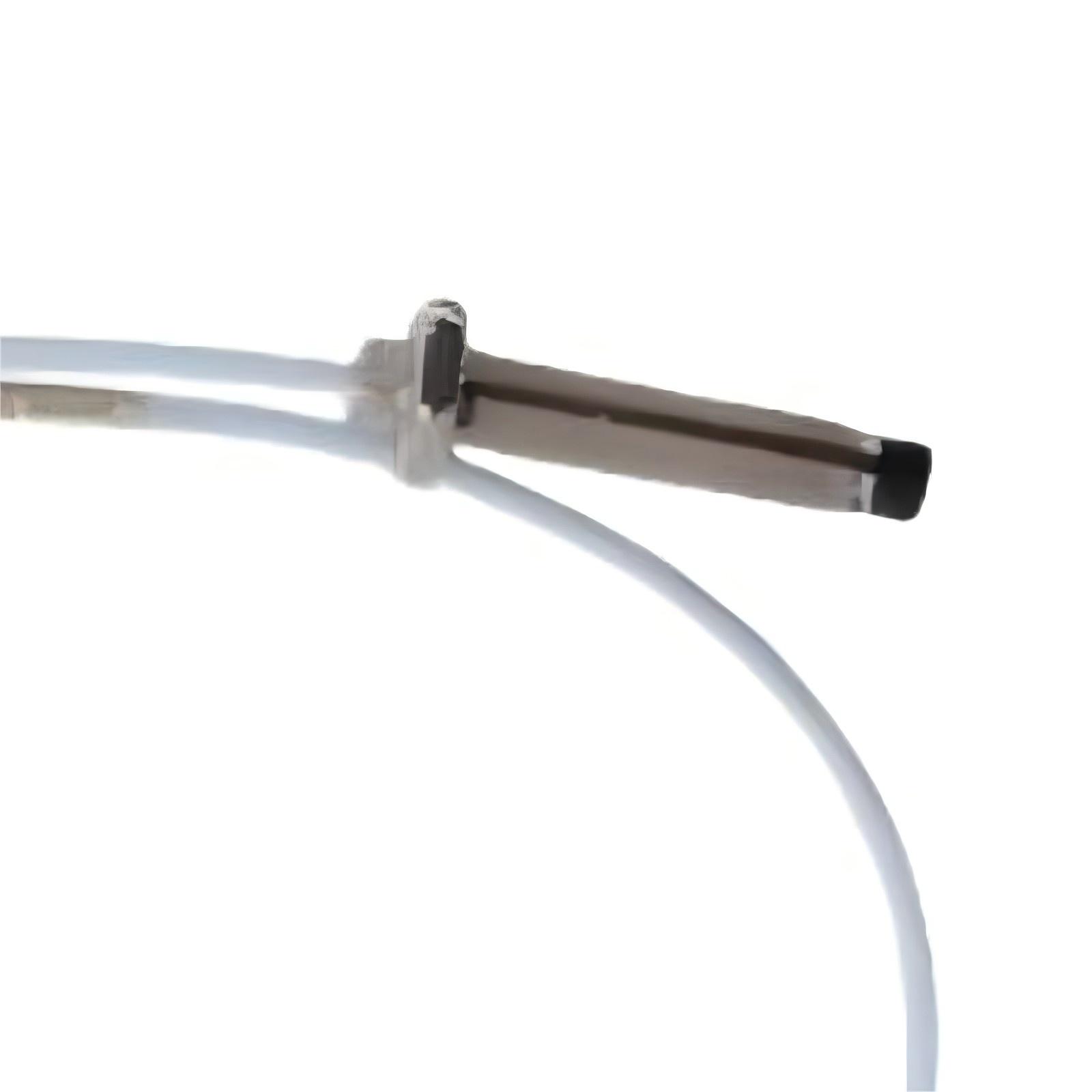

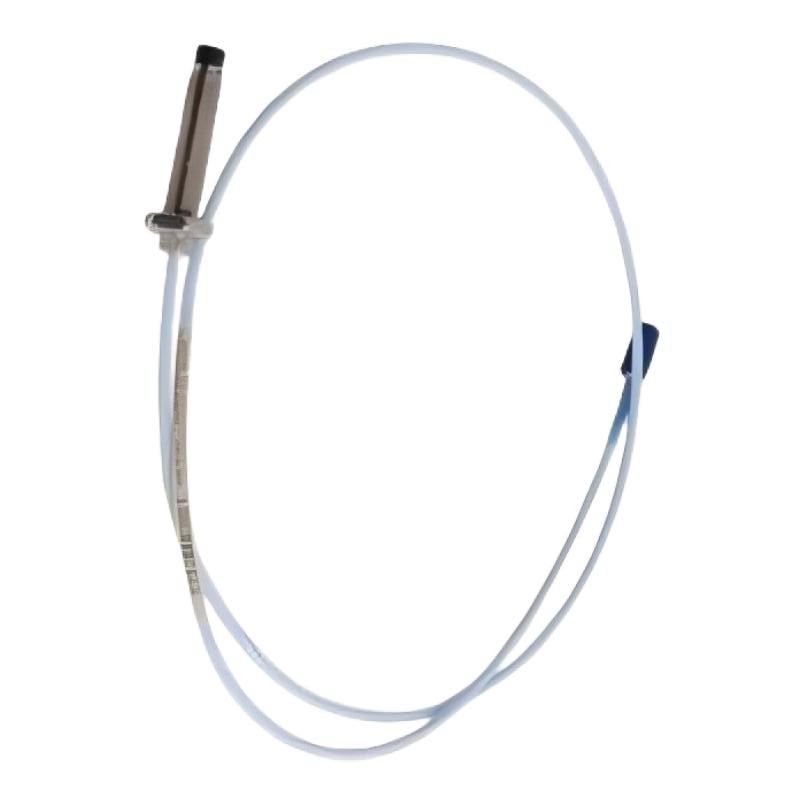

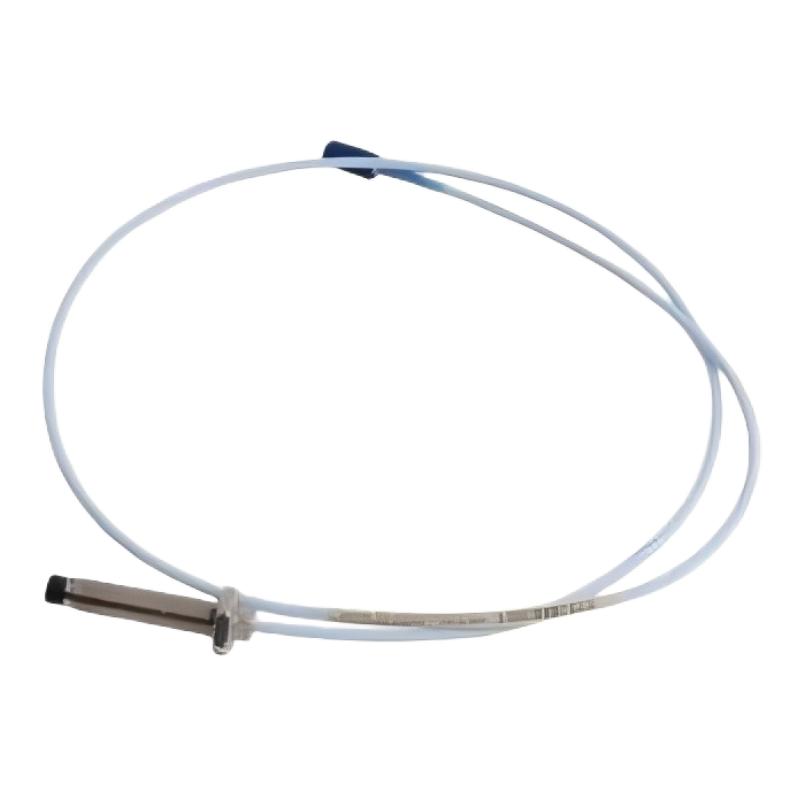

- 3300 XL 11 mm Eddy Current Probe
- Sweden (SE)
- 1 meter
- 0.07 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 3
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview
In critical industrial environments, accurate monitoring of rotating equipment is essential for preventing unexpected failures and improving maintenance efficiency. The Bently Nevada 330701-00-40-10-12-05 3300 XL 11 mm Eddy Current Probe is a non-contact displacement sensor designed for high-performance machinery vibration monitoring and protection applications.
The probe uses advanced eddy current sensing technology to measure the relative distance between the probe tip and a conductive rotating shaft surface. By detecting changes in the electromagnetic field, the sensor converts shaft movement into electrical signals that can be analyzed by machinery monitoring systems.
The 3300 XL 11 mm Eddy Current Probe is widely used in critical rotating equipment where continuous monitoring of shaft vibration, position, and mechanical condition is required. Typical applications include steam turbines, gas turbines, compressors, generators, pumps, and other large industrial machines.
The Bently Nevada 330701-00-40-10-12-05 features a 1-meter total cable length configuration, providing flexible installation options for machinery protection systems while maintaining accurate signal transmission.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330701-00-40-10-12-05 |
| Product Series | 3300 XL 11 mm Eddy Current Probe |
| Product Type | Eddy Current Proximity Probe |
| Measurement Principle | Non-contact eddy current sensing |
| Probe Diameter | 11 mm |
| Measurement Type | Shaft displacement and vibration measurement |
| Cable Length | 1 meter |
| Cable Type | Industrial FluidLoc cable design |
| Connector Type | Miniature coaxial connection |
| Installation Method | Threaded mounting installation |
| Target Material | Conductive metal shaft surface |
| Application | Rotating machinery monitoring |
| Operating Environment | Industrial machinery systems |
| Weight | 0.07 kg |
Function and Working Principle
The Bently Nevada 330701-00-40-10-12-05 operates using eddy current measurement technology.
The probe generates a high-frequency electromagnetic field at the sensing tip. When the rotating shaft moves closer to or farther away from the probe, the electromagnetic characteristics change. These changes are converted into electrical signals representing the shaft displacement.
The monitoring system uses these signals to evaluate machine operating conditions and identify abnormal mechanical behavior.
1. Non-Contact Shaft Measurement
The probe measures shaft movement without physical contact.
This provides several advantages:
- No mechanical wear between sensor and shaft
- Suitable for high-speed rotating equipment
- Continuous online monitoring capability
- Stable measurement performance during operation
2. Vibration Monitoring Function
The probe provides accurate vibration measurement data for machinery protection.
It helps monitor:
- Rotor imbalance
- Shaft misalignment
- Mechanical looseness
- Bearing degradation
- Abnormal shaft movement
Early detection of vibration changes allows maintenance teams to take preventive action.
3. Shaft Position Measurement
The 3300 XL 11 mm Eddy Current Probe can also monitor shaft position changes.
Typical measurement applications include:
- Radial shaft displacement
- Axial shaft movement
- Thrust position monitoring
- Rotor clearance measurement
Role in Industrial Machinery Protection Systems
The Bently Nevada 330701-00-40-10-12-05 serves as a key sensing element in industrial machinery condition monitoring systems.
It works together with signal processing equipment and monitoring modules to provide real-time machine health information.
| System Component | Function |
|---|---|
| Eddy Current Probe | Detects shaft vibration and displacement |
| Extension Cable | Provides signal transmission connection |
| Signal Conditioning Module | Converts sensor output signals |
| Monitoring System | Analyzes machine condition |
| Control System | Provides alarms and protection actions |
The complete monitoring system helps improve equipment reliability and reduce unplanned downtime.
Industrial Applications
Steam Turbine Monitoring
The probe is commonly used for:
- Turbine shaft vibration measurement
- Rotor position monitoring
- Mechanical protection systems
- Continuous condition monitoring
Reliable vibration measurement helps protect expensive rotating equipment.
Gas Turbine Applications
Typical applications include:
- High-speed rotor monitoring
- Shaft displacement detection
- Bearing condition analysis
- Turbine protection systems
Compressor Condition Monitoring
The 330701-00-40-10-12-05 can be applied to:
- Centrifugal compressors
- Process compressors
- Industrial air compressors
It helps detect mechanical problems before major failures occur.
Pump and Generator Monitoring
Applications include:
- Large industrial pumps
- Power generation equipment
- Electric motors
- Heavy rotating machinery
Installation and System Integration
Correct installation is important to achieve accurate measurement results.
Mechanical Installation
Recommended installation practices:
- Install the probe at the correct measurement location
- Maintain proper probe gap distance
- Align the probe tip with the shaft surface
- Secure mounting threads properly
- Protect the sensing tip from mechanical damage
Electrical Connection
During integration, engineers should verify:
- Correct cable connection
- Proper signal routing
- Secure connector installation
- Separation from high-voltage interference sources
- Correct monitoring system configuration
Commissioning Process
Before equipment operation:
- Confirm probe installation position
- Check sensor signal output
- Verify vibration measurement values
- Adjust probe gap if necessary
- Test alarm and monitoring functions
Proper commissioning ensures reliable long-term operation.
Compatible System Components
The 330701-00-40-10-12-05 is typically integrated with related machinery monitoring components.
| Component | Function |
|---|---|
| 3300 XL Extension Cable | Extends sensor installation distance |
| Proximity Signal Conditioner | Processes probe signals |
| Machinery Monitoring Module | Performs vibration analysis |
| Protection Relay System | Provides equipment protection |
| Industrial Control System | Supervises machine operation |
Common Fault Symptoms and Troubleshooting
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| No vibration output | Cable connection failure | Check probe wiring |
| Incorrect displacement value | Incorrect probe gap | Adjust installation distance |
| Signal instability | Electrical interference | Improve cable routing |
| Excessive vibration reading | Shaft condition problem | Inspect mechanical equipment |
| Sensor alarm | Probe or cable fault | Check complete sensor loop |
| Intermittent signal loss | Loose connection | Verify connectors and wiring |
Recommended Alternative Models
| Model | Product Type | Key Feature | Application |
|---|---|---|---|
| Bently Nevada 330701-00-40-10-12-05 | 3300 XL 11 mm Eddy Current Probe | 1 meter cable configuration | Machinery vibration monitoring |
| Bently Nevada 330701-00-40-10-11-05 | 3300 XL 11 mm Eddy Current Probe | Similar sensing application | Rotating equipment protection |
| Bently Nevada 330702 Series | Eddy Current Probe | Enhanced mechanical protection | Harsh environments |
| Bently Nevada 330703 Series | Eddy Current Probe | Alternative installation configuration | Industrial machinery |
| Bently Nevada 3300 XL 8 mm Series | Eddy Current Probe | Compact sensing solution | General monitoring applications |
Key Advantages
- Non-contact measurement technology
- Accurate shaft vibration detection
- Reliable displacement monitoring
- Suitable for critical rotating equipment
- Supports predictive maintenance programs
- Reduces unexpected equipment downtime
- Provides stable industrial performance
- Compatible with machinery protection systems
Technical FAQs
What is the Bently Nevada 330701-00-40-10-12-05?
The Bently Nevada 330701-00-40-10-12-05 is a 3300 XL 11 mm Eddy Current Probe used for non-contact shaft vibration and displacement measurement.
What does this probe measure?
It measures the distance between the probe tip and the rotating shaft surface to monitor vibration and displacement.
Where is the 3300 XL 11 mm probe used?
It is commonly used in turbines, compressors, generators, pumps, and other critical rotating machinery.
Does the probe contact the shaft?
No. The probe operates using electromagnetic eddy current technology and does not physically touch the rotating shaft.
Conclusion
The Bently Nevada 330701-00-40-10-12-05 3300 XL 11 mm Eddy Current Probe is a reliable and precise sensor designed for industrial machinery condition monitoring applications.
Through non-contact eddy current measurement technology, it provides accurate shaft vibration and displacement data for equipment protection and predictive maintenance systems.
For power plants, oil and gas facilities, manufacturing plants, and heavy industrial applications, the Bently Nevada 330701-00-40-10-12-05 helps improve machinery reliability, reduce maintenance costs, and enhance operational safety.
