- Bently Nevada
- 330701-00-40-10-11-05
- 3300 XL 11 mm Eddy Current Probe
- USA
- 1 meter
- 0.07 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 3
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

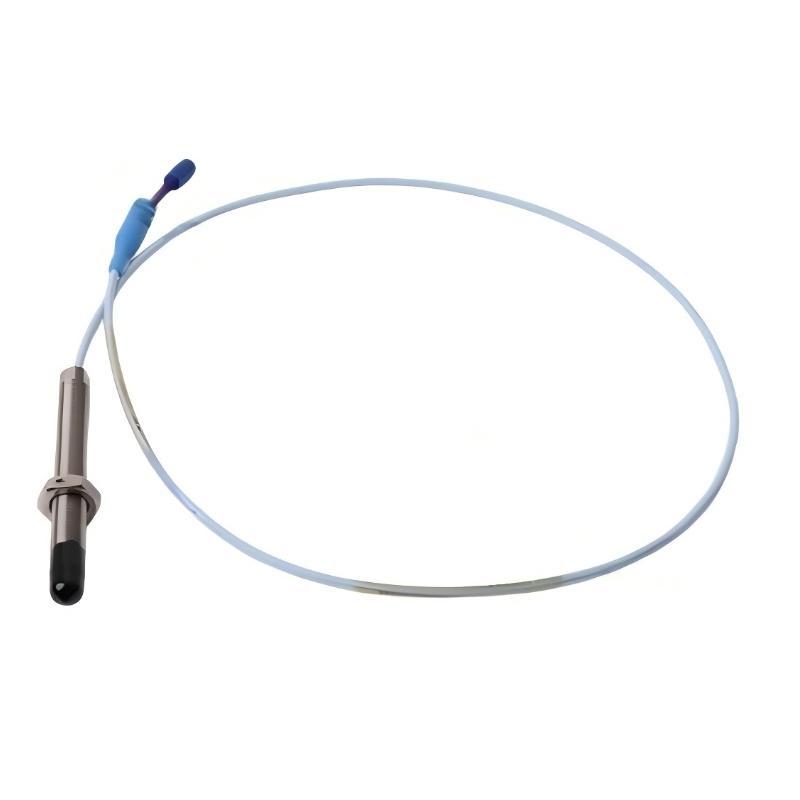

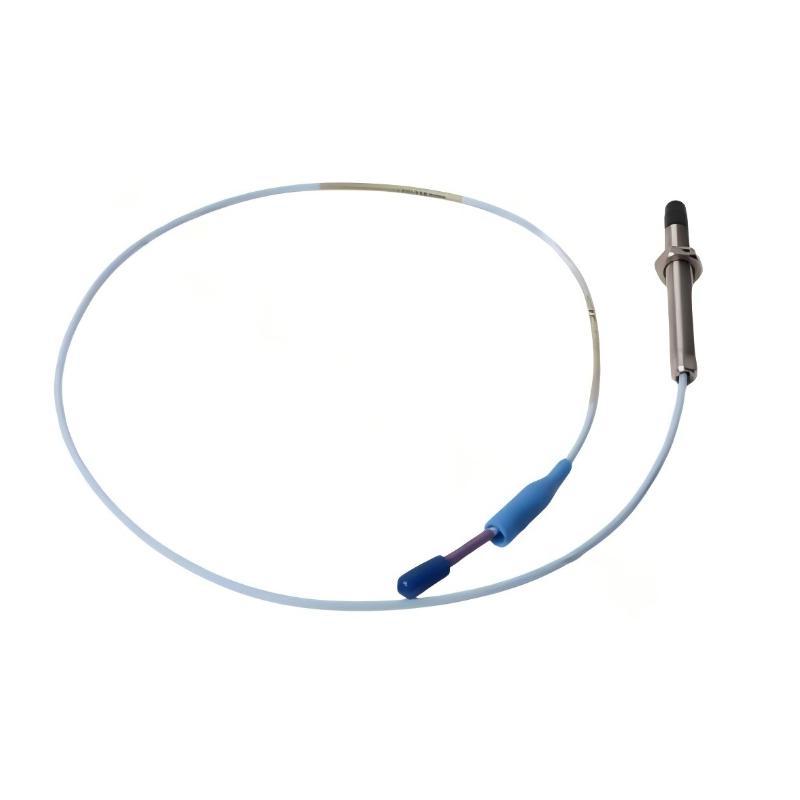

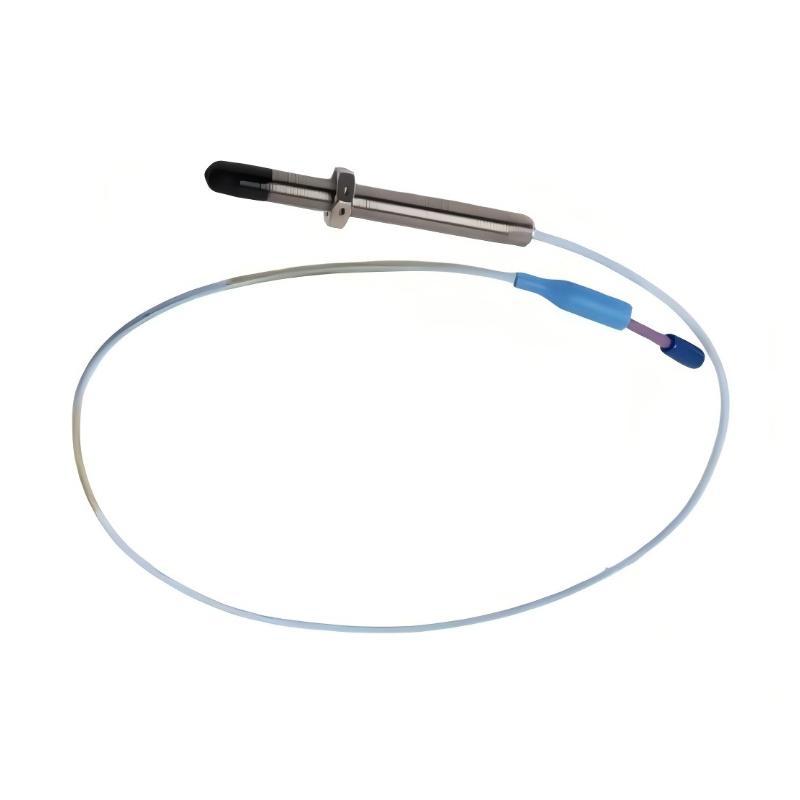

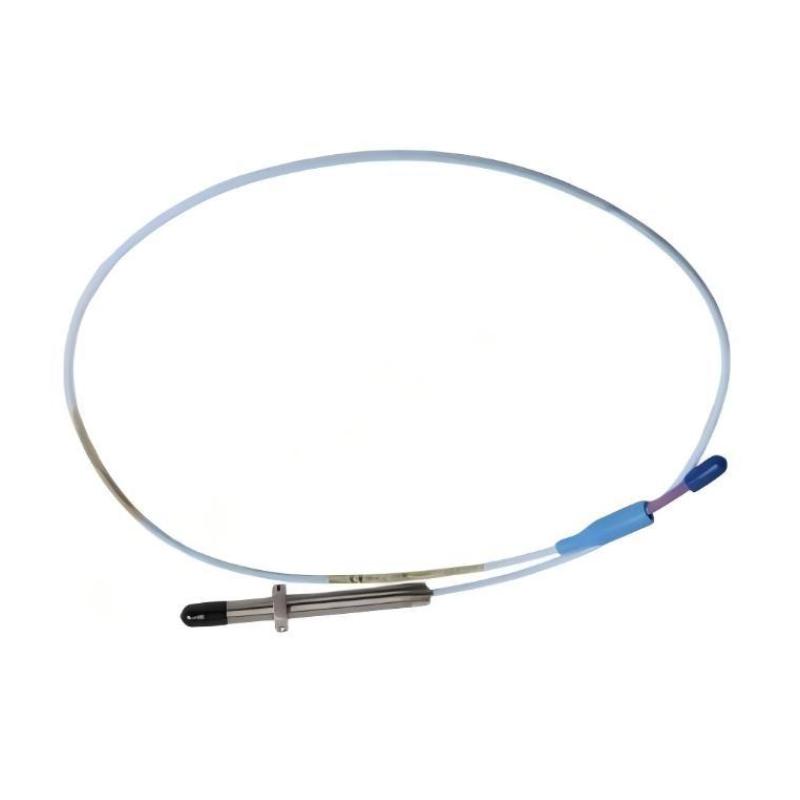

In critical industrial equipment, accurate vibration and displacement measurement are essential for preventing unexpected failures and improving machinery reliability. The Bently Nevada 330701-00-40-10-11-05 3300 XL 11 mm Eddy Current Probe is a high-performance non-contact proximity probe designed for monitoring the condition of rotating machinery.
Using advanced eddy current sensing technology, the probe detects the distance between the probe tip and the rotating shaft surface without physical contact. It converts shaft movement into electrical signals, allowing monitoring systems to analyze vibration, displacement, and machine operating conditions.
The 3300 XL 11 mm Eddy Current Probe is widely applied in large rotating equipment where accurate and continuous condition monitoring is required, including turbines, compressors, pumps, generators, and industrial rotating machinery.
Compared with smaller sensing probes, the 11 mm probe design provides an extended measurement range, making it suitable for applications requiring larger installation distances or greater measurement flexibility.
The Bently Nevada 330701-00-40-10-11-05 is typically integrated into a complete vibration monitoring system together with extension cables, signal conditioning devices, and machinery protection monitoring equipment.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330701-00-40-10-11-05 |
| Product Series | 3300 XL 11 mm Eddy Current Probe |
| Product Type | Non-contact Eddy Current Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| Probe Diameter | 11 mm |
| Thread Type | 1/2-20 UNF |
| Cable Type | FluidLoc Cable |
| Connector Type | Miniature coaxial ClickLoc connector with protector |
| Total Length | 1 meter |
| Measurement Function | Shaft vibration and displacement measurement |
| Measurement Method | Non-contact detection |
| Installation Application | Rotating machinery monitoring |
| Housing Material | Industrial stainless steel structure |
| Probe Tip Material | Industrial high-strength material |
| Weight | 0.07 kg |
| Application | Machinery condition monitoring systems |
Function and Working Principle
The Bently Nevada 330701-00-40-10-11-05 operates based on the principle of eddy current measurement.
The probe generates a high-frequency electromagnetic field at the sensing tip. When the metallic shaft surface moves within this electromagnetic field, the generated eddy current changes according to the distance between the probe and the target surface.
The system converts these changes into electrical output signals representing shaft movement and vibration conditions.
1. Non-Contact Vibration Measurement
The probe measures shaft movement without touching rotating components.
Main advantages include:
- No mechanical wear
- Continuous online monitoring
- High measurement stability
- Suitable for high-speed rotating equipment
2. Shaft Displacement Detection
The probe can accurately monitor shaft position changes.
Typical measurements include:
- Radial vibration
- Axial displacement
- Shaft position variation
- Rotor movement
This information is essential for evaluating machine operating conditions.
3. Machinery Protection Function
The probe provides important vibration data for machinery protection systems.
It helps identify:
- Rotor imbalance
- Shaft misalignment
- Mechanical looseness
- Bearing problems
- Abnormal operating conditions
Early detection allows maintenance teams to take corrective action before serious equipment damage occurs.
Role in Industrial Machinery Monitoring Systems
The Bently Nevada 330701-00-40-10-11-05 plays a key sensing role in rotating equipment monitoring systems.
It works together with other monitoring components to provide complete machine protection.
| System Component | Function |
|---|---|
| Eddy Current Probe | Detects shaft movement and vibration |
| Extension Cable | Transfers probe signals |
| Signal Conditioning Unit | Processes measurement signals |
| Monitoring Module | Analyzes machine condition |
| Control System | Provides alarms and protection actions |
The probe provides accurate field measurement data required for predictive maintenance strategies.
Industrial Applications
Steam Turbine Monitoring
The 3300 XL 11 mm Eddy Current Probe is commonly used for:
- Rotor vibration monitoring
- Shaft position measurement
- Turbine protection systems
- Mechanical condition analysis
Reliable vibration measurement helps improve turbine operating safety.
Gas Turbine Applications
Typical applications include:
- High-speed rotor monitoring
- Bearing condition monitoring
- Shaft displacement detection
- Equipment protection systems
Compressor Monitoring
The probe is suitable for:
- Centrifugal compressors
- Process compressors
- Reciprocating compressors
It helps detect abnormal vibration before equipment failure occurs.
Pump and Generator Systems
Applications include:
- Large industrial pumps
- Electric generators
- Power equipment
- Heavy rotating machinery
Installation and System Integration
Correct installation directly affects measurement accuracy and system reliability.
Mechanical Installation
Recommended installation procedures:
- Install the probe in the correct mounting position
- Maintain proper probe gap distance
- Align the probe with the shaft surface
- Avoid mechanical damage to the sensing tip
- Secure the cable connection properly
Electrical Connection
During installation, engineers should verify:
- Correct probe cable connection
- Proper signal transmission path
- Cable protection from interference
- Secure connector installation
- Correct monitoring system configuration
Commissioning Process
Before normal operation:
- Check probe installation position
- Verify signal output
- Confirm vibration measurement values
- Adjust probe gap if required
- Test monitoring system response
Proper commissioning ensures reliable long-term operation.
Compatible System Components
The 330701-00-40-10-11-05 is normally used with related machinery monitoring components.
| Component | Function |
|---|---|
| 3300 XL Extension Cable | Extends probe connection distance |
| Proximity Signal Conditioner | Converts probe output signals |
| Machinery Monitoring Modules | Provides vibration analysis |
| Protection Systems | Generates alarms and shutdown signals |
| Industrial Control Systems | Supervises equipment operation |
Common Fault Symptoms and Troubleshooting
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| No vibration signal | Cable connection problem | Check probe and cable wiring |
| Incorrect vibration value | Improper probe gap | Adjust installation distance |
| Signal fluctuation | Electrical interference | Improve cable shielding |
| Communication alarm | Sensor system problem | Check monitoring equipment |
| Unstable measurement | Probe mounting issue | Verify mechanical installation |
| Sudden signal loss | Cable damage | Inspect cable condition |
Recommended Alternative Models
| Model | Product Type | Key Feature | Application |
|---|---|---|---|
| Bently Nevada 330701-00-40-10-11-05 | 3300 XL 11 mm Eddy Current Probe | 1 meter cable configuration | Rotating machinery monitoring |
| Bently Nevada 330701 Series | Eddy Current Probe | Standard 11 mm sensing design | Industrial vibration monitoring |
| Bently Nevada 330702 Series | Armored Eddy Current Probe | Enhanced cable protection | Harsh environments |
| Bently Nevada 330703 Series | Metric Thread Probe | Metric installation option | International equipment |
| Bently Nevada 3300 XL 8 mm Probe | Eddy Current Probe | Compact sensing solution | General machinery monitoring |
Key Advantages
- Non-contact vibration measurement technology
- Accurate shaft displacement monitoring
- Suitable for critical rotating equipment
- Supports continuous condition monitoring
- Reduces mechanical wear compared with contact sensors
- Provides reliable measurement performance
- Suitable for industrial environments
- Helps improve predictive maintenance efficiency
Technical FAQs
What is the Bently Nevada 330701-00-40-10-11-05?
The Bently Nevada 330701-00-40-10-11-05 is a 3300 XL 11 mm Eddy Current Probe designed for non-contact vibration and displacement measurement.
What does an eddy current probe measure?
It measures the distance between the probe tip and the conductive shaft surface, allowing vibration and displacement monitoring.
Where is this probe commonly used?
It is commonly used in turbines, compressors, pumps, generators, and other critical rotating machinery.
Does the probe contact the rotating shaft?
No. The probe uses electromagnetic sensing technology and operates without physical contact.
Conclusion
The Bently Nevada 330701-00-40-10-11-05 3300 XL 11 mm Eddy Current Probe is a reliable sensing component designed for advanced industrial machinery monitoring applications.
Through accurate non-contact displacement measurement and vibration detection, it helps engineers monitor equipment health, identify abnormal operating conditions, and reduce unexpected downtime.
For power plants, oil and gas facilities, manufacturing industries, and heavy machinery applications, the Bently Nevada 330701-00-40-10-11-05 provides a dependable solution for improving equipment reliability, maintenance efficiency, and operational safety.
