Product Overview

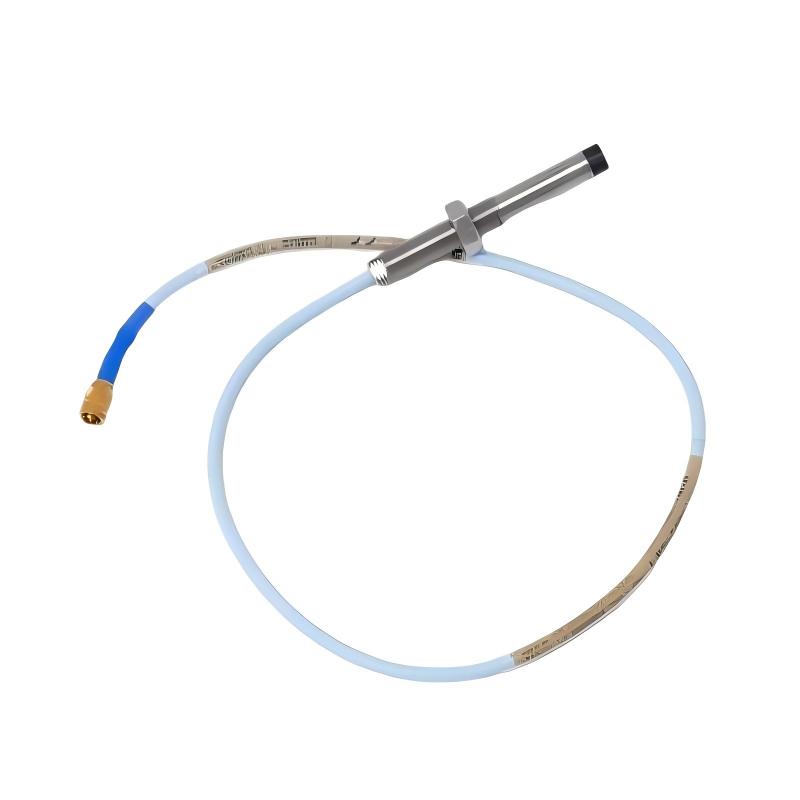

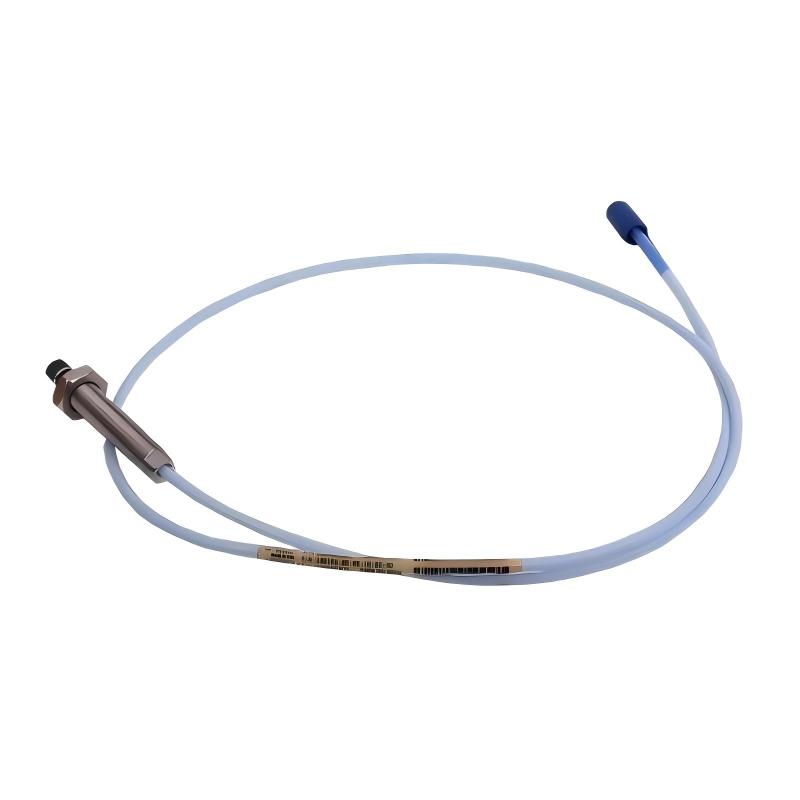

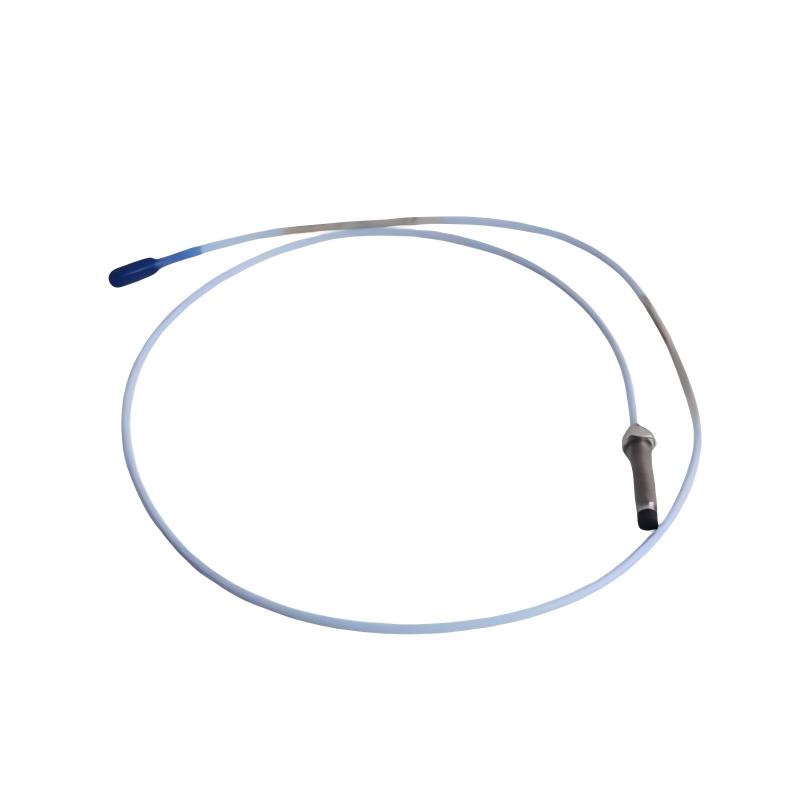

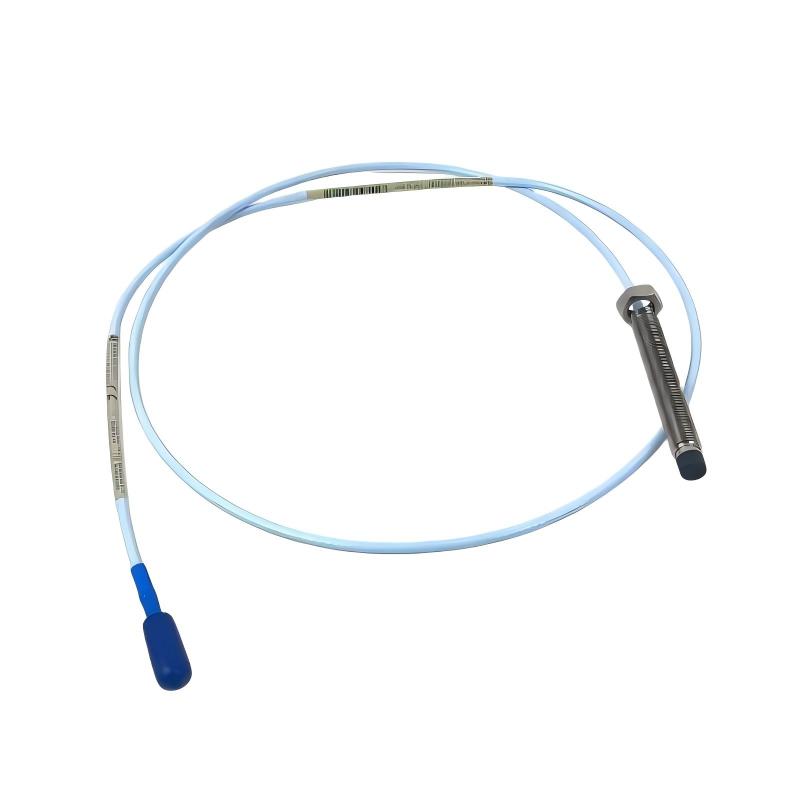

The Bently Nevada 330701-00-30-10-02-05 3300 XL 11 mm Eddy Current Probe is a high-performance industrial proximity sensor designed for rotating machinery condition monitoring, vibration measurement, and equipment protection applications.
This eddy current probe provides accurate non-contact measurement of shaft vibration, radial displacement, and shaft position changes. It is widely used in critical rotating equipment where reliable monitoring, stable signal performance, and early fault detection are essential.
The Bently Nevada 3300 XL 11 mm Eddy Current Probe uses electromagnetic sensing technology to detect variations in the distance between the probe tip and the rotating shaft surface. The sensor converts mechanical displacement changes into electrical signals, which are used by machinery monitoring systems for equipment condition analysis and predictive maintenance.
The 330701-00-30-10-02-05 model features a 1-meter total length configuration, providing a compact installation option for applications where the probe and monitoring electronics are positioned within a short distance.
The Bently Nevada 330701-00-30-10-02-05 configuration includes:
- Product Type: 3300 XL 11 mm Eddy Current Probe
- Model: 330701-00-30-10-02-05
- Application: Rotating Machinery Condition Monitoring
- Sensor Technology: Eddy Current Proximity Measurement
- Function: Shaft Vibration and Displacement Detection
- Total Length: 1 meter
- Weight: 0.07 kg
The Bently Nevada 330701-00-30-10-02-05 provides reliable measurement performance for industrial machinery protection systems, vibration monitoring applications, and predictive maintenance solutions.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330701-00-30-10-02-05 |
| Product Type | 3300 XL 11 mm Eddy Current Probe |
| Sensor Type | Eddy Current Proximity Sensor |
| Measurement Method | Non-contact Displacement Measurement |
| Application | Rotating Equipment Monitoring |
| Probe Series | 3300 XL 11 mm |
| Measurement Function | Shaft Vibration and Position Monitoring |
| Cable Length | 1 meter |
| Installation Type | Industrial Machinery Installation |
| Total Length | 1 meter |
| Weight | 0.07 kg |
| Main Function | Machinery Condition Monitoring |
Function and Working Principle
The Bently Nevada 330701-00-30-10-02-05 Eddy Current Probe operates based on electromagnetic eddy current sensing principles.
During operation, the probe generates a high-frequency electromagnetic field around the sensing tip. When the distance between the probe and the rotating shaft changes, the electromagnetic characteristics change accordingly. These changes are converted into electrical signals representing shaft movement and vibration conditions.
The working process includes:
- Generating an electromagnetic sensing field.
- Detecting changes in shaft-to-probe distance.
- Converting mechanical displacement into electrical signals.
- Transmitting measurement information to monitoring equipment.
- Supporting machinery condition evaluation.
The probe provides important measurement functions including:
- Shaft vibration monitoring
- Radial displacement detection
- Rotor position measurement
- Machinery protection support
- Predictive maintenance data collection
Product Functions
The Bently Nevada 3300 XL 11 mm Eddy Current Probe provides accurate and stable monitoring functions for industrial rotating machinery.
| Function | Description |
|---|---|
| Vibration Monitoring | Detects shaft vibration changes during operation |
| Displacement Measurement | Measures shaft movement and position variation |
| Non-contact Sensing | Provides wear-free distance measurement |
| Continuous Monitoring | Supports real-time equipment condition analysis |
| Fault Detection Support | Helps identify abnormal machinery conditions |
The sensor provides essential operating data to improve equipment reliability and reduce unexpected downtime.
Industrial Applications
The Bently Nevada 330701-00-30-10-02-05 is suitable for industrial applications requiring accurate rotating machinery monitoring.
| Industry | Application |
|---|---|
| Power Generation | Turbine vibration monitoring |
| Oil and Gas | Compressor and pump protection |
| Petrochemical | Rotating equipment monitoring |
| Manufacturing | Motor and gearbox condition monitoring |
| Steel Industry | Heavy machinery protection |
| Energy Industry | Critical equipment supervision |
| Chemical Industry | Process machinery monitoring |
| Marine Industry | Rotating equipment diagnostics |
Typical applications include:
- Steam turbines
- Gas turbines
- Compressors
- Industrial pumps
- Motors
- Gearboxes
- High-speed rotating machinery
Installation Guide
Installation Preparation
Before installing the Bently Nevada 330701-00-30-10-02-05:
- Confirm compatibility with the monitoring system
- Verify probe model specifications
- Inspect probe and cable condition
- Check installation location
- Prepare required installation tools
- Ensure safe equipment shutdown procedures
Hardware Installation
Installation steps:
- Shut down the monitored equipment safely.
- Confirm the correct probe mounting location.
- Install the eddy current probe securely.
- Adjust the sensing gap correctly.
- Connect the 1-meter cable.
- Verify signal transmission.
- Complete system testing.
Commissioning
After installation:
- Check probe output signal
- Verify sensing distance
- Confirm monitoring system connection
- Test vibration measurement
- Monitor signal stability
Proper commissioning ensures accurate measurement performance and reliable machinery protection.
Troubleshooting Guide
| Problem | Possible Cause | Solution |
|---|---|---|
| No Signal Output | Cable connection failure | Check probe wiring and connections |
| Incorrect Measurement | Improper sensing gap | Adjust probe installation position |
| Signal Instability | Electrical interference | Check cable routing |
| Sensor Alarm | Probe damage or installation issue | Inspect sensor condition |
| High Vibration Reading | Machinery operating problem | Check equipment condition |
| Monitoring System Cannot Detect Probe | Interface connection issue | Verify system compatibility |
Maintenance Recommendations
To maintain reliable operation of the Bently Nevada 330701-00-30-10-02-05:
- Inspect the probe regularly
- Check cable insulation condition
- Verify connector performance
- Keep installation area clean
- Prevent mechanical impact
- Perform periodic monitoring checks
Regular maintenance helps maintain measurement accuracy and extends sensor service life.
System Integration
The Bently Nevada 330701-00-30-10-02-05 Eddy Current Probe can be integrated into industrial machinery monitoring systems.
| System | Application |
|---|---|
| Machinery Protection System | Shaft vibration monitoring |
| Condition Monitoring System | Equipment health analysis |
| Turbine Monitoring System | Rotor displacement measurement |
| Industrial Control System | Machinery protection |
| Predictive Maintenance System | Fault diagnosis |
The probe provides reliable measurement signals for industrial equipment monitoring and protection.
Key Advantages
- High-precision eddy current sensing technology
- Accurate non-contact measurement
- Reliable shaft vibration monitoring
- Compact 1-meter configuration
- Stable signal performance
- Suitable for critical rotating machinery
- Supports predictive maintenance
- Improves equipment reliability
- Designed for industrial environments
Technical FAQs
What is the Bently Nevada 330701-00-30-10-02-05 used for?
The Bently Nevada 330701-00-30-10-02-05 is an eddy current proximity probe used for measuring shaft vibration, displacement, and position in rotating machinery.
What type of sensor is the 330701-00-30-10-02-05?
It is a 3300 XL 11 mm Eddy Current Probe designed for industrial machinery condition monitoring applications.
What is the total length of this probe?
The total length is 1 meter.
What is the weight of the Bently Nevada 330701-00-30-10-02-05?
The weight is 0.07 kg.
What equipment can use this probe?
It is suitable for turbines, compressors, pumps, motors, gearboxes, and other critical rotating equipment.
Why are eddy current probes important?
Eddy current probes provide accurate non-contact measurement of shaft movement and vibration, helping detect abnormal operating conditions and improve machinery reliability.
Conclusion
The Bently Nevada 330701-00-30-10-02-05 3300 XL 11 mm Eddy Current Probe is a reliable industrial sensor designed for rotating machinery condition monitoring and protection applications.
With accurate non-contact measurement capability, compact 1-meter configuration, stable signal performance, and durable industrial design, this probe helps improve equipment reliability, support predictive maintenance strategies, and ensure safe operation of critical industrial machinery.
